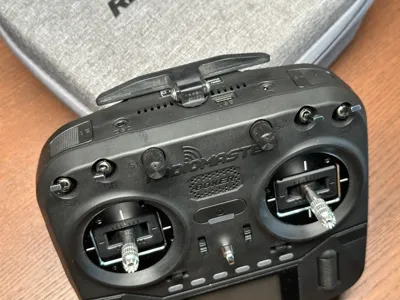

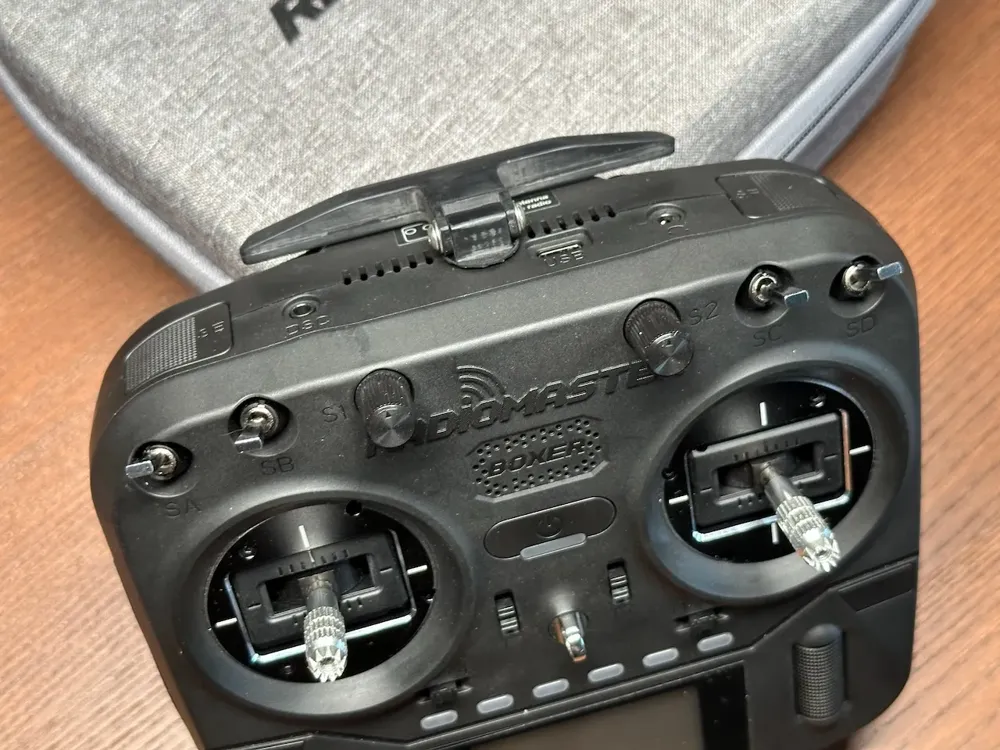

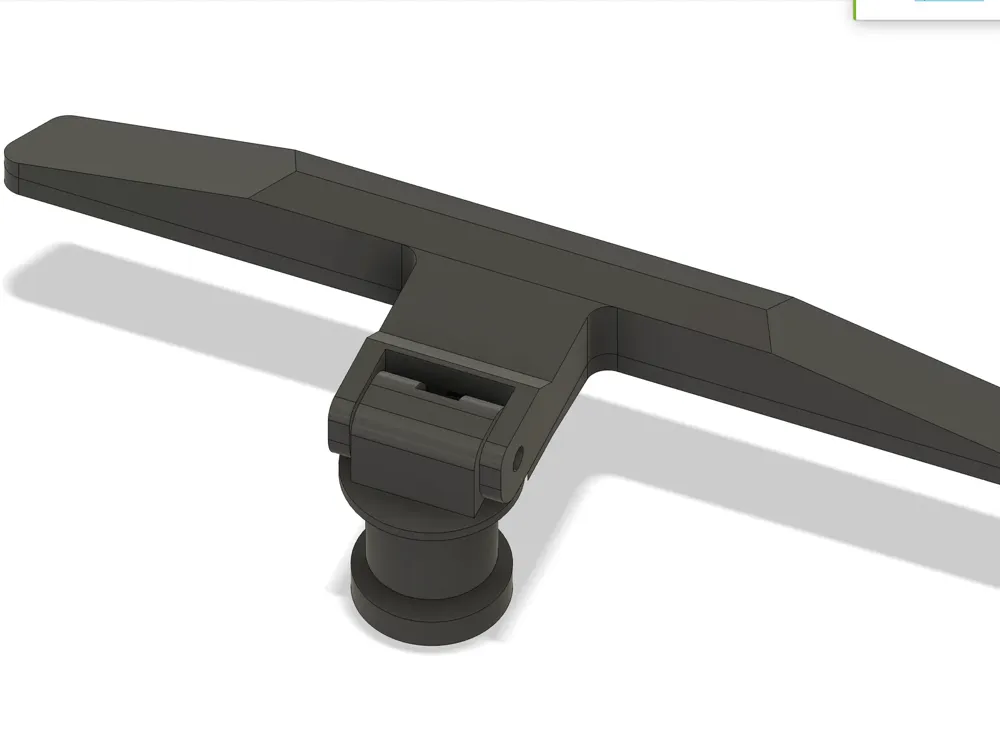

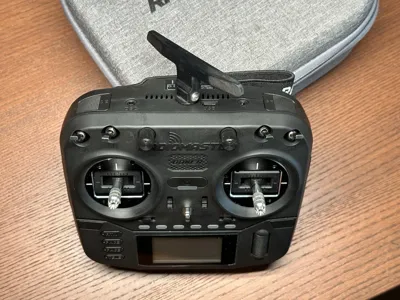

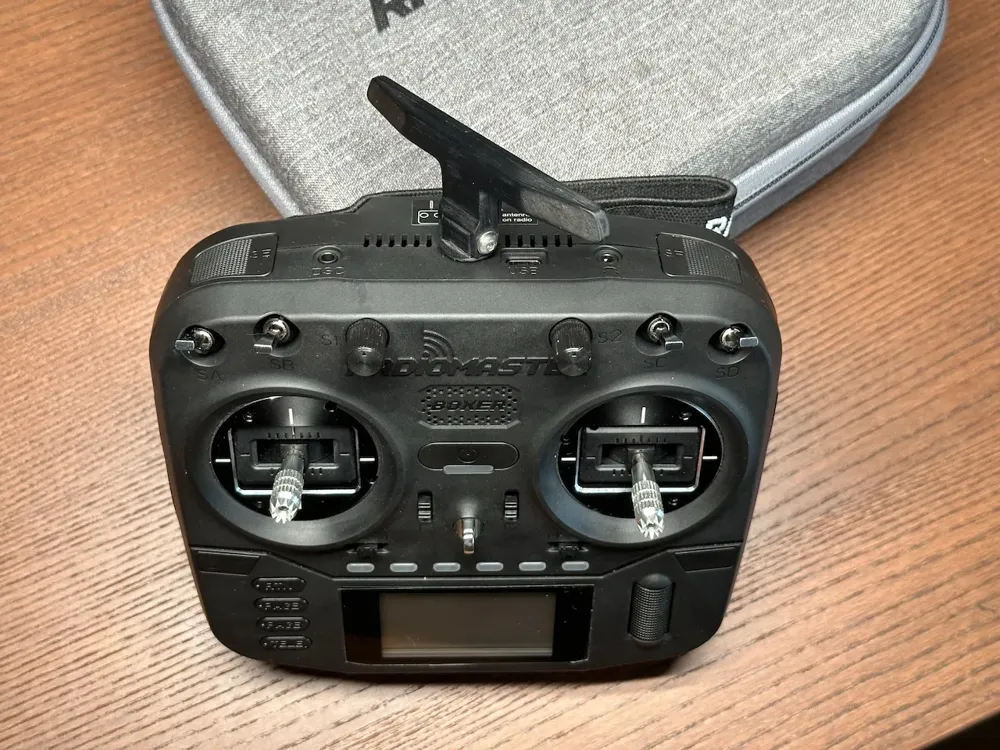

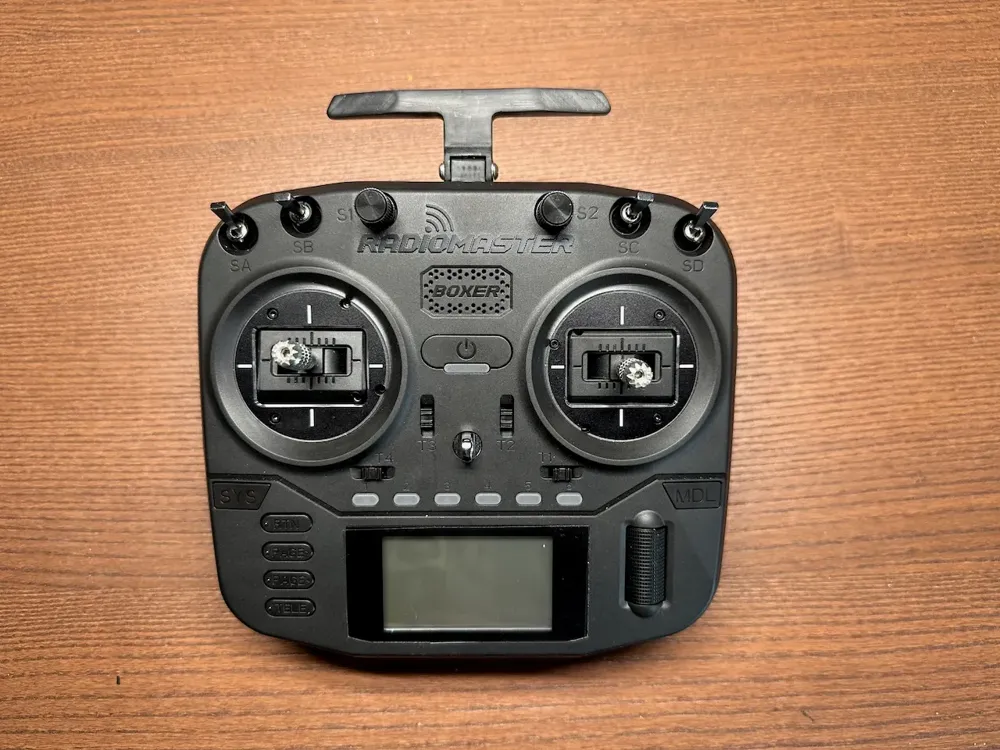

A low-profile (10mm high), foldable antenna for the Radiomaster Boxer with adequate design
To install that mod, you need to open the radio and unscrew the original antenna.
mount and mount-plug needs to be glued after mount to the holder inside radio.
You may use this instruction as a reference:
Materials
- 1x Foxeer ELRS 2.4GHz Receiver Antenna 15.5mm (https://www.aliexpress.com/item/1005005506134248.html)
- 2x M3x6 button socket head cap screws
- 2x M3 washers
- extra-thin glue
- sandpaper (optional)
- 2.5mm drill (to fix a hole in the top part)
Print Settings
- Material: any (I printed with ASA)
- Infill: 100%
- Nozzle: 0.4mm
- Layer Height: 0.08mm

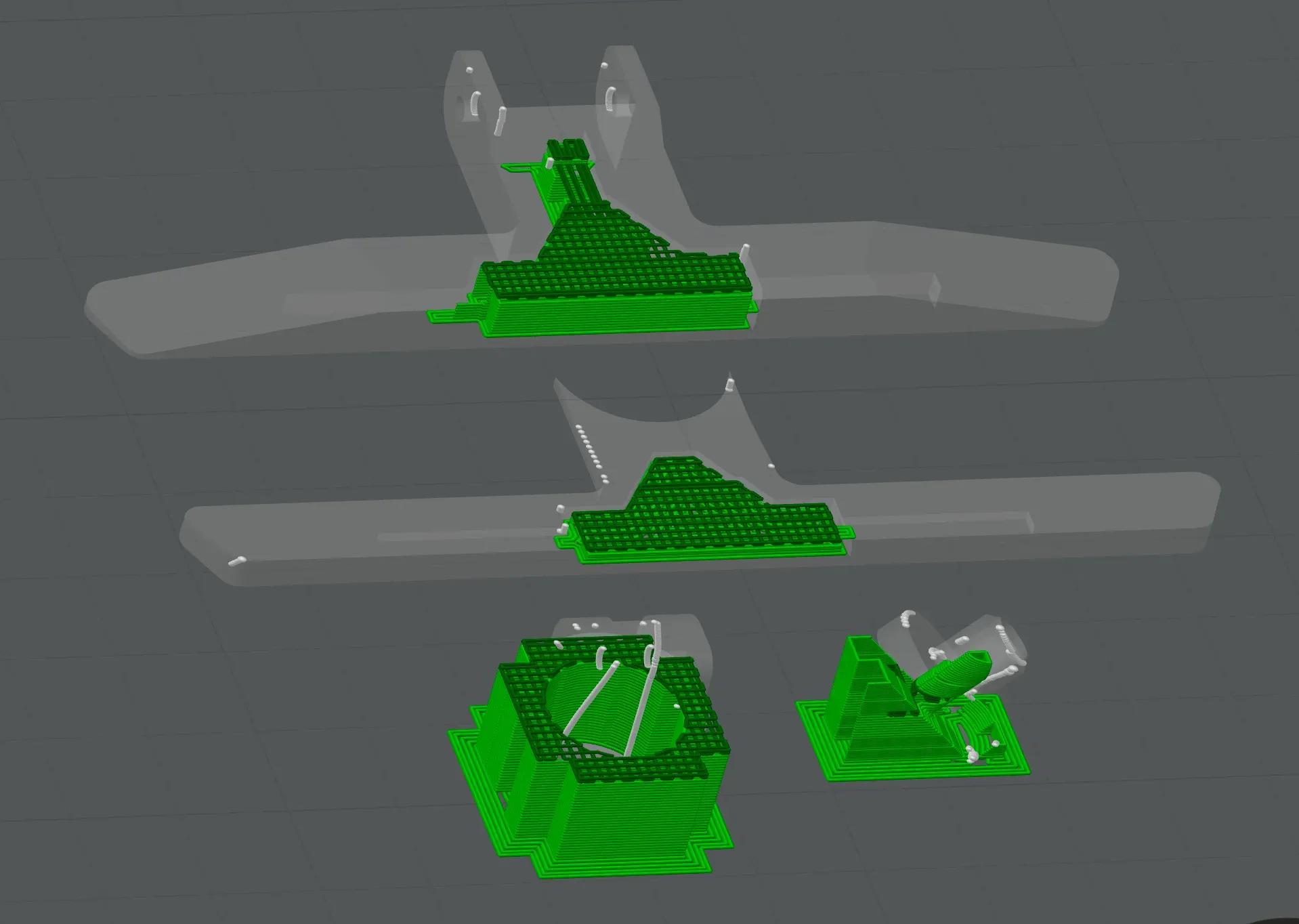

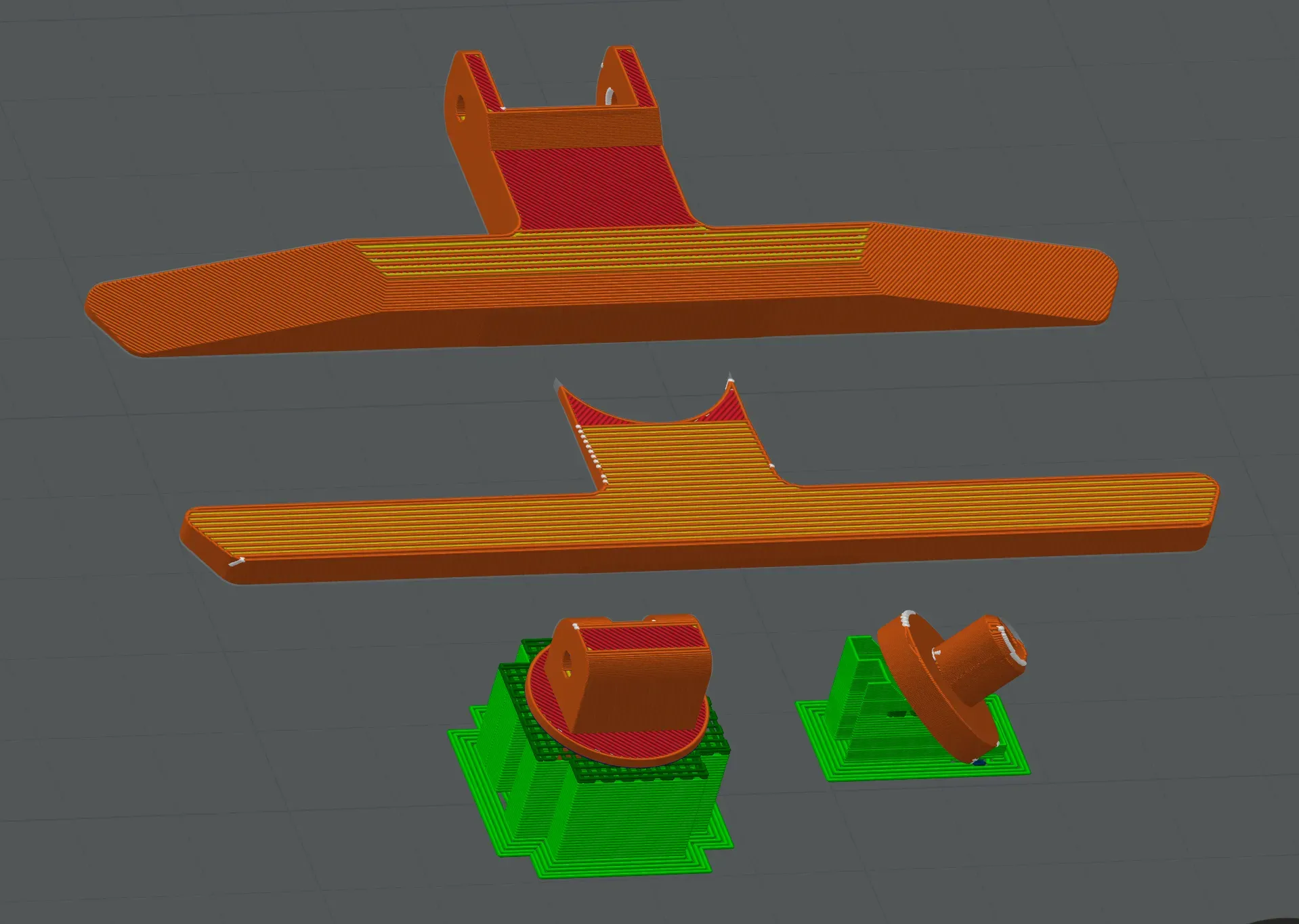

- Supports: manual (please refer to the attached picture)
- mount-bottom must be printed with 45 degrees
