IKEA Skadis Modular Pegboard TS35 DIN Rail Mount
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
36 min
1 plate
Open in Bambu Studio
Boost
60
178
6
1
154
78
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

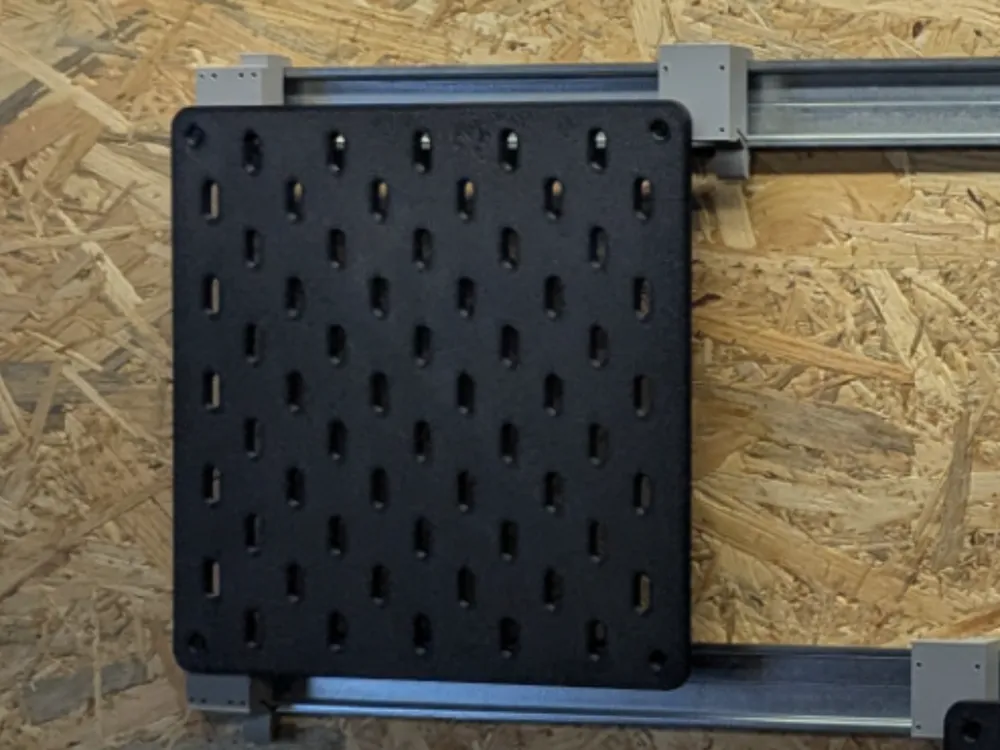

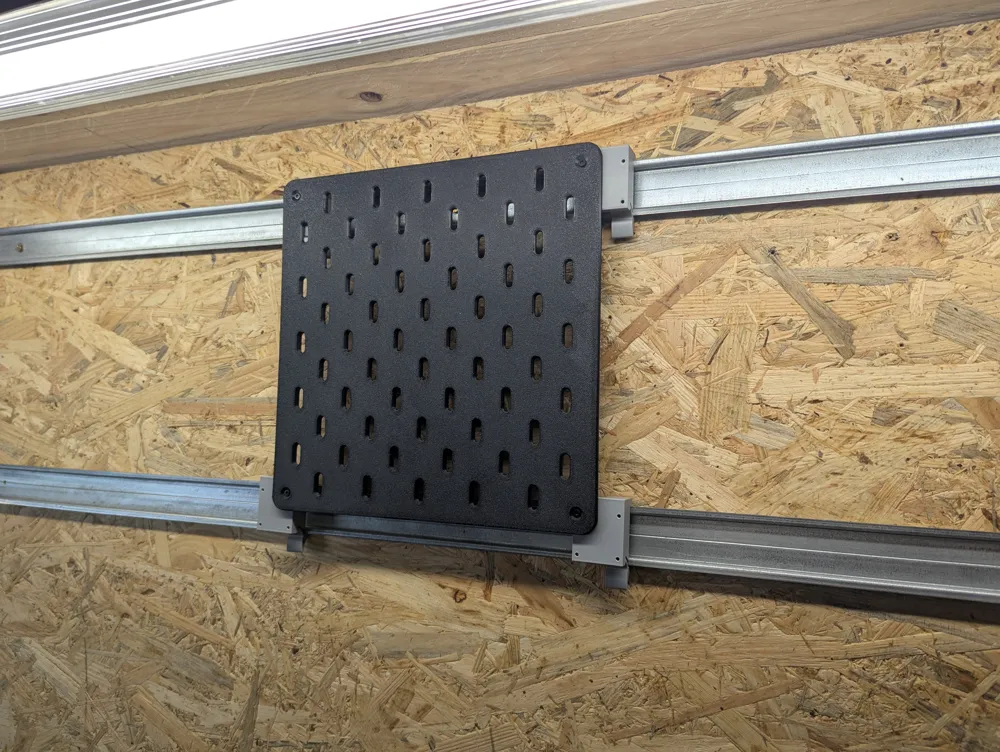

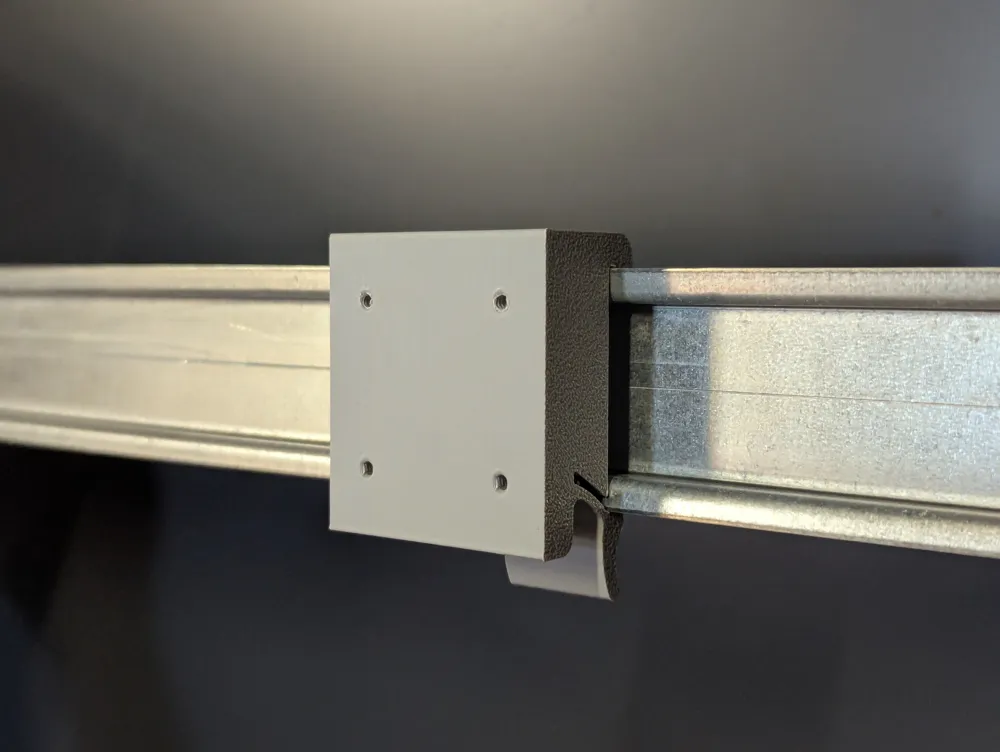

This is DIN rail mount that used to mount the Modular Pegboard Panels (IKEA Skadis compatible) to. It uses TS35 electrical rail or any similar with 35mm height.
The main benefits to this model are:
- It clicks into place at any orientation
- Uses one model for any corner combination (middle, side, upside-down. connecting)
- Uses less hardware by utilizing self-tapping screws (bill of materials below)
The model has number of holes, which depending on the orientation can be used for:

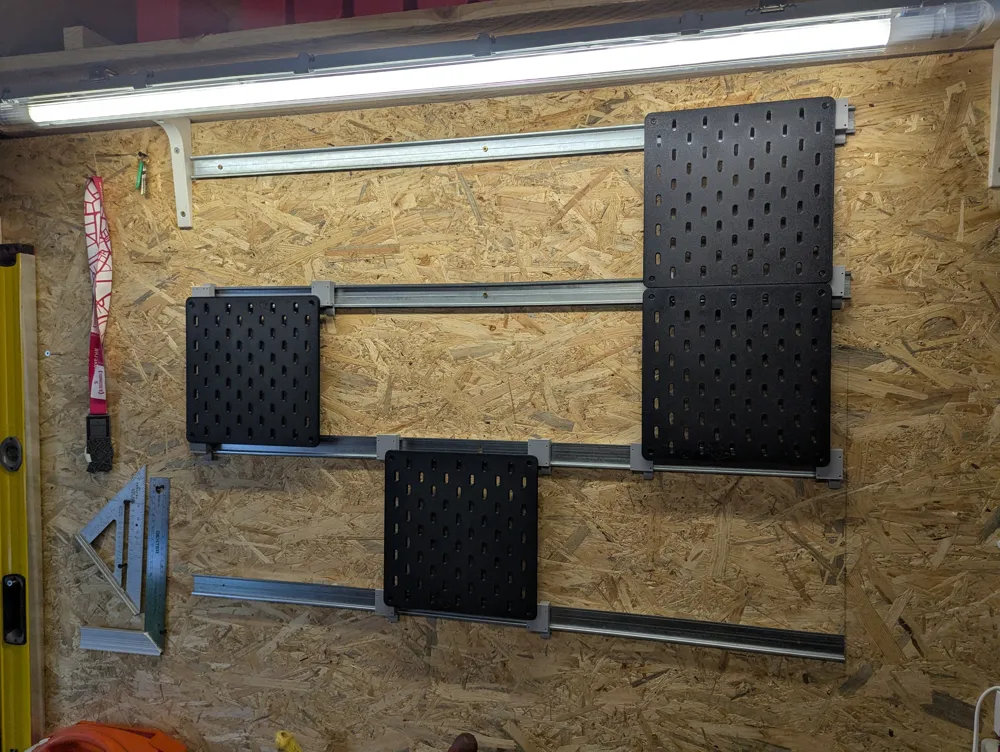

- Edge corners, hidden behind the board
- Connecting two boards at the top edge
- Connecting four boards in the middle
The self-tapping AA196 screws come in a pack of 20. This gives you screws for 5 panels. Order more, as these are really handy and cost next to nothing.
The mounting element is taken from the Dany's model. He has kindly provided STEP files, appreciate!
