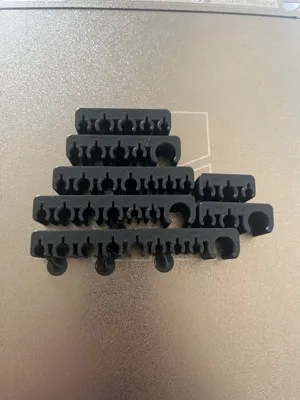

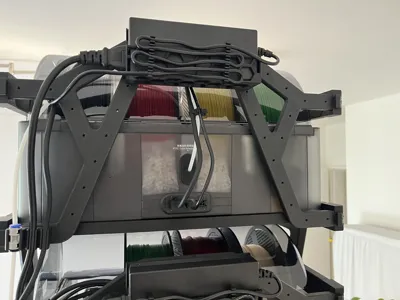

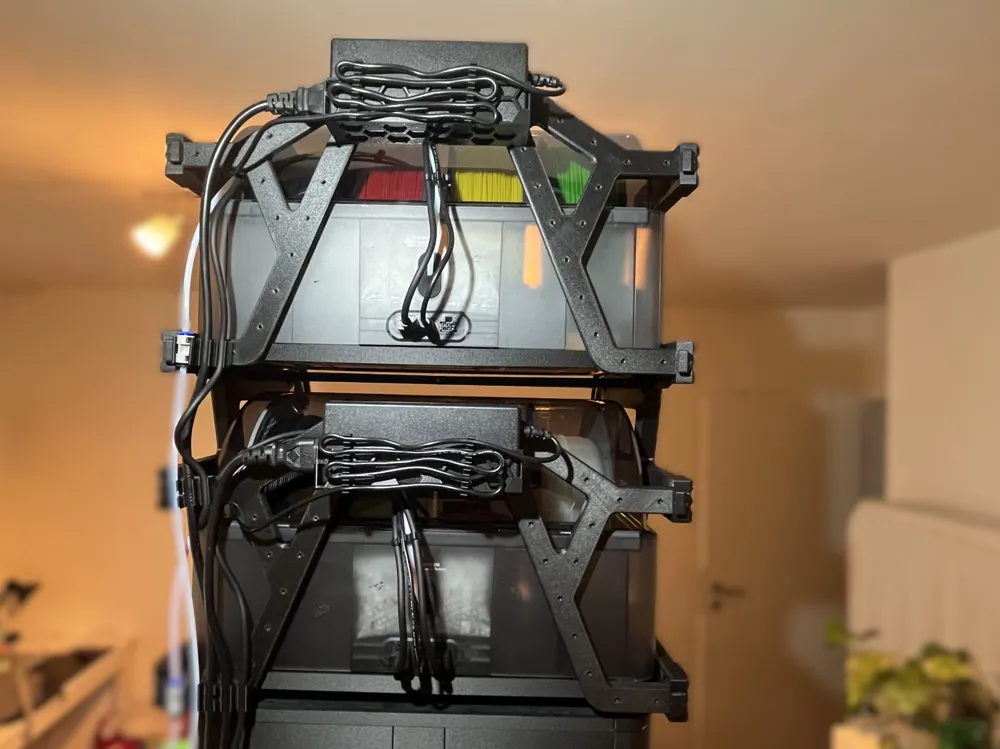

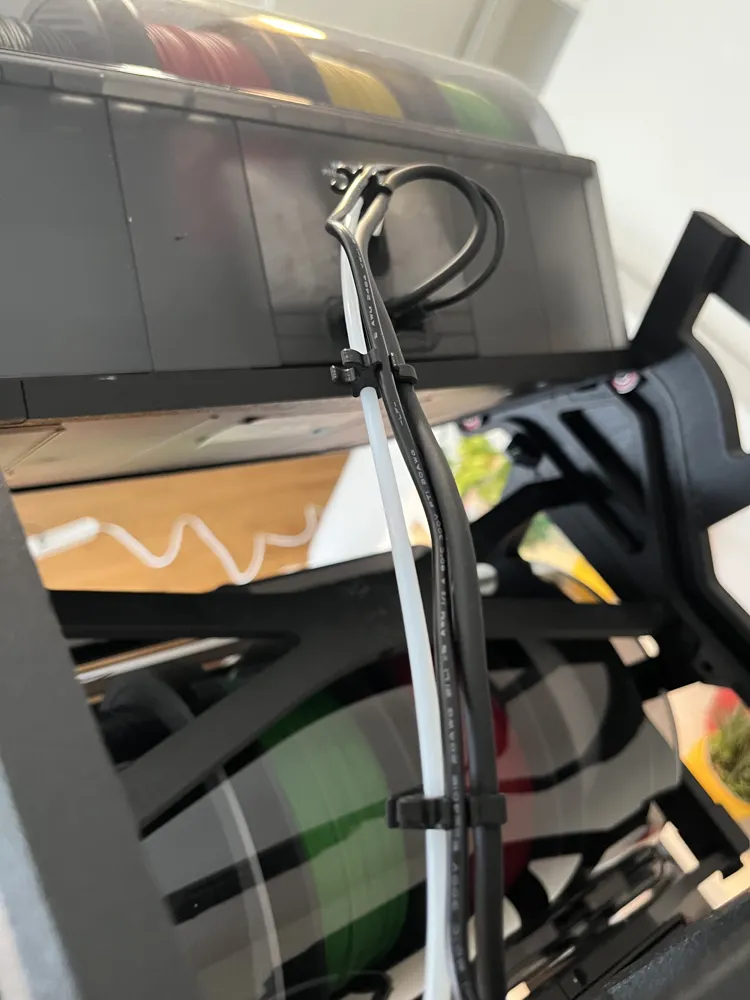

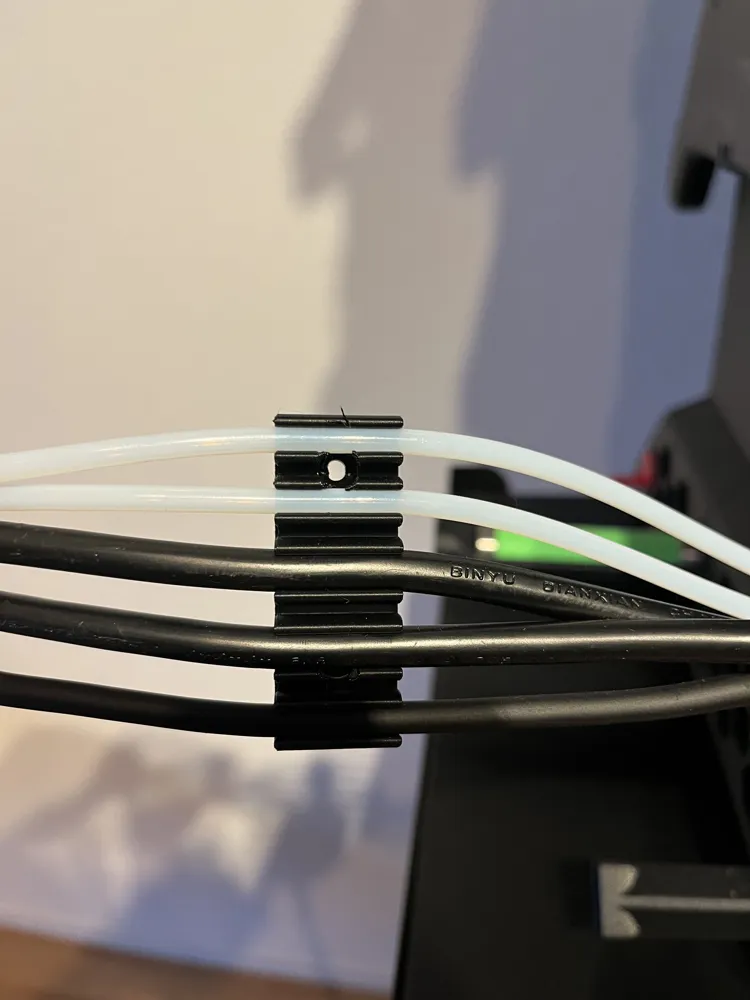

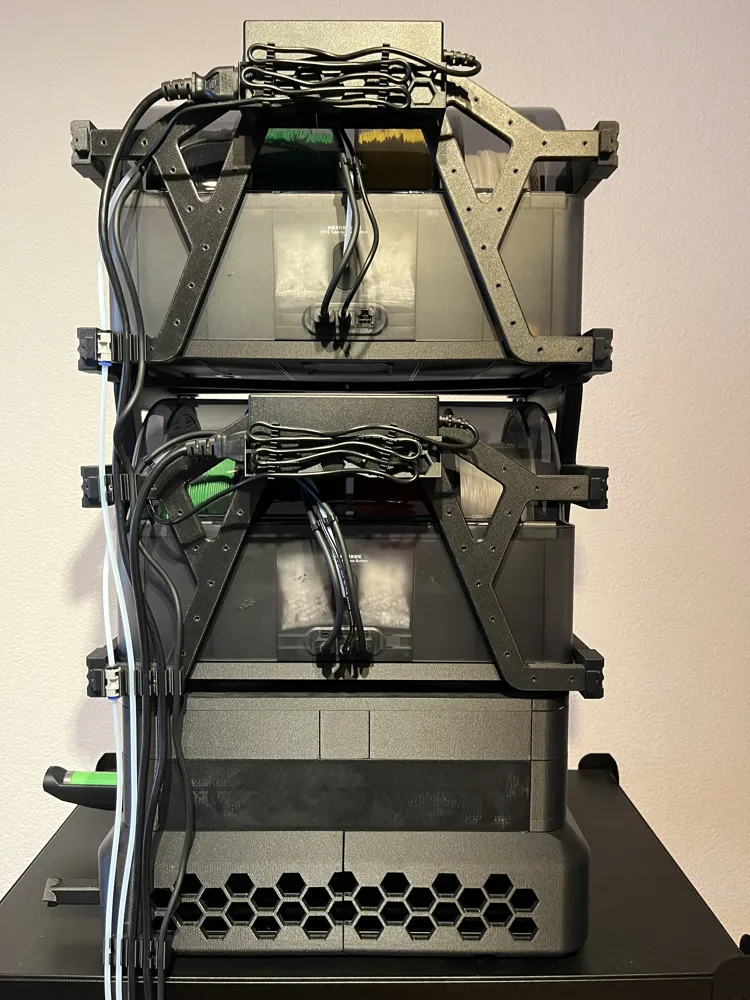

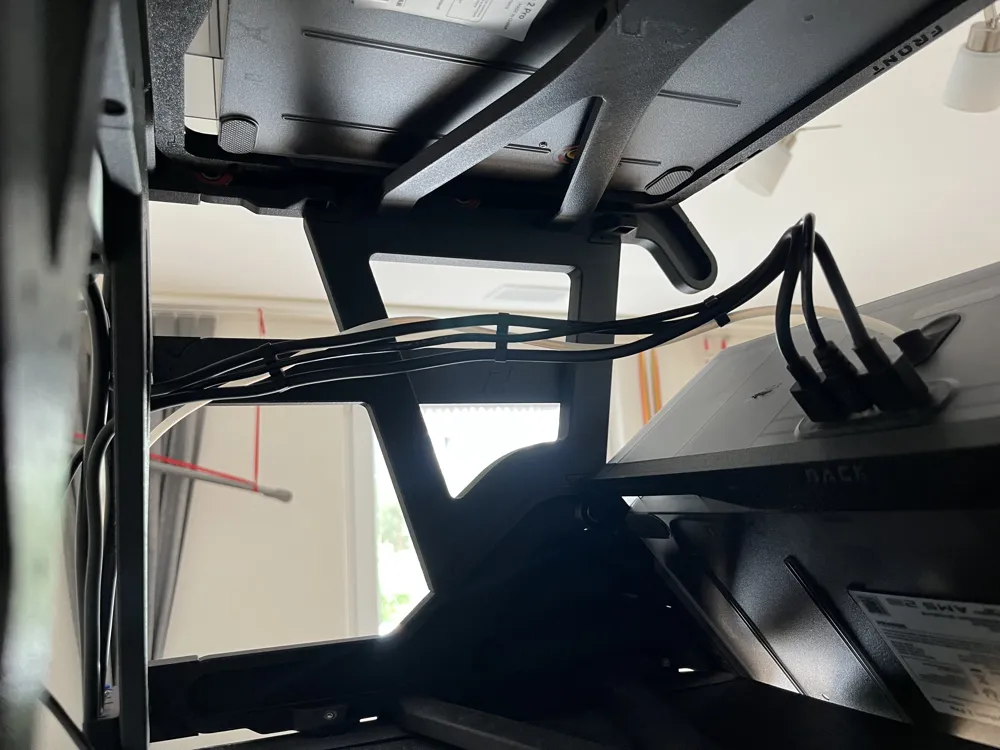

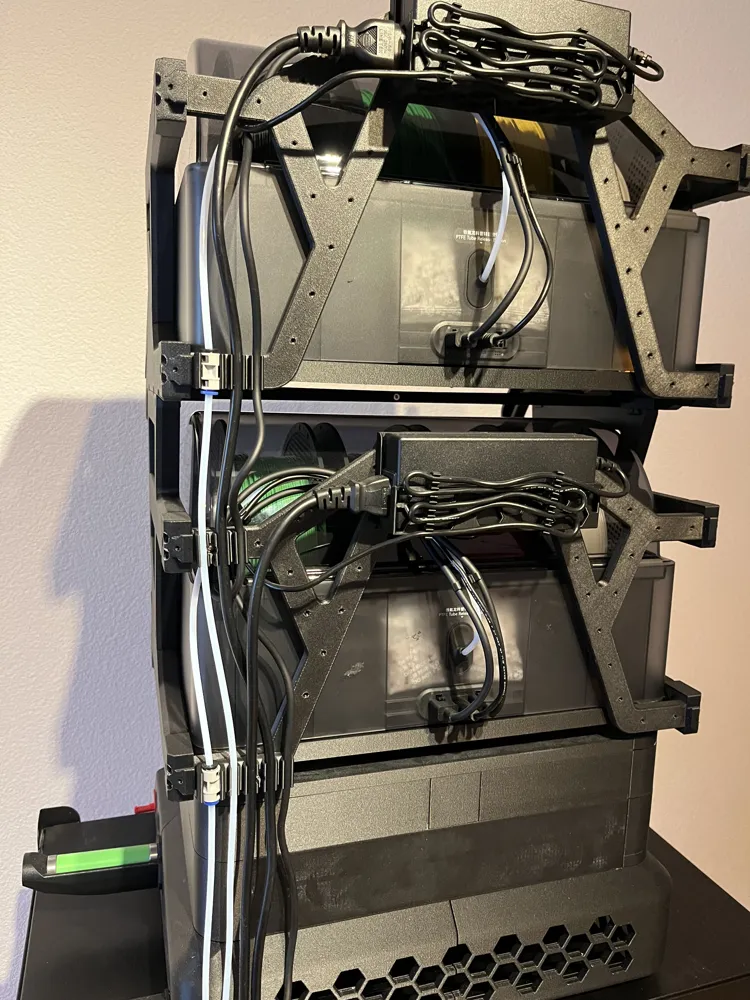

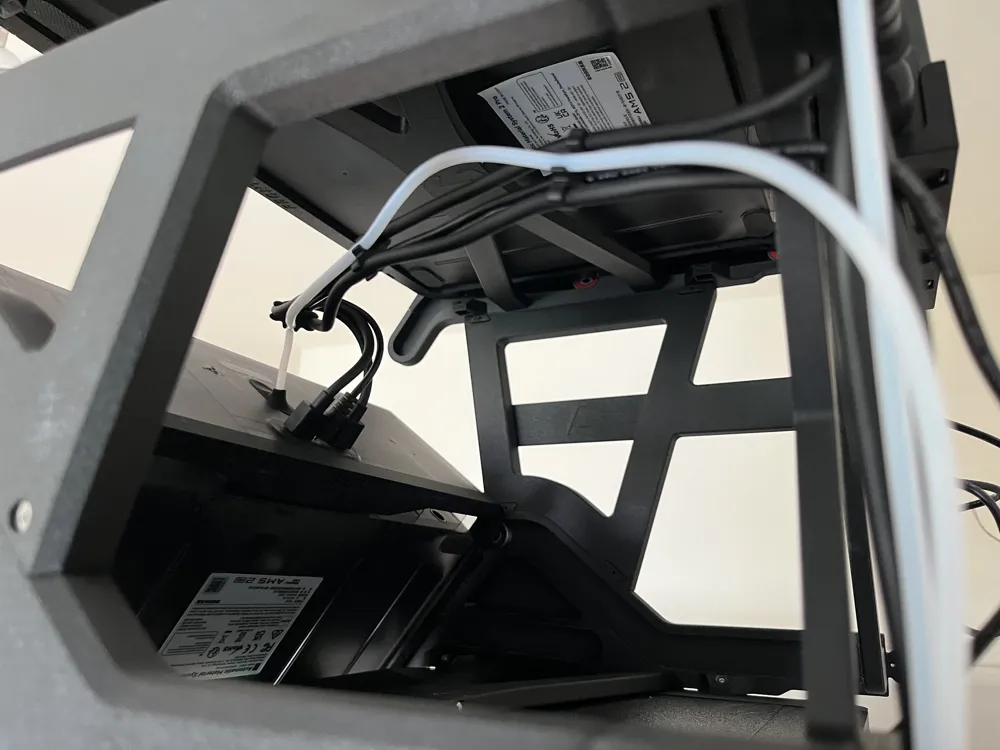

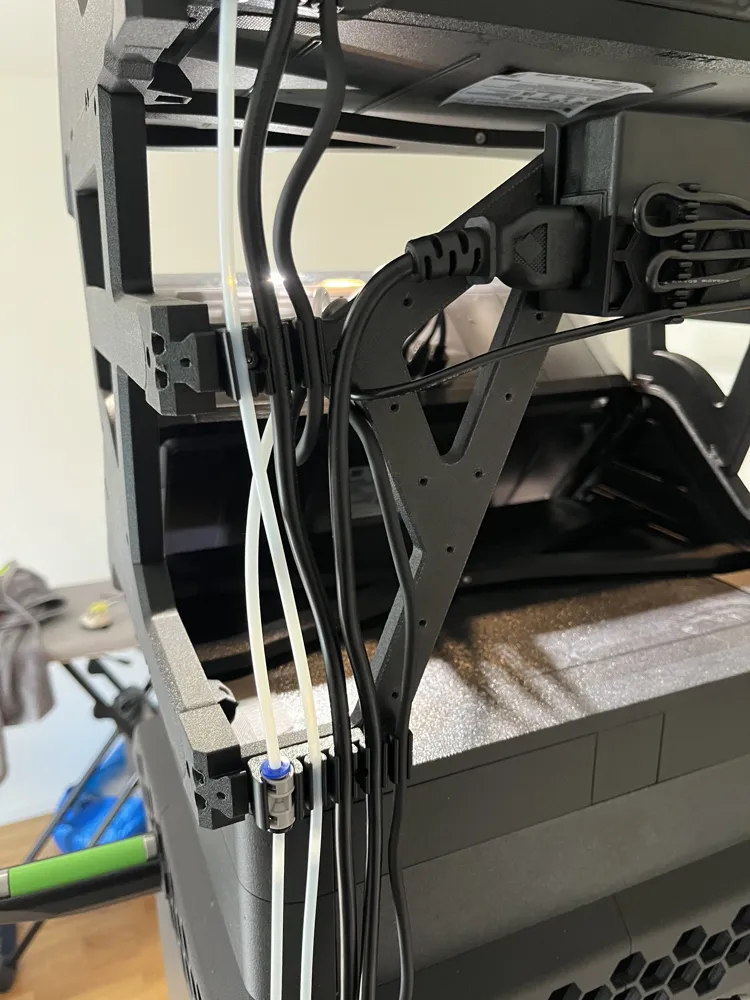

These models are used to organize the hoses and cables of the AMS Pro2 with or without charger.

A maximum of 8 screws (M3x8 countersunk screws (ISO 10642)) are used per AMS, AMS Pro2 and AMS-HT.

Compatible with the [BaBo duo] AMS Drawer Stacker] // [BaBo Duo] AMS HT Drawer Stacker by @Willi3D

These models are used to organize the hoses and cables of the AMS, AMS Pro2 with or without charger, and AMS-HT

A maximum of 8 screws (M3x8 countersunk screws (ISO 10642)) are used per AMS Pro2

Compatible with the[BaBo duo] AMS Drawer Stacker] // [BaBo Duo] AMS HT Drawer Stacker from @Willi3D

Comment & Rating (62)

@emu6114

Boosted

I like this solution a lot. Thank you for your design. Only thing I found was the holes in the power supply basket do not line up with the holes in the AMS stacker, or was there something I should have changed? The center holes match only with the very top most holes in the stacker, while the top two holes fit nothing.

The designer has replied

@Stephan_

Hello Thanks for your comment. I checked it on my end and it is flush at the top for me. I'll have to see if anything has been adjusted. Best regards

@Stephan_

I found the difference, the back part has been adjusted. I will adjust the part and upload it. Best regards

@Stephan_

Hello I have adjusted the model and published it. The screws now fit for me. Best regards, and I would appreciate your feedback.

@PlatonZero

Boosted

Print Profile

New X-Element from 19.07.2024_with charger.

perfect finally the power supply has a fixed place, it's not hanging on the cable tie anymore :-)

The profile uploader has replied

Show original

@Stephan_

Thank you for the photo and the positive review!

Show original

@bulsaraxxx

Boosted

i want to print this but what are the different plates for?

The designer has replied

@Stephan_

if you have several AMS. each number is for the corresponding AMS. You have 2 AMS with the charger, so you should print plate 1&2. Greetings and have fun

(Edited)

@bulsaraxxx

Boosted

Replying to @Stephan_ :

thanks i got it.

@Stephan_

Replying to @bulsaraxxx :

super👍 please feel free to give feedback

@PlatonZero

Boosted

great job thank you keep it up

Show original

@slovenian6474

Boosted

Firing this up now for the AMS2. Anyway you could do a version for the AMS HT (uses 3 AMS HT on one shelf) with 3 of the couplers?

The designer has replied

@Stephan_

Hello, I'd be happy to do that. The question for me now is whether the 3 HT are above or below the AMS? Best regards,

@slovenian6474

Boosted

Replying to @Stephan_ :

Woah you're quick! Mine are above.

@Stephan_

Replying to @slovenian6474 :

You are welcome to test the profile and give us your feedback? Thank you!

@ragesaq

Love how this looks, however, I am planning on wall mounting and this does not seem to be compatible. Are there any other locations this could mount?

The designer has replied

@Stephan_

Hello and thank you. Unfortunately, nothing is possible at the moment. However, what do you need? With or without the charger? Perhaps something can be arranged.

@ragesaq

Replying to @Stephan_ :

I found some screw holes on the inside of the wall mount, and since you posted the step file (THANKS!) I am able to reposition some of your screw holes to create a vertical mount. I'll send you something when I'm done, I'm mediocre at best at CAD but your design gives me a lot to work with.

@ColdRamen69

Replying to @ragesaq :

are you able to share your adjusted file for the wall mount version?

@Improve_It

your PTFE tube couplers are set upside down. It should be with black side to AMS

The designer has replied

@Stephan_

Thanks for the heads-up I already changed it a while ago Now also new photos👍

Show original

@bgilardi

Which base do you have your stackers on?

The designer has replied

@Stephan_

https://makerworld.com/en/models/712785-babo-duo-top-module#profileId-643190 https://makerworld.com/en/models/16350-babo-duo-drawer-module-30-organizer#profileId-15235 https://makerworld.com/en/models/188459-babo-duo-organizer-mono-drawer-module-30#profileId-207677 https://makerworld.com/en/models/653701-babo-duo-riser-honeycomb-hsw-module#profileId-580556 P1s this is my setup. then the AMS holder

Show original

@FOIXTRA

Can I check you only need the screws and 2 couplers for a 2 ams stack?

The designer has replied

@Stephan_

Yes, for the cable organization for 2 AMS stacks, I used the printed parts, the 2 plug-in couplings, 4 screws for the cable guides, and 8 screws for the transformers. I hope I was able to answer your questions.

@Rezueps

Fantastic! Works well and I printed it for all three AMS2s. Now all I need is a model to tidy away the hoses and cables from the HT.
