OnePunchMan Panel

Print Profile(1)

All
P1S
H2D
X1E
P1P
X1 Carbon
X1
A1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.08mm layer, 1 walls, 100% infill
0.08mm layer, 1 walls, 100% infill
Designer
5.9 h
1 plate
5.0(4)

Open in Bambu Studio
Boost
51
105
6
1
66
24
Released

Description

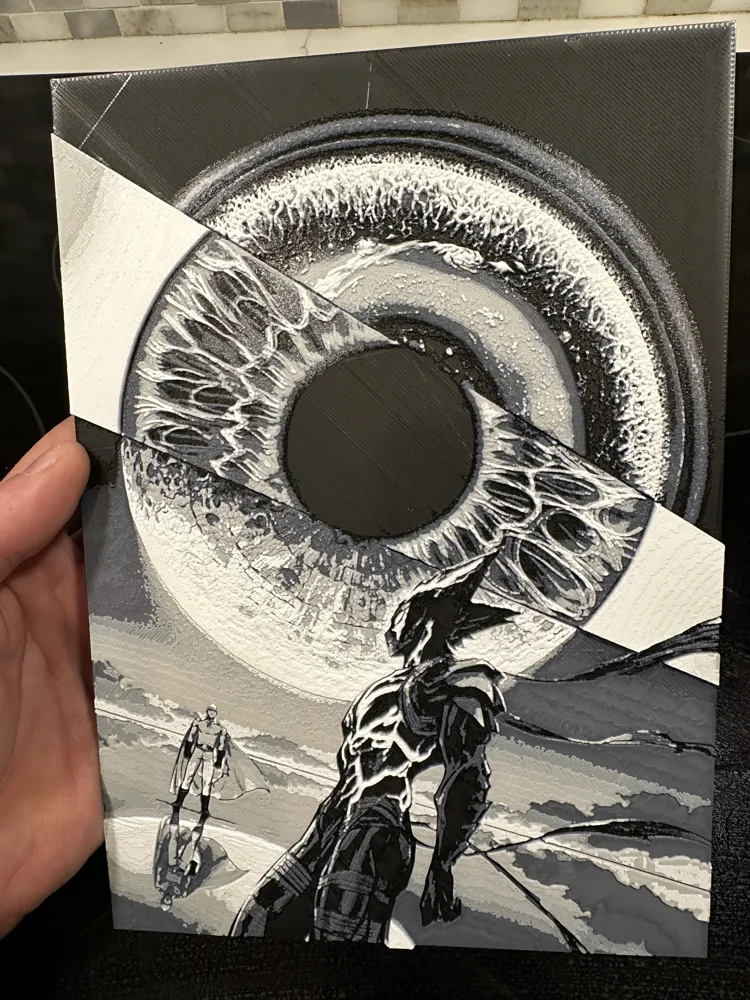

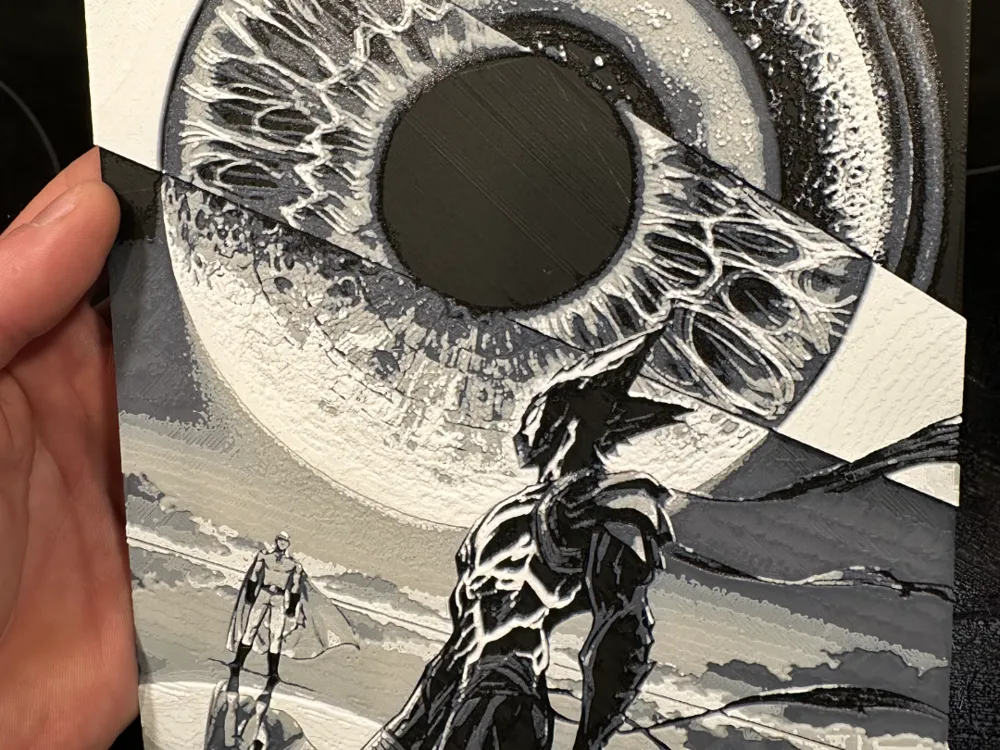

Made a few Hueforges of my favorite manga panels with the inland PLA+ I had lying around. Please pay attention to the Transmission Distance (TD) of my filaments so you can use a filament of similar TD to get similar results.







OnePunchMan Panel illustrated by ONE, Yusuke Murata


Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm



The Model is 140.66x200mm in size
You may print at higher layer heights below the Base Thickness of 0.48mm
The Max allowed Thickness is 3.2mm and the Actual Thickness is 3.2mm



Filaments Used:
    #080a0d PLA Inland Black Transmission Distance: 0.3
    #4d4d4d PLA+ Inland “Darker” Grey Transmission Distance: 1
    #adadad PLA Tough Inland Cosplay "Lighter" Grey Transmission Distance: 2
    #ffffff PLA+ Inland White Transmission Distance: 2

This print uses 4 unique filaments



No-AMS:

Swap Instructions:
    Start with Black
    At layer #14 (1.2mm) swap to “Darker” grey
    At layer #21 (1.76mm) swap to "Lighter" Grey
    At layer #28 (2.32mm) swap to White for the rest.


I do NOT own any rights to this panel or anime/manga in file.
OnePunchMan is Japanese manga series written and illustrated by ONE, Yusuke Murata.
