Remington Typewriter Ribbon Spools

Remixed by

Print Profile(1)

All
P1S
X1
P1P
X1E
H2D
A1 mini
X1 Carbon
A1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.08mm layer, 2 walls, 100% infill
0.08mm layer, 2 walls, 100% infill
Designer
44 min
1 plate

Open in Bambu Studio
Boost
9
27
9
2
19
10
Released

Description

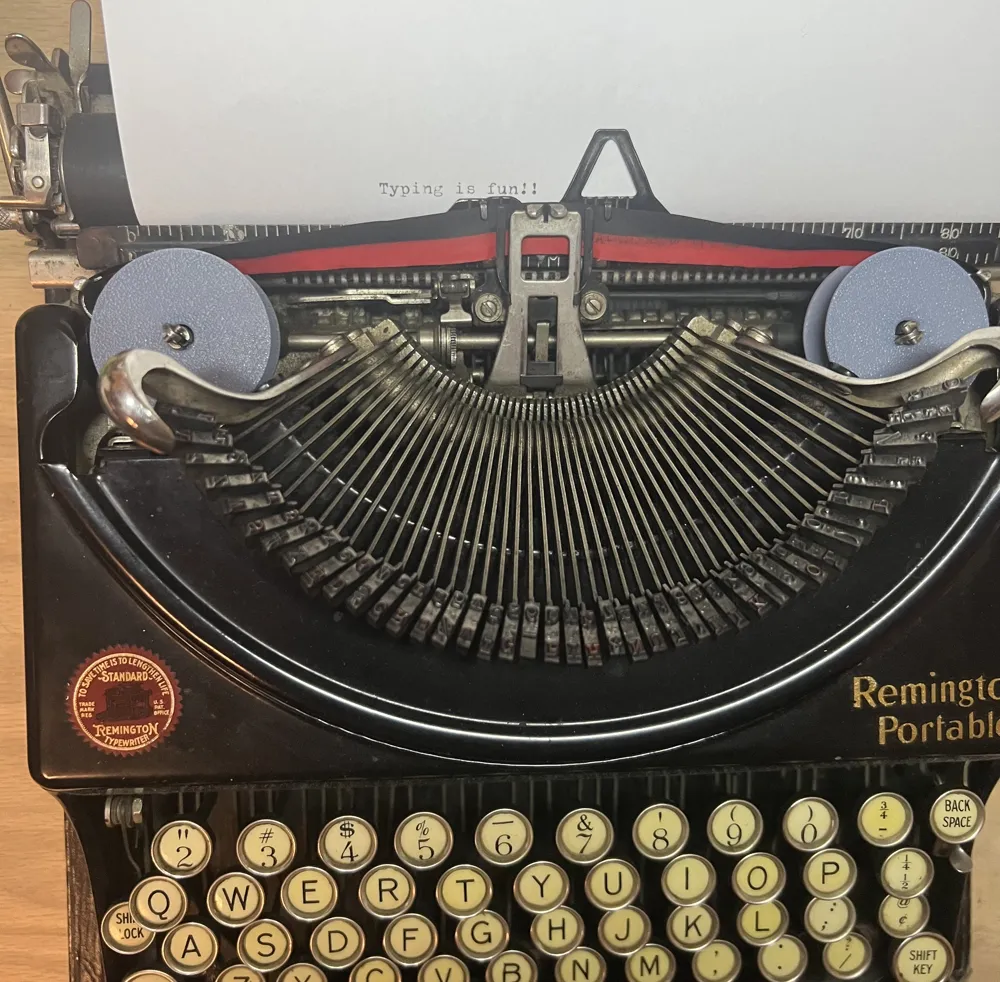

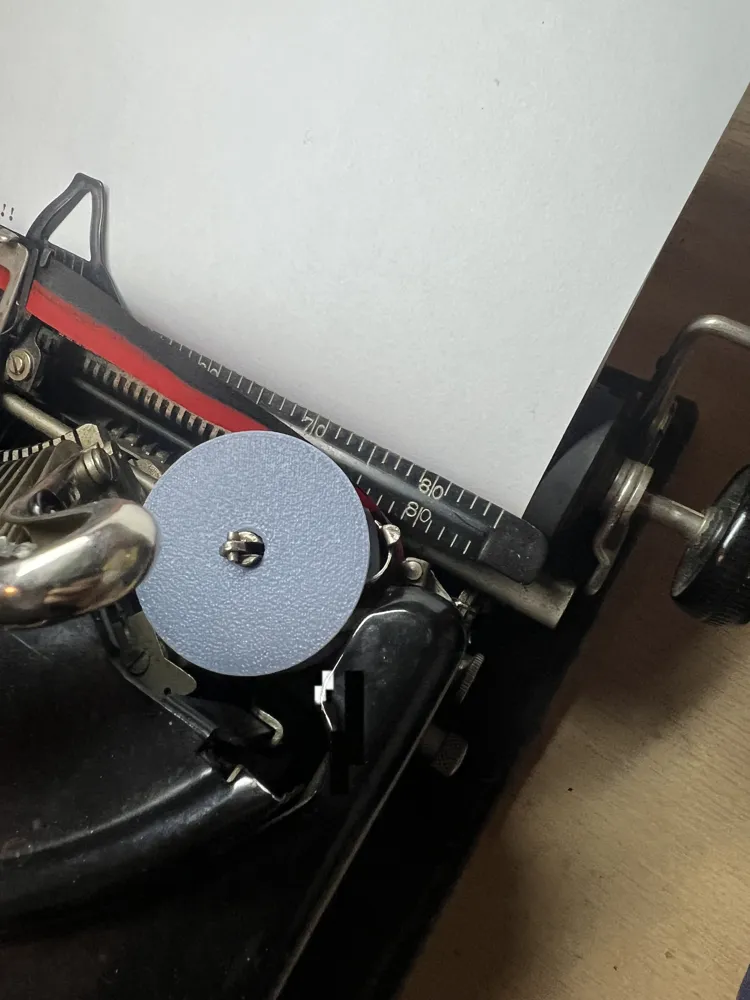

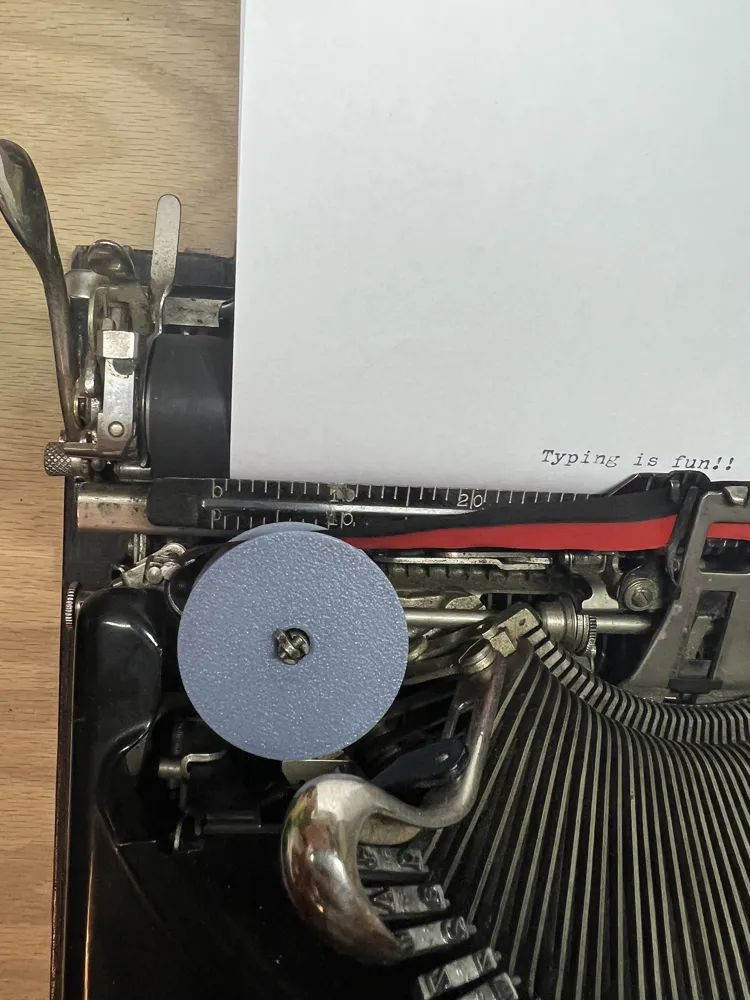

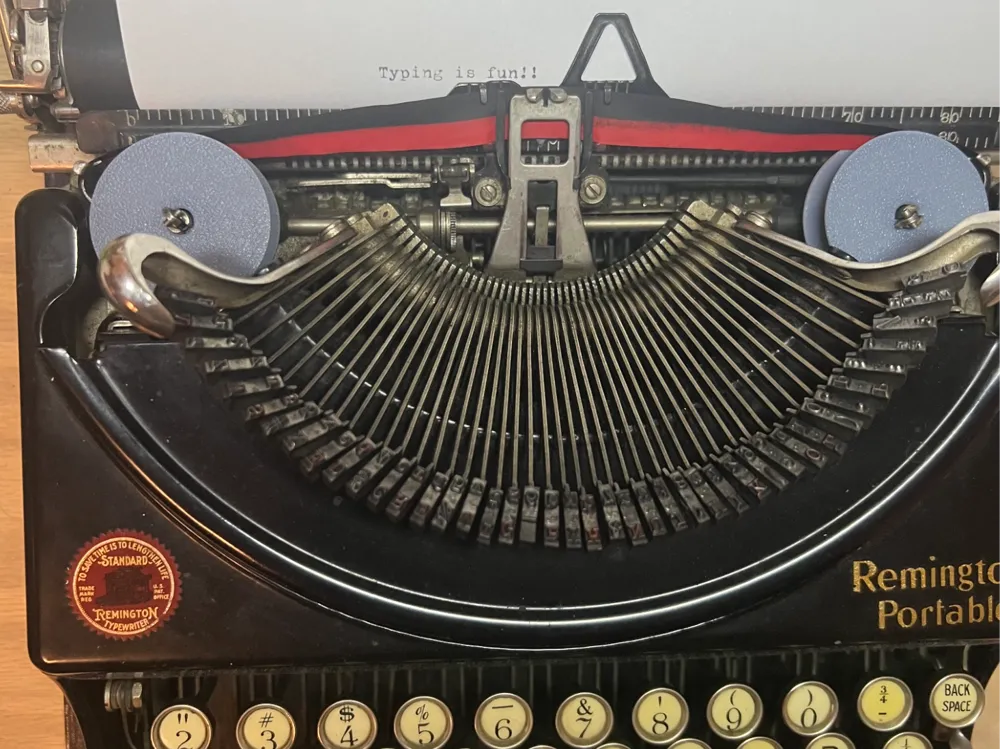

Typewriter Ribbon Spools for older Remington typewriters that use the 1 5/8 in spools. It fits the standard 13mm-1/2in typewriter ribbon.

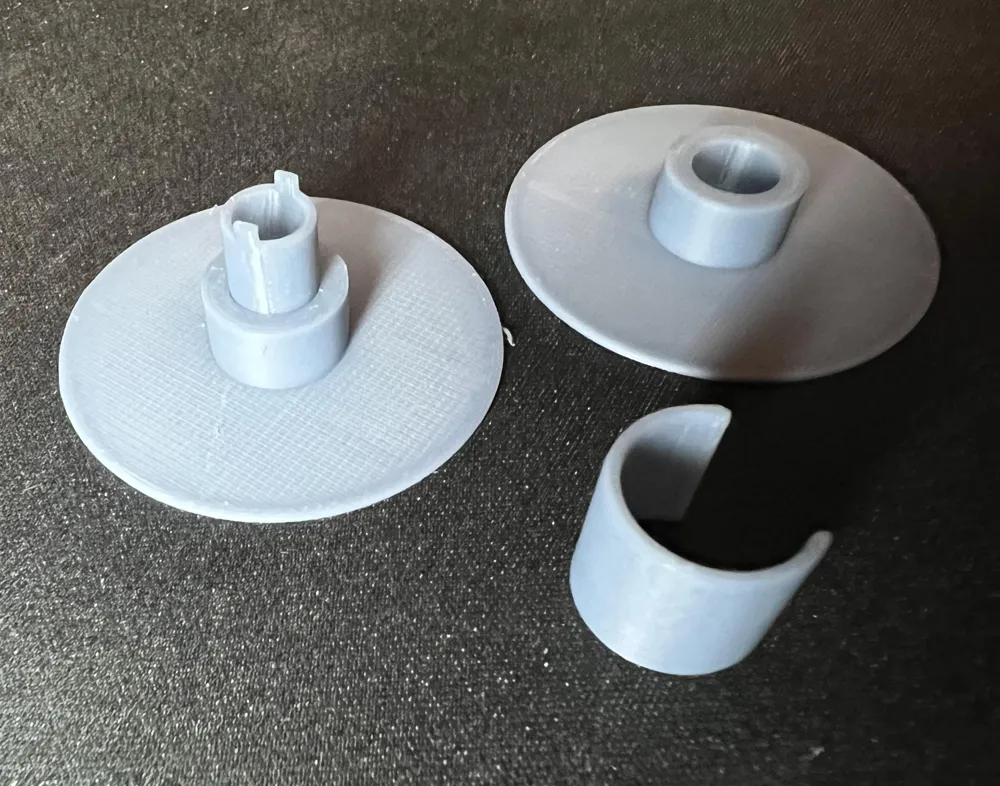

I was inspired by Shinns(https://www.thingiverse.com/shinns/designs) Smith Corona Corsair Spool design and have reused the Clip STL. The top and bottom spools and center column are new, specific to the Remington needs, and I have included a step file for those.

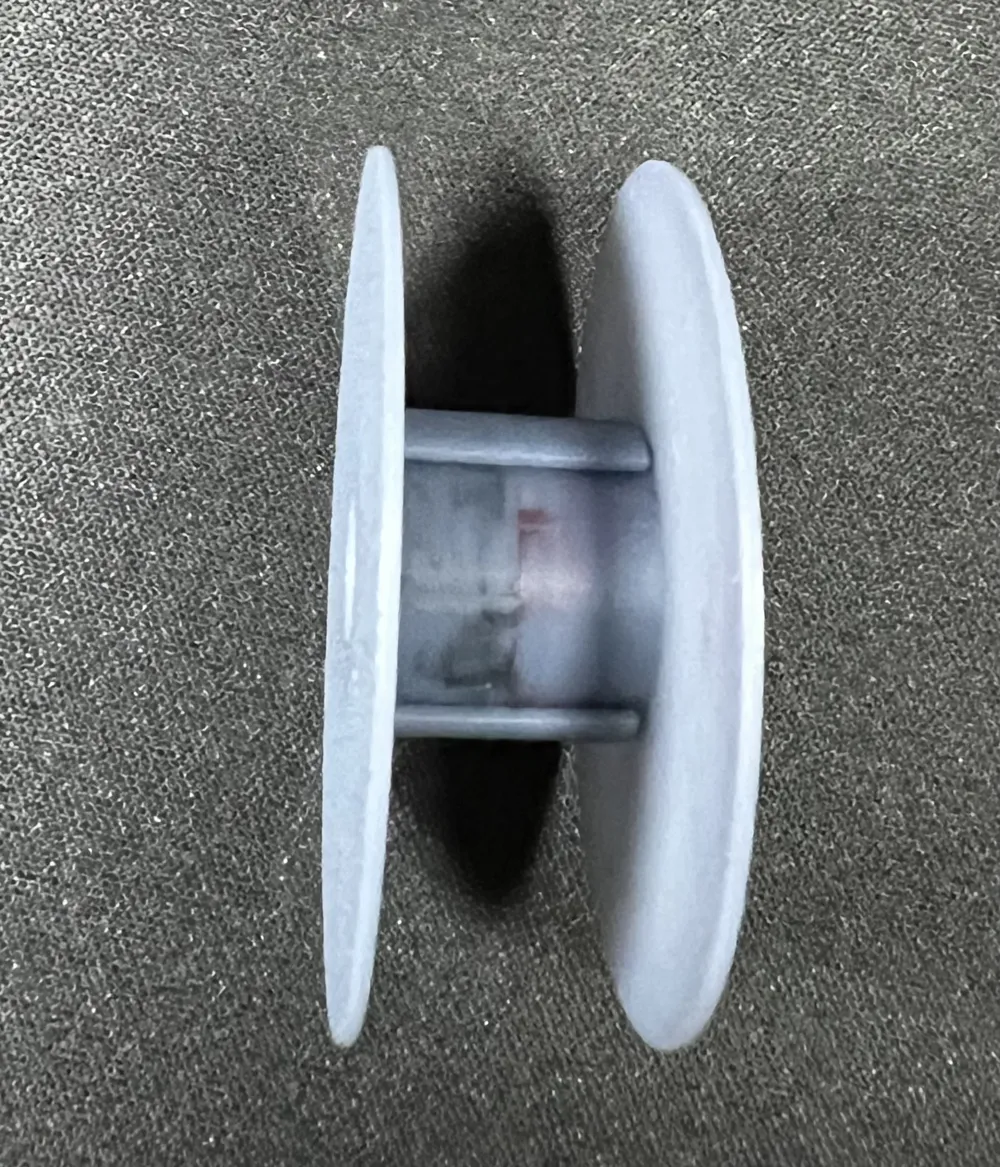

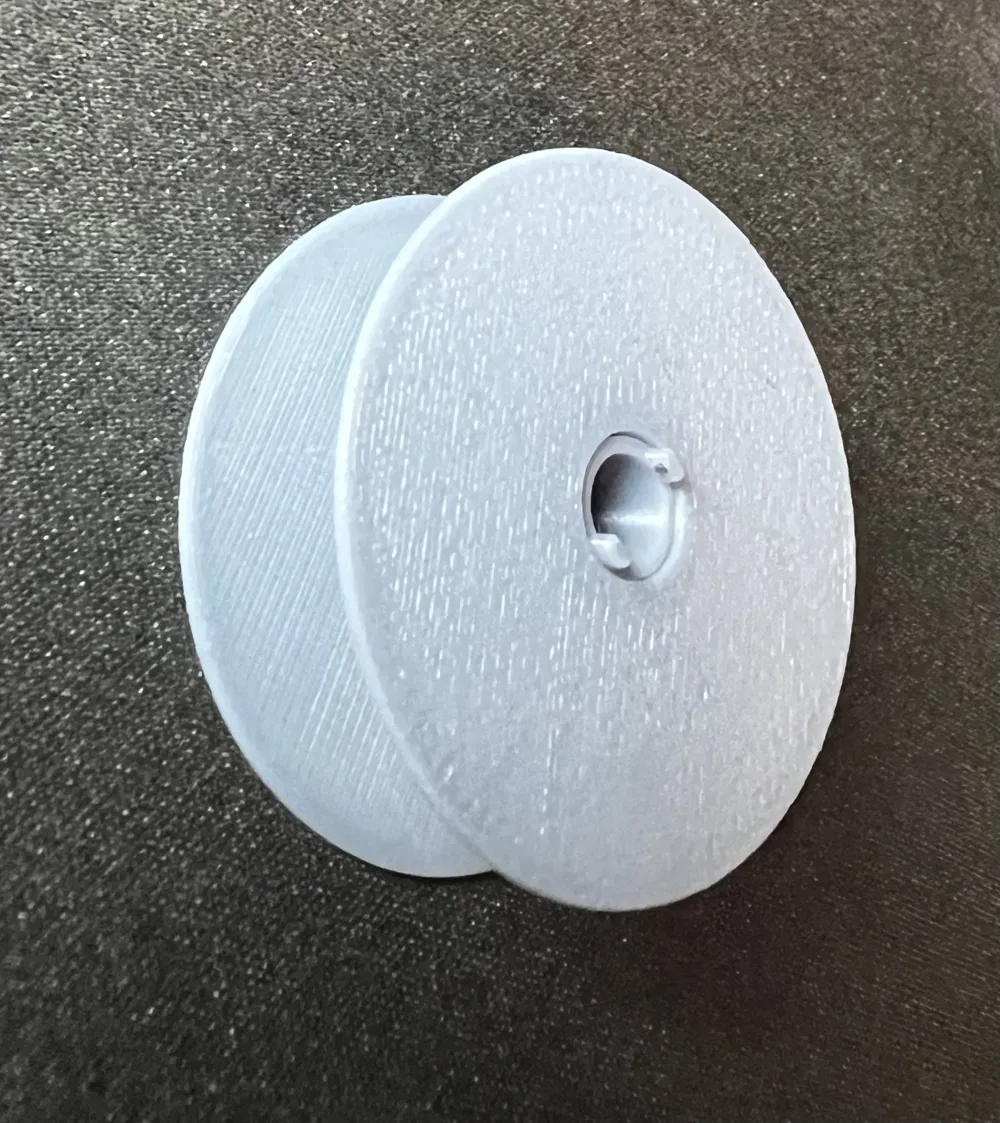

The top half of the spool includes a shoulder in the middle for a flat surface when installed in the typewriter, but the bottom is open for the center column and it's posts to poke through. The center column should be a friction fit in both halves, but my tolerances end up making the bottom half without the shoulder slightly loose and you may want to add glue.
