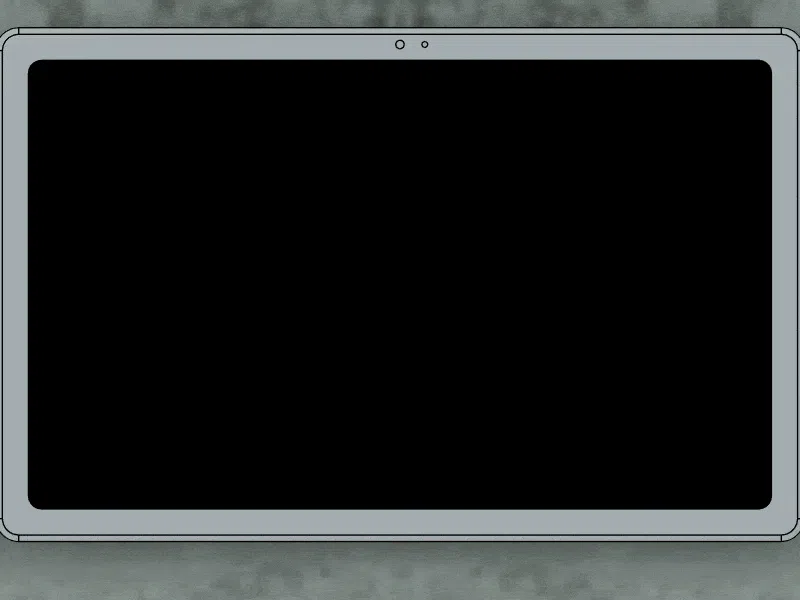

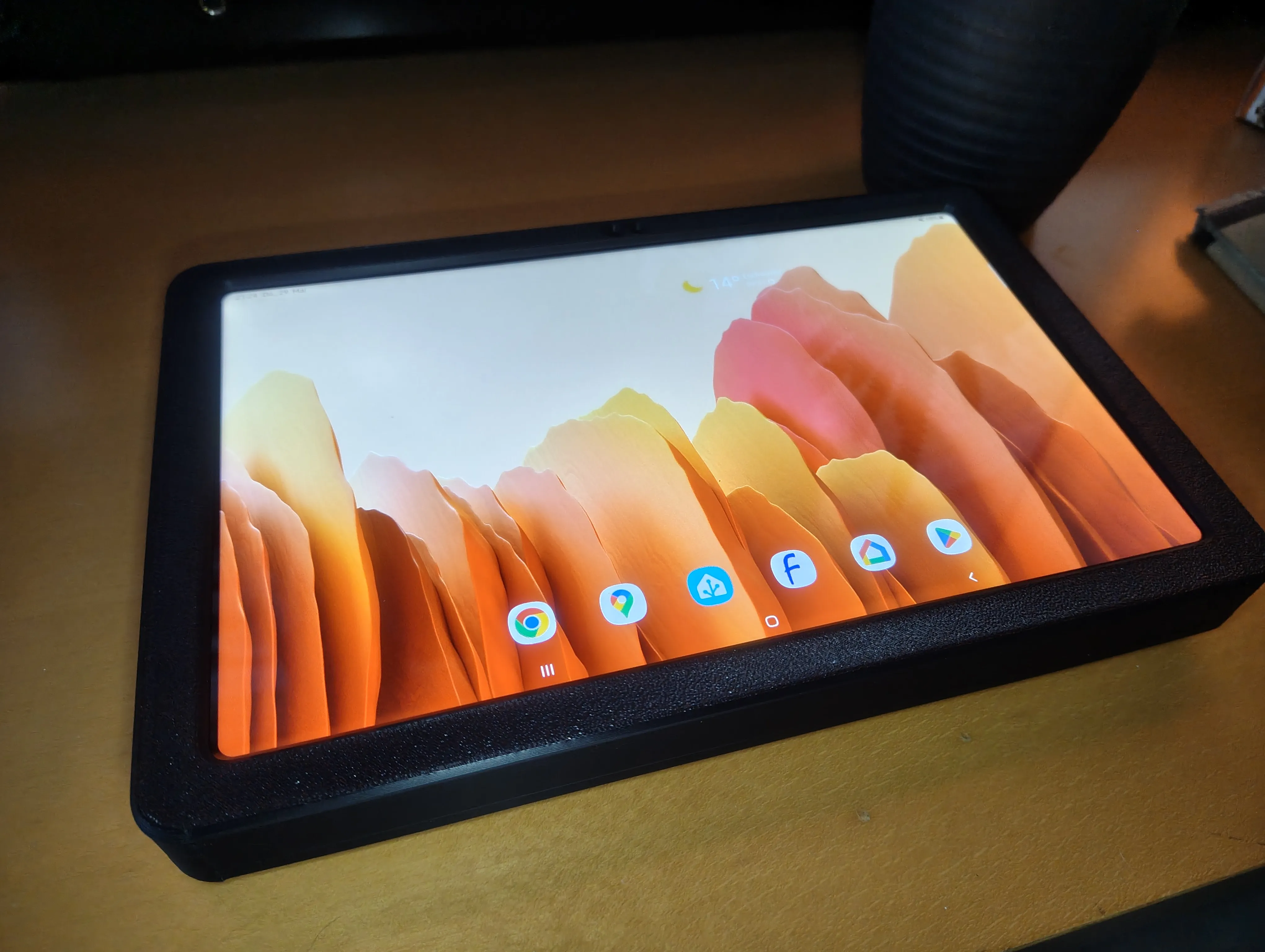

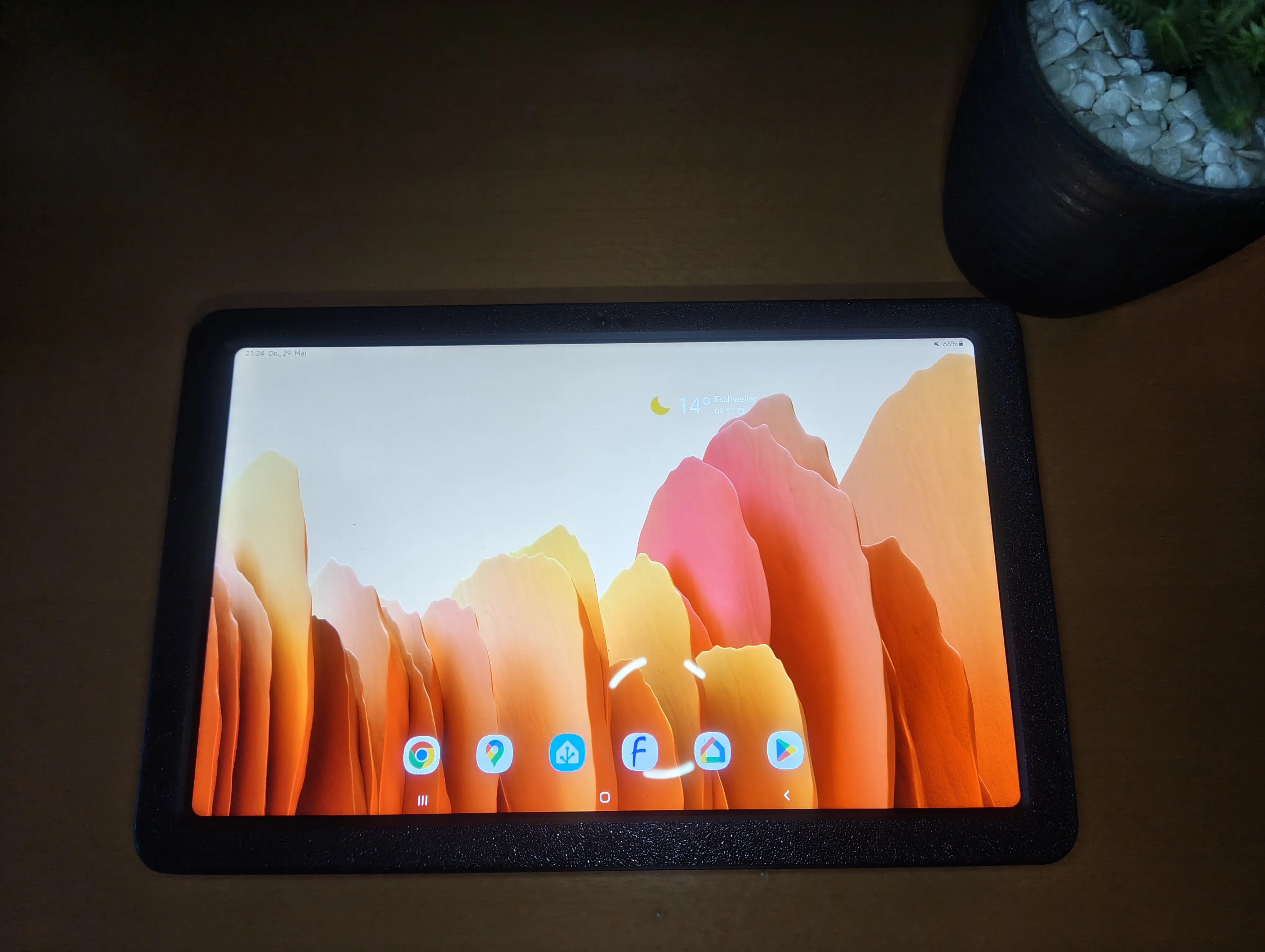

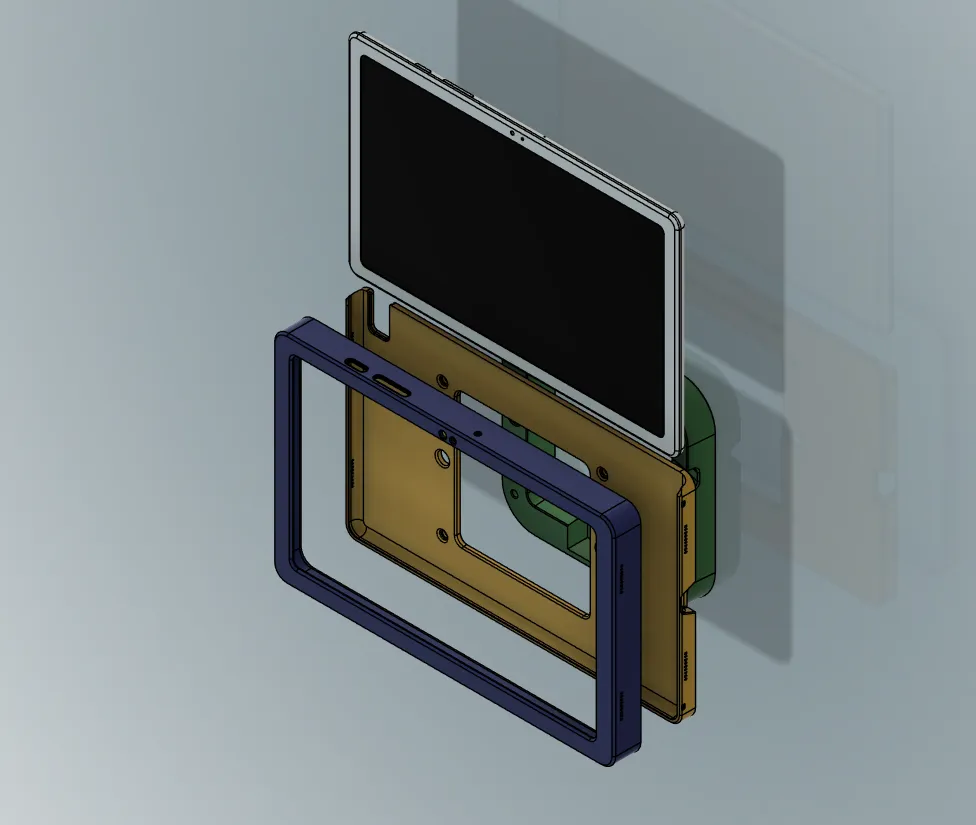

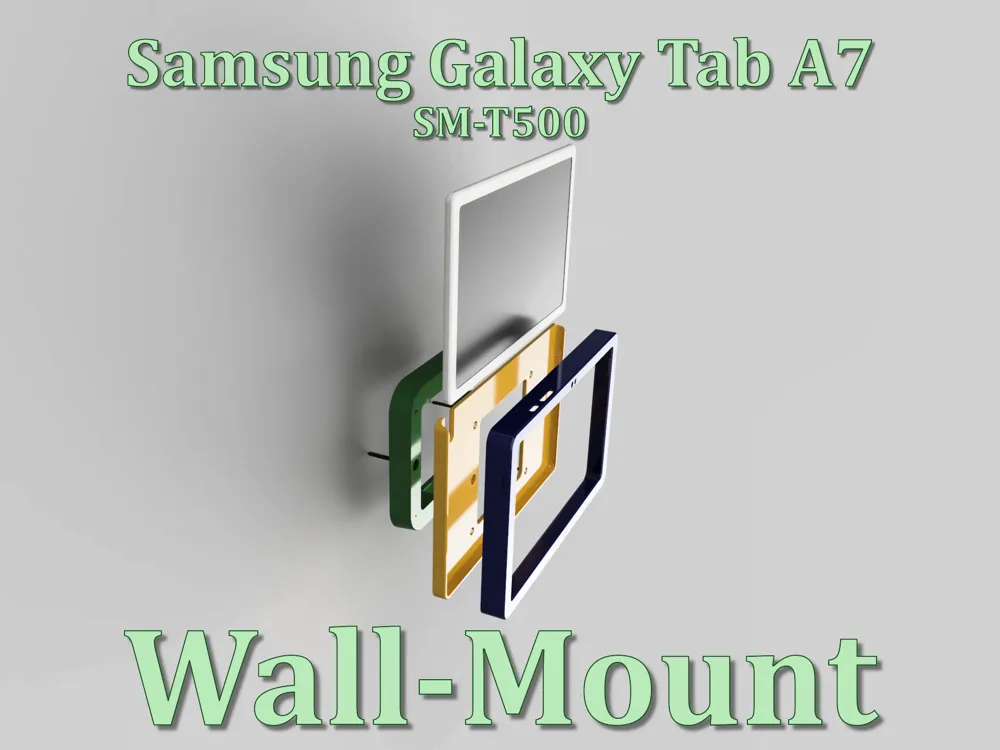

SAMSUNG GALAXY TAB A7 - SM-T500 - WALL MOUNT

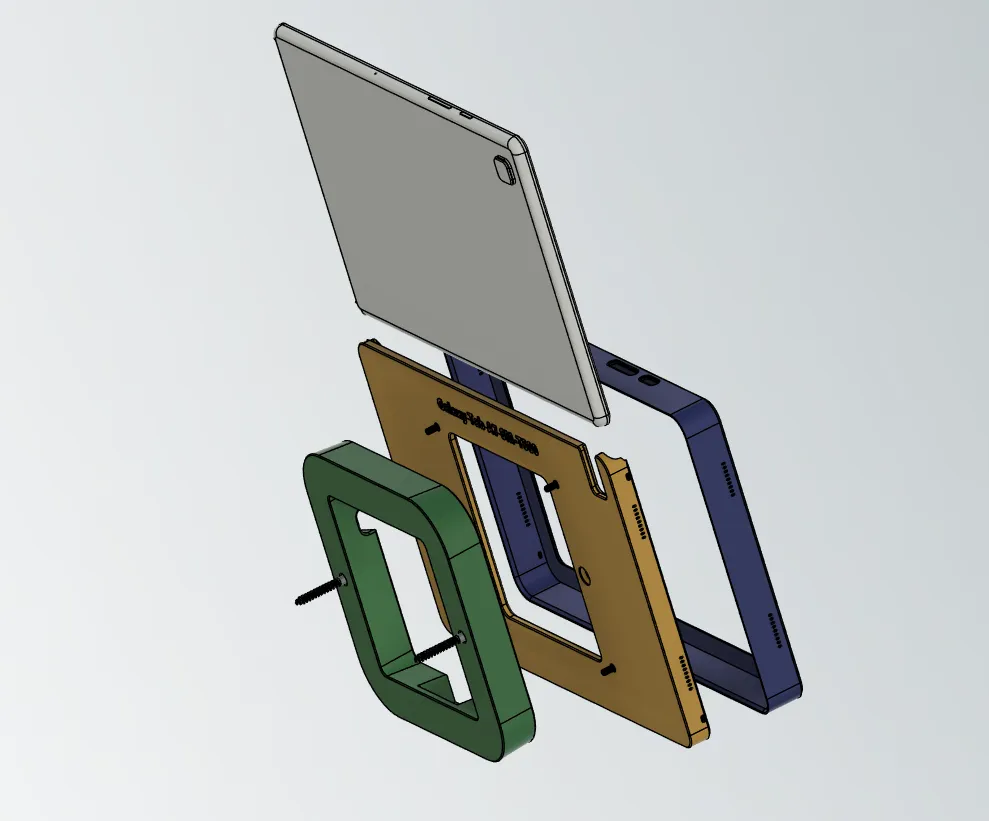

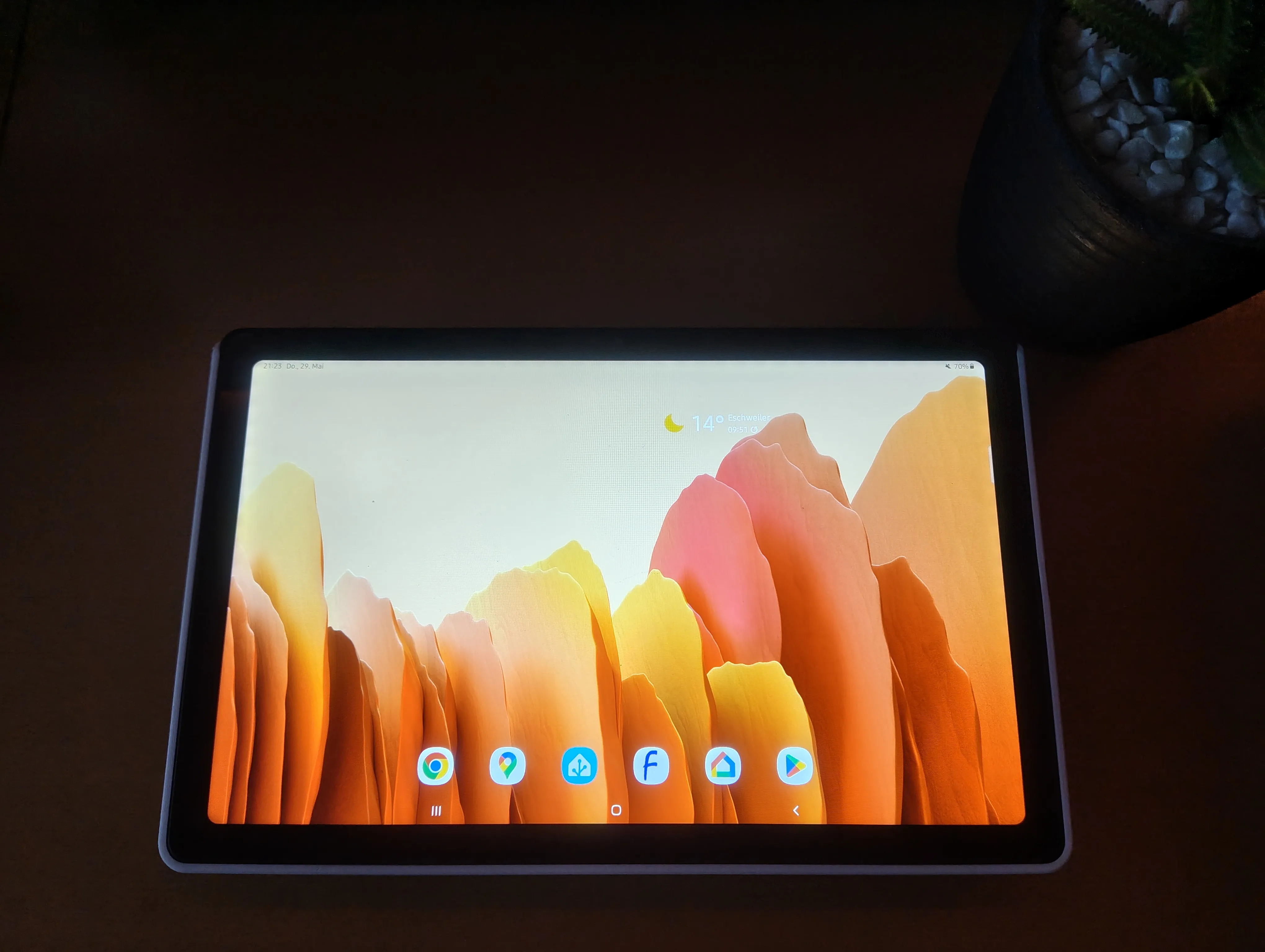

Wall mount for a GALAXY TAB A7
My family needed a mount for a Galaxy Tab A7 to control our Smart Home system
Unfortunately, I could not find a suitable mount, so I had to devise a solution
The challenge lay in the tablet's dimensions

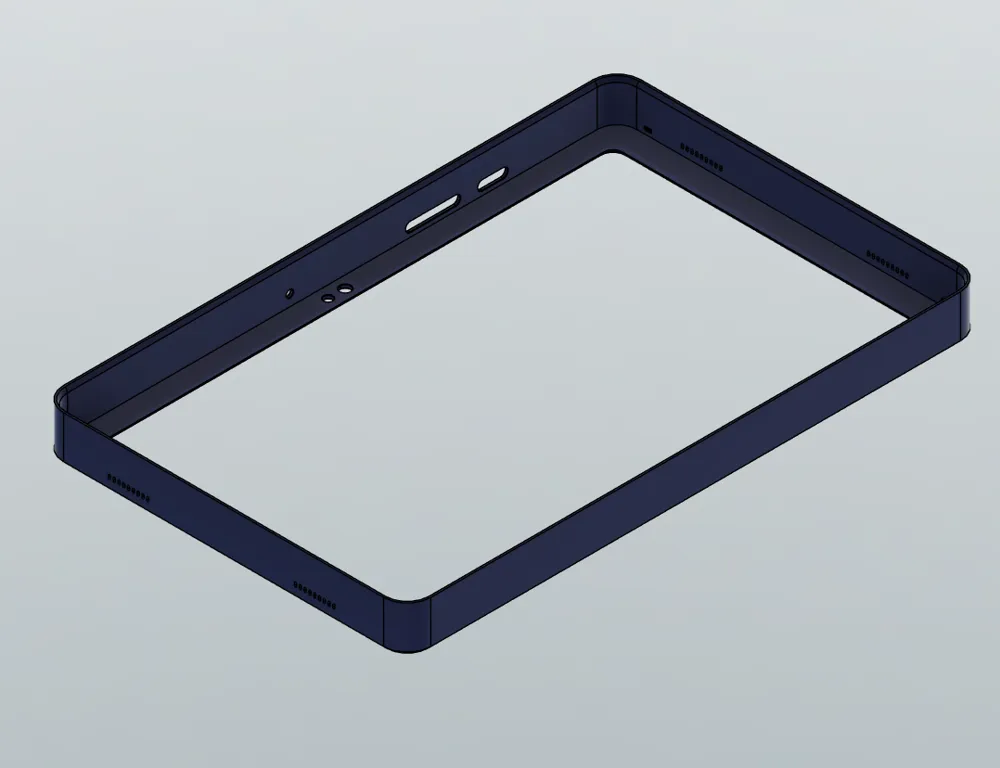

The front cover measures 255.76 mm wide, and I therefore maximized the 256 mm print width
of my Bambu Lab printer as much as possible

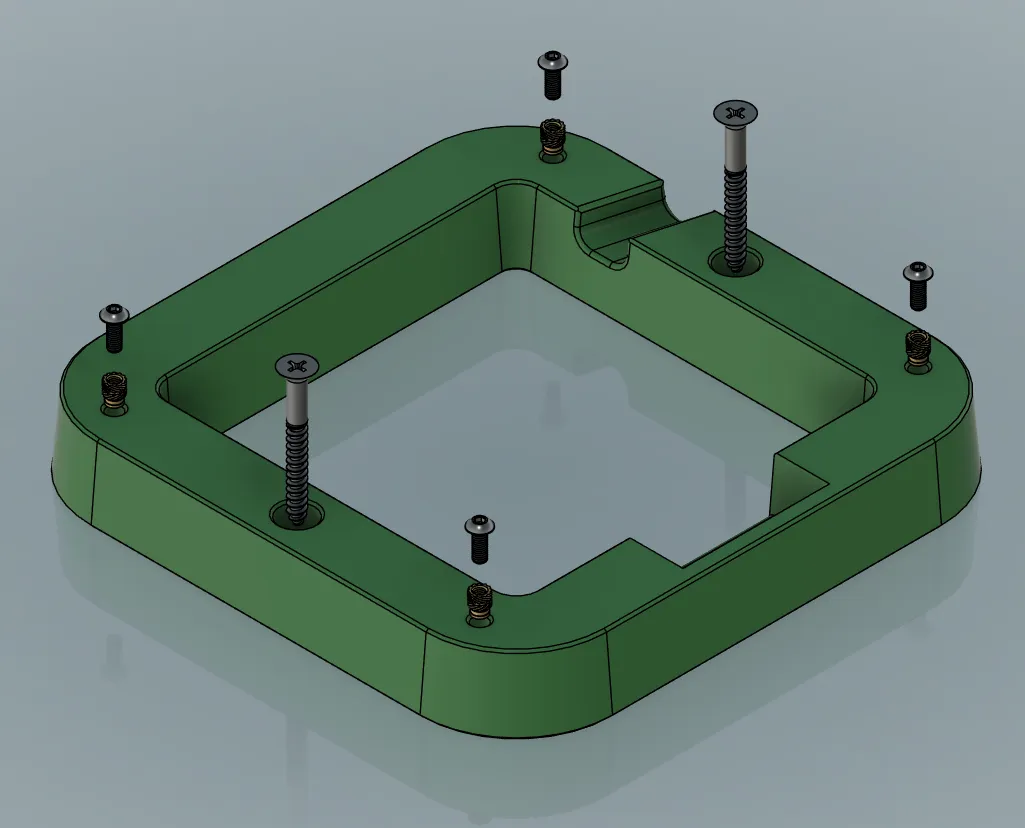

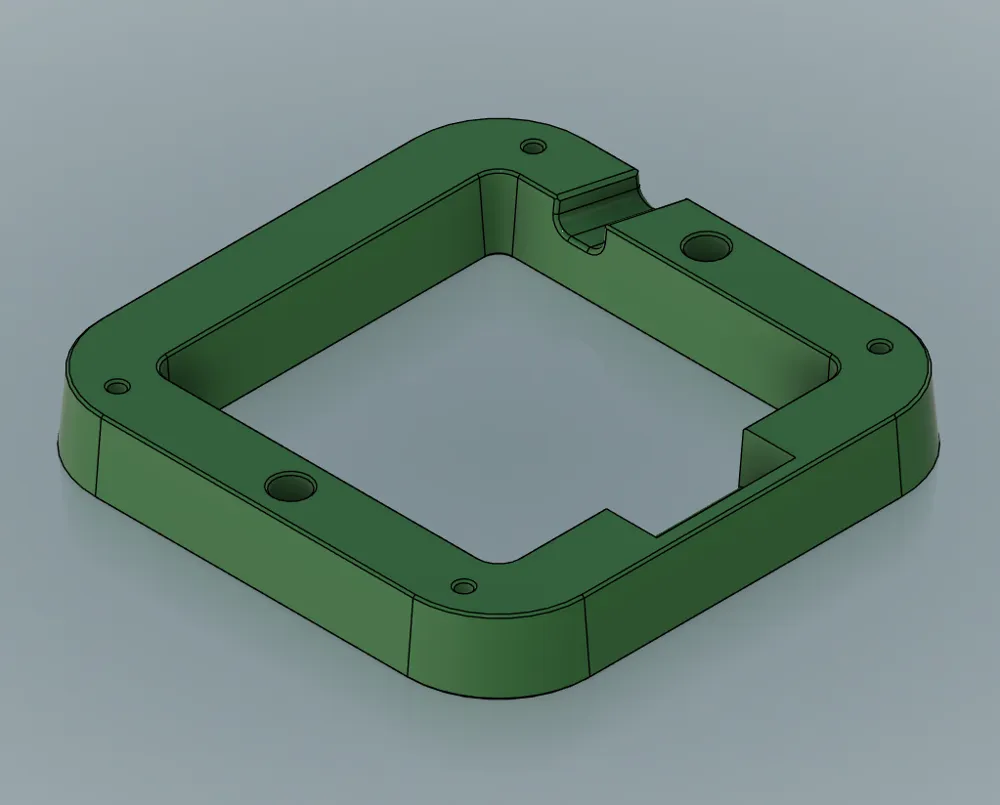

Required materials for mounting:
- 2x 4.5x35 mm countersunk wood screws
- 2x 6 mm wall plugs

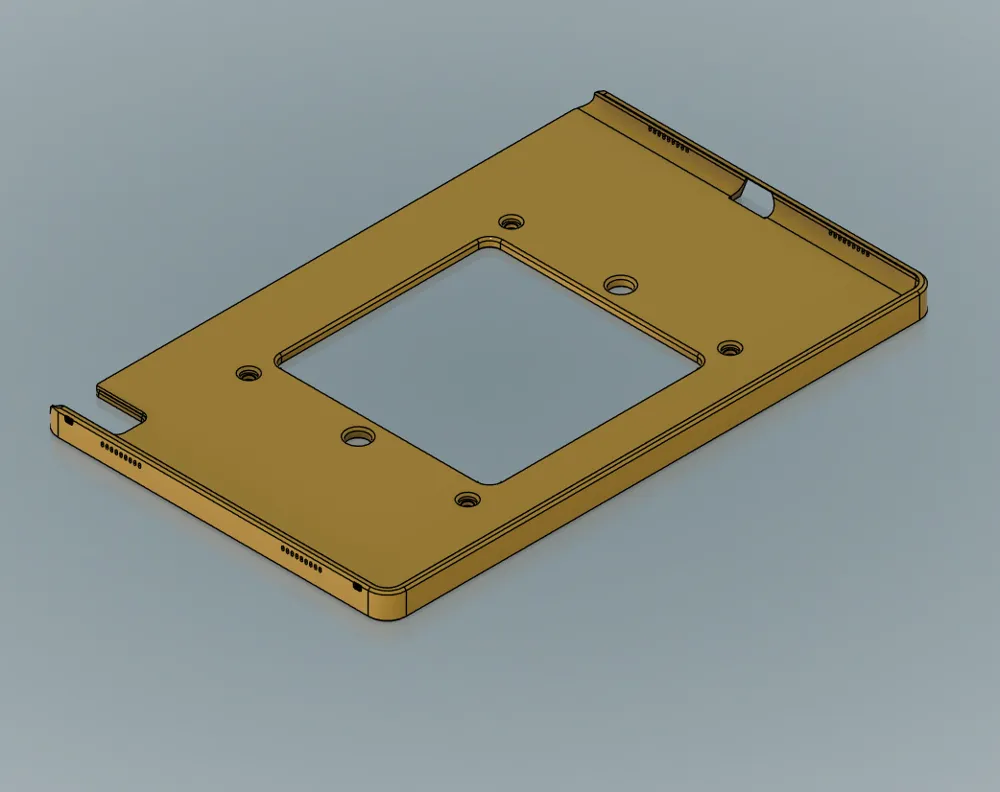

- 4x M3 threaded heat-set inserts
- 4x M3x8 mm countersunk screws with hex socket (CAUTION: the screw head must be a maximum of 2 mm high, otherwise it will scratch the back of the tablet!!!)
Required for power supply:
- 1x Schuko socket with USB-C
1x USB-C cable / extra flat / 15 cm long
(Aliexpress link: USB-C flat cable)
Printed with ELEGOO RAPID PLA+ black and white
