WAGO 222 Series Mount – For 222-413

🔧 WAGO 222 Series Mount – For 222-415, 222-413, 222-412

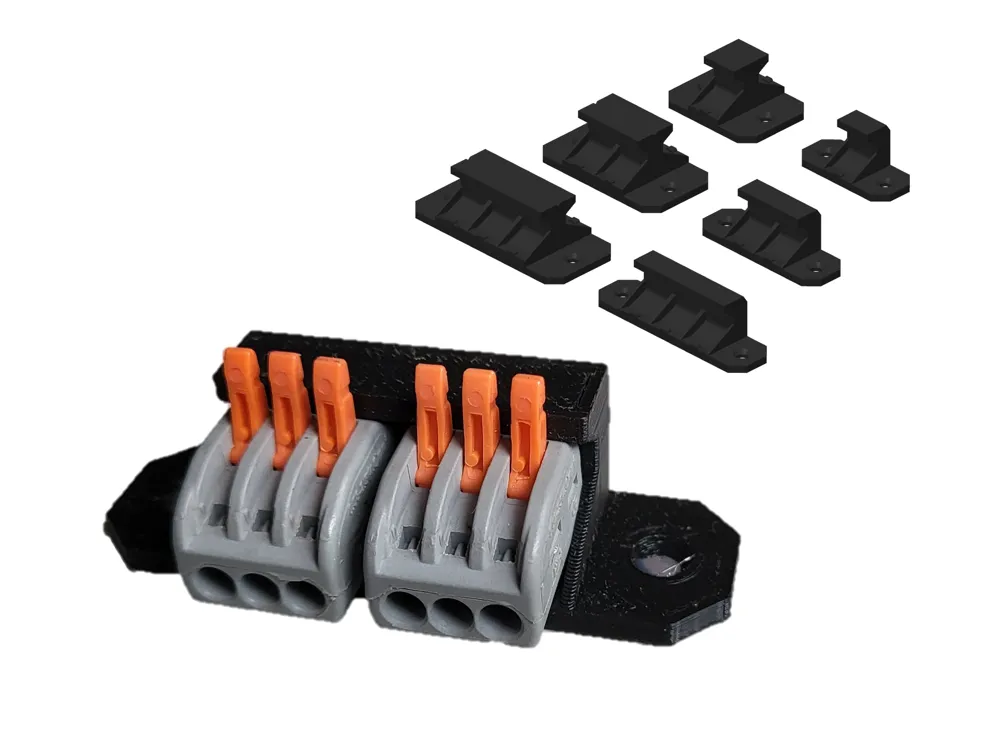

This is a practical and compact mounting solution for WAGO 222 series terminal blocks, including:

• 222-415 (5-conductor) → can be found in my profile (link)
• 222-413 (3-conductor)
• 222-412 (2-conductor) → can be found in my profile (link)

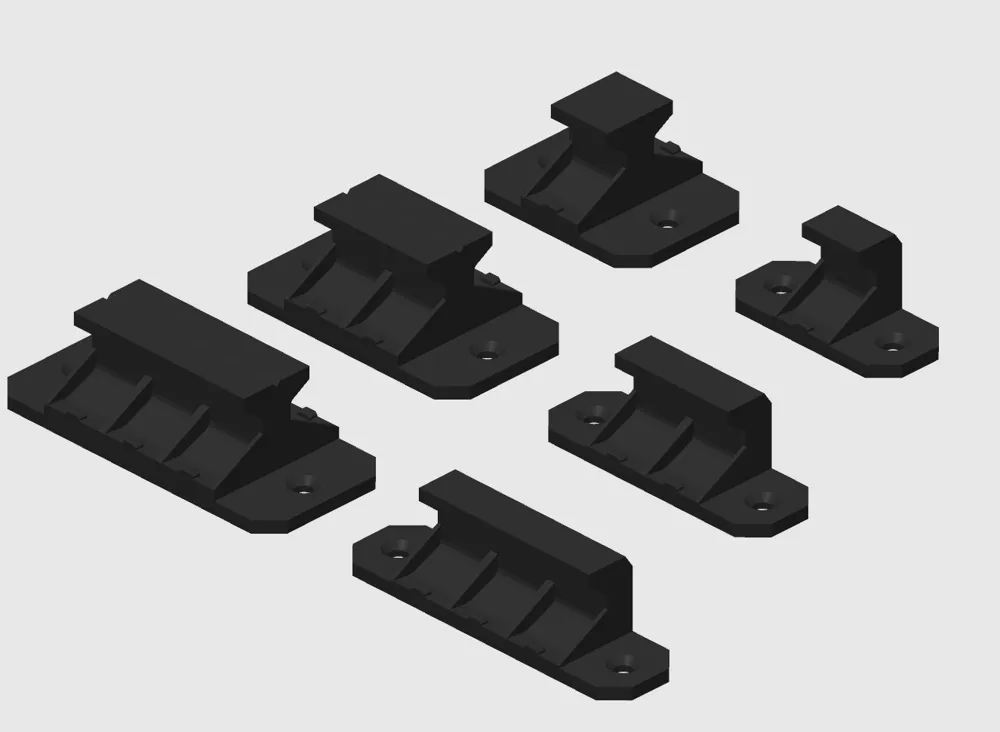

The holders are available in different variants and are ideal for use in small control cabinets, enclosures, or other electrical setups.

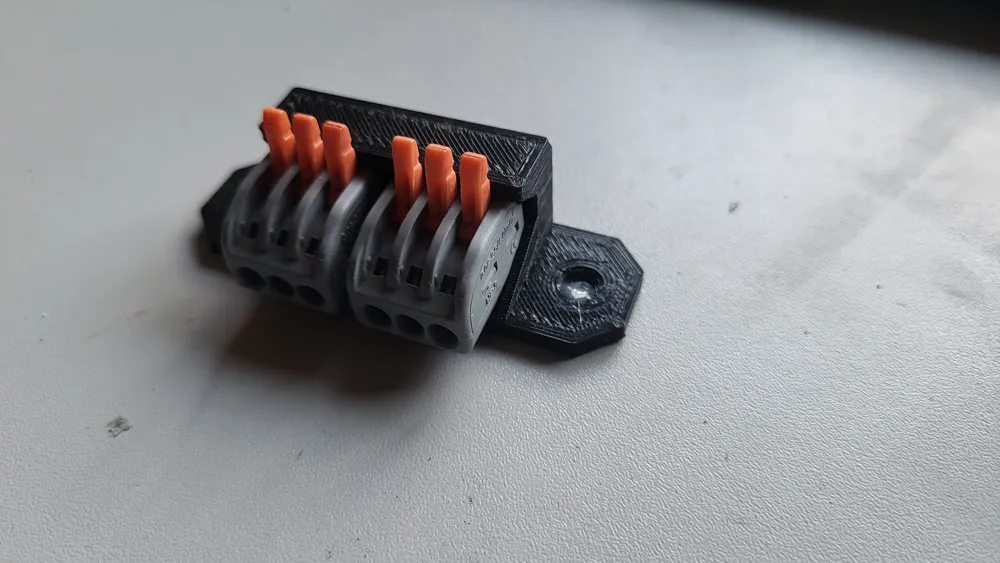

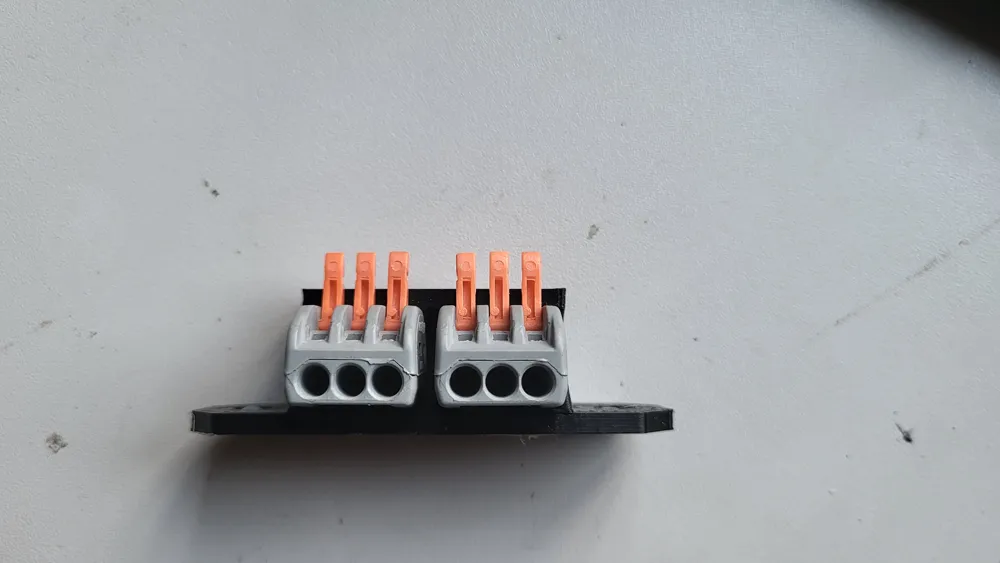

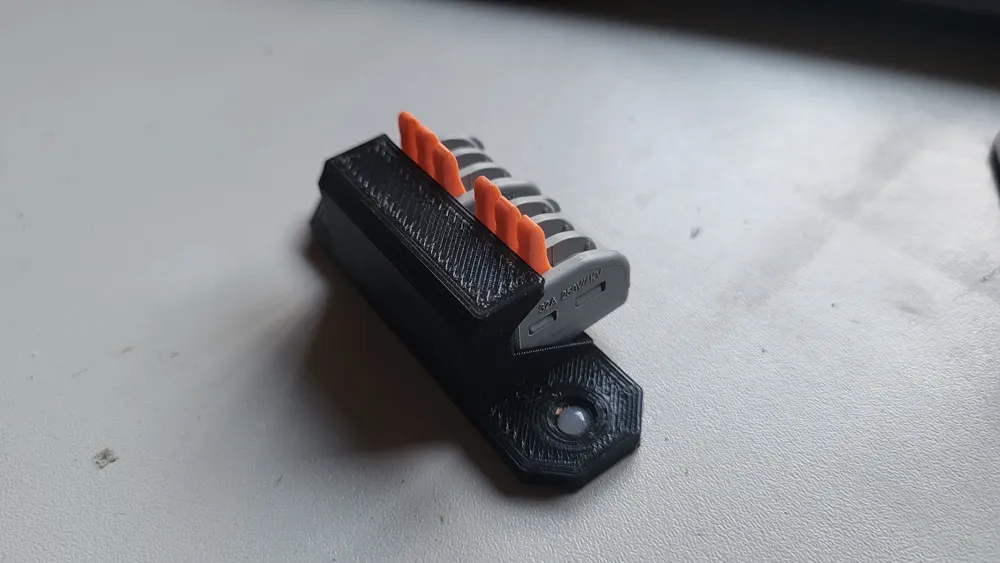

• 🧩 The WAGO terminals snap securely into place — no screws or glue required.
• 🔩 The mount itself can be attached using two screws for a stable and reliable installation.
• 🧼 Keeps wiring neat, accessible, and protected from strain or movement.
• different variations can be found on the various plates → simply select the respective plate and print

Use Cases:

• Compact control cabinets
• CNC or 3D printer wiring
• Home automation and smart home projects
• General electronics and prototyping

Print Settings:

• Supports: Not required
• Material: PLA or PETG
• Layer Height: 0.2 mm recommended
