WAGO 222 Series Mount – For 222-415
Print Profile(1)
Description

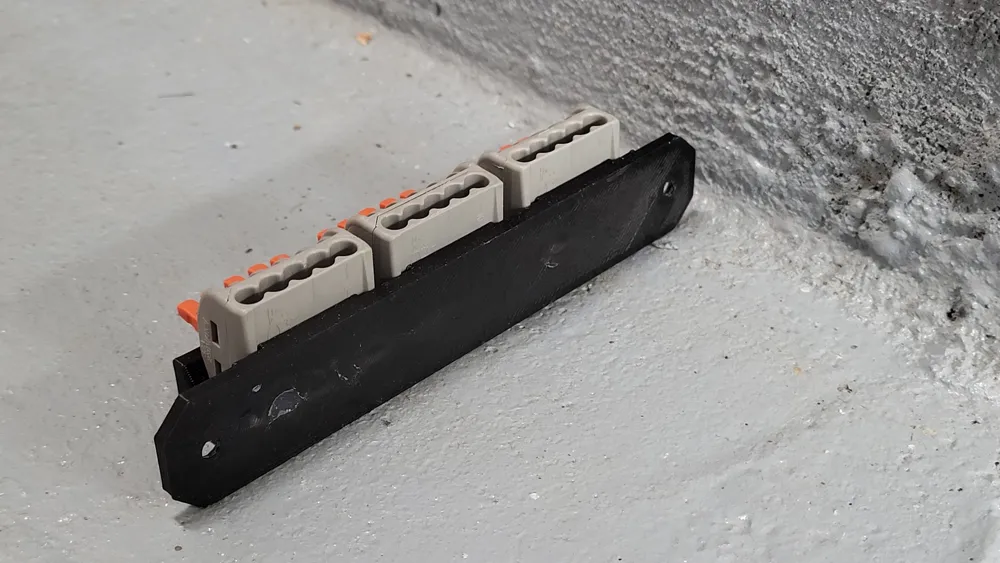

🔧 WAGO 222 Series Mount – For 222-415, 222-413, 222-412
This is a practical and compact mounting solution for WAGO 222 series terminal blocks, including:
- 222-415 (5-conductor)
- 222-413 (3-conductor) → can be found in my profile (link)
- 222-412 (2-conductor) → can be found in my profile (link)
The holders are available in different variants and are ideal for use in small control cabinets, enclosures, or other electrical setups.
You can find the different variants on separate plates. Simply print the plate that corresponds to the mount you need.

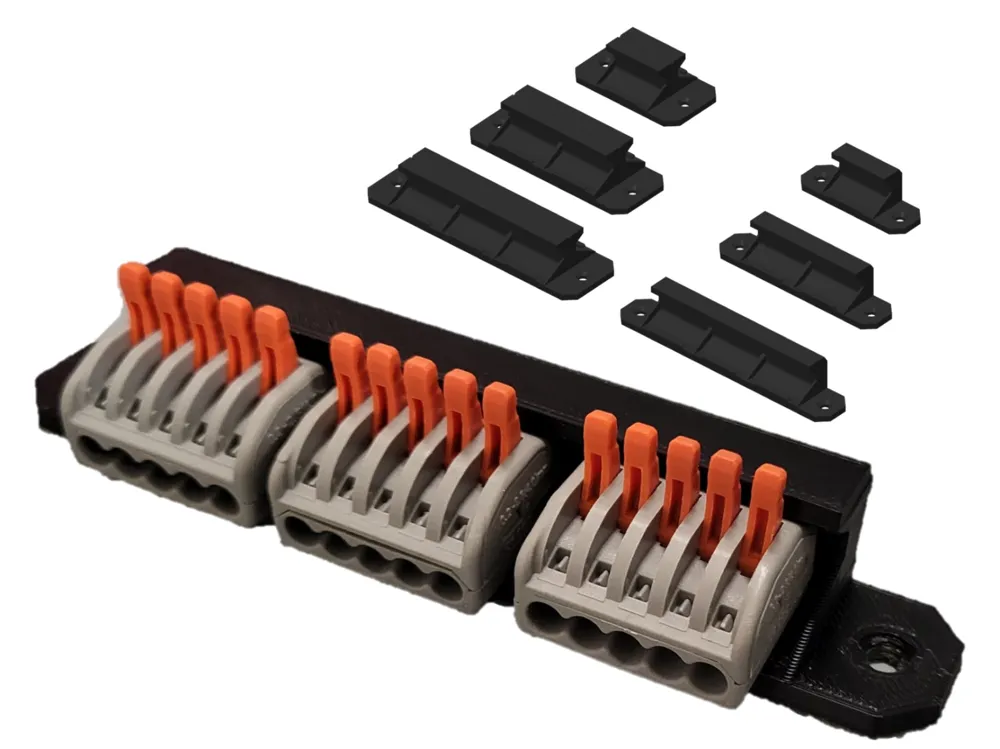

Mounts are available for 1 to 3 WAGO connectors per side. Each mount is available in both single-sided and double-sided versions.
If you need a different configuration, just let me know — I’ll be happy to upload it as well if needed.

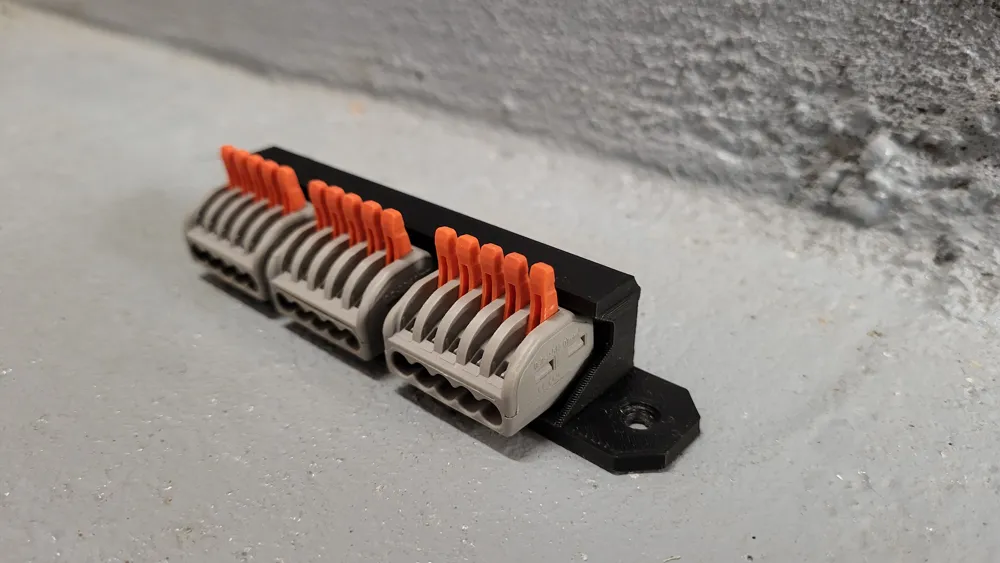

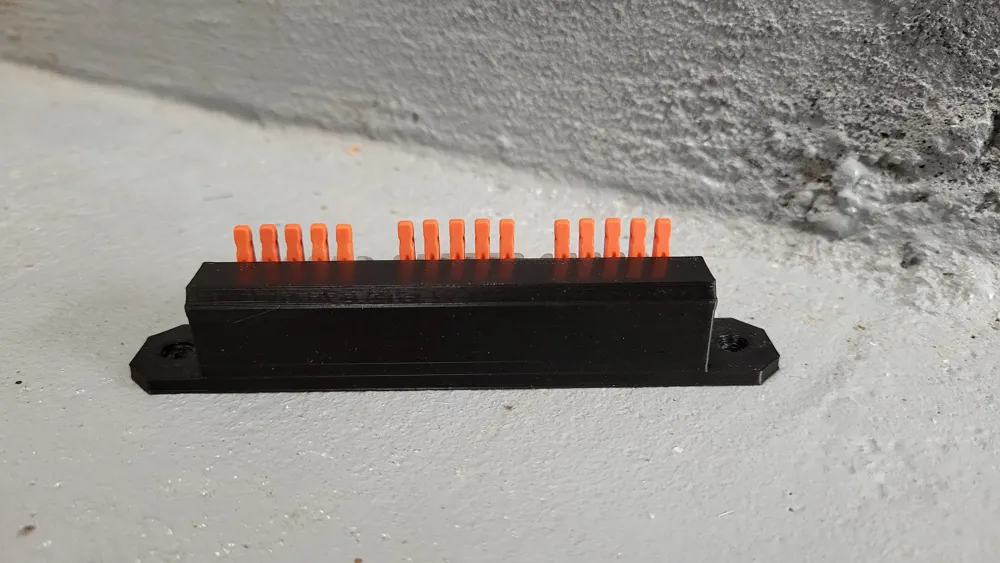

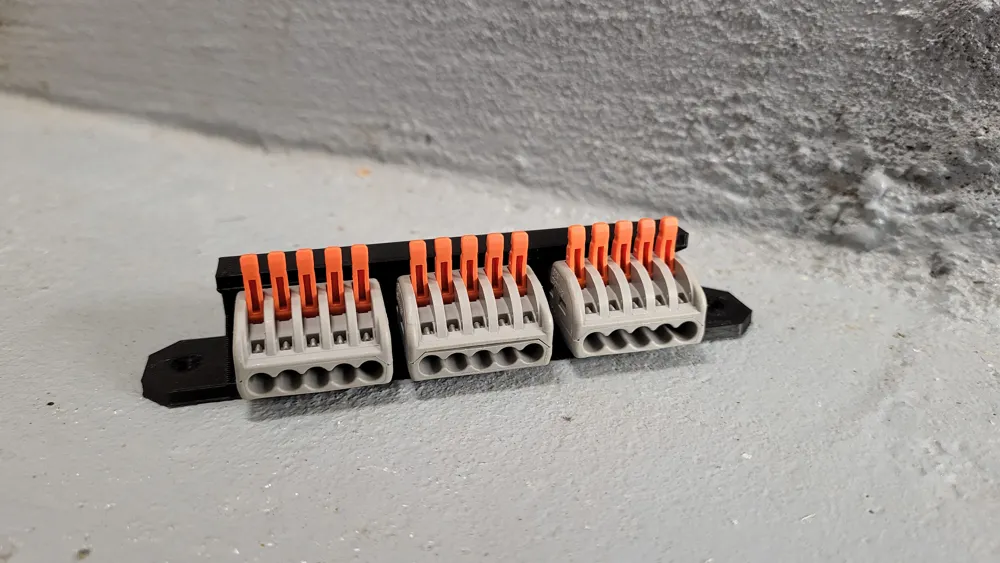

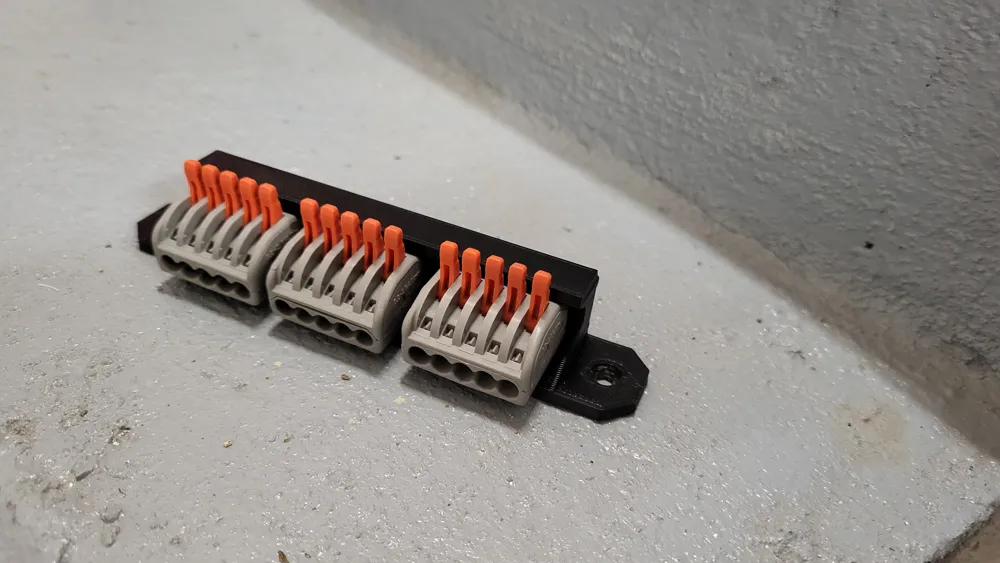

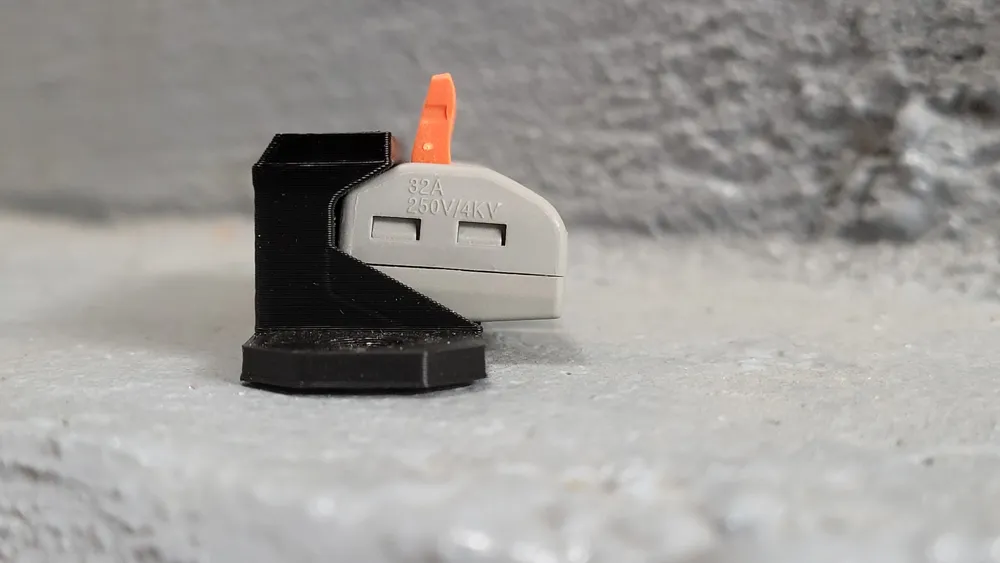

- 🧩 The WAGO terminals snap securely into place — no screws or glue required.
- 🔩 The mount itself can be attached using two screws for a stable and reliable installation.
- 🧼 Keeps wiring neat, accessible, and protected from strain or movement.
- different variations can be found on the various plates → simply select the respective plate and print
Use Cases:

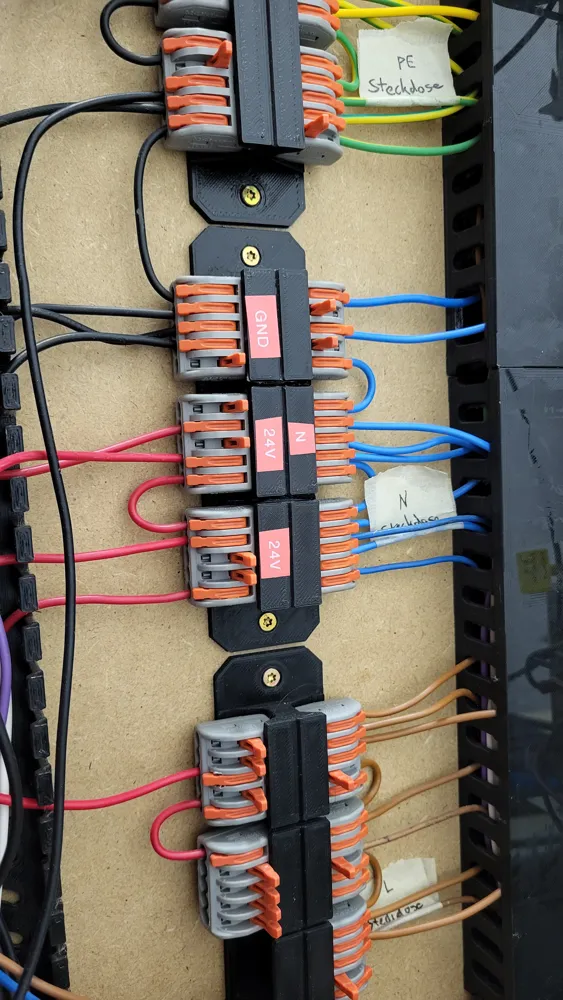

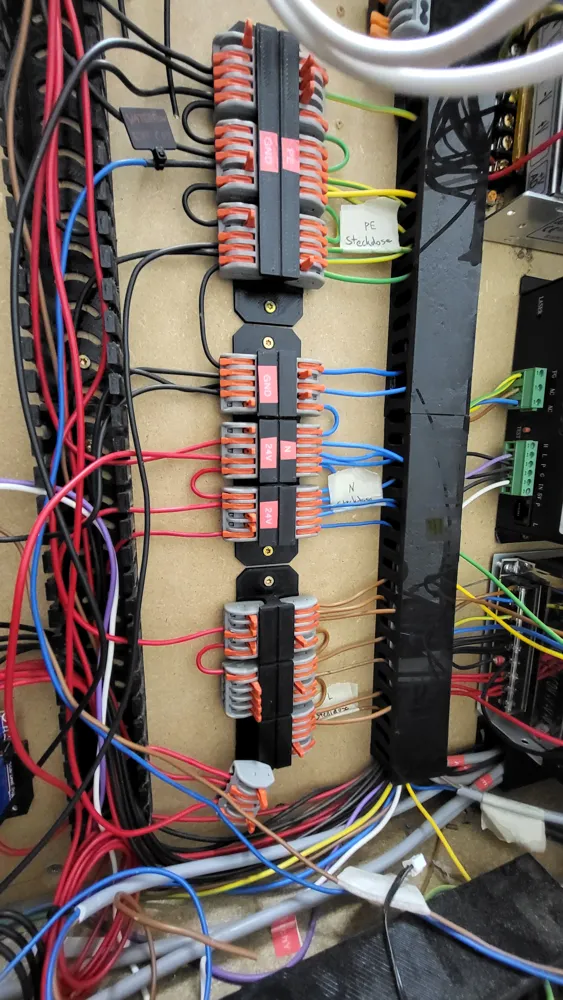

- Compact control cabinets
- CNC or 3D printer wiring
- Home automation and smart home projects
- General electronics and prototyping
Print Settings:
- Supports: Not required
- Material: PLA or PETG
- Layer Height: 0.2 mm recommended
