DJI O3 VTX Cage with Antenna & Fan Mount
Print Profile(0)
Description
Modular protective cage for the DJI O3 video transmitter and camera system. The model consists of 4 parts:

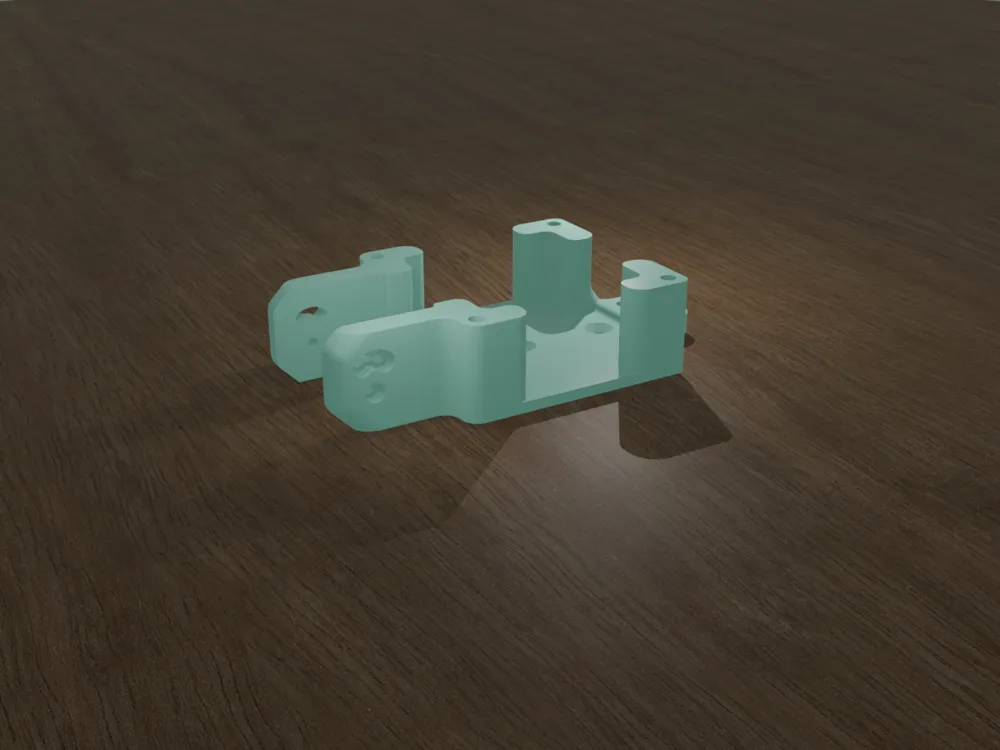

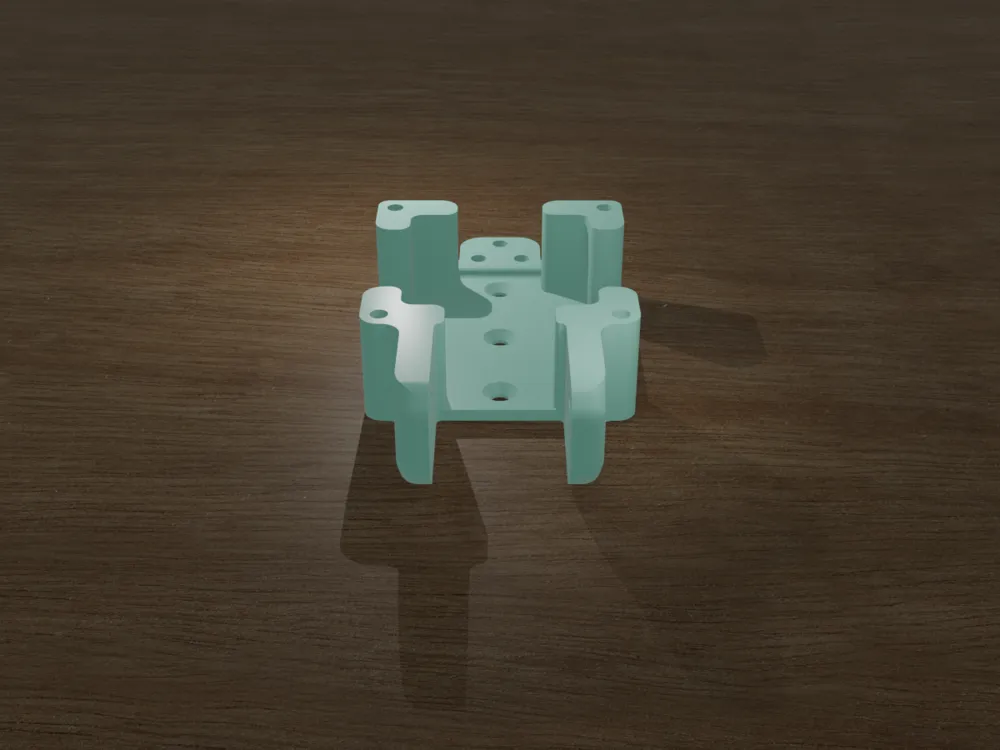

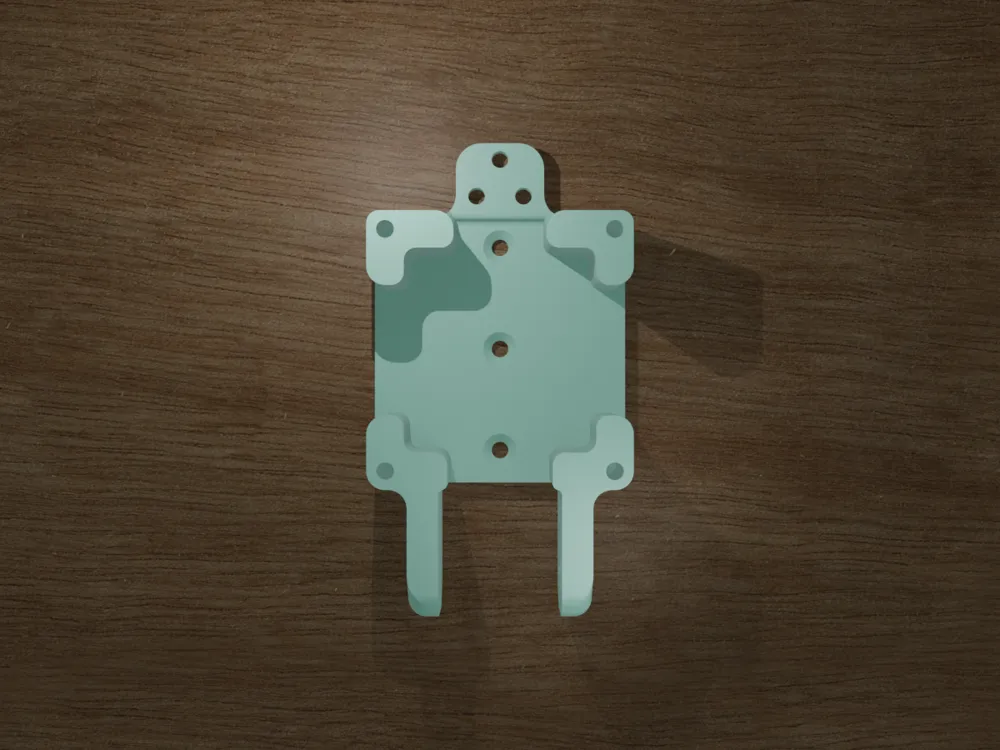

– main mount base (for attaching the VTX and camera)

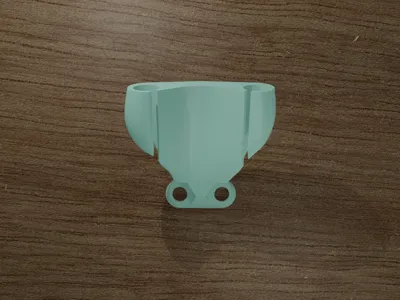

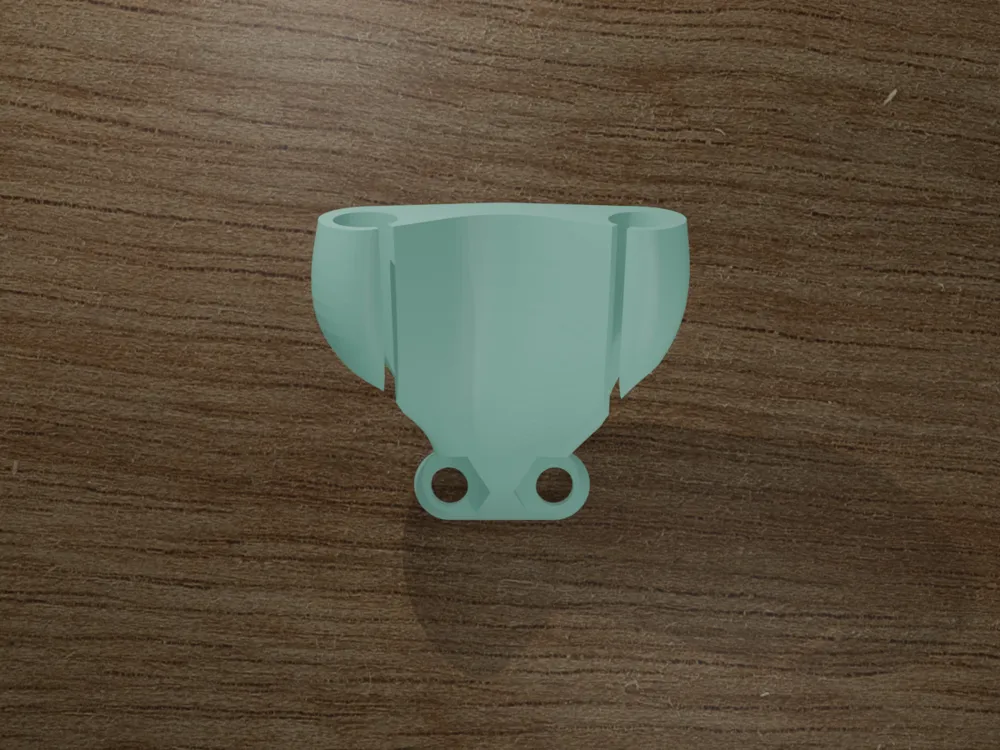

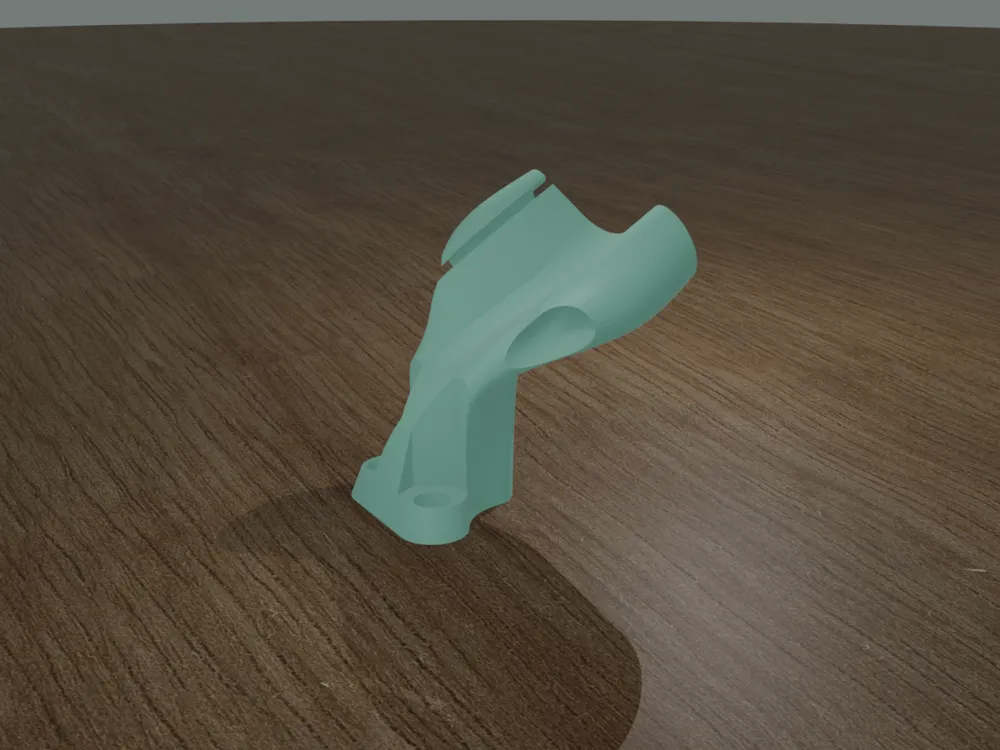

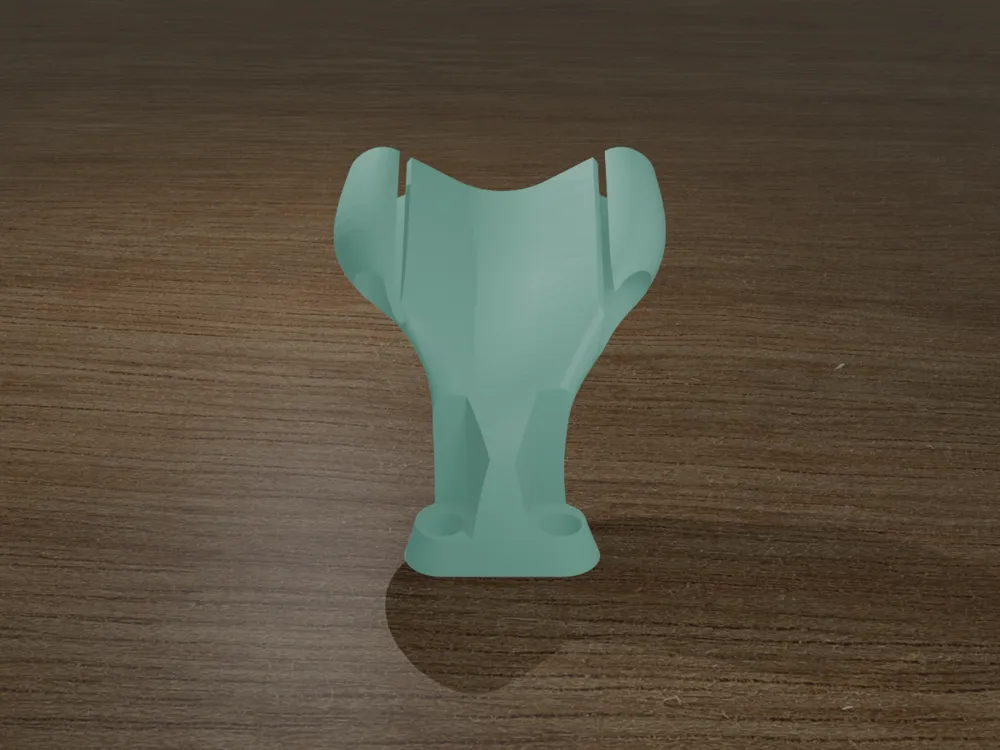

– antenna holder for DJI O3 antennas

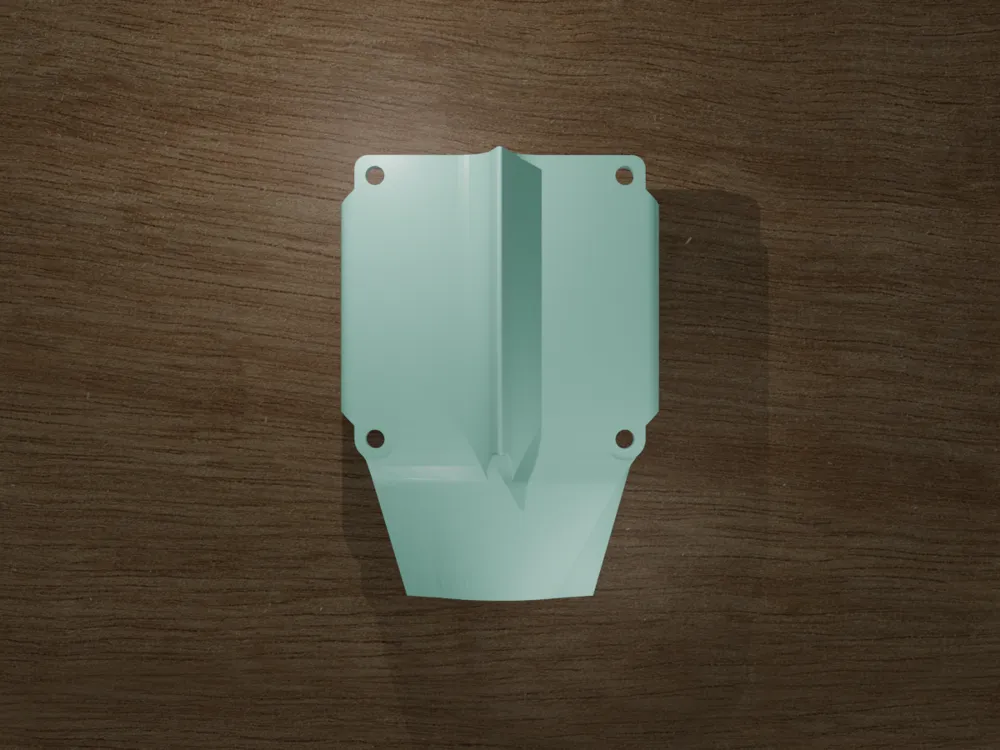

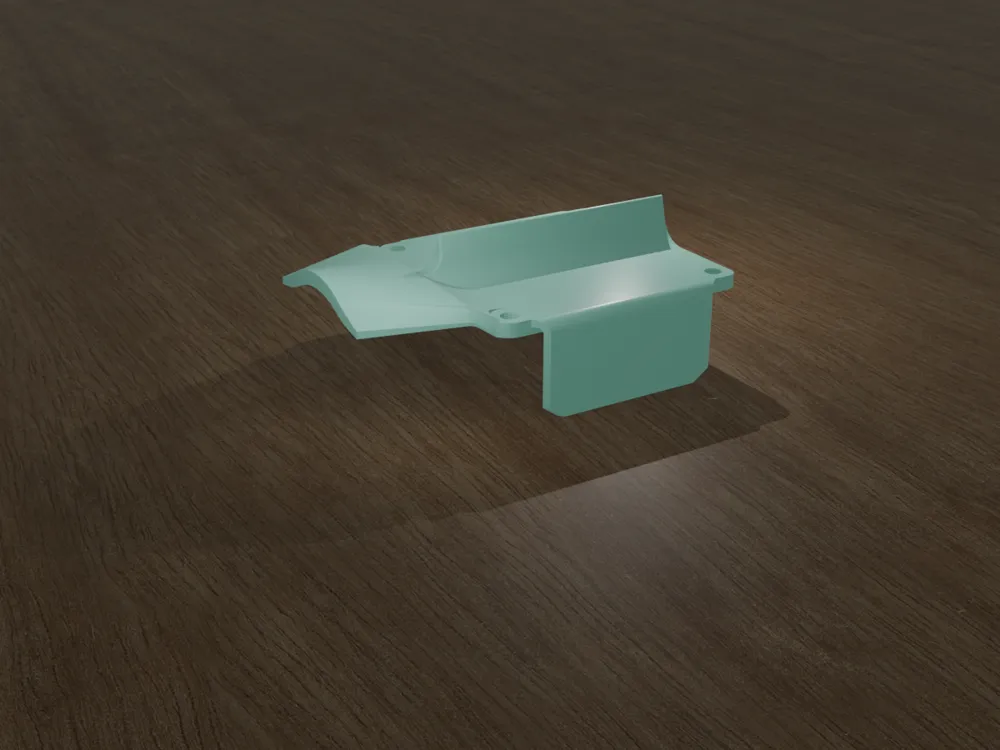

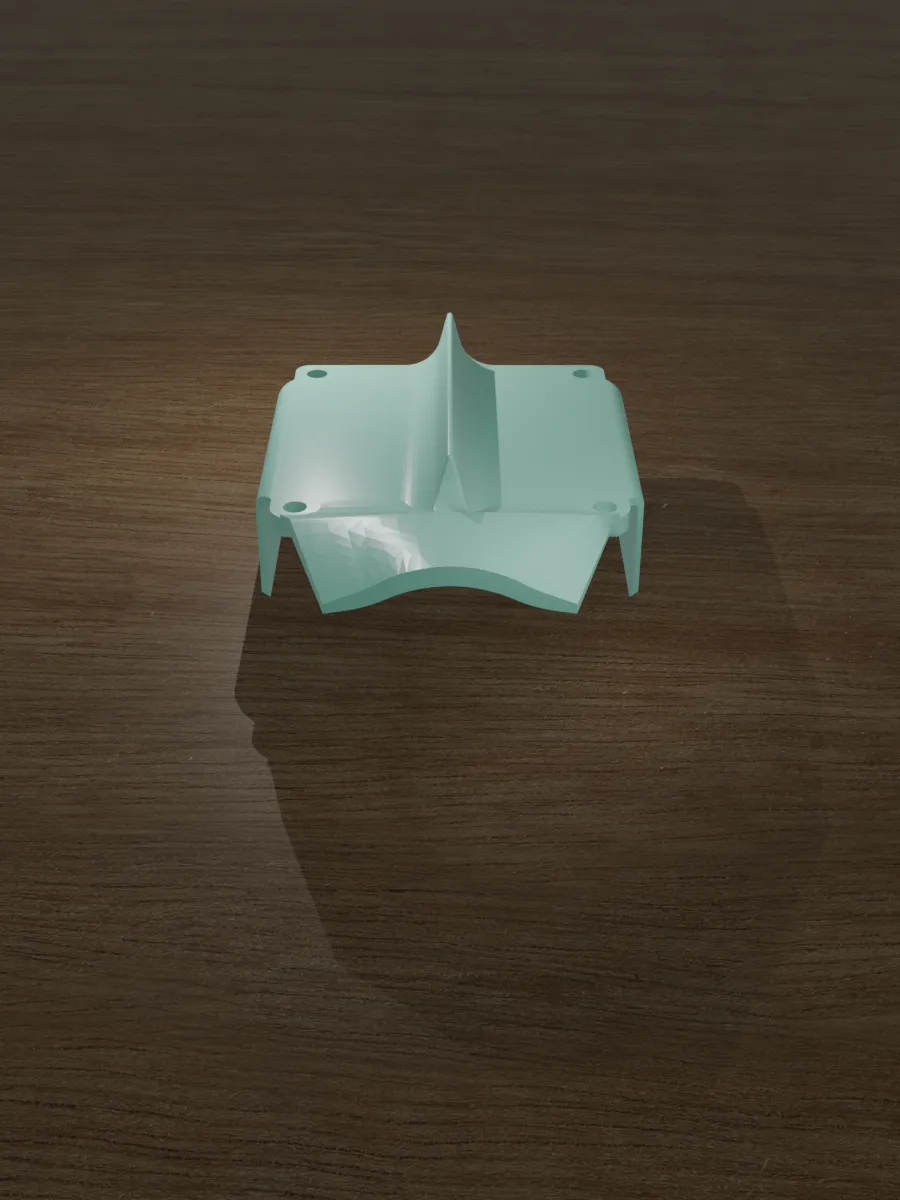

– solid cover
– cover with cutout for a 30×30×10 mm cooling fan
All parts are assembled using M3 screws. The base can be mounted on an RC car, boat, or similar vehicle using M3 bolts. The antenna holder is also fastened with M3 screws.
Recommended to print in rigid filament like PETG or ABS for better heat and mechanical resistance. Support is required, to help for complex overhangs.
