Trash Bag Roll Holder (3 sizes)
Print Profile(3)
Description
Holds trash/bin bag rolls that are up to 60mm diameter (2.35").
Available in 3 lengths:
- 150mm (5.9")
- 200mm (7.9")
- 250mm (9.84")
2mm wall thickness and a big fillet at the bottom for good strength. Radial external ribs provide added stiffness.

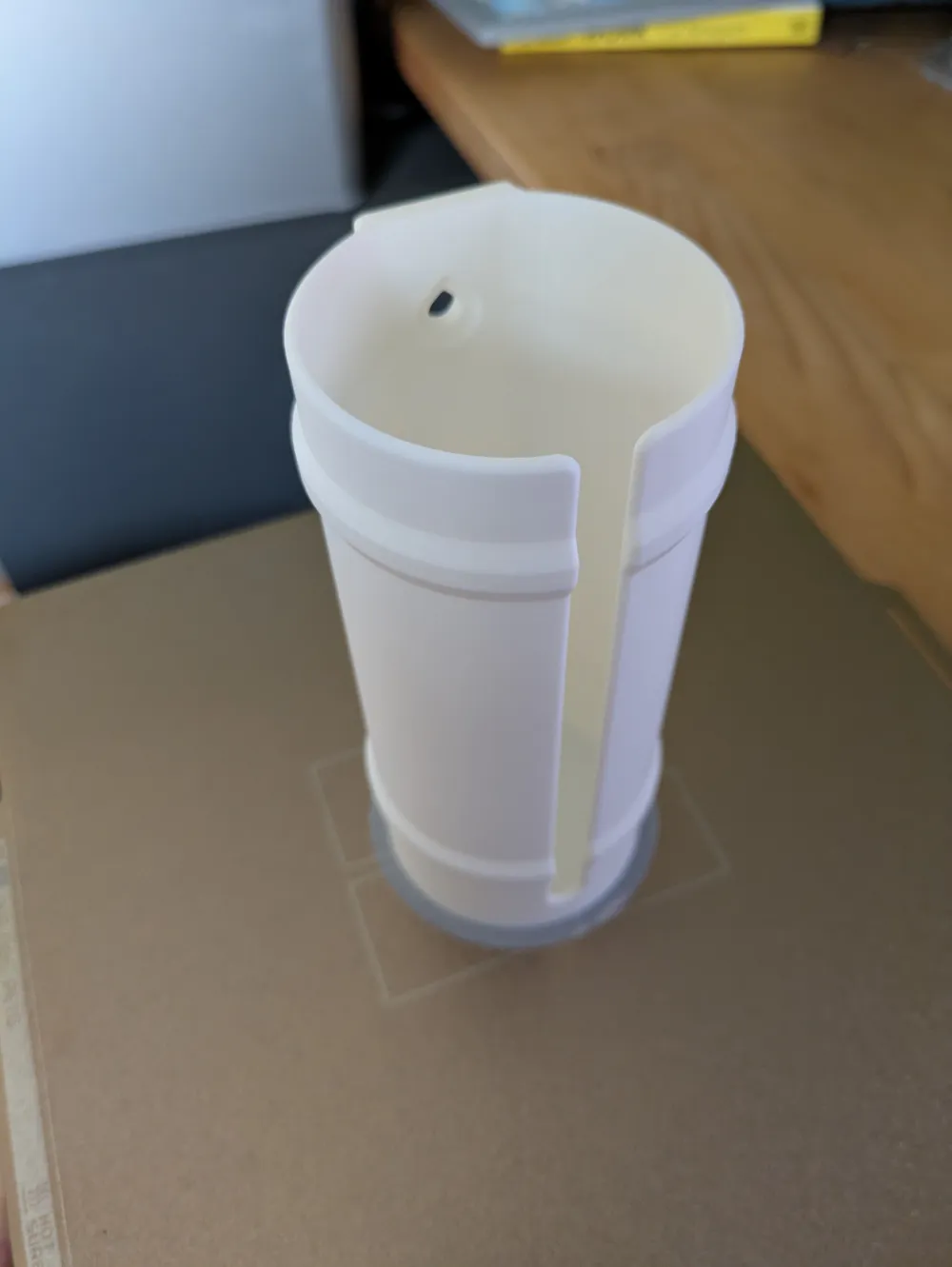

Prints standing on end with no supports.

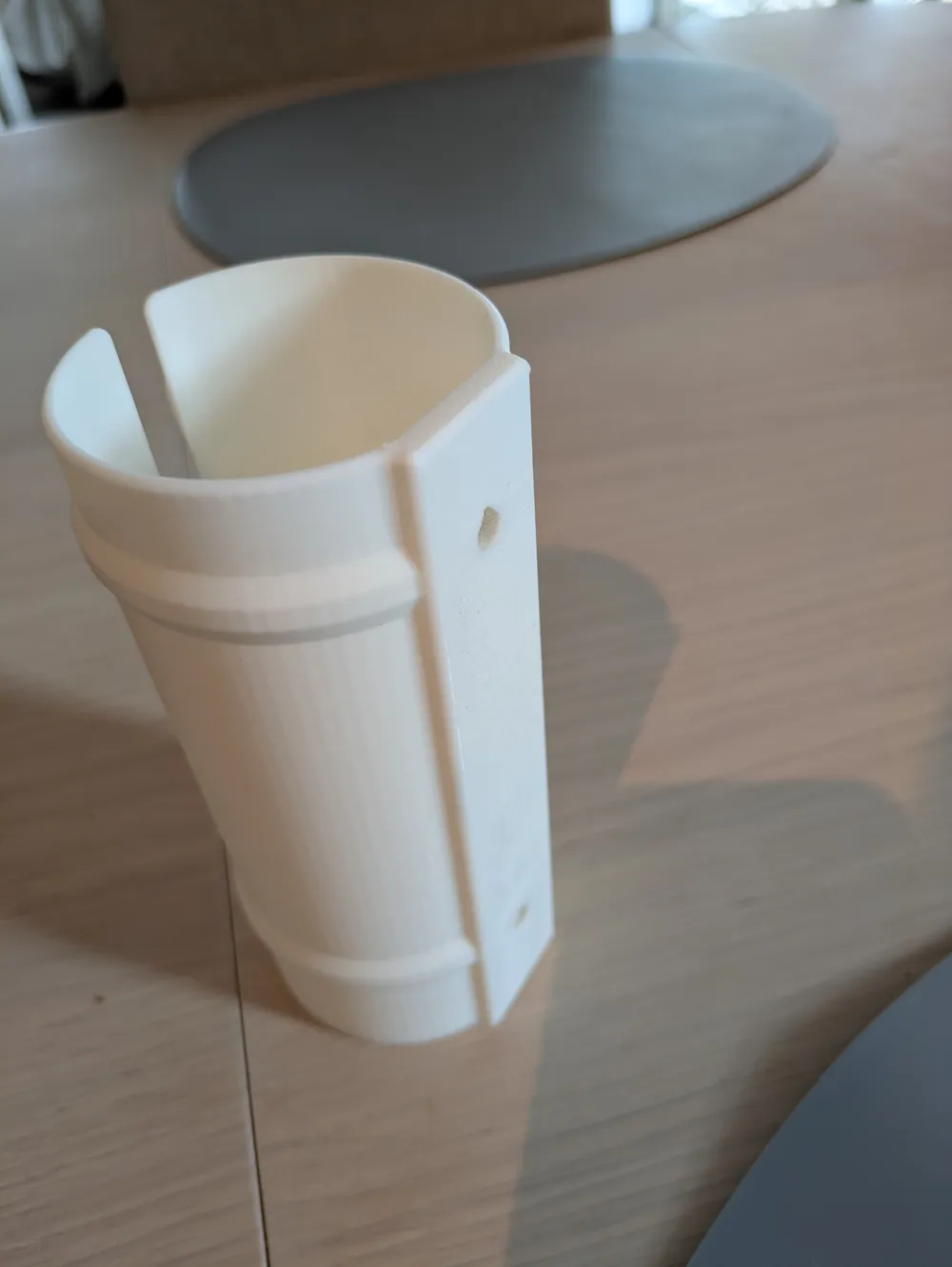

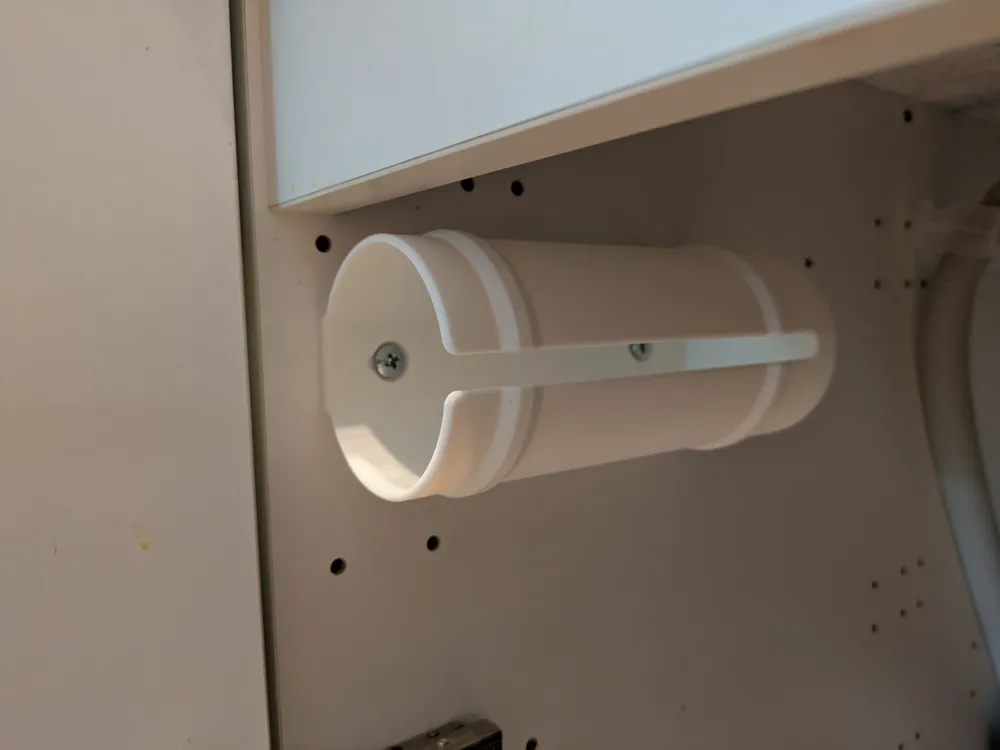

Screw holes are 6mm and accommodates screw heads of up to 12mm in diameter. Use pan head screws or screws specifically for mounting kitchen cabinet accessories in the pre drilled holes.
Hole spacing is:
- 105mm for 150mm size
- 155mm for 200mm size
- 201mm for 250mm size

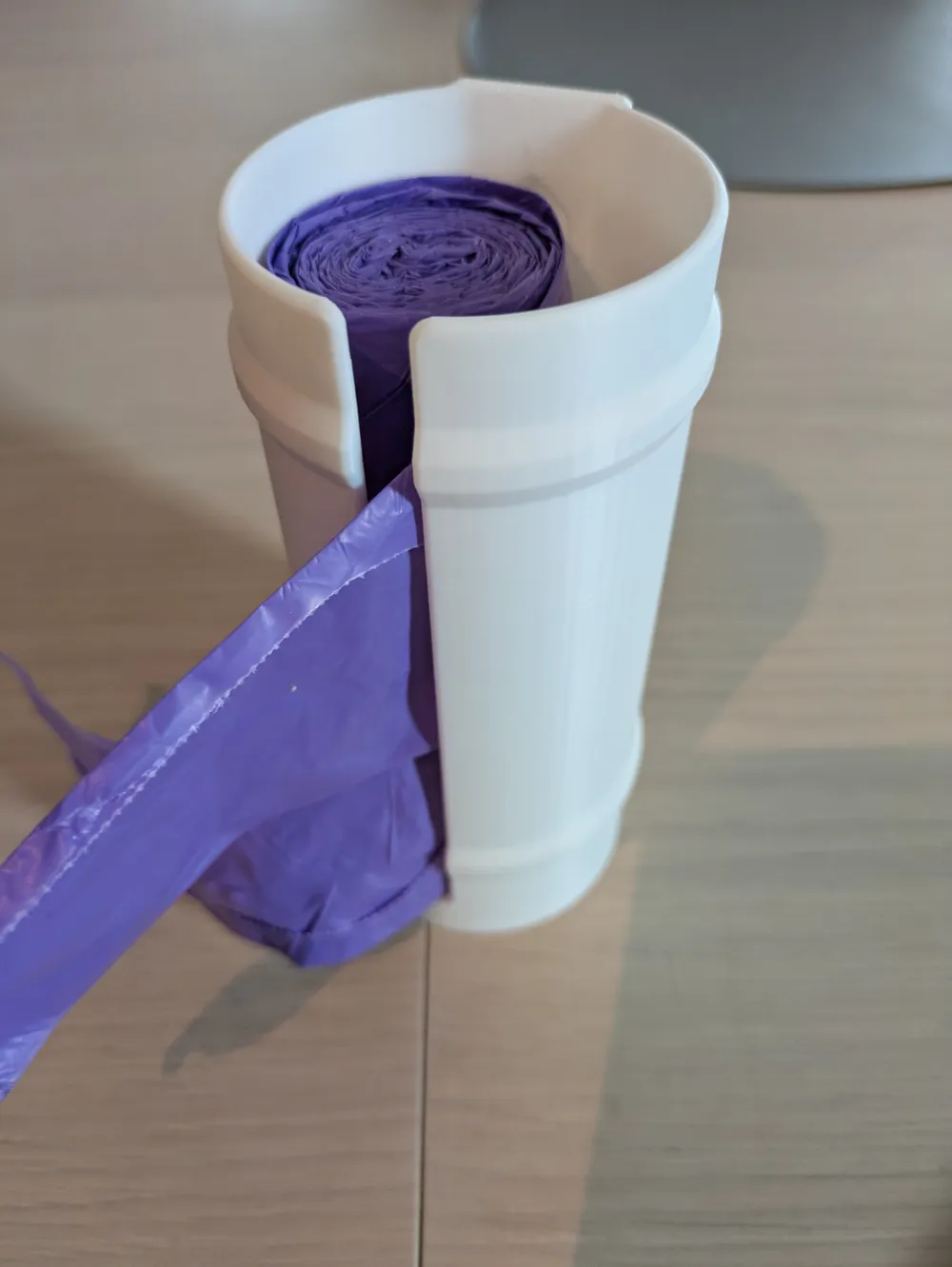

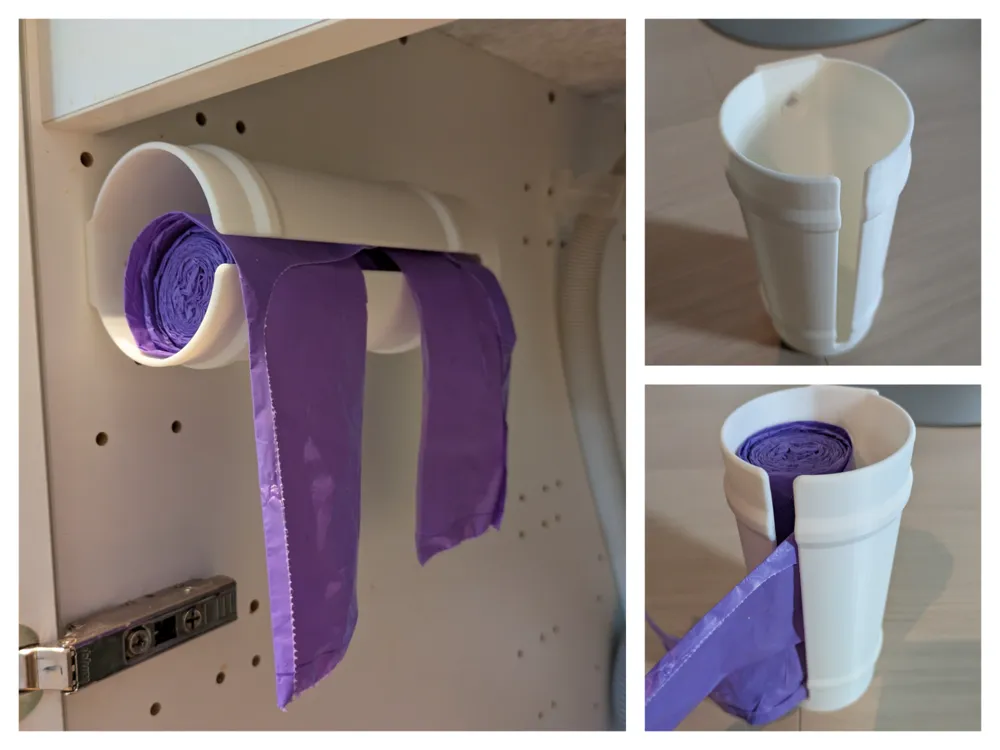

The trash bag roll in the picture is halfway used.
