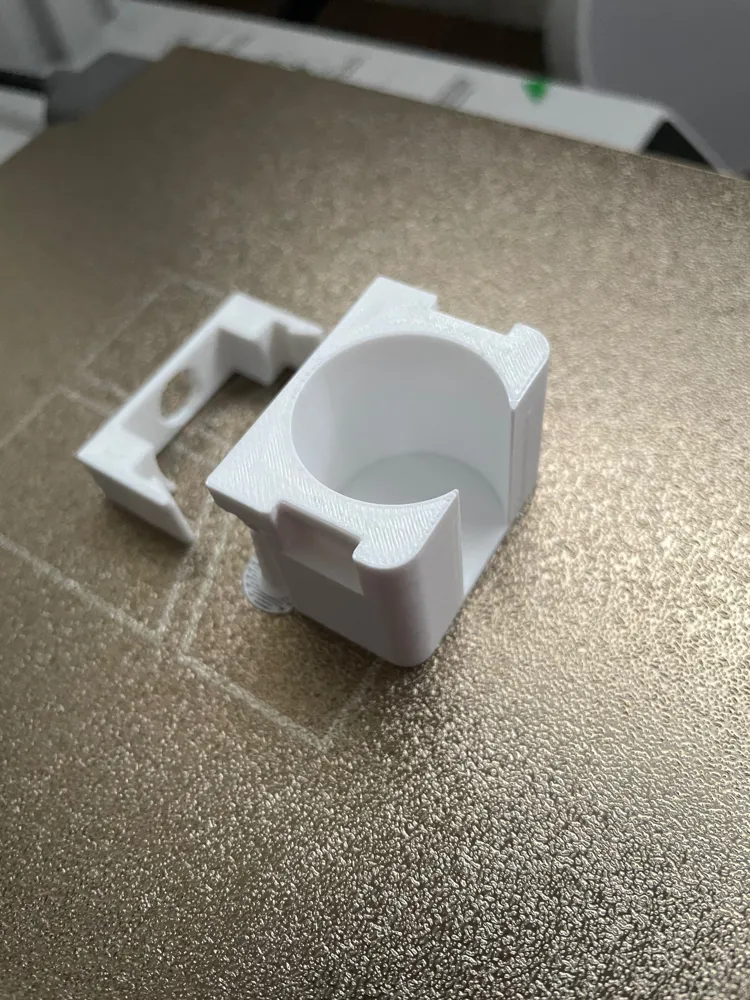

Motor holder for compact drilling machine

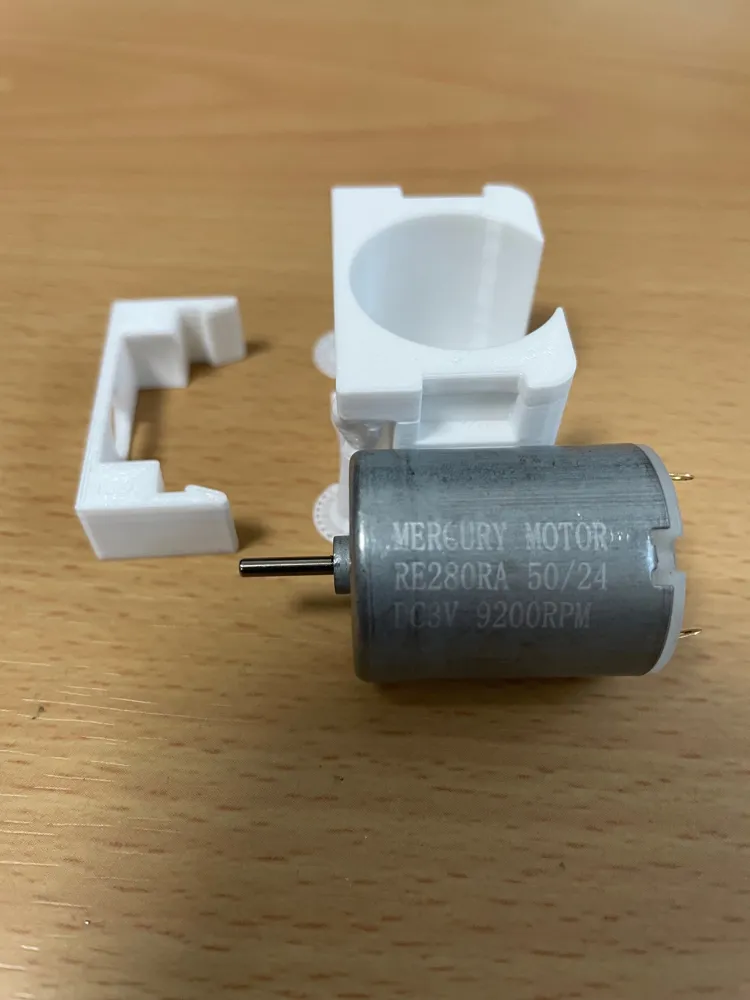

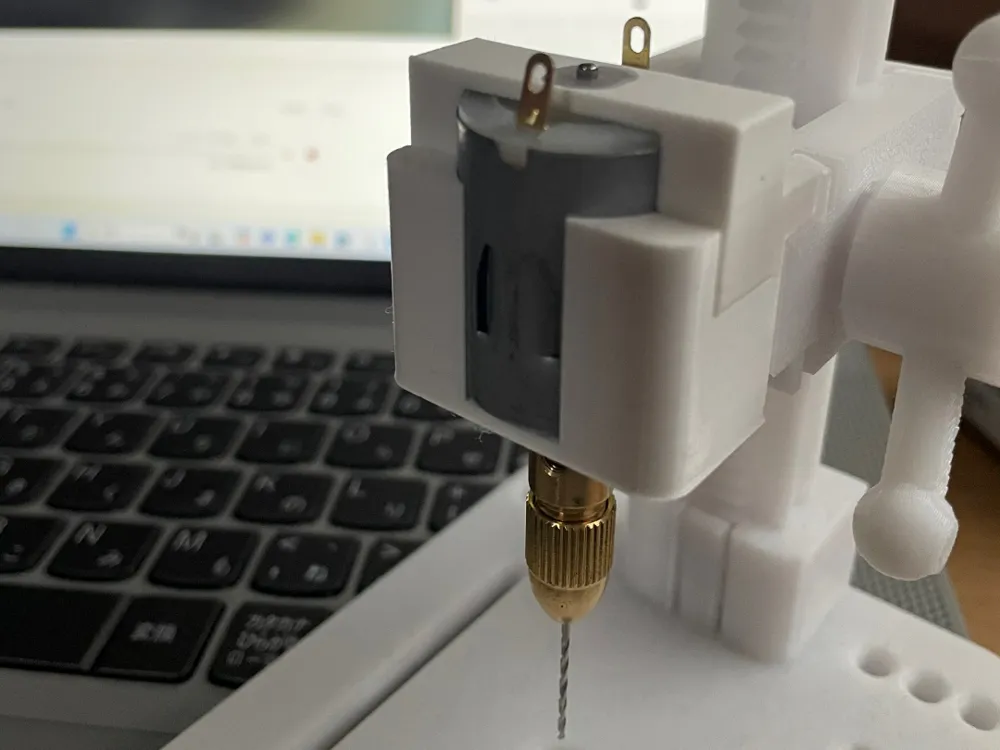

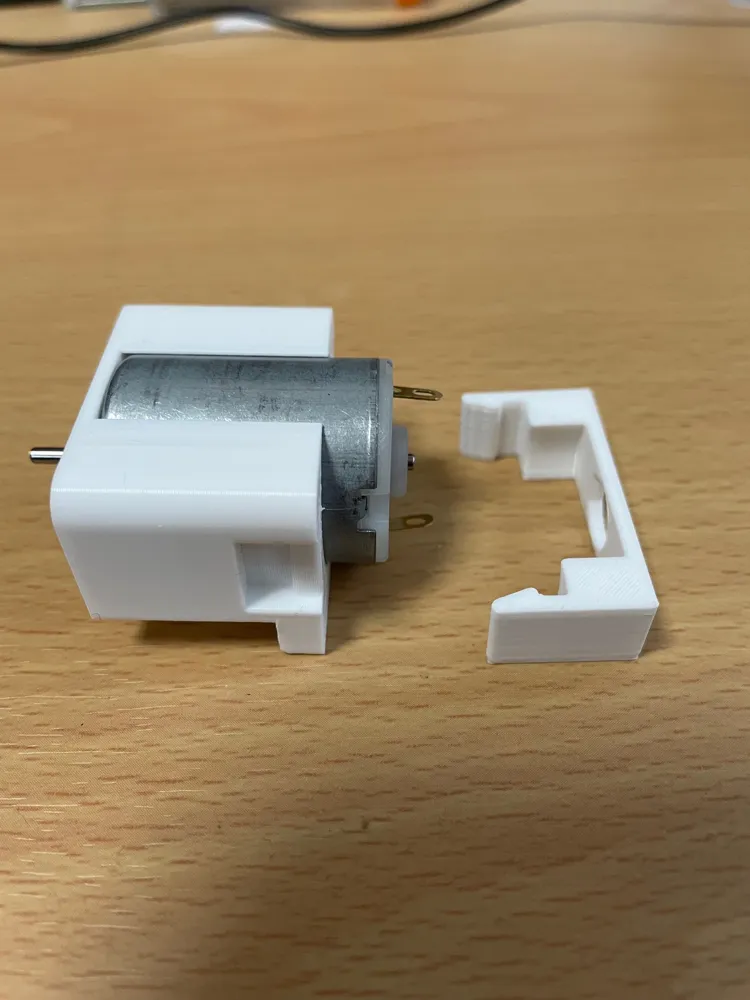

The Mabuchi RE-140RA motor doesn't have enough torque, so I made a new holder to fit the RE-280RA-2865 motor.



https://makerworld.com/en/models/1214939-compact-drilling-machine#profileId-1230585



This is a special design for this model.

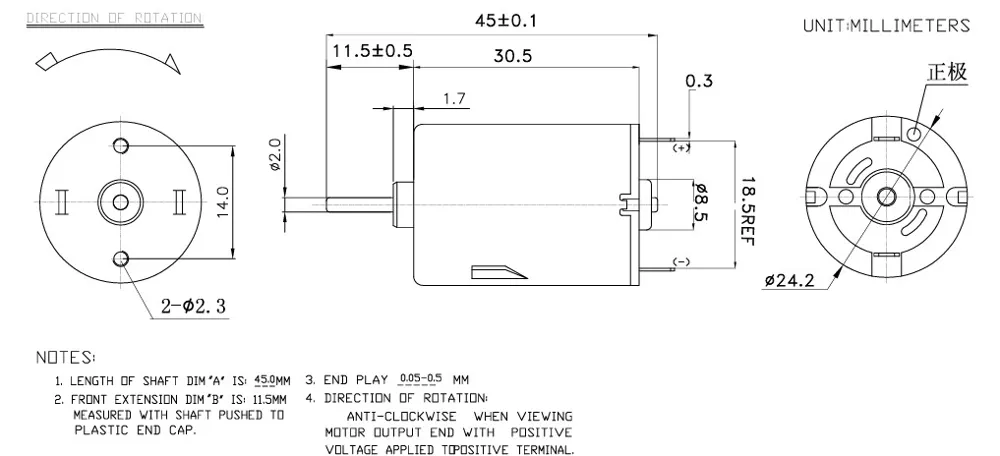

https://akizukidenshi.com/goodsaffix/RE-280.pdf
