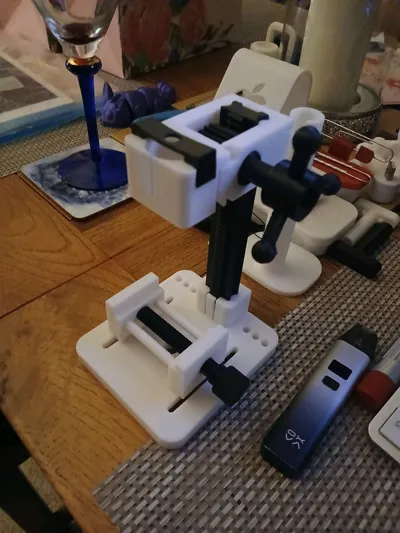

This is a diminutive drill press.
It comprises eight components.
You will also require a Mabuchi RE-140RA motor and a miniature drill chuck with a 2mm bore.
Due to its negligible torque, I surmise its drilling capacity is limited to approximately 1mm diameter holes in plastics or printed circuit boards.
Consider modifying the motor mount and substituting it with a higher-torque motor for enhanced performance.

Bill of Materials

List other parts

Mabuchi RE-140RA motor x 1
small drill chuck x 1

Download BOM
