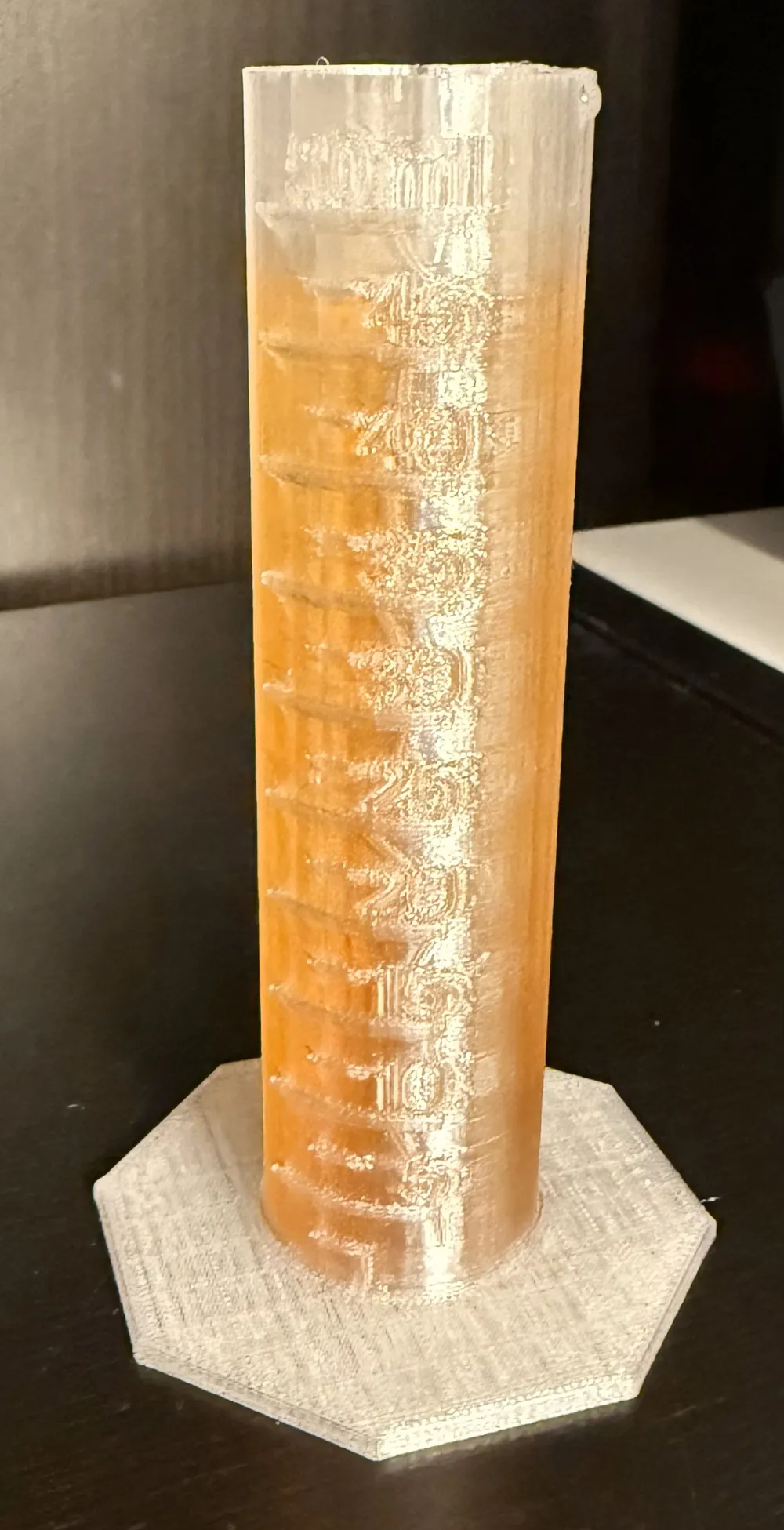

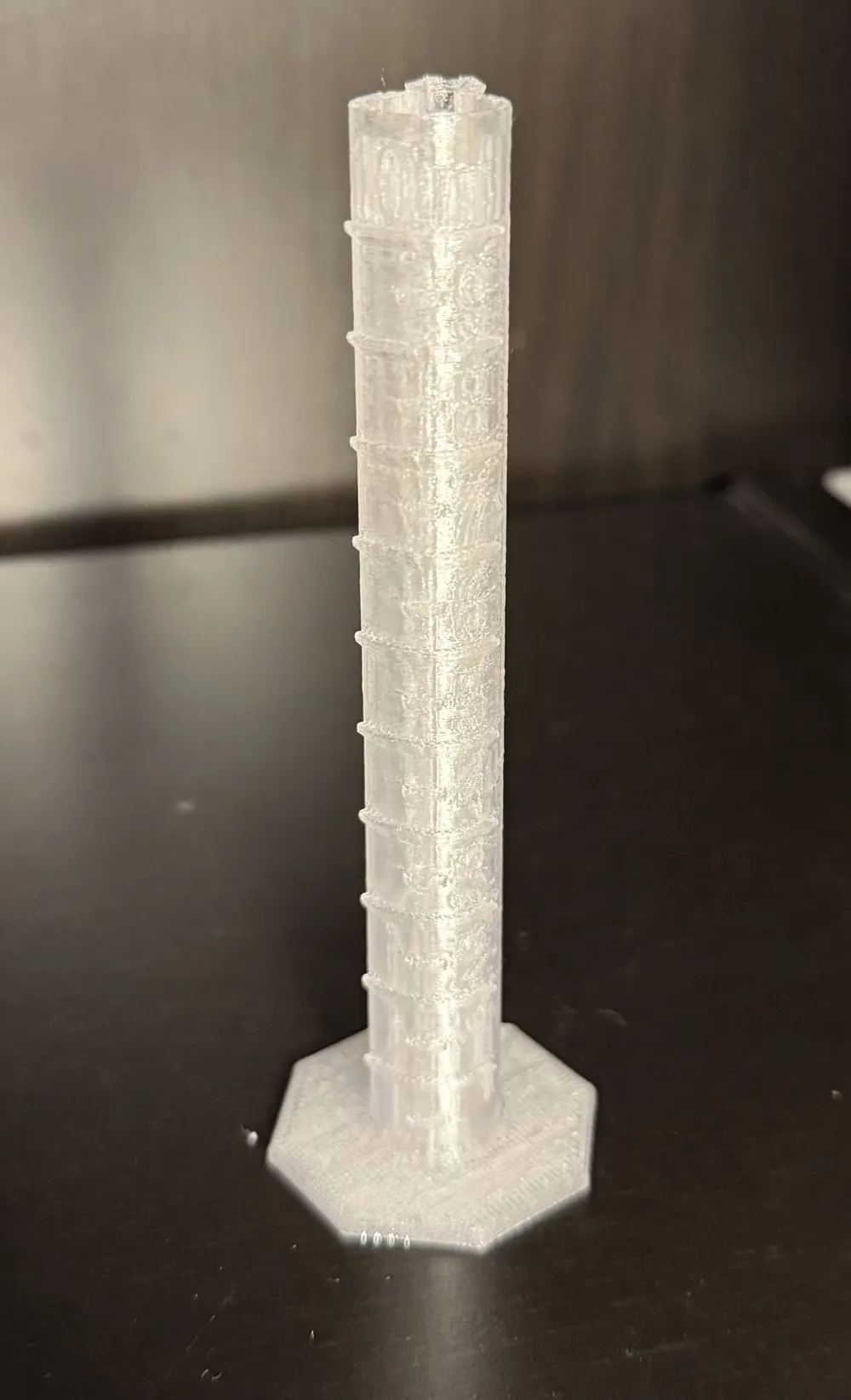

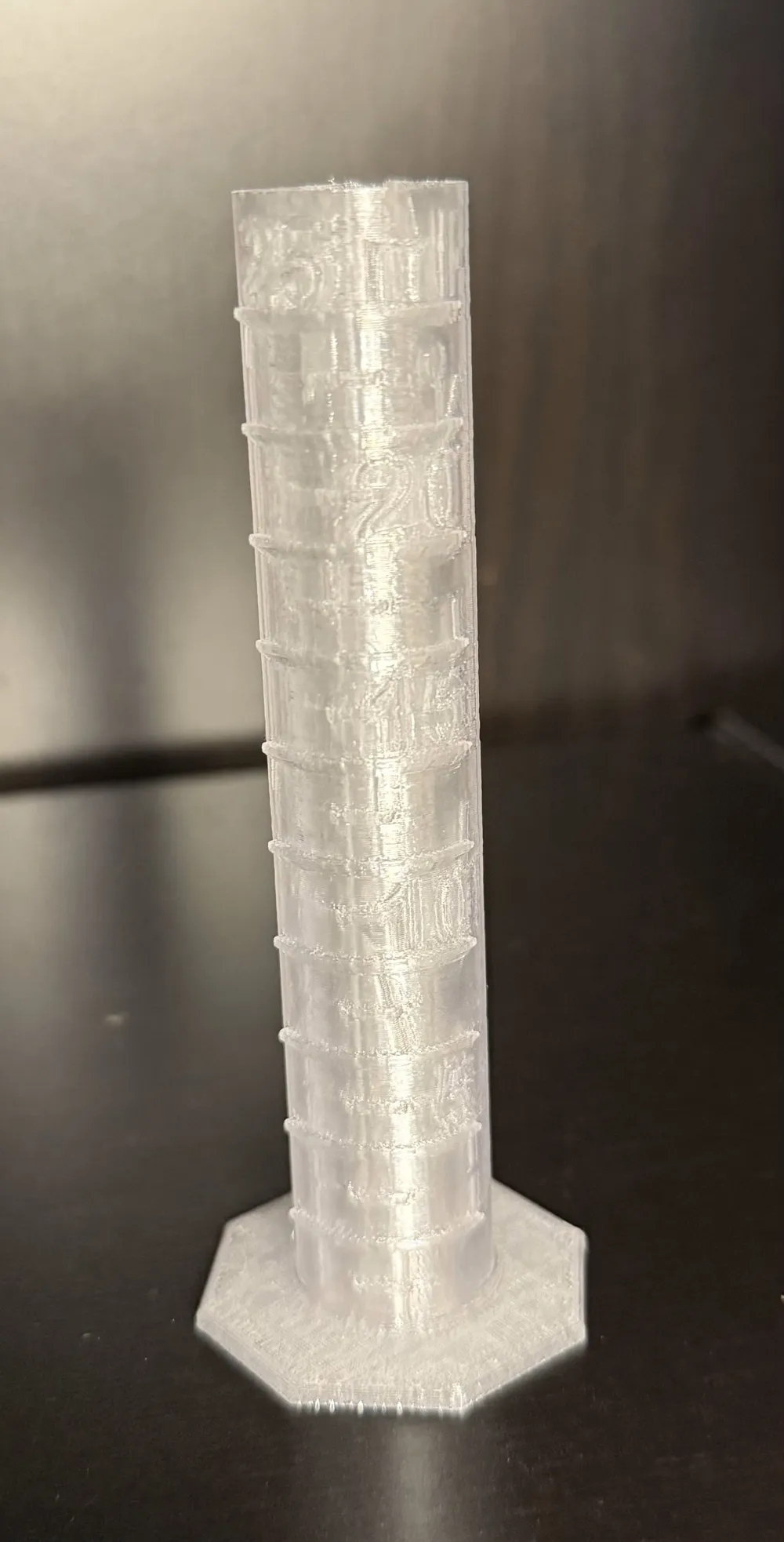

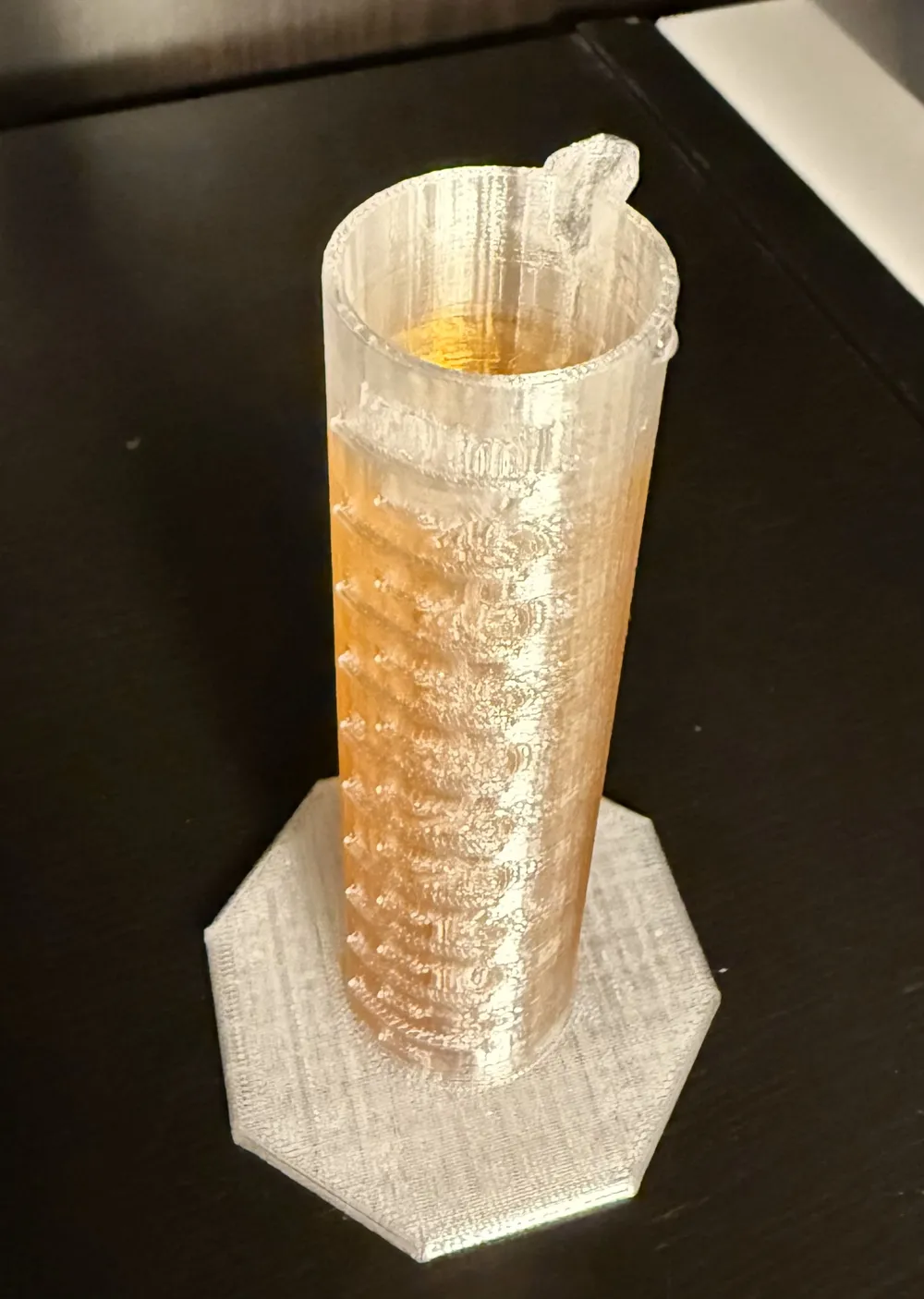

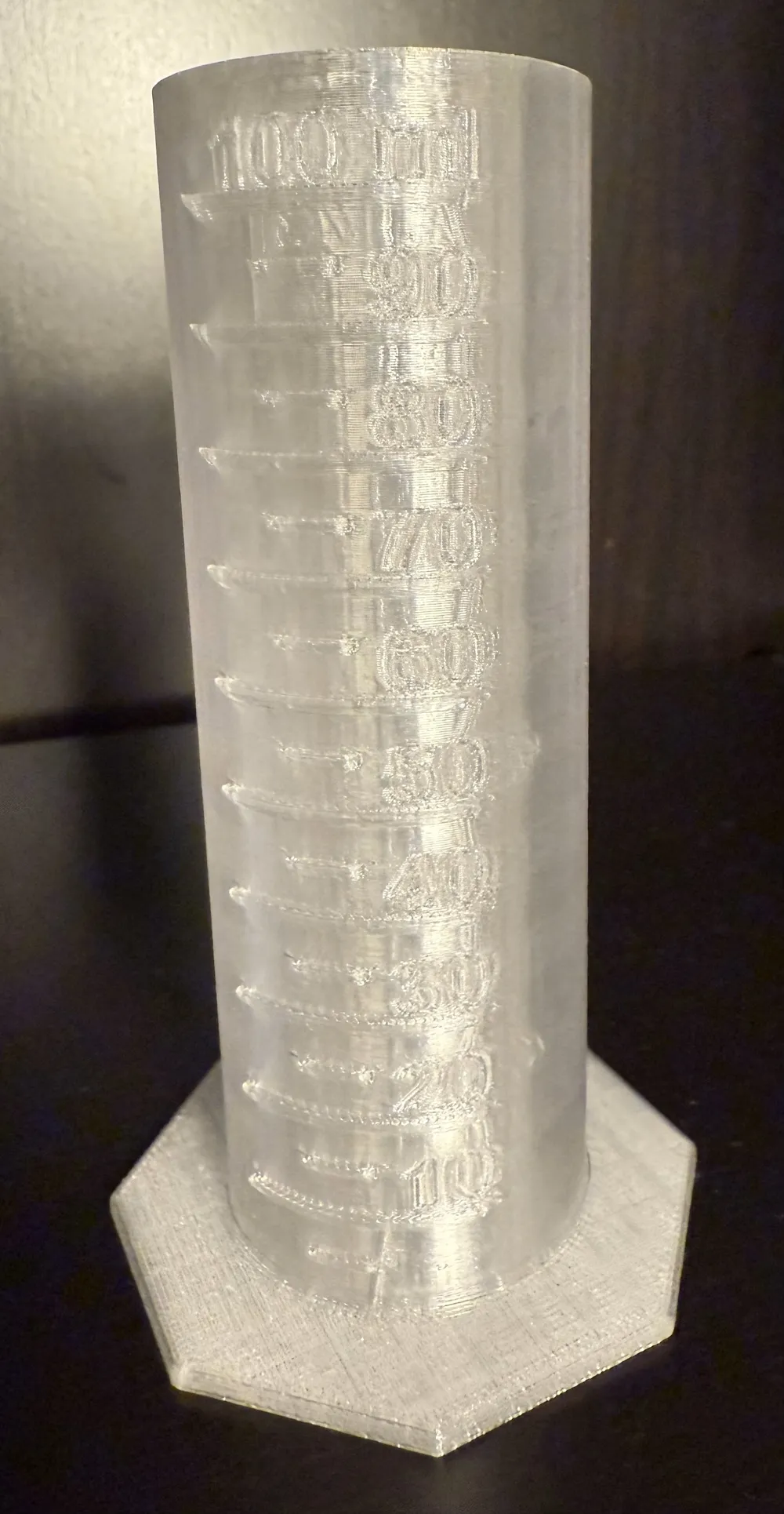

Graduated Cylinder Set – 10ml, 25ml, 50ml & 100ml

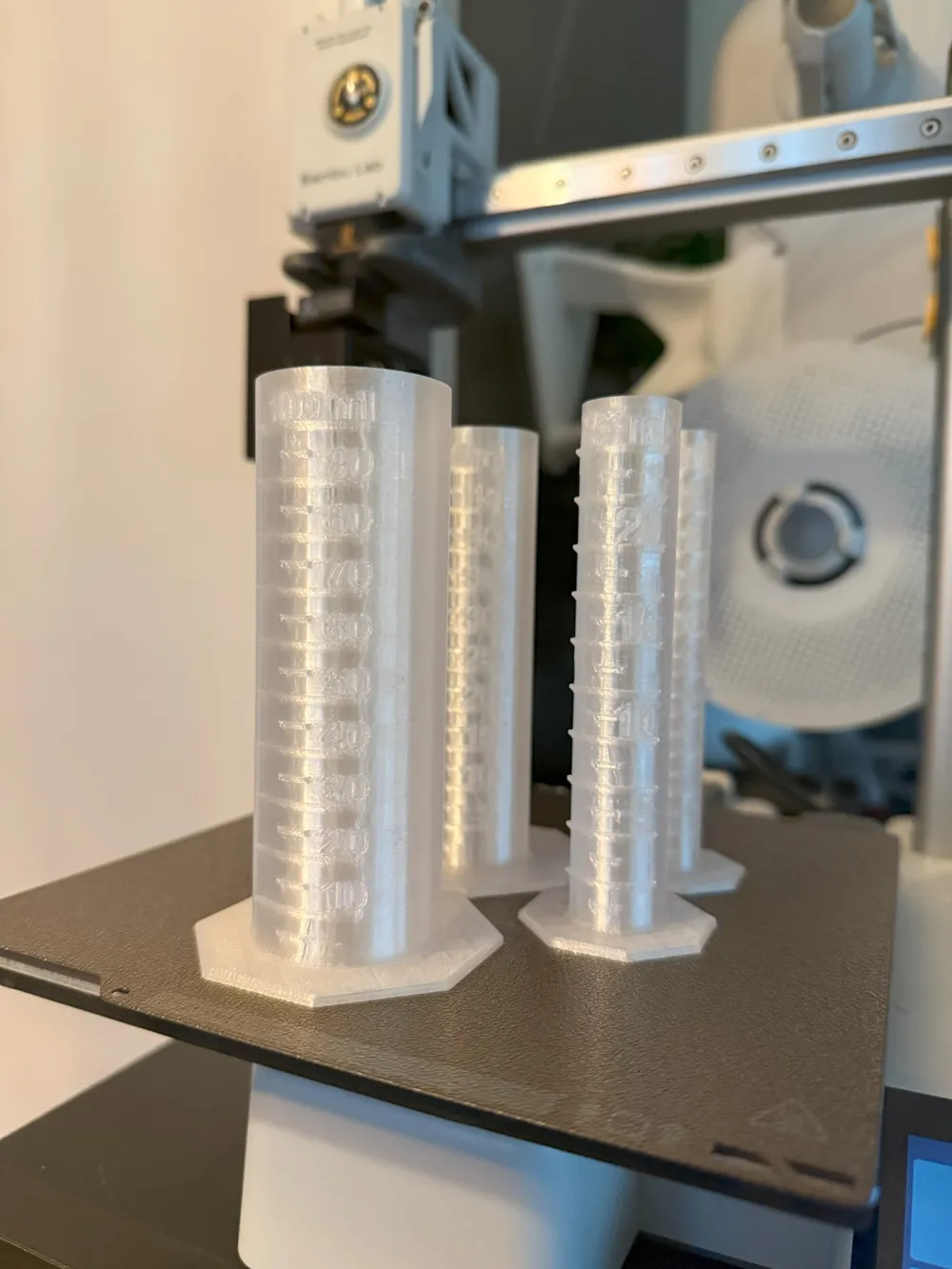

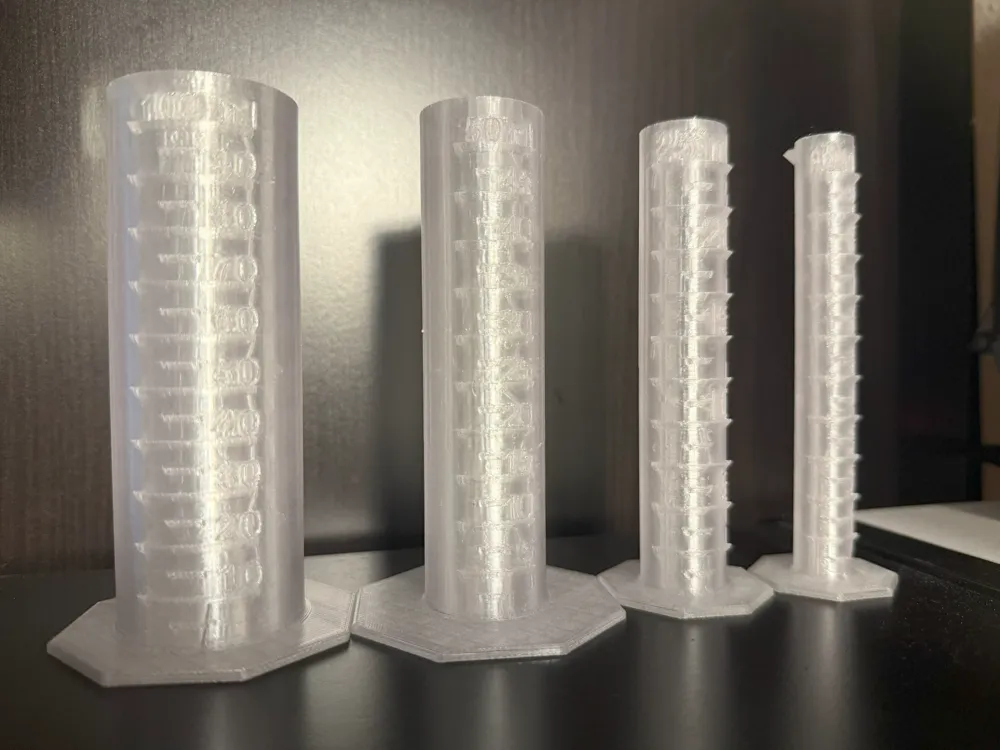

This 3D printable set includes four graduated cylinders in sizes 10ml, 25ml, 50ml, and 100ml – perfect for science labs, educational use, or maker projects involving liquids. Each cylinder features volume markings, a stable base for accurate measurement and secure handling, and is watertight.

The provided print profile includes the entire set(10ml, 25ml, 50ml & 100ml). If you only need a specific size, you can download the individual STL files or simply remove the unneeded models in Bambu Studio accordingly.

Ideal for classroom experiments, demonstrations, or as part of a miniature lab setup.

For best results use a Translucent PETG

UPDATE: 24.05.2025

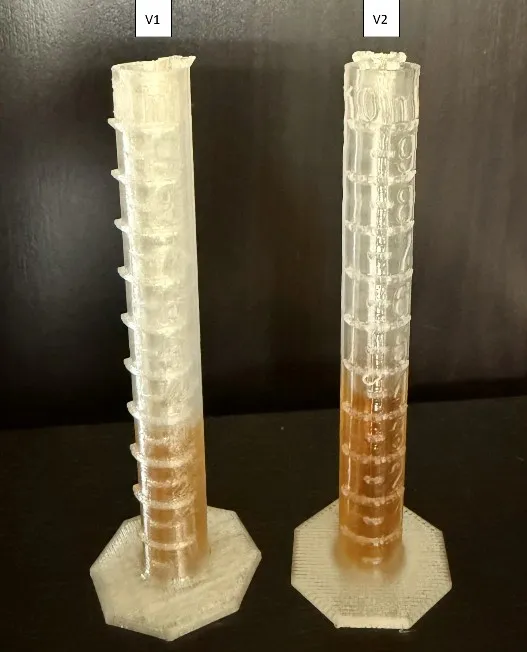

I’ve uploaded an additional print file (V2) with adjusted settings to achieve a clearer, more transparent look. This makes it easier to read the values when working with transparent fluids. Please note that the print time for this version is significantly longer. Feel free to choose the profile that best suits your needs.

HAVE FUN!

Boost Me (for free)

Comment & Rating (23)

@AlexL.

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Perfect when you only want to use small amounts of liquid I traced the markings with a pen Printed in PETG from Eryone

The profile uploader has replied

Show original

@MikelAngelo

thanks for your feedback. looks nice with the coloured scales!

@user_504160618

Boosted

Print Profile

0.1mm layer, 1 walls, 100% infill

Super Druck!

@Shez1998

Print Profile

0.2mm layer, 2 walls, 15% infill

look pretty good the 2 smaller ones have holes in spout , but don’t hinder use in any way

@PeKa916

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

nice, I used transparent PETG, that's not the best idea ;)

The profile uploader has replied

@MikelAngelo

hi thanks, the other print profile is a bit better optimized for transparent petg

(Edited)

@PeKa916

Boosted

Replying to @MikelAngelo :

Thanks for the info I didn't see that. I will give it a try

@rodenti

Boosted

Great model! I had an issue with what looked like cobwebs inside the cylinder from the top to the bottom, but a combination of scraping and flame fixed the majority of the thin strings.

The designer has replied

@MikelAngelo

thanks for your feedback and your boost. what you describe looks like stringing which occurs with „wet“ filament. next time try drying your filament before use

@rodenti

Boosted

Replying to @MikelAngelo :

Yes, I figured that was the case. The filament was at 28% RH and I have been successful in the past at that level with petg. I wanted the cylinder right away and I didn't want to wait 4 hours to dry it before starting the print.

@FJeighty

Print Profile

0.2mm layer, 2 walls, 15% infill

For a quick functional part, this was great, use a sharpie to color the numbers for better reading. I think this could be refined to increase the translucence, though I really just needed the function immediately and it was as expected.

The profile uploader has replied

@MikelAngelo

hello thanks for your feedback. their is another more translucent print profile, just takes way longer

@Spookymonster

Boosted

@zansengaia

Boosted

Very accurate! Great job

@printermind

Print Profile

0.2mm layer, 2 walls, 15% infill

@shannonlcausapi

Print Profile

0.2mm layer, 2 walls, 15% infill
