Axe - flail (transforming)
Print Profile(2)
Description
Axe - flail (transforming)

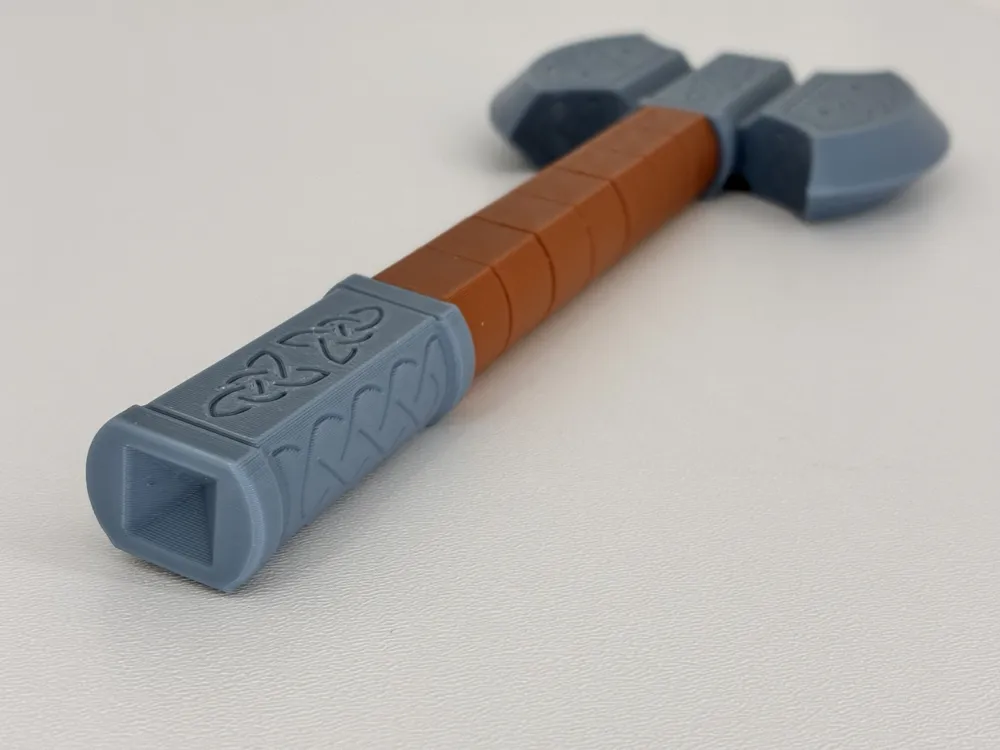

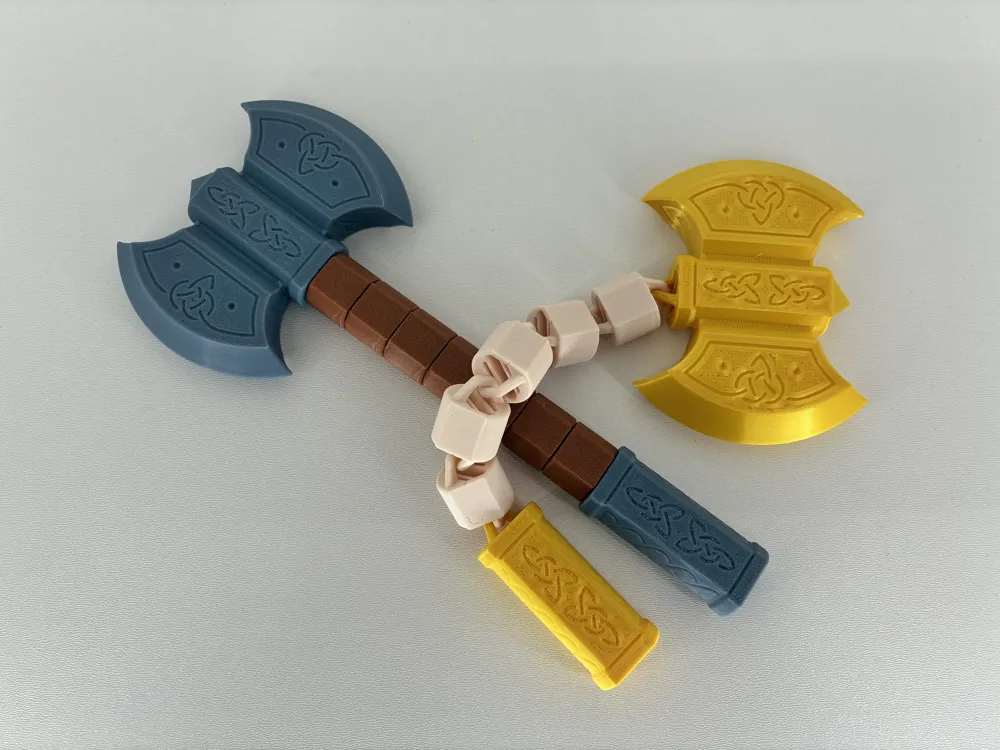

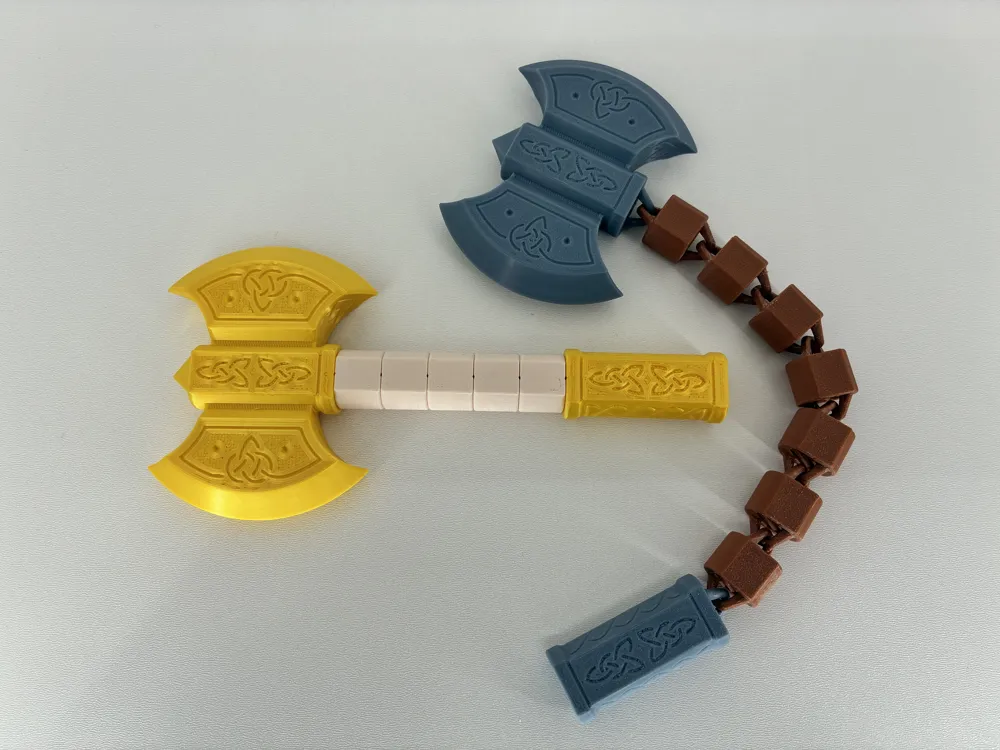

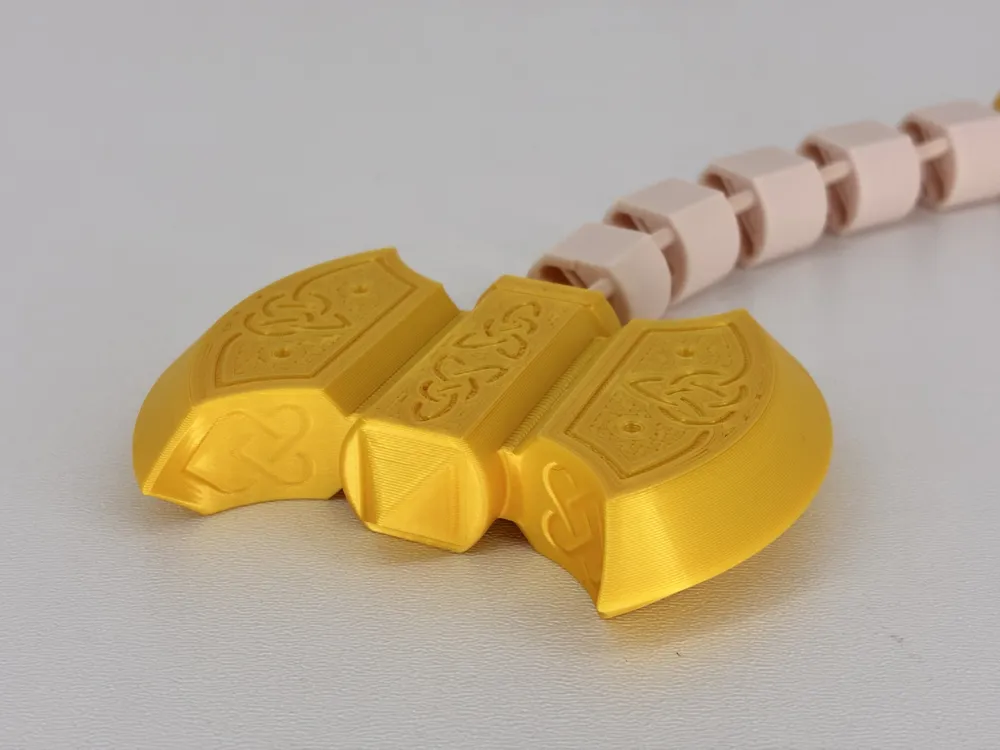

An Axe that can undergo transformations, from an ordinary Axe it transforms into a Flail ending in axe blades.

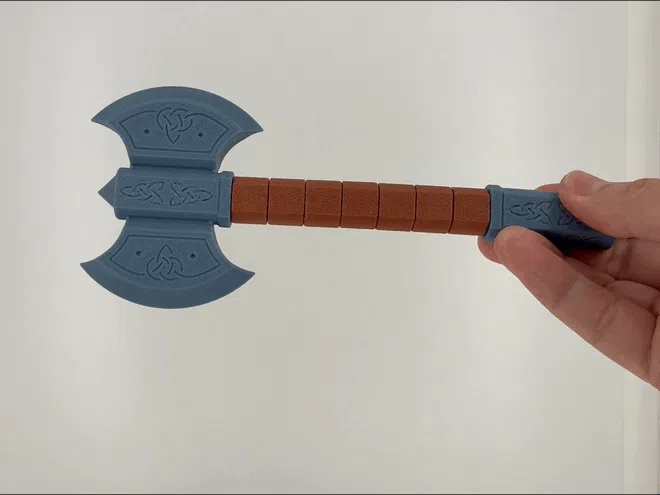

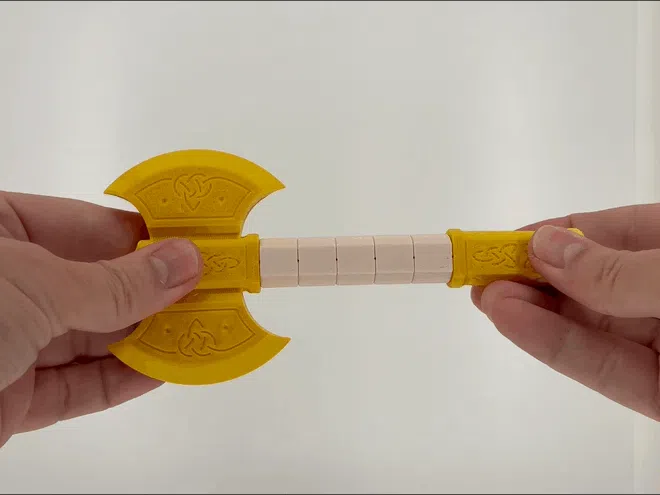

The axe can be transformed into a flail by stretching by grasping the handle and the axe blade. It can be a little tricky the first time, but after a few tries it should be easier.
See another project in the same style
Remember that this project requires precision, so you need to have well-calibrated Flow Ratio and Flow Dynamics, I also remind you about a clean and degreased plate. |
Print notes

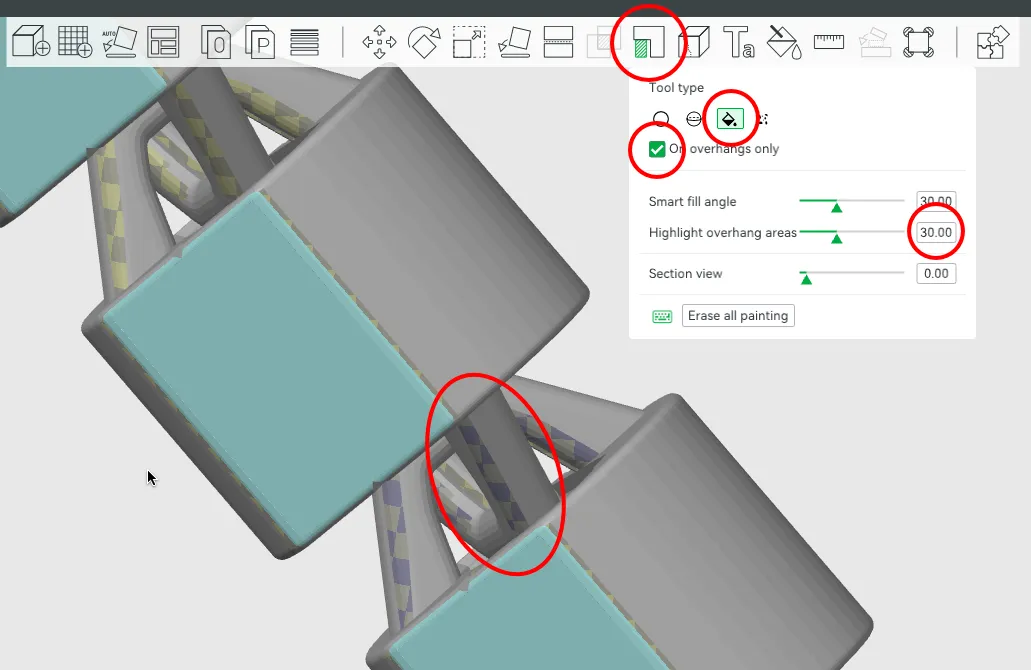

- Supports are recommended for the proper functioning of the jointing mechanism. The connectors are then smooth and nothing will snag when connecting and disassembling. In the latest version of Bambu Studio, the supports on such small pieces do not generate automatically, so you have to do them manually (see image below for instructions on how to do this)
- Remove all supports after printing.
- Suppore -> Type: tree.
- Type -> tree(manual)
- Only on the construction plate - marked.
- Tree support -> Angle of branches: 30 - so that the supports do not go inside the elements.
- Wall loops: 3.
All of the above comments are included in my print profile and I recommend using it.
 | If you want to print in one color, use a multi-color profile and set each color to the same one. |
I have tested the print on Bambu Lab PLA Basic and also on matte filament and have had no problems with them. From comments from other models of this type, prints from PET-G also come out well. I do not recommend using filaments like PLA Wood, PLA Silk, PLA CF and others that have a rough surface.
