Description

Sword whip - sword whip

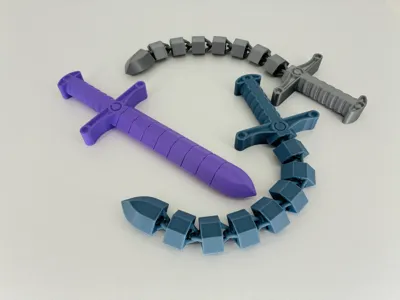

A sword that can undergo transformations, from an ordinary sword it turns into a whip composed of segments of the blade.

The sword can be unfolded by stretching by grasping the handle and the tip of the blade. It may be a little difficult the first time you try it, but after a few attempts it should be easier.

Update 21.03.2025

I will make a profile with a longer version, the maximum for the table 256x256, extended by 5 segments.

Printing notes

Supports are required for the connecting mechanism to work properly. The connectors are then smooth and nothing hooks when connecting and unfolding.
Remove all supports after printing.
The handle can be excluded from the supports.
Suppore -> Type: tree.
On build plate only - checked.
Tree Support -> Branch angle: 30 - so that the supports do not go inside the elements.
Wall loops: 3.

All of the above comments are included in my print profile and I recommend using it.

I tested the print on Bambu Lab Basic as well as Matte filaments and had no problem with them.

Remember that this project requires precision, so you need to have well-calibrated Flow Ratio and Flow Dynamics, I also remind you about a clean and degreased plate.

See another progect in the same style - Flexible Stick

Boost Me (for free)

If you appreciate my work please give me a Boost.

Comment & Rating (218)

@LuvSimba94

Print Profile

PETG , A1 mini compatiable

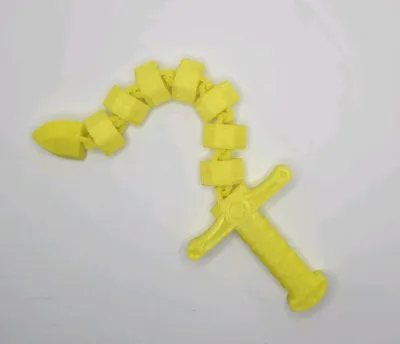

Funny! Printed well in translucent yellow petg.

@jblake7

Print Profile

0.2mm layer, 3 walls, 15% infill

Printed well, and looks good. The supports came out easily. It clicks together so well and holds, and the somehow easily comes back apart when you want it to.

@biotaxis

Boosted

Print Profile

0.2mm layer, 3 walls, 15% infill

A huge hit with everyone who got one!

@zigthehun

Print Profile

0.2mm layer, 3 walls, 15% infill

@akvoltage

Boosted

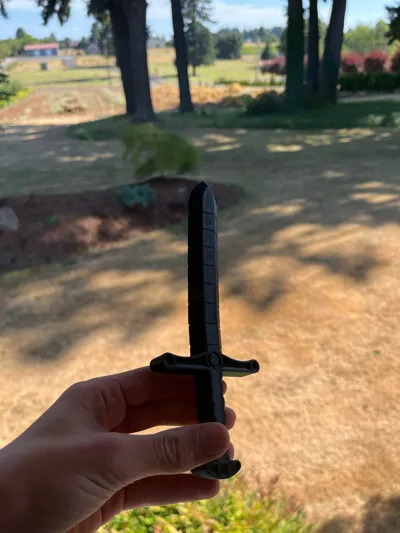

I love this model so much. I printed two normal ones and my stepson and coworker both claimed them. I then made an edit to make the hilt longer for my grasp so now it feels like a true dagger.

@user_3926646292

Print Profile

0.2mm layer, 3 walls, 15% infill

it is very cool and very fun to use sturdy to 😁

@dantecavii

Boosted

fidget is so fun

@t0ma

Print Profile

0.2mm layer, 3 walls, 15% infill

Love it ahah great model

@user_2589769182

Print Profile

0.2mm layer, 3 walls, 15% infill

This is truly magnificent, capable of transformation

Show original

@Szymon_OC

Super nice sword like something interesting
