CYD enclosure for 4.3" ESP32 LCD module
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
4.9 h
2 plates
Open in Bambu Studio
Boost
86
183
8
1
109
31
Released
Description

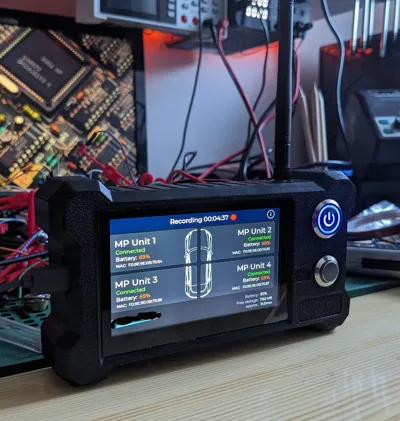

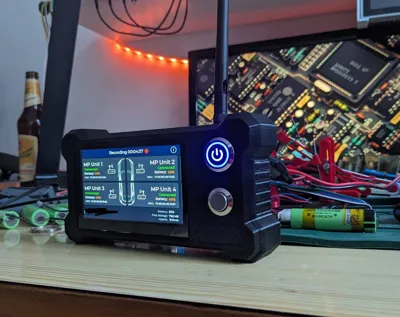

Case for the 4.3 inch CYD (Cheap Yellow Display) ESP32 module. (ESP32-8048S043 and ESP32-4827S043).
The enclosure features:

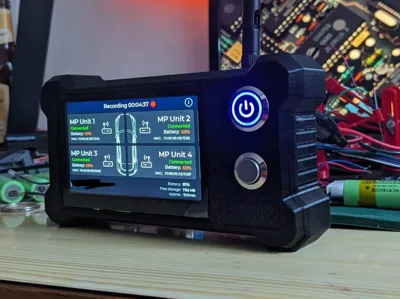

- cutouts for two buttons (19mm and 16mm in different combinations, or with no buttons at all)

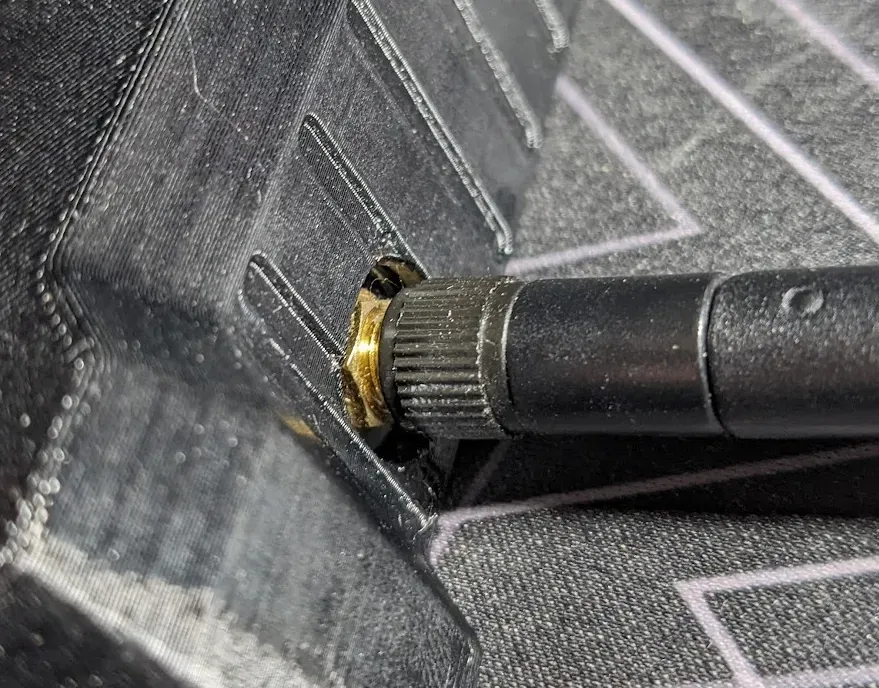

- optional cutout for SMA antenna connector
- cutout for the USB-C

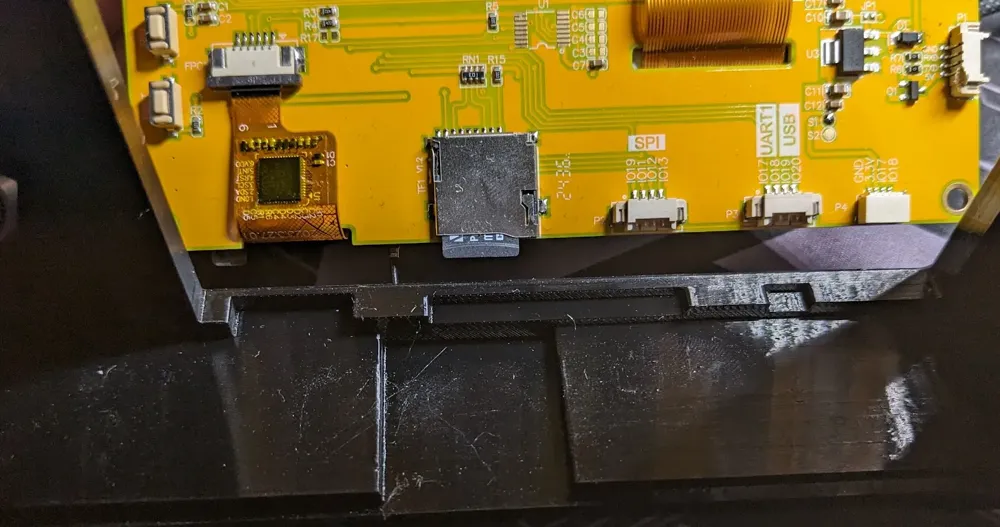

- recessed space for the SD card which cannot be accessed from outside
- recessed space for the LCD ribbon cables (so they don't get damaged)
The default BambuStudio file is the version with antenna, 19 mm top button, 19 mm bottom button.
Browse the STL files if you need a different variant.
Print laying face-down.
Supports are required.
Feel free to contact me for the editable .sldprt file.
