GANTRY for 3 Mini V-Wheels (2020 profile)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
21 min
1 plate
Open in Bambu Studio
Boost
38
129
2
2
112
40
Released
Description

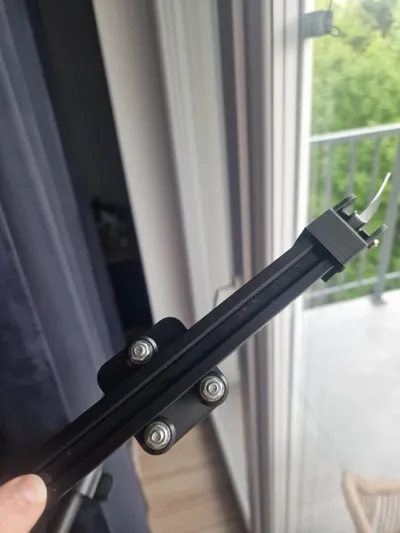

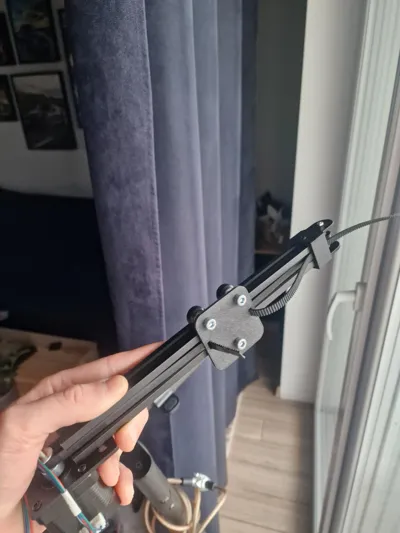

A compact and lightweight gantry plate designed for aluminum V-Slot 2020 profiles. This part supports three Mini V-Wheels in a triangular arrangement (two on one side, one underneath) for smooth and stable linear motion. 50x50mm.

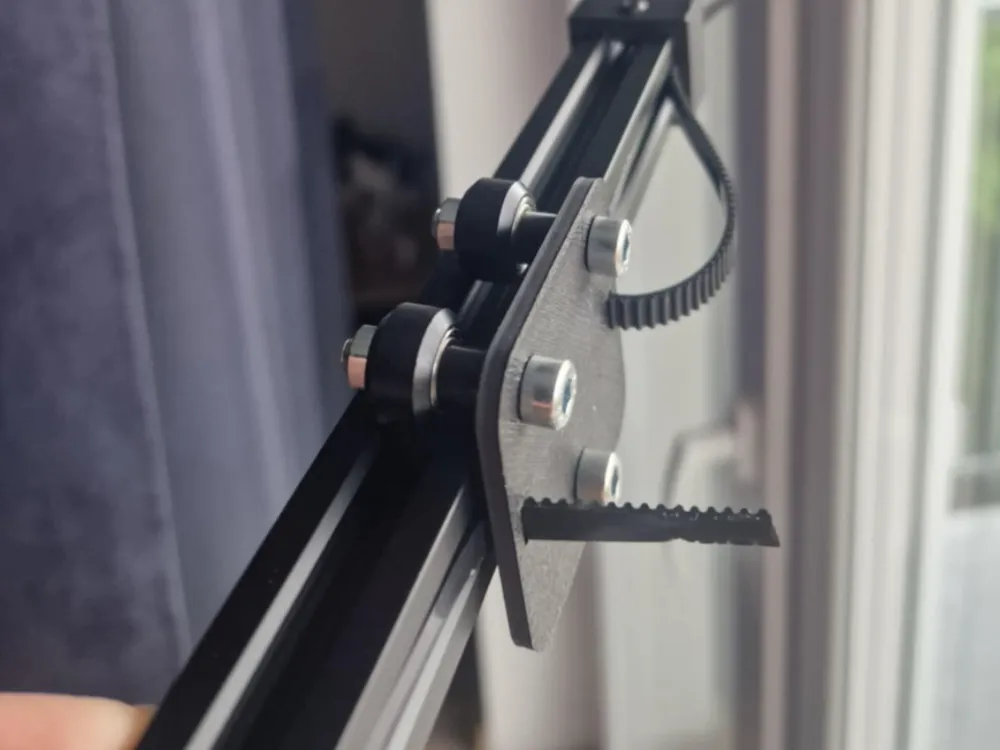

The design includes mounting holes for M5 screws and spacers, and features an optional slot for GT2 timing belt integration, making it suitable for custom linear motion systems.
Fits standard V-Slot 2020 aluminum profiles
- Mounts 3 Mini V-Wheels (triangular layout)
- Uses M5 screws and spacers ( included in design 7,40mm !!!)
- Optional support for GT2 belt
- Best printed in PETG or ABS for strength, even pla for prototype
