10 inch Rack 1U : 2 x 3.5 inch HDD - HOT SWAP ! - Free 3D Print Model

Search models, users, collections, and posts

Nautilus Forge

Hobby & DIY>Electronics

IP Report

Print Profile(7)

All

H2D

P1S

X2D

A2L

X1 Carbon

P1P

H2C

H2D Pro

H2S

X1E

P2S

A1 mini

V2 - Better ventillation - 0.24mm layer, 2 walls, 15% infill

Designer

4.7 h

3 plates

5.0(1)

V1 - UPDATED - Main - 0.2mm layer, 2 walls, 15% infill

Designer

8.8 h

1 plate

4.9(34)

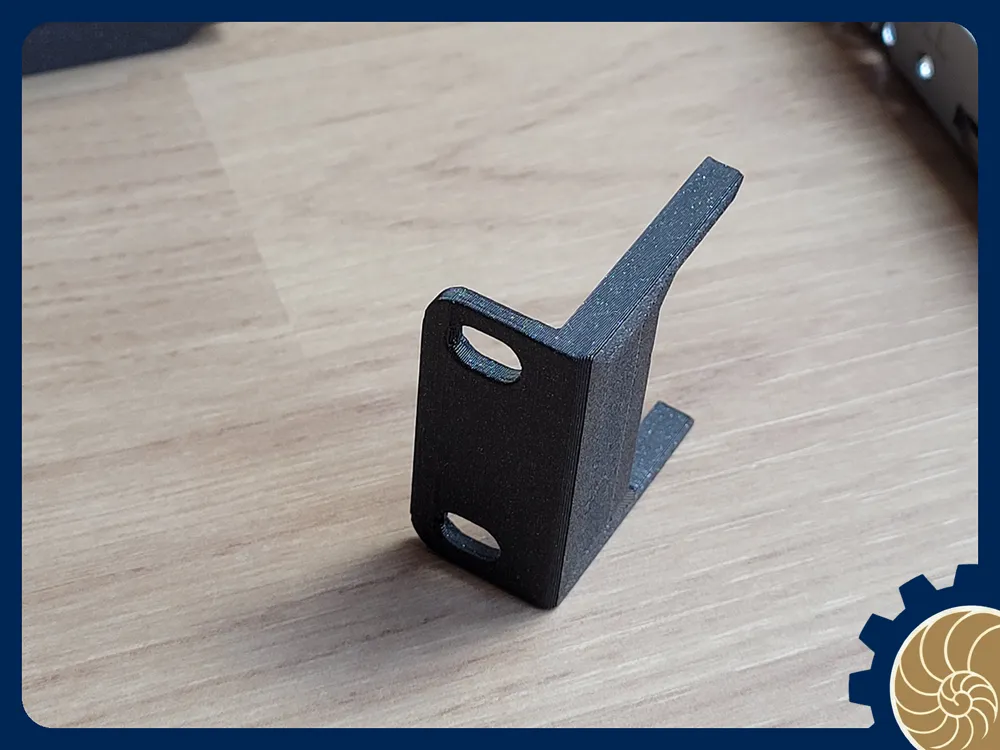

200mm Supports - RACKMATE - 0.2mm layer, 5 walls, 15% infill

Designer

37 min

1 plate

5.0(2)

260mm Supp. - RACKMATE T2 - 0.2mm layer, 5 walls, 15% infill

Designer

1.1 h

1 plate

5.0(3)

Click to see more

Open in Bambu Studio

Boost

843

2944

199

121

2.5 k

1 k

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

BT3x12 BHCS Self Tapping Screw (20PCS) - AA144

BT3 Button Head Cap Self Tapping Screw (BHCS)

Bambu Filaments

Select all

Black(30105) / Filament with spool / 1kg

PETG Basic

Black (10101) / Filament with spool / 1kg

PLA Basic

Description

⚒️ No 3D printer? No time to source components?
I just opened my own e-shop where you can buy physical, ready-to-use versions of my models! Designed with passion, printed and assembled with care ⚙️.
📦 Shipping across the EU: 👉 Get it at NautilusForge.shop

Boost Me (for free)

Like this model? A free Boost is always appreciated! It supports the time that goes into designing and testing. Thank you so much! 😊🙌

Discover all my other hot‑swap storage projects!

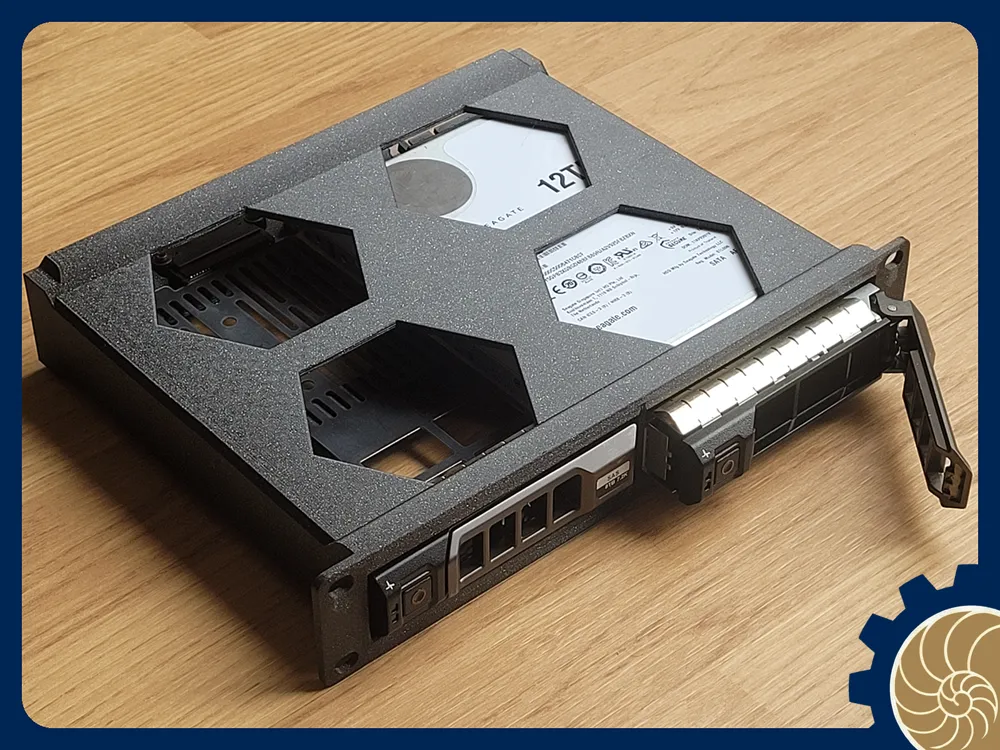

Design:

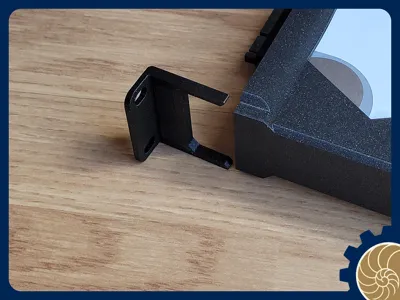

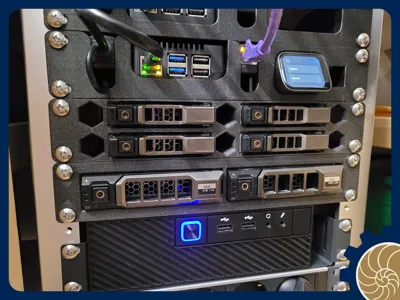

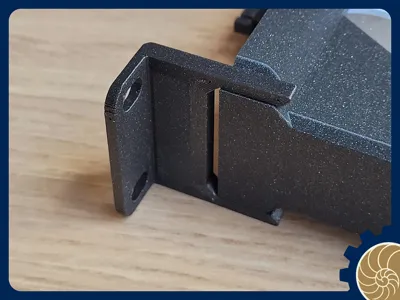

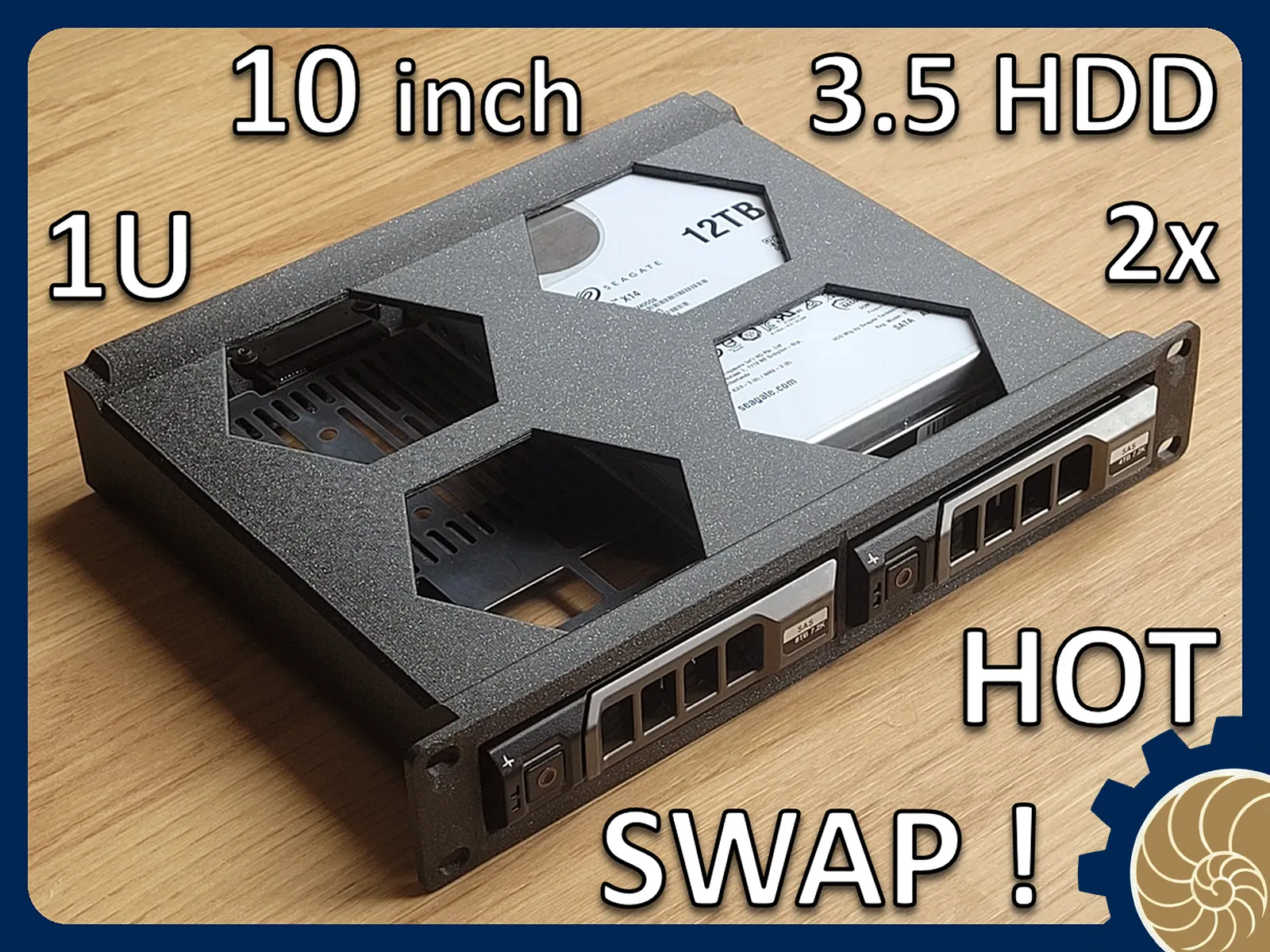

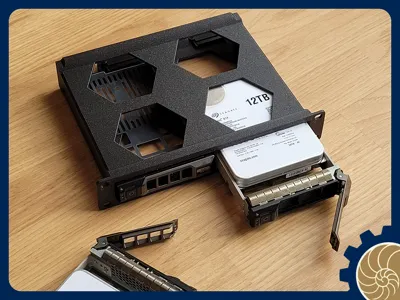

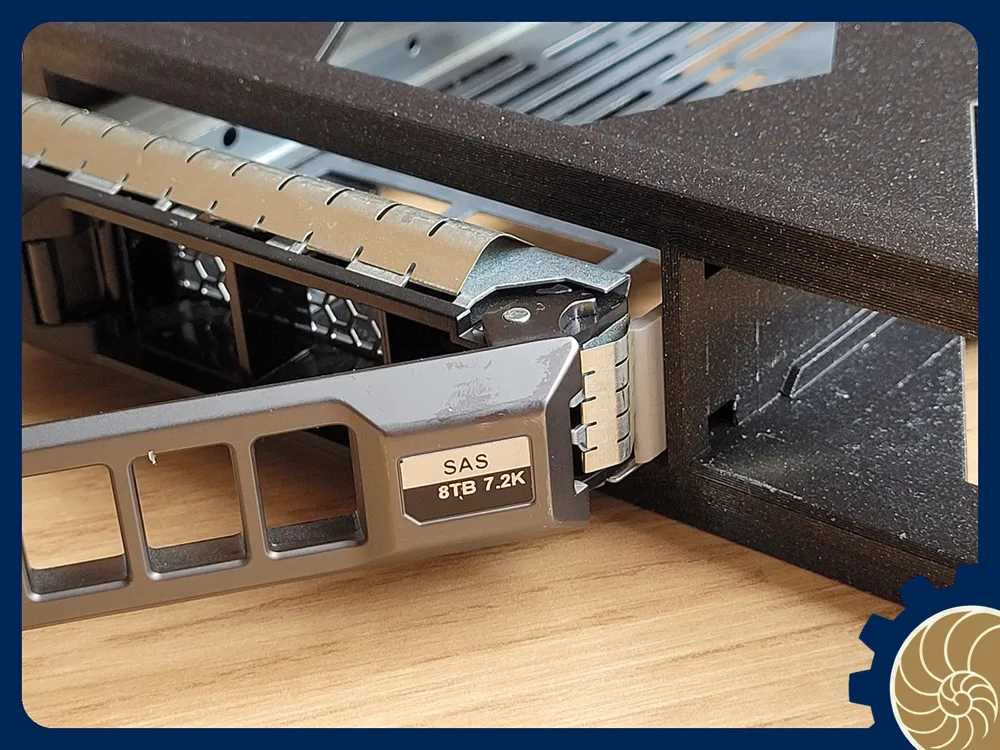

for 2x 3.5 HDD

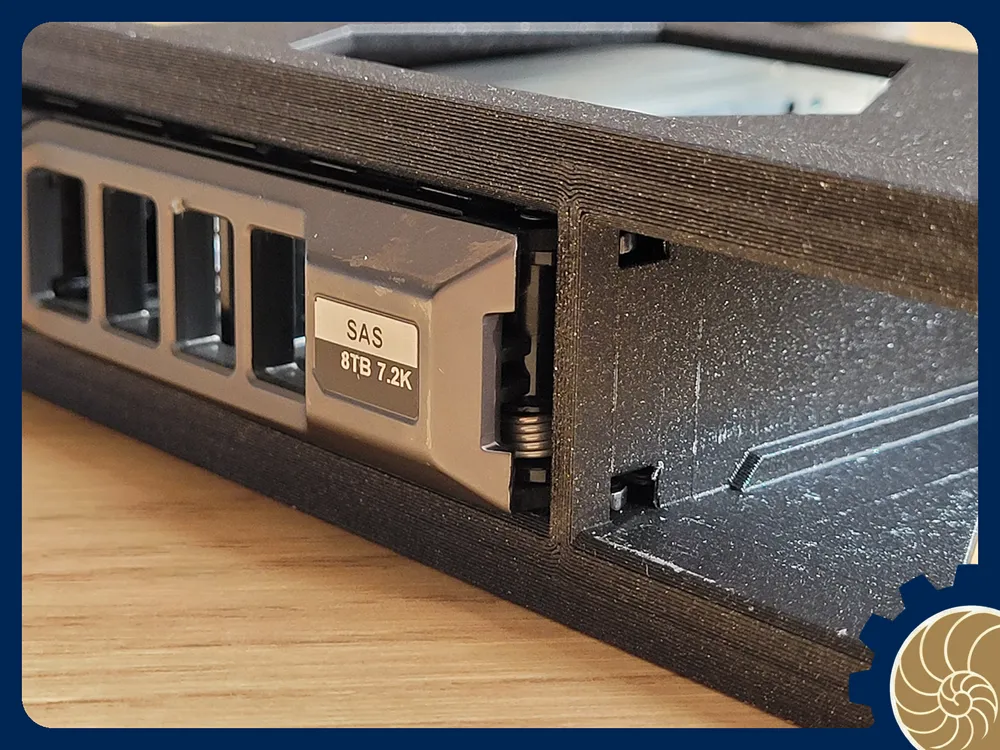

HOT SWAP is possible. I really wanted that feature and couldn't find it anywhere on printable/makerworld

Print:

No support !
Tolerance are quite tight, make sure to take your time to print it (I used 0.4mm nozzle, 0.2mm layers)

Other Material:

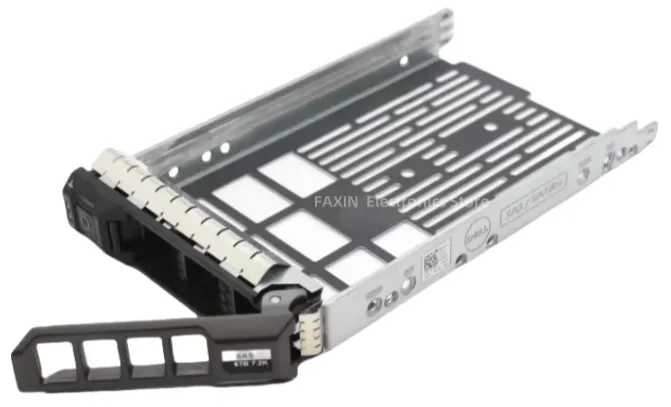

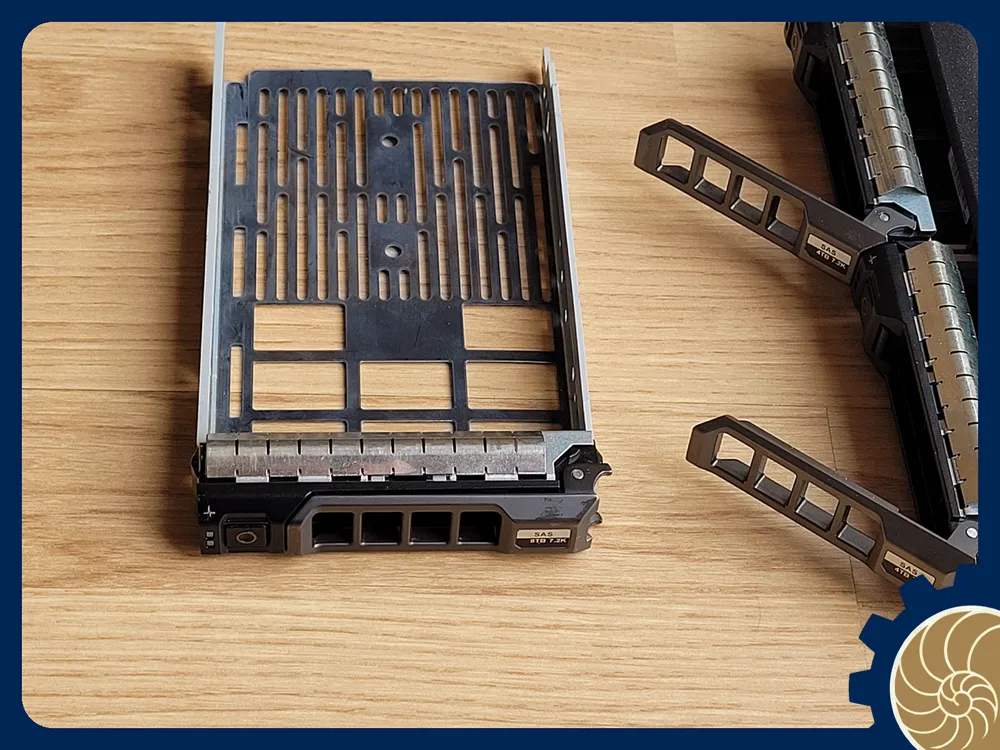

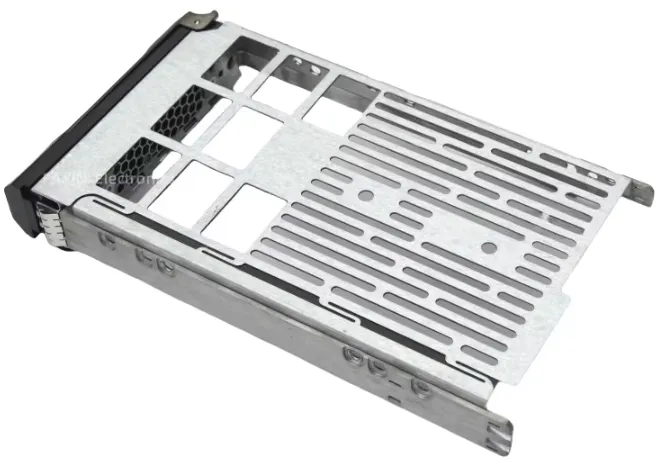

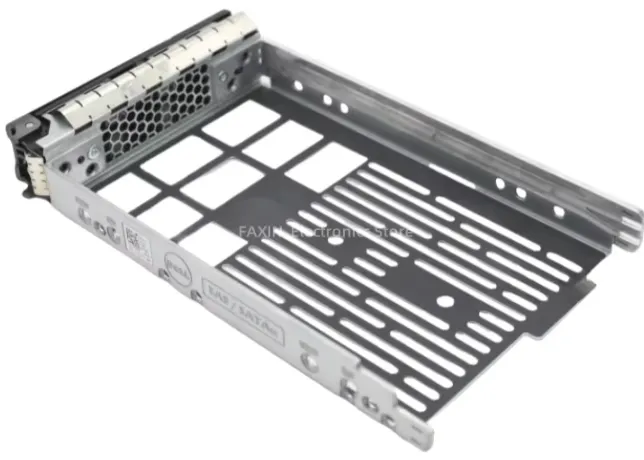

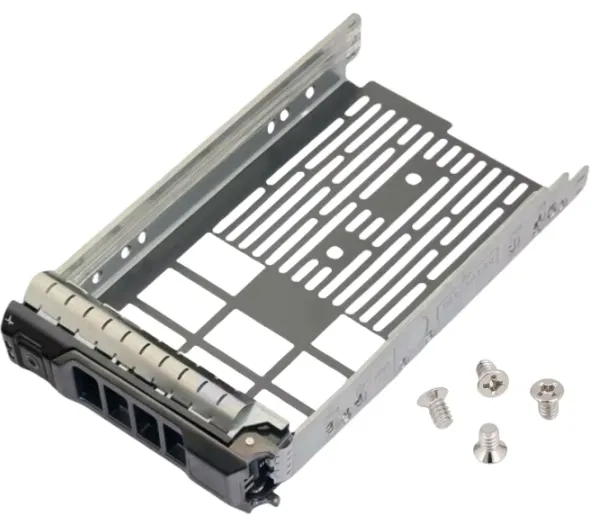

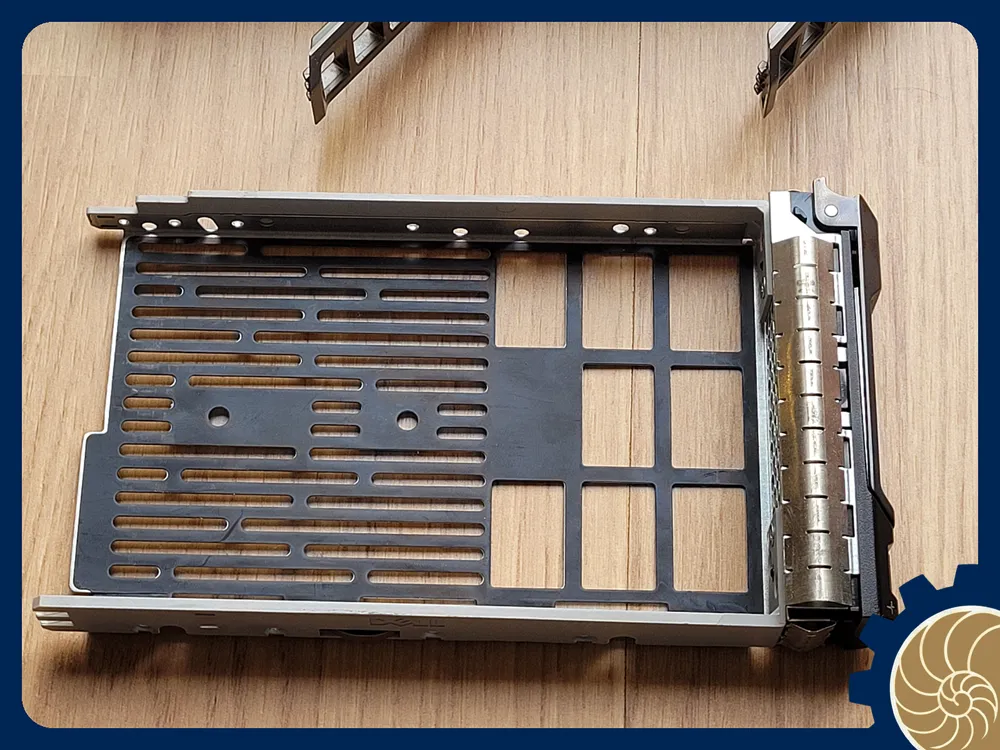

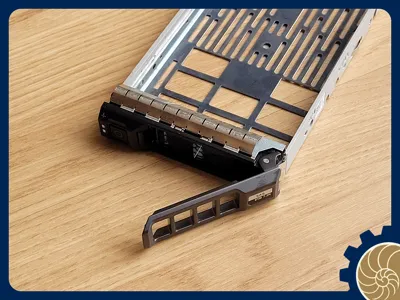

I use those refurbished caddy from Aliexpress:

keywords: " 3.5'' SAS SATA Hard Drive Tray Caddy for Dell PowerEdge R730 730xd R720 R720XD R710 R520 R410 R420 T420 T620 T630 058CWC 0KG1CH "
" For Dell PowerEdge T330 T430 T630 R230 R330 R430 R530 R630 R730 R730XD 0KG1CH 3.5" SAS SATA Hard Disk Caddy Tray KG1CH "

Each tray is about 5eur:

HERE in Aliexpress
or HERE in Aliexpress too

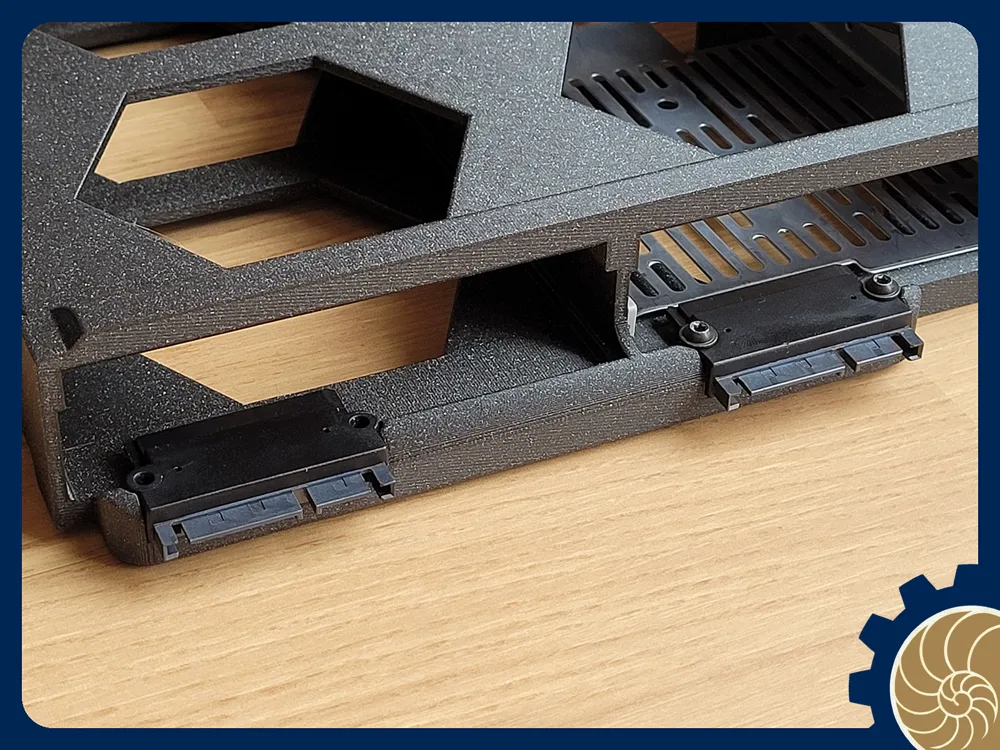

For the Hot swappable connection:

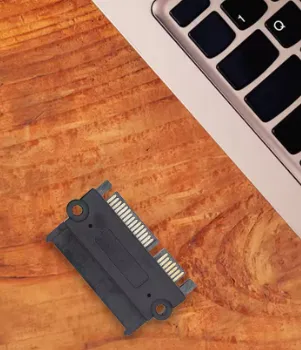

I used those:

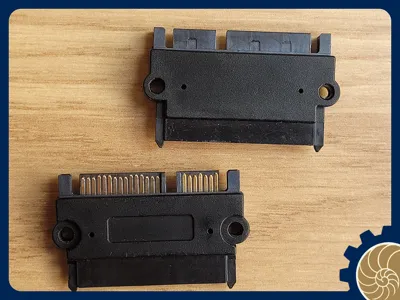

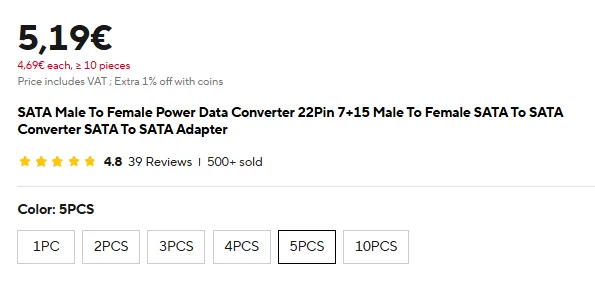

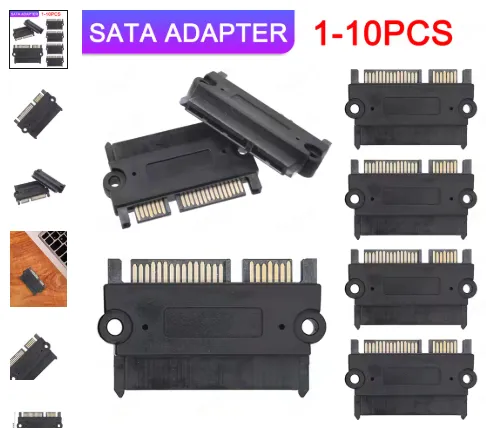

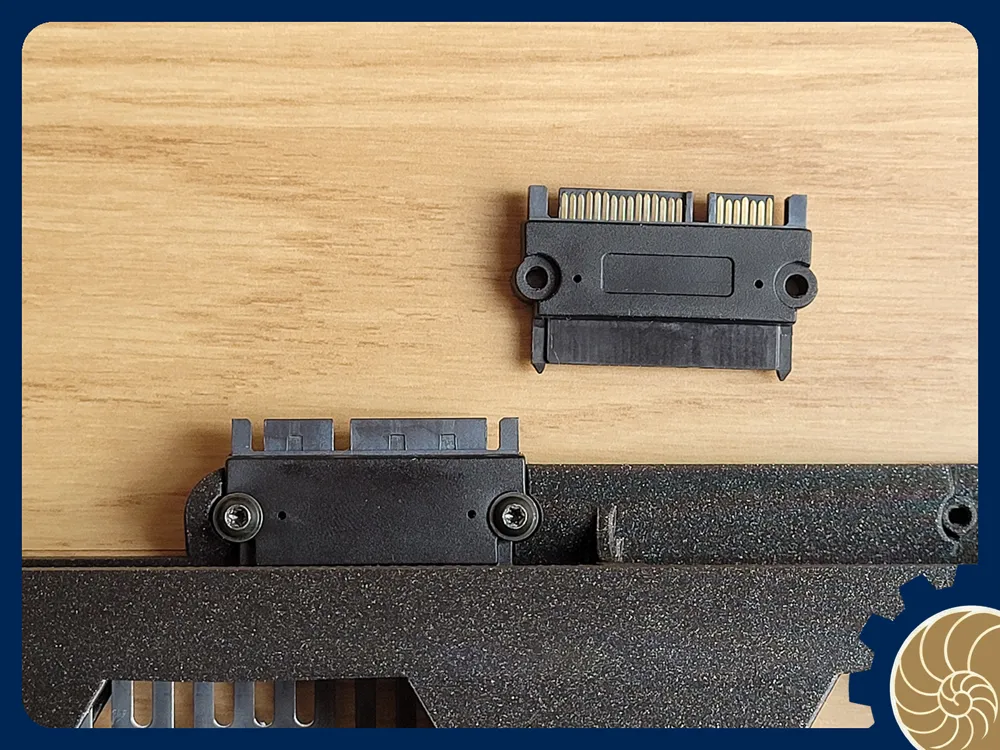

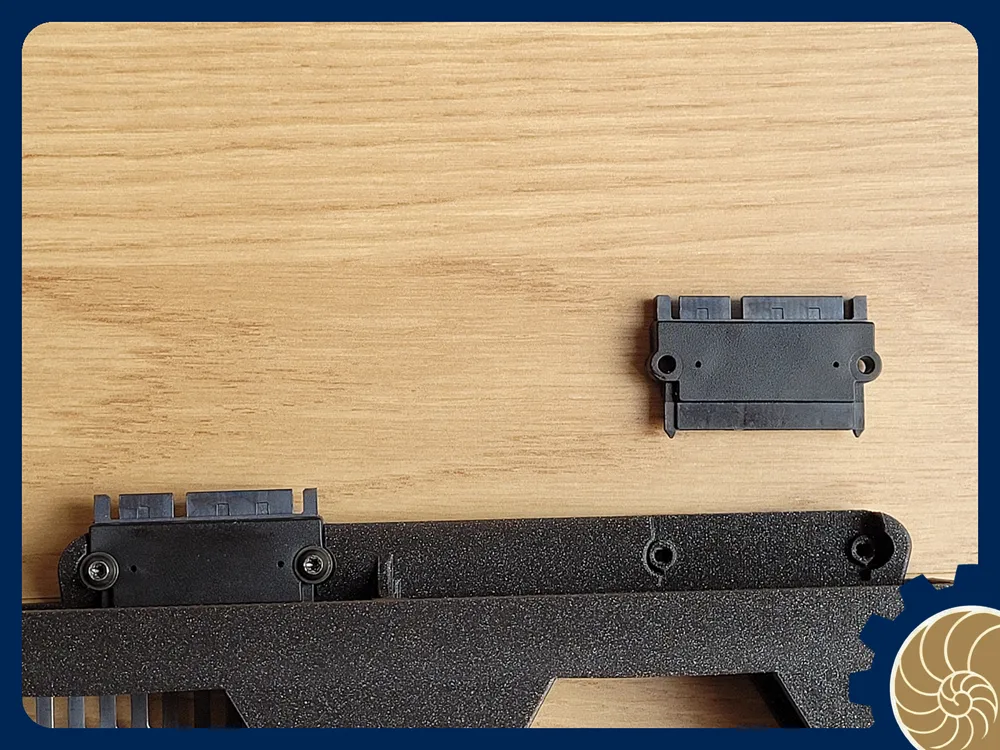

keywords: SATA Male To Female Power Data Converter 22Pin 7+15 Male To Female SATA To SATA Converter SATA To SATA Adapter

Currently 5eur for 5 !:

Here on aliexpress

Membership

☕ NEED MORE FROM THIS MODEL? Buy me a coffee and request specific tweaks! | 🌍 WANT TO SELL PRINTS? Join my Commercial Tiers for instant worldwide rights. | Your support keeps this hobby alive! 👉

Join

Comment & Rating (199)

License

If you want to use this model commercially, please join my membership.

Join Now

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
