PC Fan Mount - Grow Tent 16mm Poles
Print Profile(2)
Description

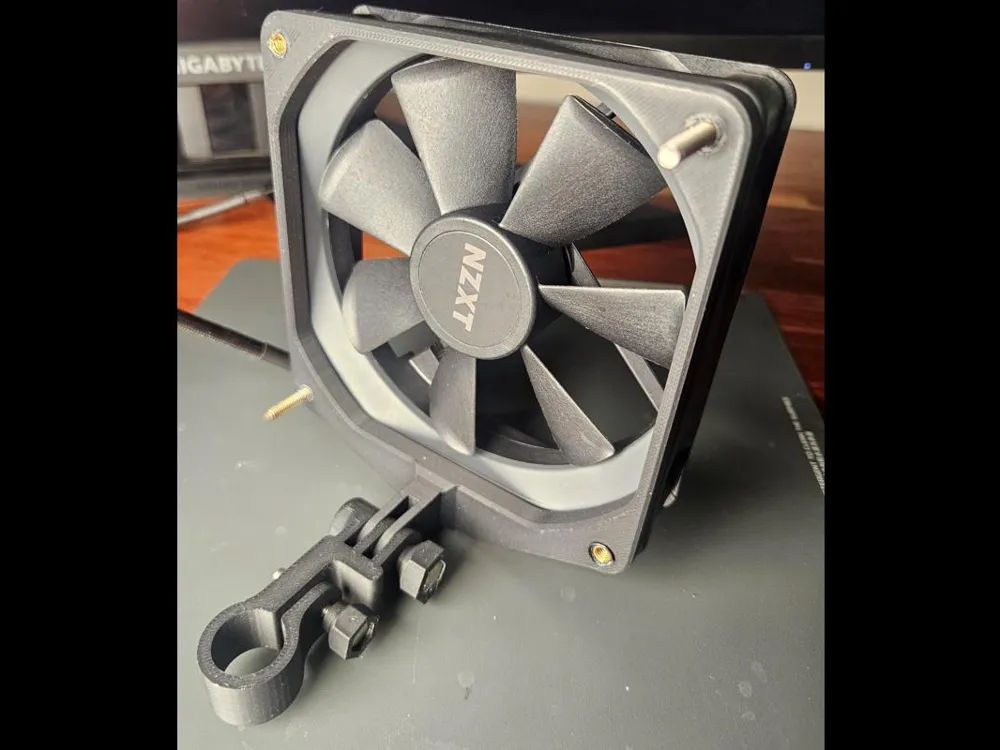

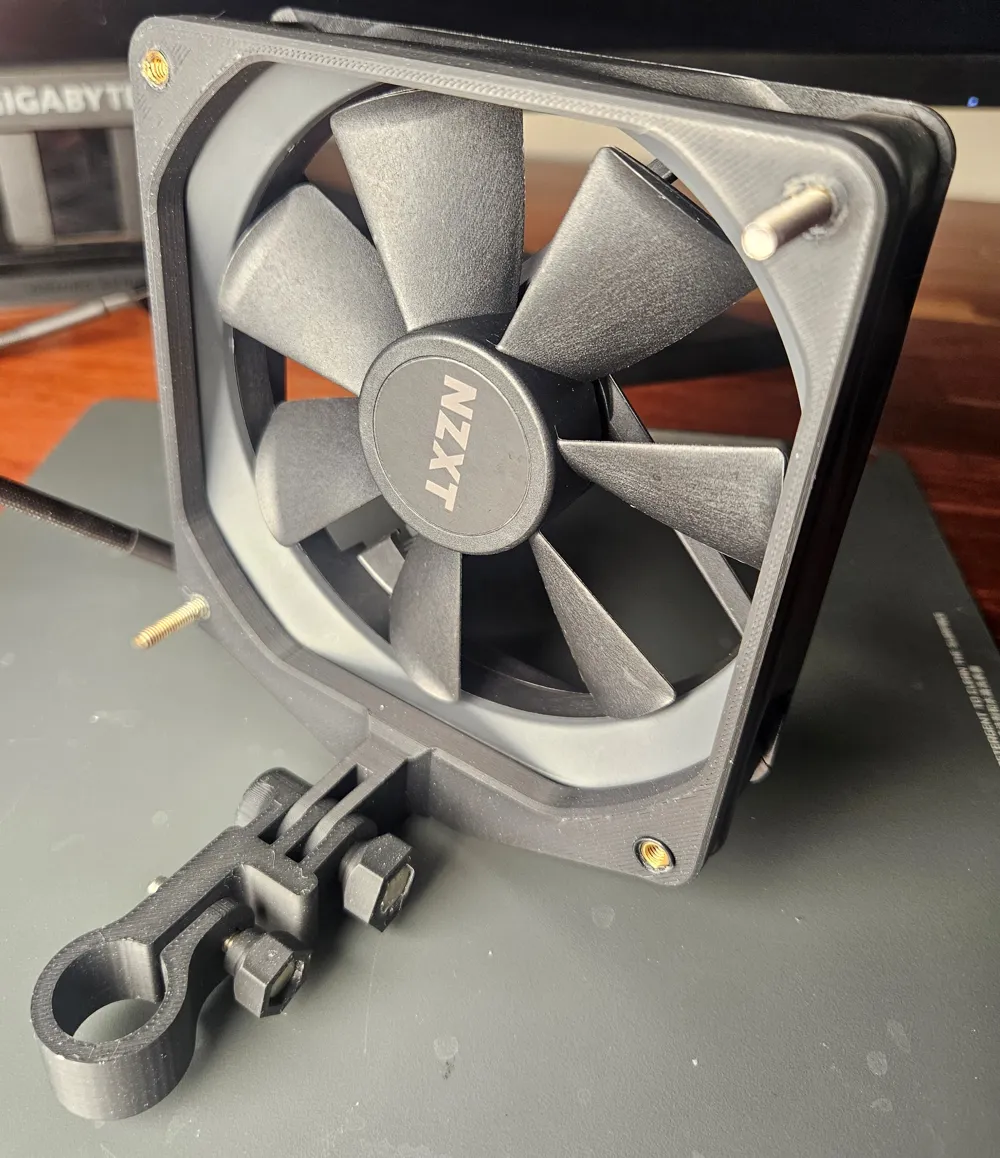

120mm PC Fan Mount for Hydroponic Grow Tents (Fits 16mm Poles and 20mm) – GoPro Mount Compatible

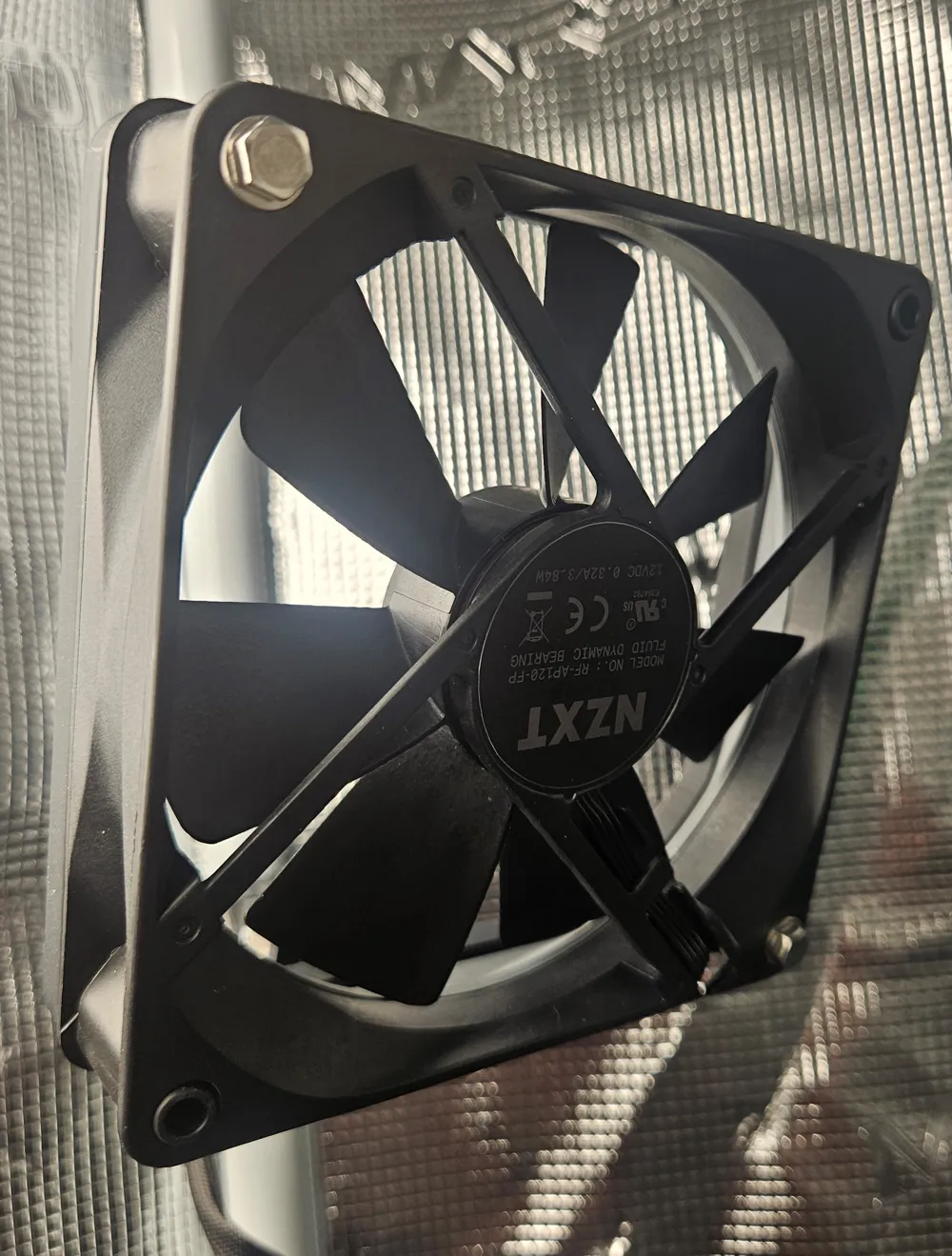

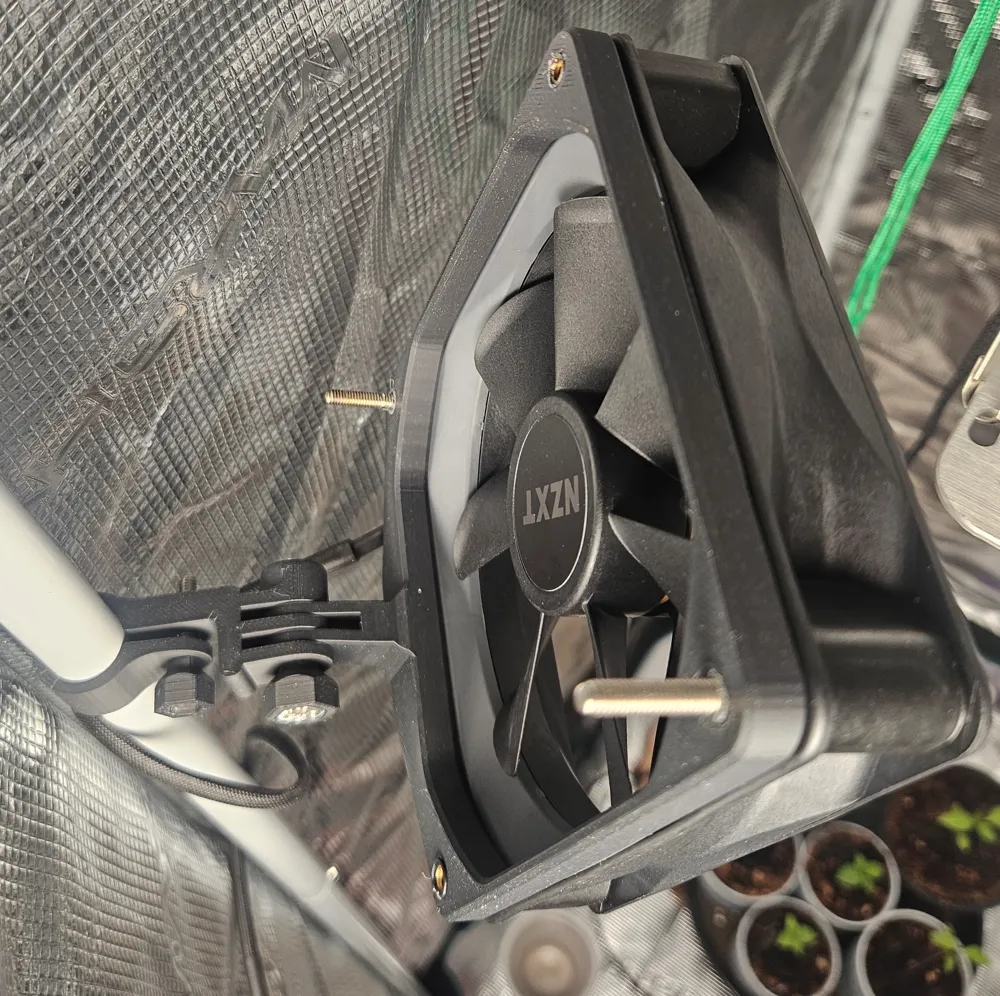

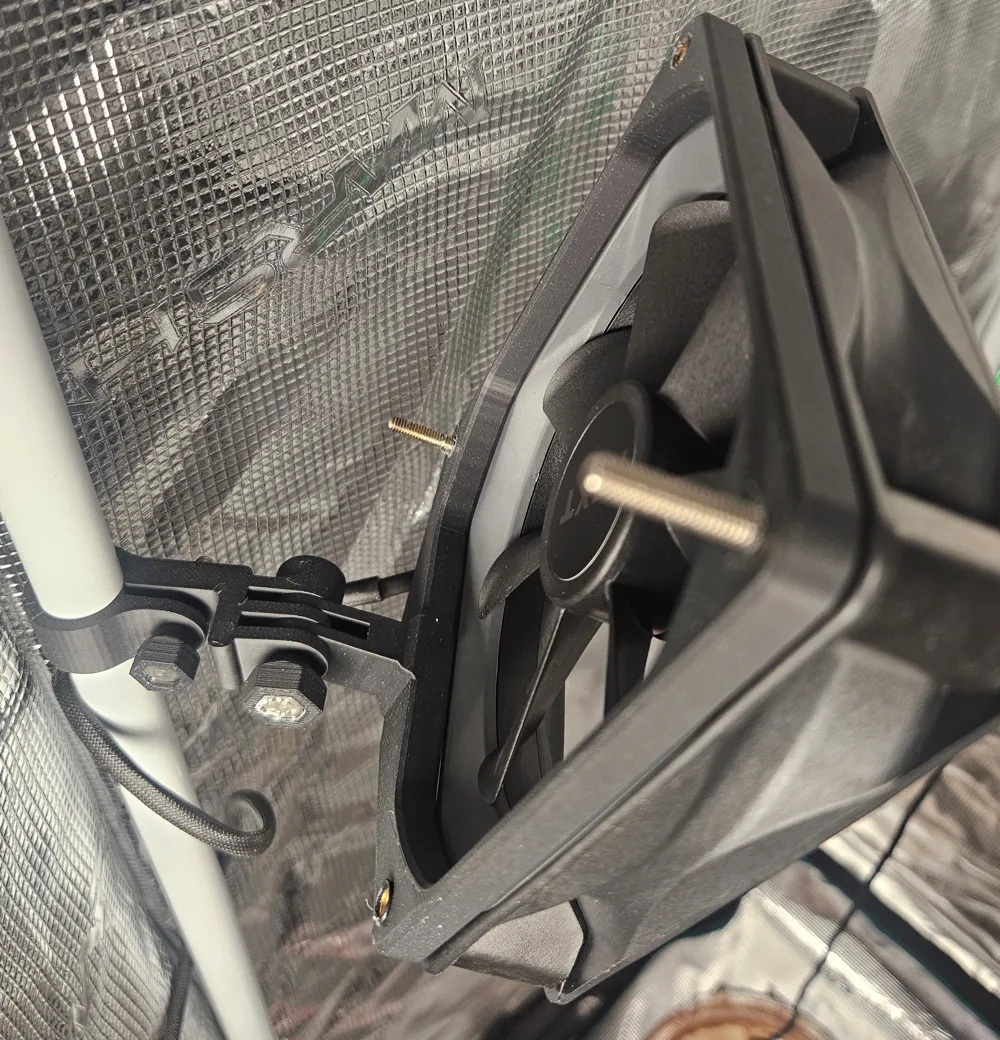

This custom-designed mount securely installs a 120mm PC fan inside your grow tent using standard 16mm / 20mm support poles. It is ideal for improving airflow in hydroponic setups.
Features
- Compatible with all 120mm PC fans
- GoPro-style mounting option for easy positioning or use with GoPro accessories if preferred over the default bracket
- Fits securely onto 16mm and 20mm diameter grow tent poles - Remove the one you dont need from the profile.
Hardware Required
- 1x M5 x 25mm bolt
- 1x M5 nut
- 1x M4 x 20mm bolt
1x M4 nut
I used M4 heat-set inserts for mounting the fan to the bracket, but standard bolts work just as well if you don’t have inserts.
Installation Note
To prevent breakage, slide the mount onto the pole from the end.
Do not try to flex or snap it over the pole, as this may cause the part to crack.
