Blast Gate 3-Way
Print Profile(2)
Bill of Materials
- Senkkopfschrauben x 8: M5x30
- Muttern x 8: M5
- Senkkopfschrauben x 6: M5x16
- Einschmelzhülsen (Nur wenn Grundplatte benutzt wird) x 6: M5x6
Description

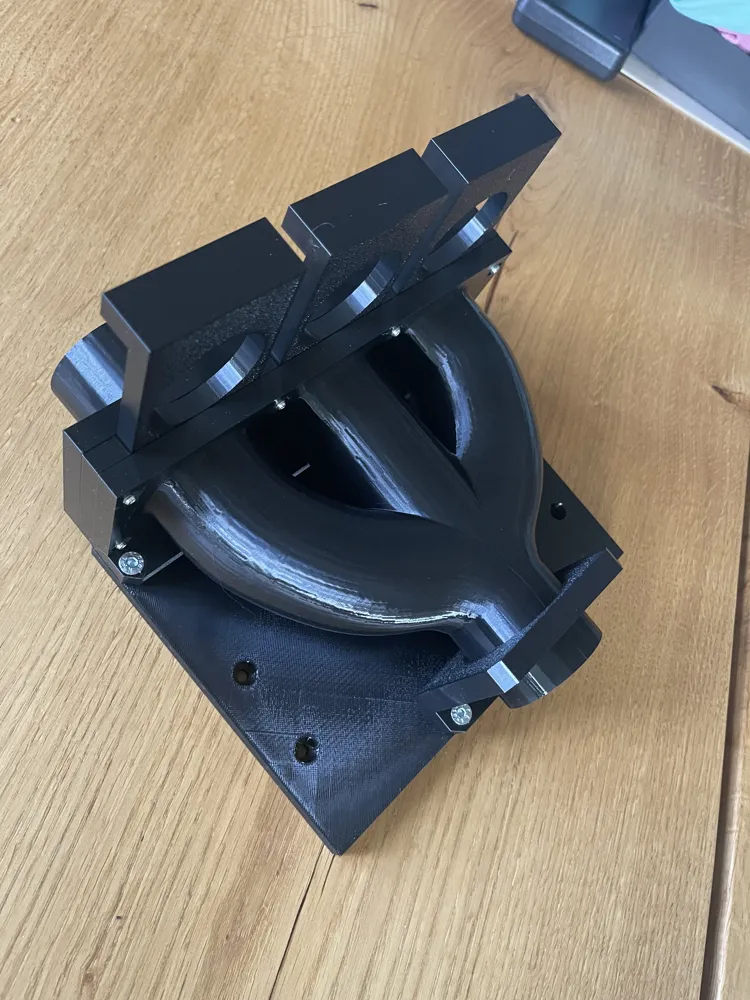

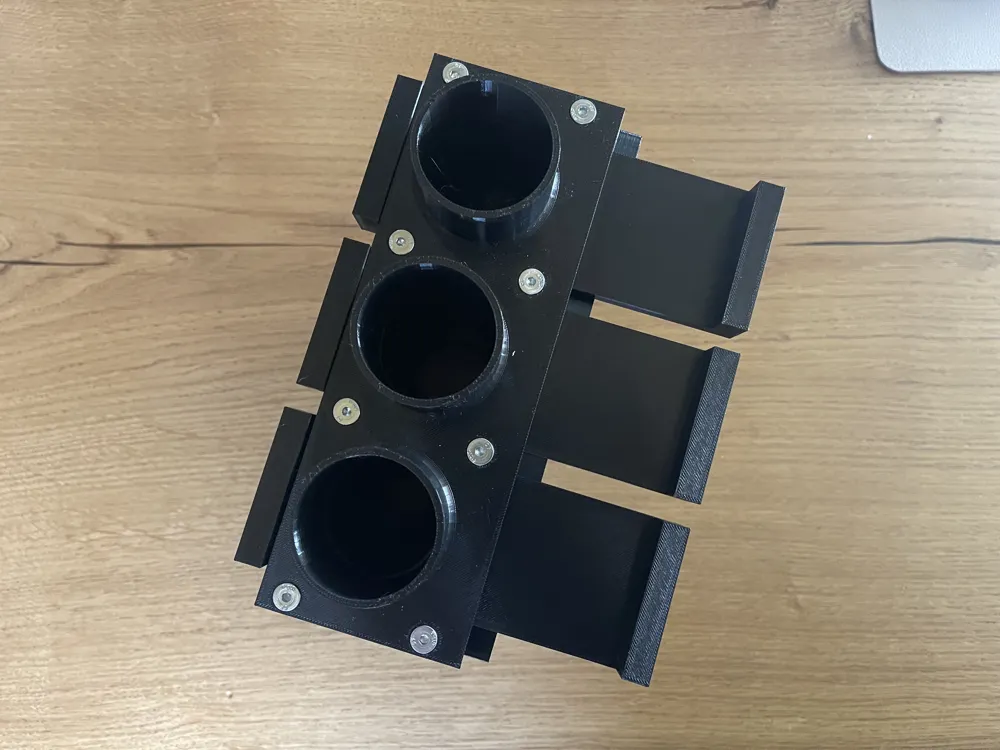

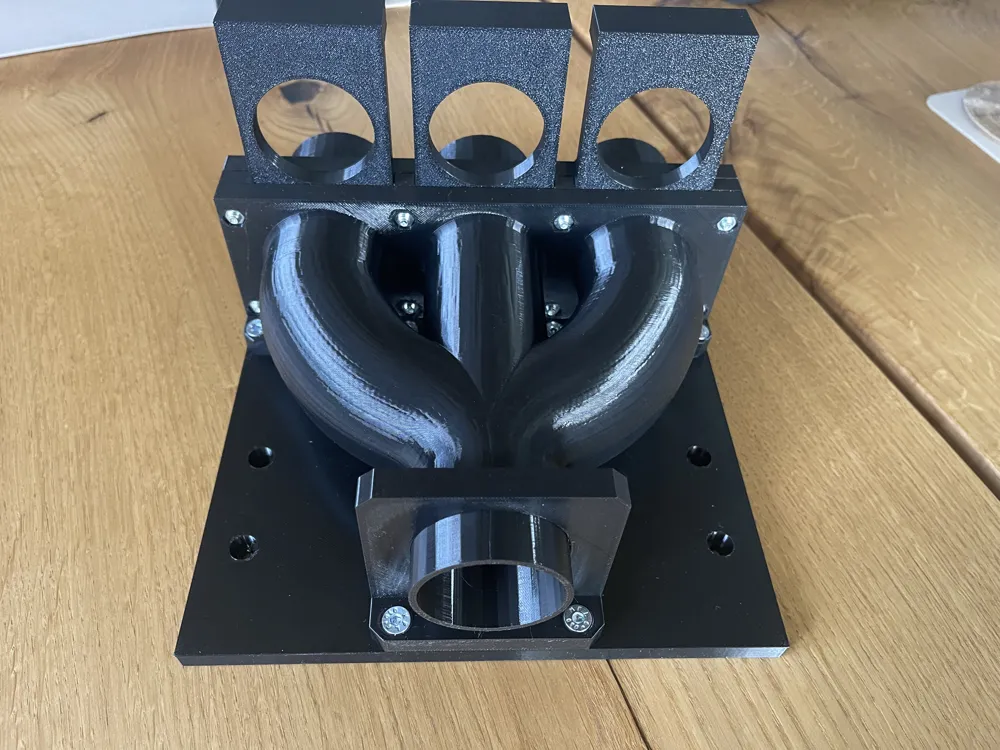

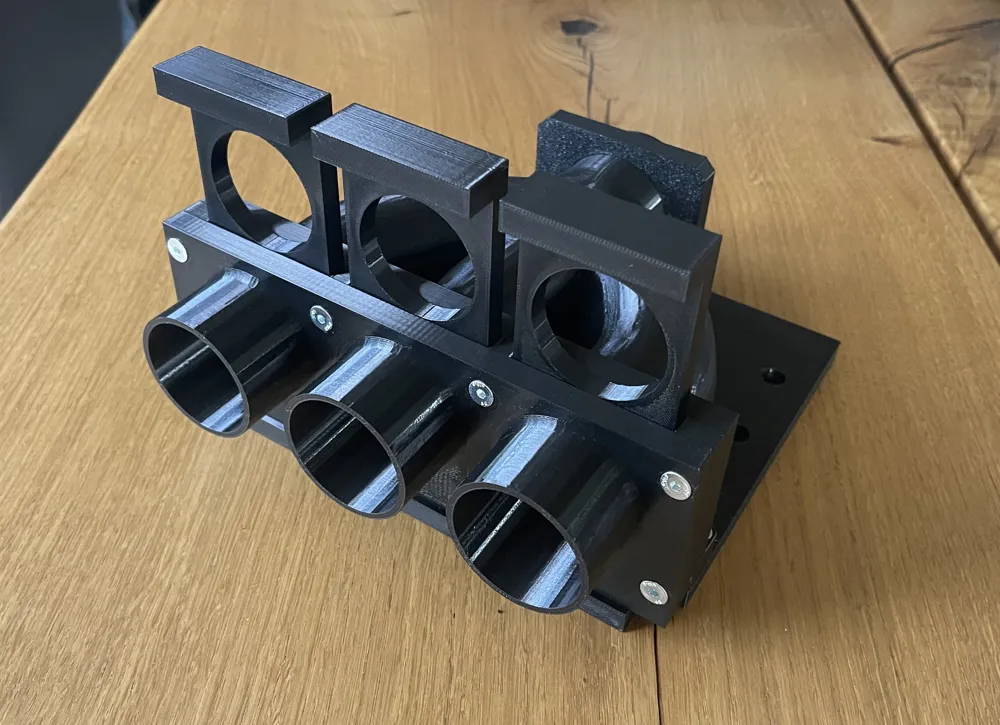

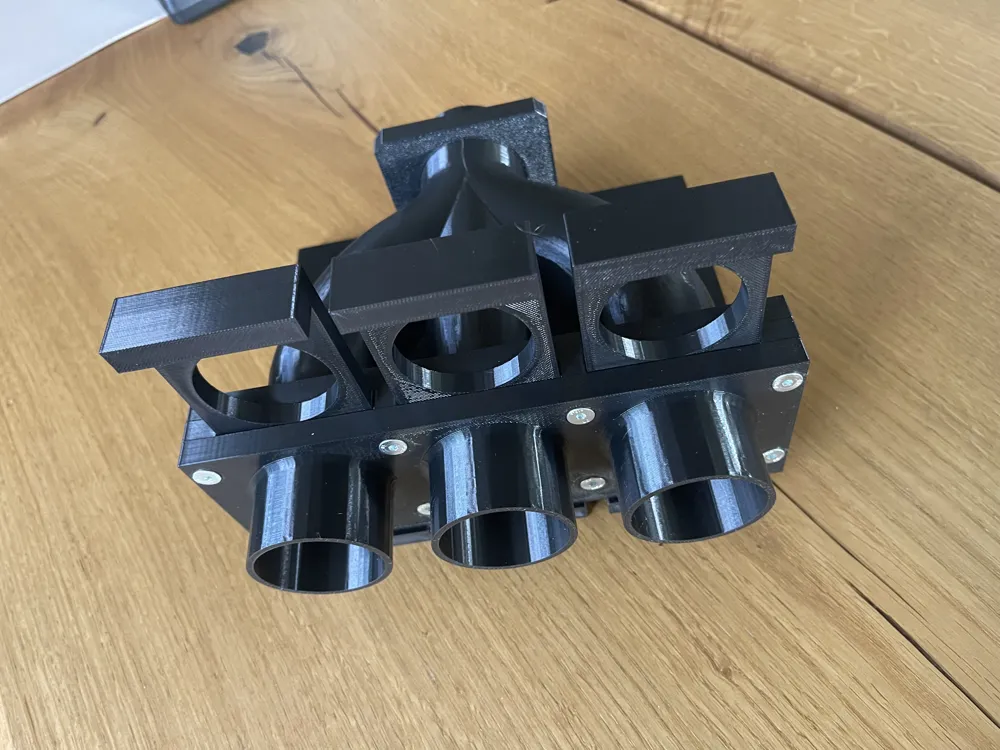

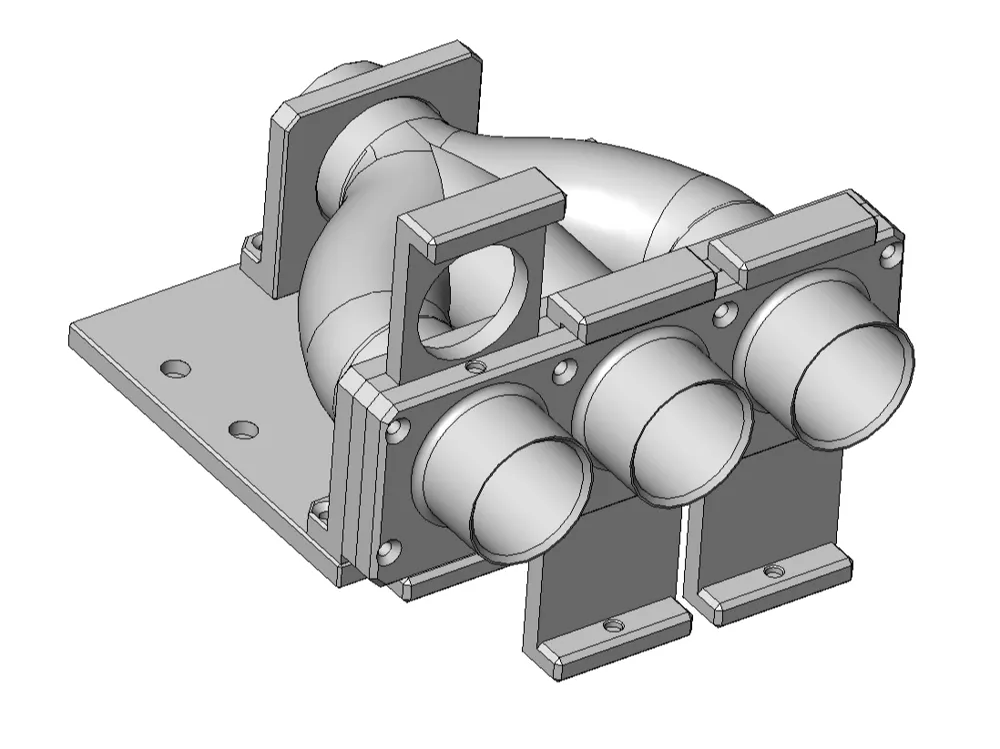

I have designed a manifold for a dust extraction system here. This allows you to connect three extraction points and open or close them as needed. The sliders are manually adjustable.
I hope you like the model. Unfortunately, I haven't been able to test it myself on a dust extraction system yet, so I hope for feedback to modify or adapt the model.
Version 2 (March 11, 2026)
I have uploaded a second print profile, where the slider and the connector are equipped with a hole for a magnet. This keeps the sliders in position.
Many thanks.
