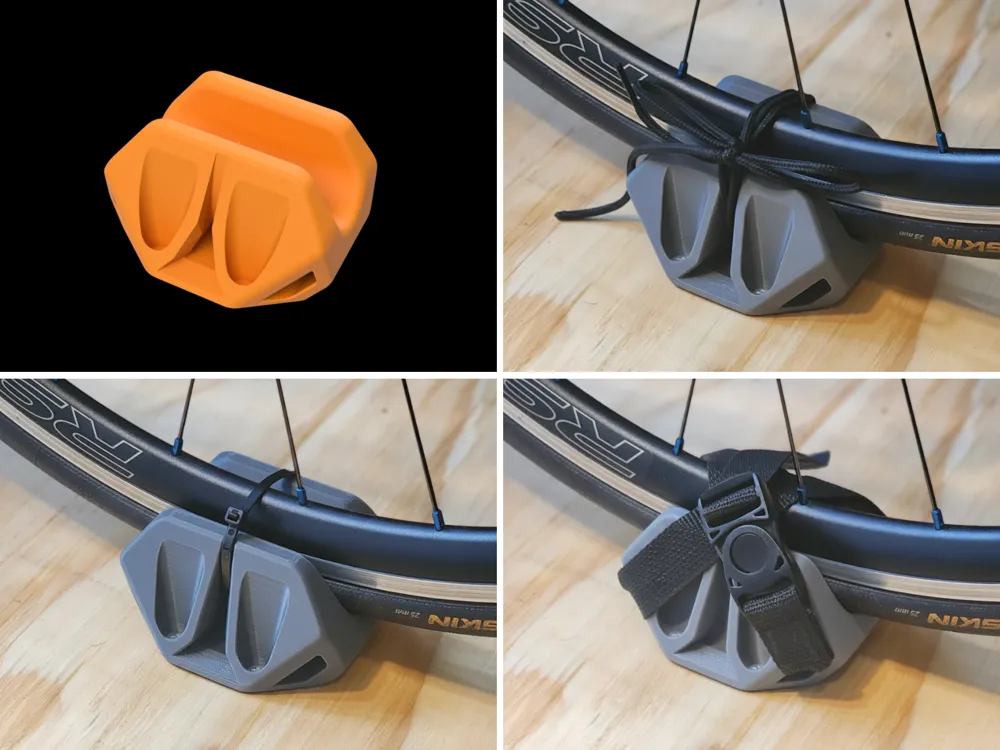

Bike rack rear wheel mount, designed to work in conjunction with any other front fork, tire, or frame mount.

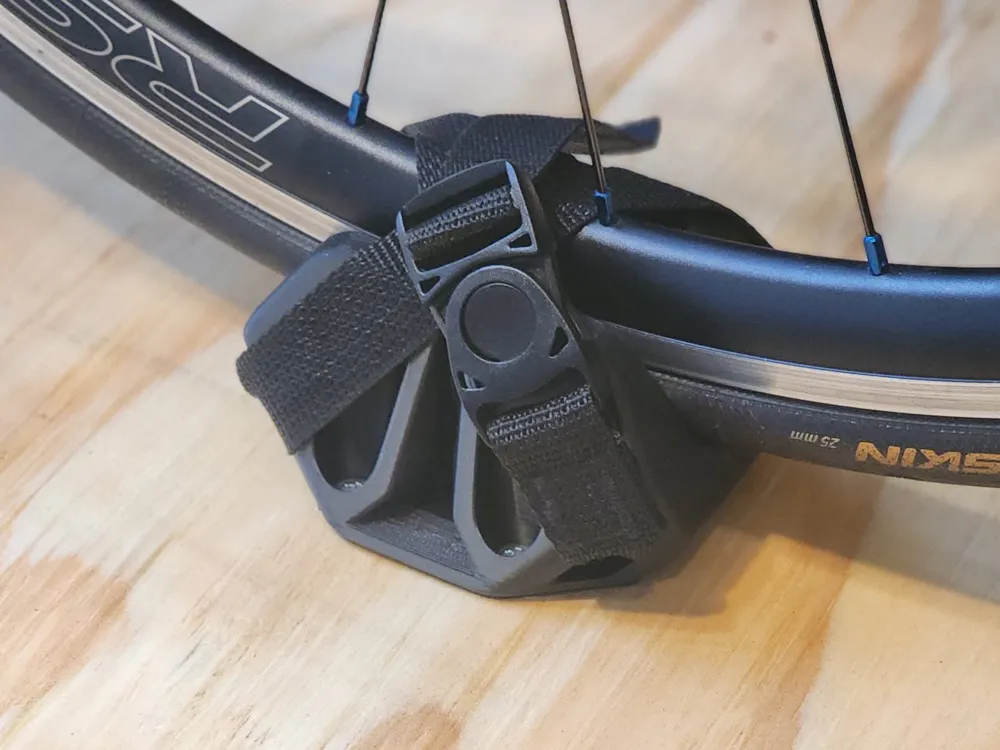

2x Side through channels for routing straps, Velcro…etc.

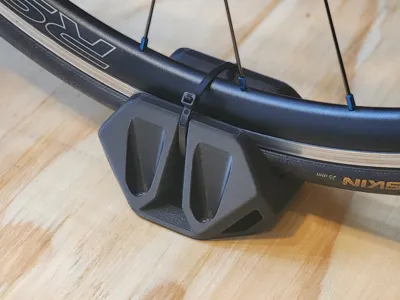

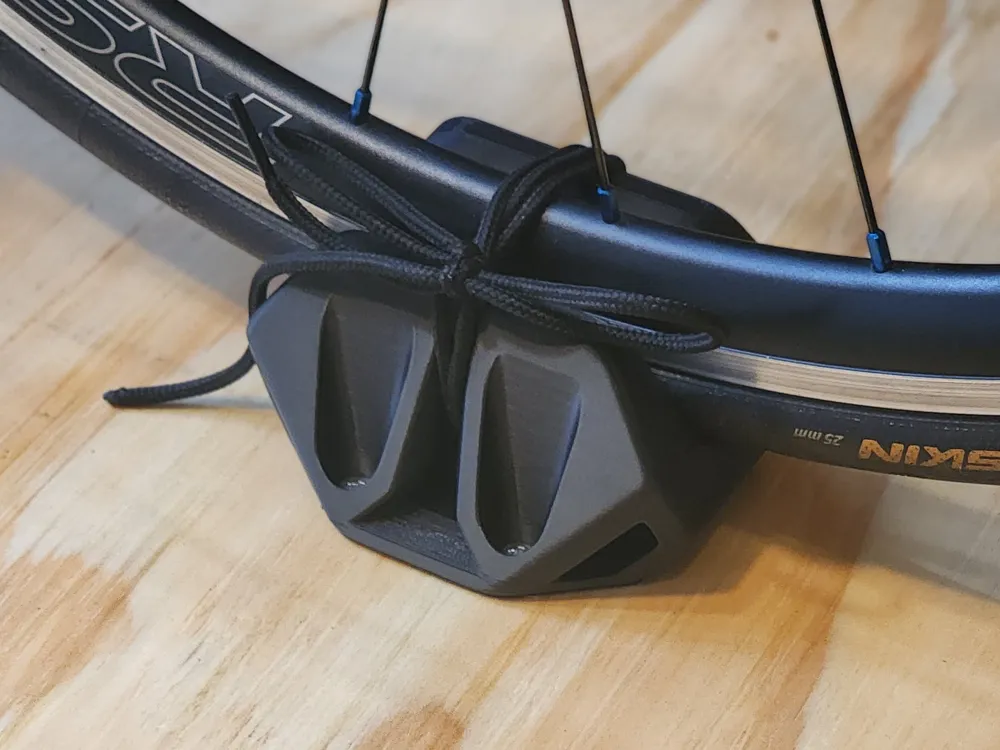

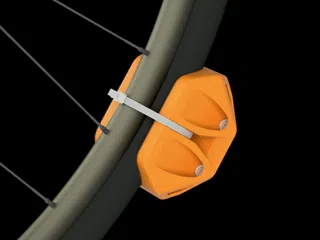

1x dedicated central through channel for zip-ties and routing laces, strings…etc.

Road models available in ORIGINAL and WIDE (wide model provides slightly wider footing for use without hardware).

Now also available for Mountain Bikes.

Road: Fits 700c (28") road bike tires up to 32mm wide.

MTB: Fits up to 29" x 3".

Use any screws with up to .1875" shank diameter and .45" head diameter (#8 Lath screws recommended).

Print:

For high heat outdoor applications such as to use with a roof mounted rack or bed mount, Print in ABS or PETG, and modify object #1 to at least 3 wall loops and 15% infill.
Do not alter modifiers (objects #2-5).
Print as is in the filament of your choosing for all other indoor applications.
No supports required.

If you enjoyed this design, don't forget to rate, review and boost

Enjoy!
