ENGLISH (En français plus bas)

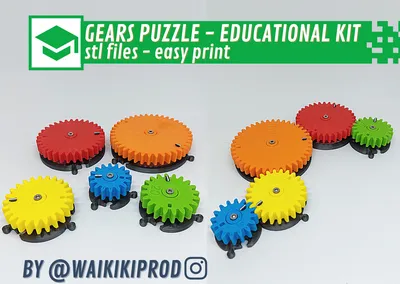

Modular puzzle of gear blocks that can be easily assembled together.
Made for teachers of mathematics and technology, allows to approach the notion of reduction, speed of rotation.
Removable markers allow to compare the speed of rotation and the counting of the number of turns of rotation.
Two types of assemblies
 |  |
Necessary material :
| Necessary material :
|
3D Printing Parameters

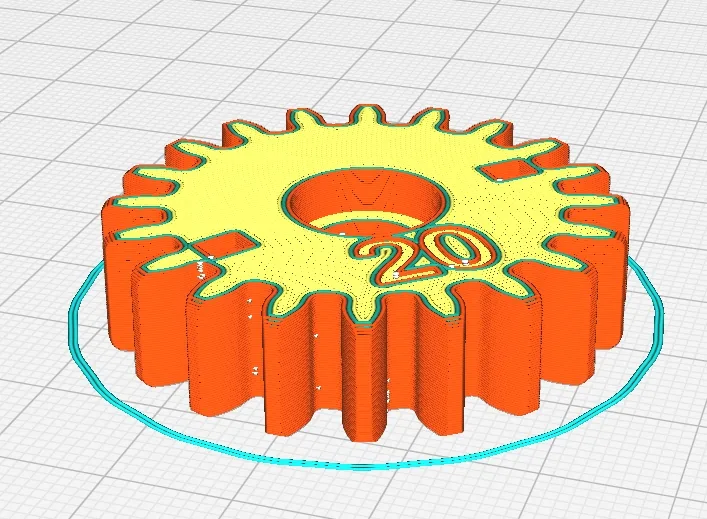

Gears “Z##” files Resolution: 0.2mm Support : No Infill : 10% gyroid Joint : Random recommended
|  |

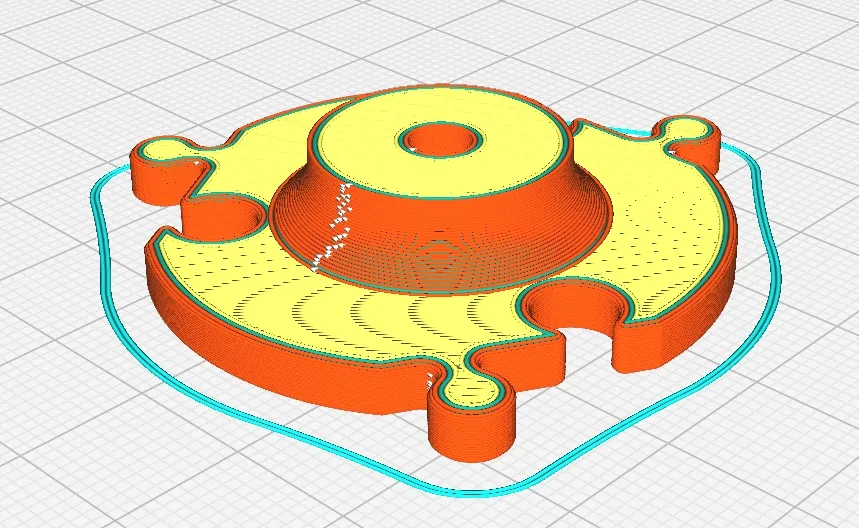

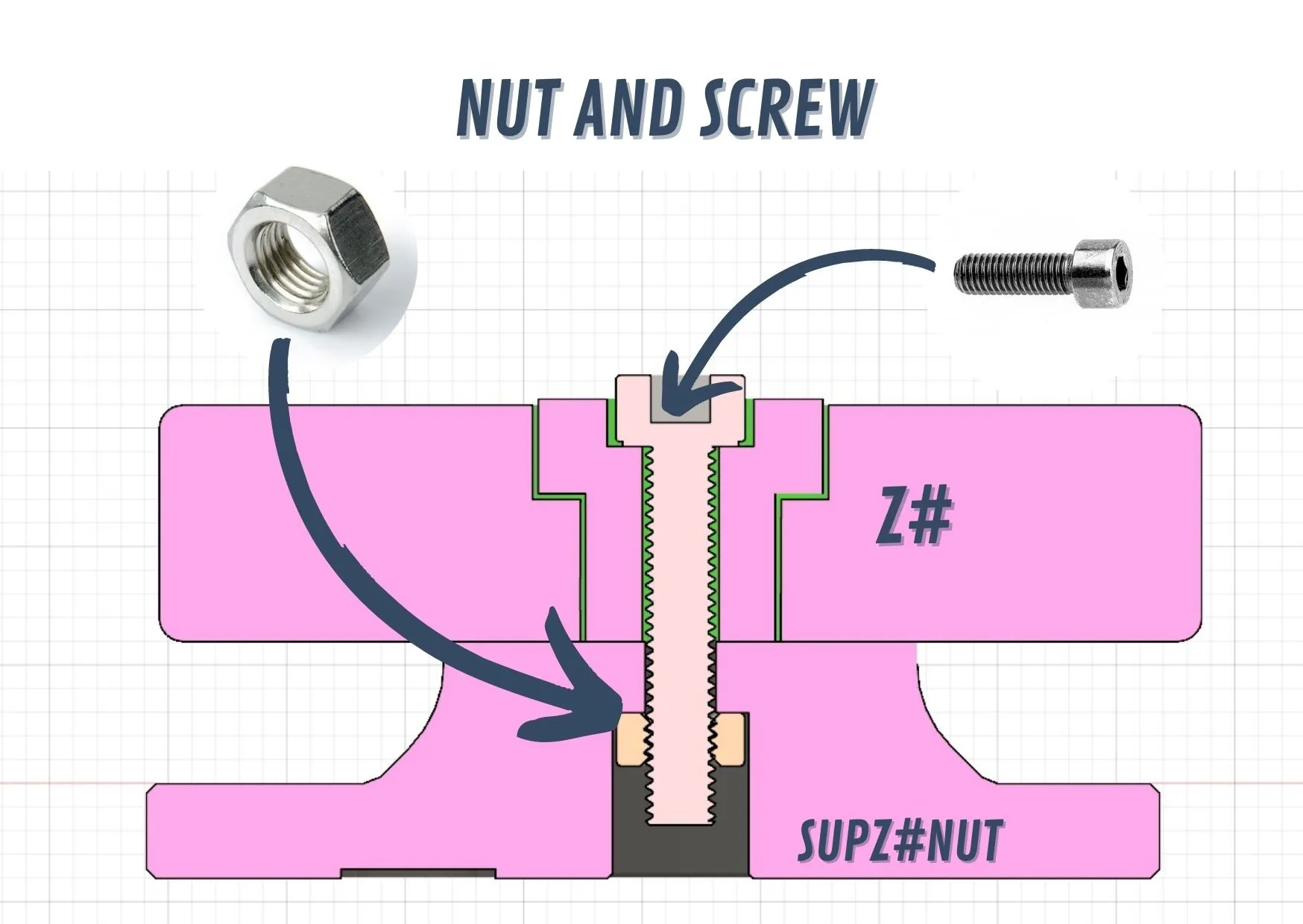

Supports “SupZ#….” files Resolution: 0.2mm Support : no for the insert version / yes for the nut version Infill : 10% gyroid Joint: Classic |  |

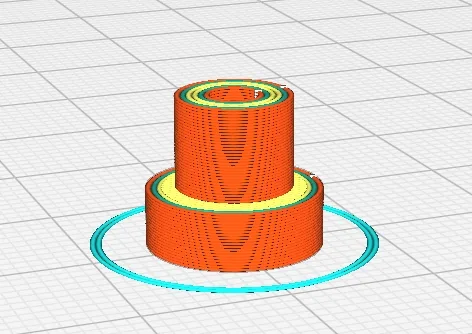

Les entretoises 4 Versions available (length adjustment for good rotation) “Entretoise….” files Resolution: 0.2mm Support : yes Infill : 10% gyroid Joint : Random recommended |  |

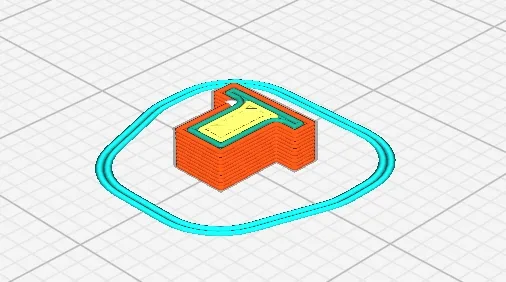

Les repères 2 Versions available: 1 or 2 colors Fichiers “Repere….” Resolution: 0.2mm Support : no Infill : 10% gyroid Joint: Classic |  |

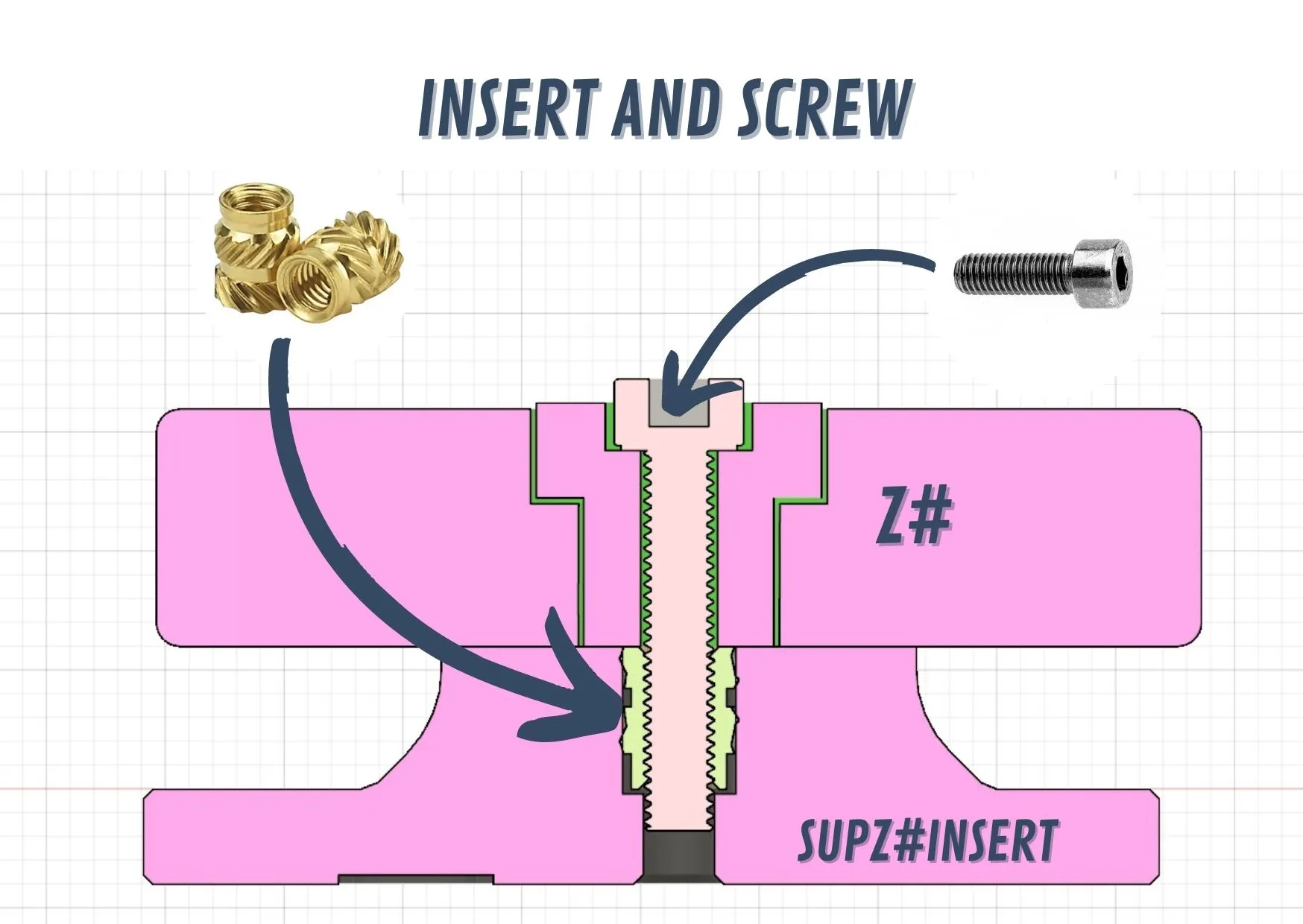

Mount the inserts
Requires a soldering iron
