AtomRC Dolphin - ESC Cover

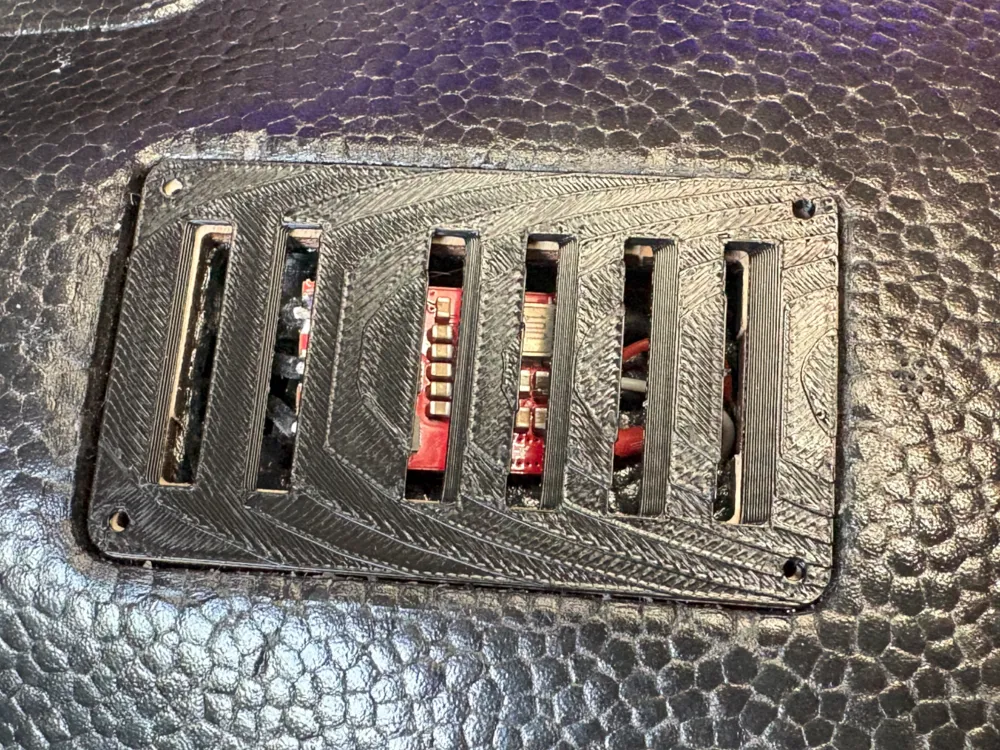

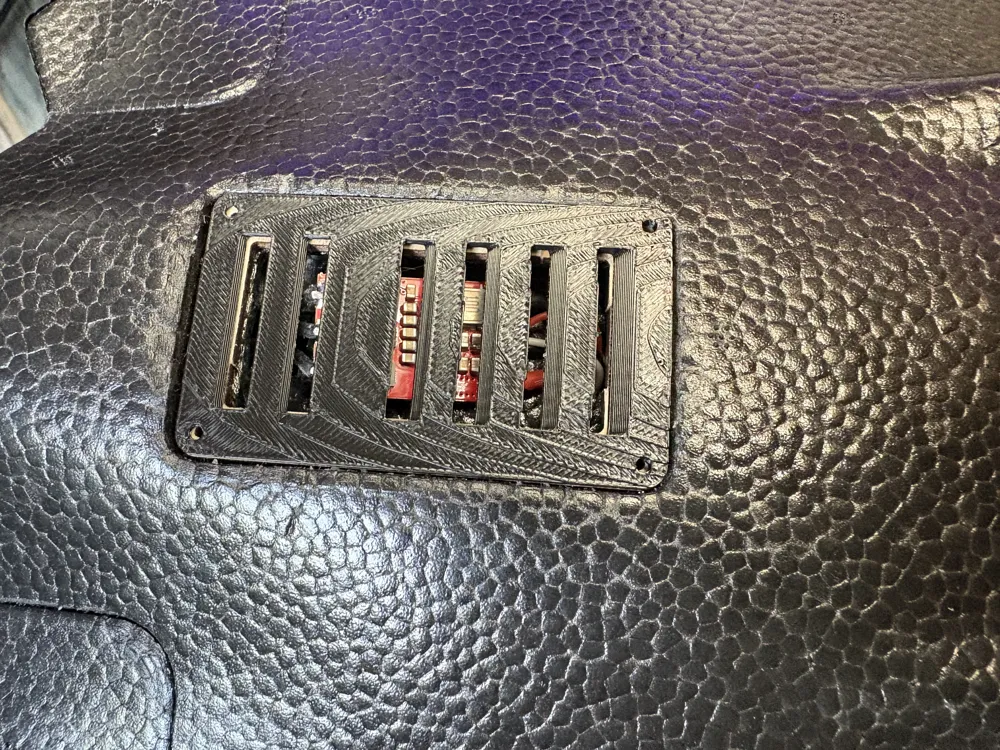

Simple ESC cover that I think improves on the stock wooden one.  Mainly because you can print it in a colour to match your aircraft!

Air intakes and outputs are angled to promote air flowing over the ESC, and then out the back.

Inspired by https://www.thingiverse.com/thing:5147951, which is an awesome model.  However, I think AtomRC have changed the position of the screw holes as that one didn't fit for me.

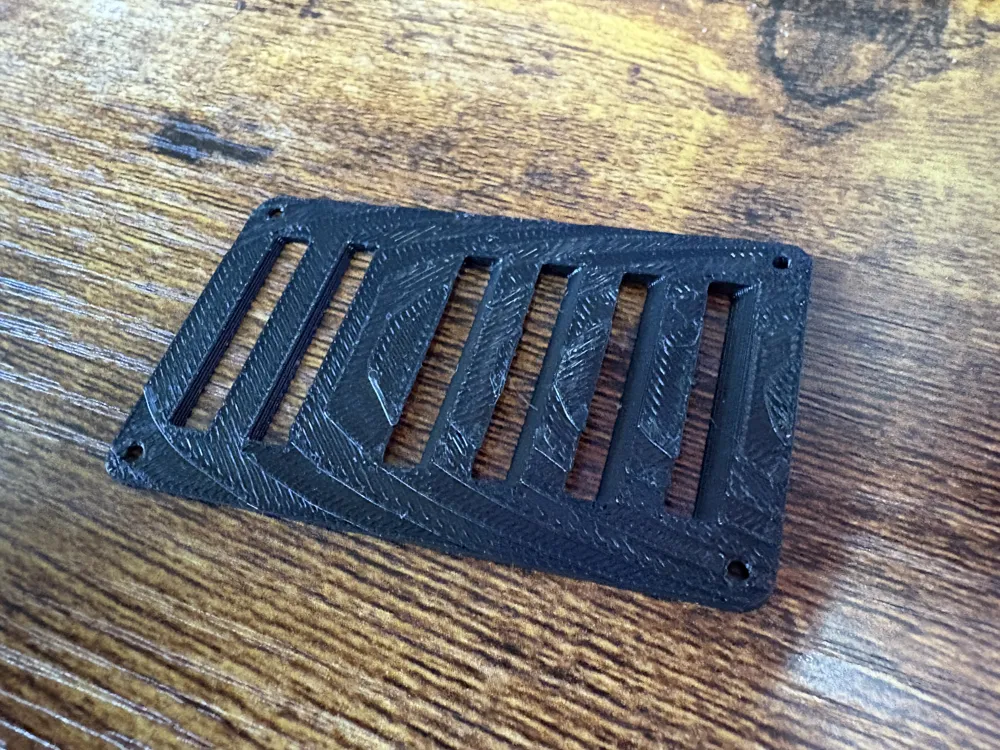

Nothing fancy needed to print this.  I angled all the inlets/outlets at 45 degrees, so you won't need support.  You might want to print it with a 0.2mm nozzle to get smoother curves.  The photos here are just with the standard 0.4mm, as to me this is only really a functional print.

Designed from scratch in OnShape, so feel free to hack away at it if it doesn't meet your needs!

Link: https://cad.onshape.com/documents/2f3dc4f318a769b01c8ace0a/w/8d29218a9a343e1750011ea9/e/1a3fddcb2ac696650d3ce7d0?renderMode=0&uiState=6814e3e96321524ba6703321
