Ammo Box 9mm 46 Round for three 15 Round Mags + 1

Print Profile(1)

All
P1S
H2D
P1P
X1E
X1 Carbon
A1
X1
H2D Pro
H2S
P2S
H2C
X2D
A2L

Gen 3 - 9mm - 46 Round
Gen 3 - 9mm - 46 Round
Designer
5.3 h
2 plates
4.9(15)

Open in Bambu Studio
Boost
133
337
21
19
246
133
Released

Description

Membership

If you are interested in printing these to sell, please join my Commercial License.  Thank you!

Join

Boost Me (for free)

Please consider Boosting this greatly helps offset the material cost to make these for folks.

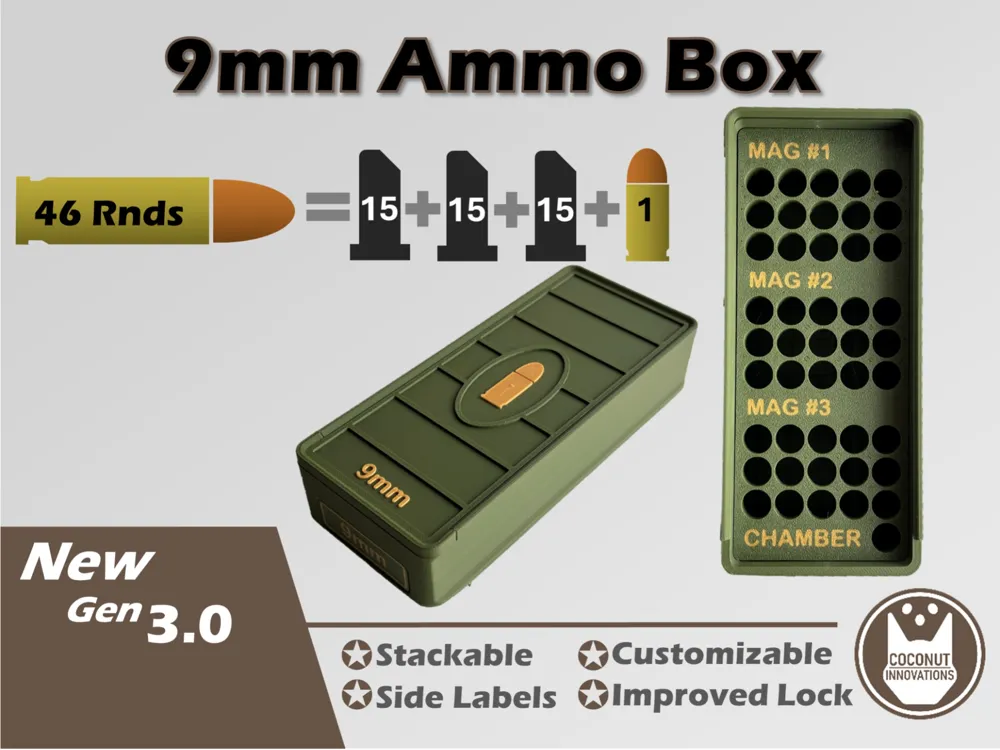

This design allows you to hold 3 mags of 15 rounds and 1 for the chamber.  Check out my other ones if you are looking for something similar. (See below). I have many different 9mm boxes…check them out.



Other Boxes

Check out my other ammo boxes for similar designs. If you are looking for another caliber, just let me know via a DM.



Collection of my other ammo boxes - https://makerworld.com/en/collections/1273196

9mm Collection  - https://makerworld.com/en/collections/5827271-ammo-box-collection-9mm



Updated Design! - Gen 3

  • Snap in Side Labels that are customizable - The text, color, and frame color can all be customized by the user.
  • Stackable - Chamfer on bottom and mating feature on cover.
  • Customizable Text on Lid
  • Improved Robustness - Wall thickness increased
  • Moved snap lock feature from start to end of the cover groove. This will improve the issue a few folks had with the the seem delaminating between layers.
  • Simplified Geometry

Assembly

  1. Snap in side labels - I also put 3 recessed areas incase you want to add superglue for permeant mount of labels.

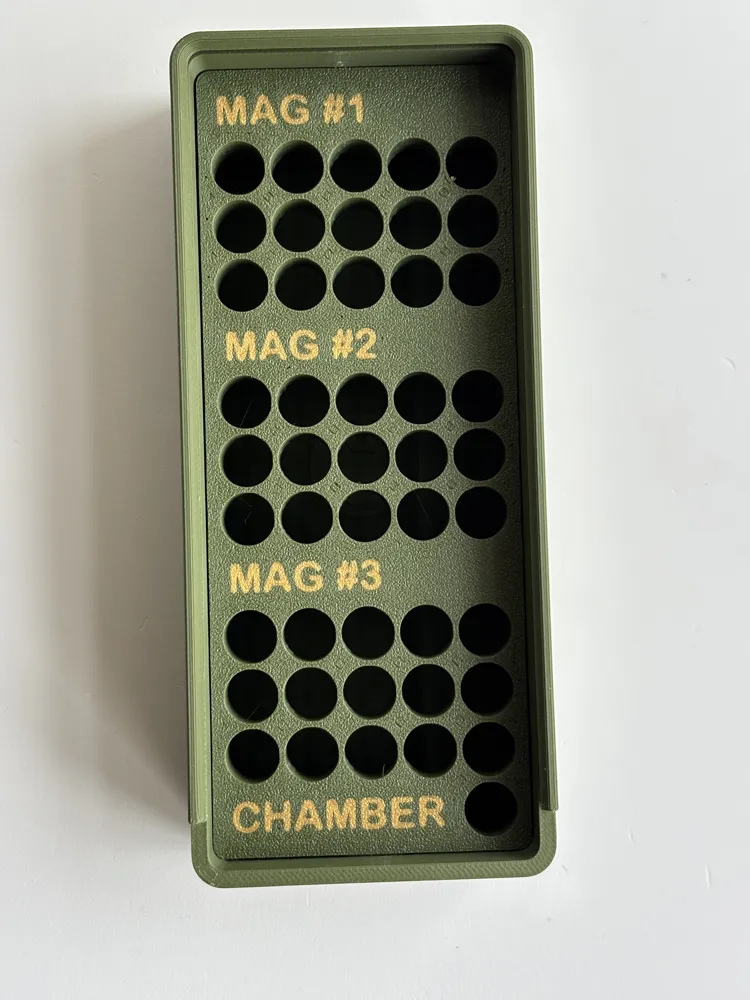

  2. Snap in Round divider Tray  - It you need to remove this just use a pencil and gently pry it to disengage the snap feature.
  3. Slide Cover on - The first few snaps will be a little firm, but it will loosen after a few and it sits for couple days.
