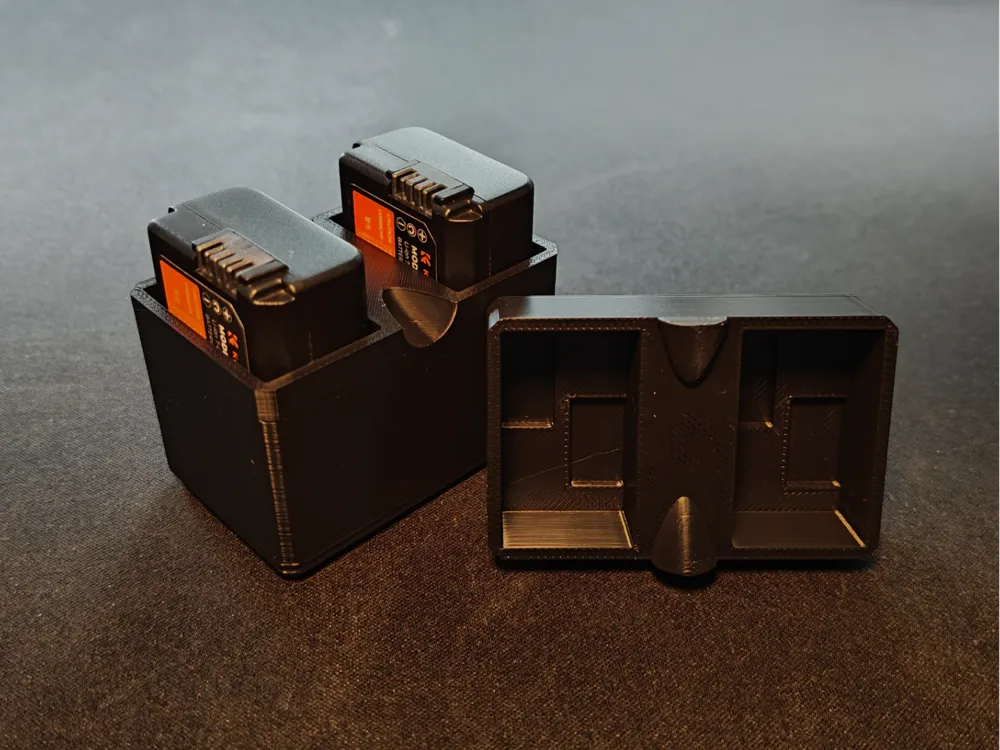

Sony NP-FW50 Magnetic Case
Print Profile(2)
Description
Hi everyone,
I used the case the Remix is based on before, but always ran into the issue, of the magnets losing contact sooner or later.
I also didn't dig the rectangular closing lineups as it didn't feel “smooth”.
So with this remix i fixed both these “issues”.
It has a rounded lineup bump now.
Also the magnet is inserted into the model.
This means you will have to use the pause function right before the print is finished to insert the magnet, and then resume the printing job.
I've uploaded the MF3 files that already include this pause.
If for some reason you want to print using the STLs or want to chose a lower layer height feel free to do so.
By default @0.20mm layer height the stops are before layer 82 for the top and before layer 179 for the bottom.
You will need magnets of the following size:
10mm x 3mm
