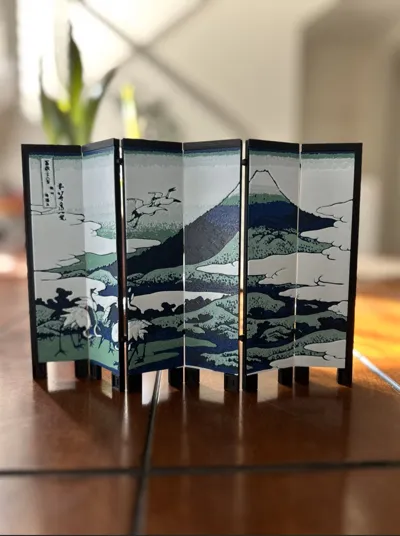

Japanese Folding Screen - Free 3D Print Model

Search models, users, collections, and posts

panenkoeken

Household>Decor

IP Report

GIF

Print Profile(2)

All

X1E

H2D

P1P

P1S

X1 Carbon

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.08mm layer, 1 walls, 100% infill

Designer

3.9 h

1 plate

5.0(4)

0.16mm layer, 2 walls, 15% infill

Designer

2.3 h

1 plate

5.0(2)

Open in Bambu Studio

Boost

141

345

110

Released

Description

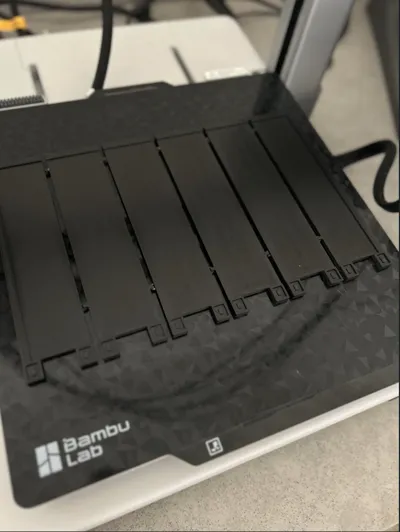

After printing the Byōbu frame:

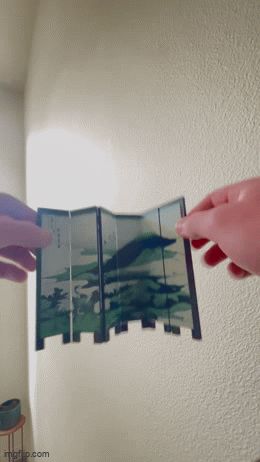

Wait a couple minutes for the plastic to cool to room temperature, then rotate the panels slowly with minimum force to avoid deformation in the hinges – they'll be slightly melted together since they're so small.

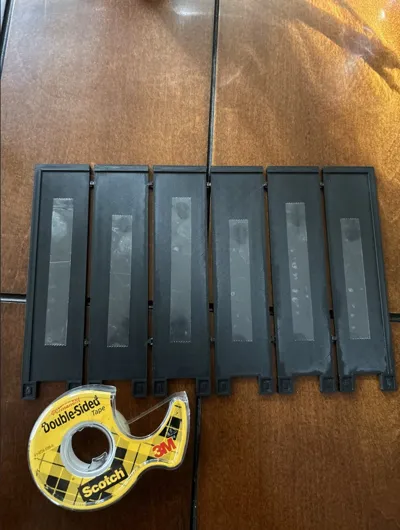

I use double sided tape to adhere the HueForge art to the frame.

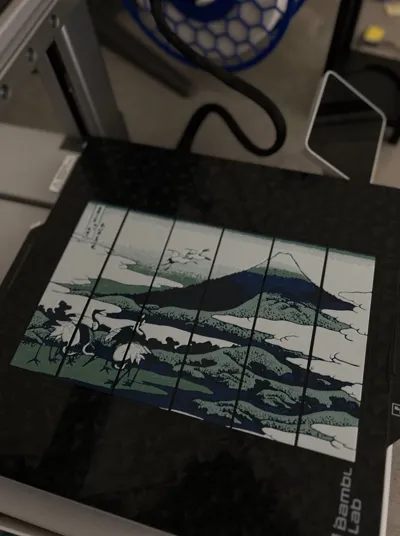

Hueforge:
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

The Model is 200x132.55mm in size

Filaments Used:
    PLA BambuLab Basic Black Transmission Distance: 0.6
    PLA BambuLab Basic Blue Transmission Distance: 4
    PLA BambuLab Matte Grass Green Transmission Distance: 2
    PLA BambuLab Basic Jade White Transmission Distance: 5

Swap Instructions:
    Start with Black
    At layer #7 (0.64mm) swap to Blue
    At layer #12 (1.04mm) swap to Grass Green
    At layer #13 (1.12mm) swap to Jade White for the rest.
