PH60Slim-Choc | Low-profile Mechanical Keyboard
IP Report
Print Profile(1)
Single Color H2D Only
Designer
3.8 h
3 plates
Open in Bambu Studio
Boost
36
100
3
15
107
3
ReleasedÂ
Bill of Materials
List other parts
- PH60Slim-Choc PCB x 1: Purchase in our Taobao Store (optional)
- M2*2*3 Heat insert x 10:
- M2*3 Flat screw x 4: For footstand
- M2*5 Flat screw x 6: For mounting plate
- 20*10*0.5mm Iron piece x 1: Or anything thin and can be acttract by magnet
- 10*4*2mm N52 Magnet x 1:
- Low-profile stabilizer x 5: 4*1.5u and 1*6.25u
- Kailh low-profile switch x 61: Choc V2 only
- Keycaps x 61: Printed low-profile keycaps provided (optional)
Description
Briefing

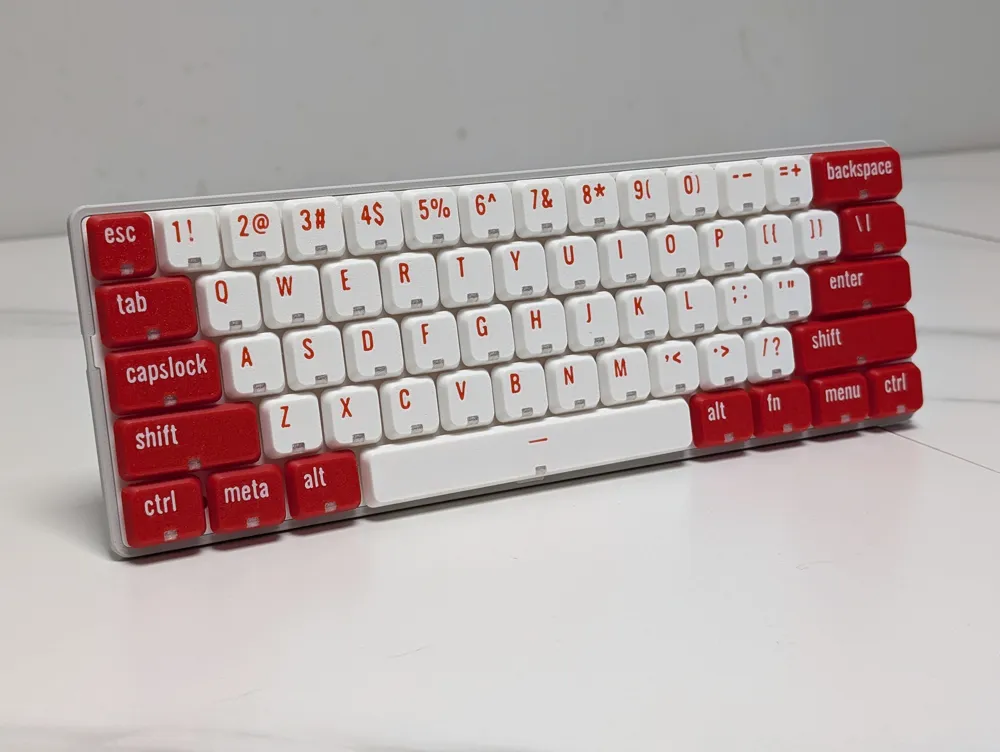

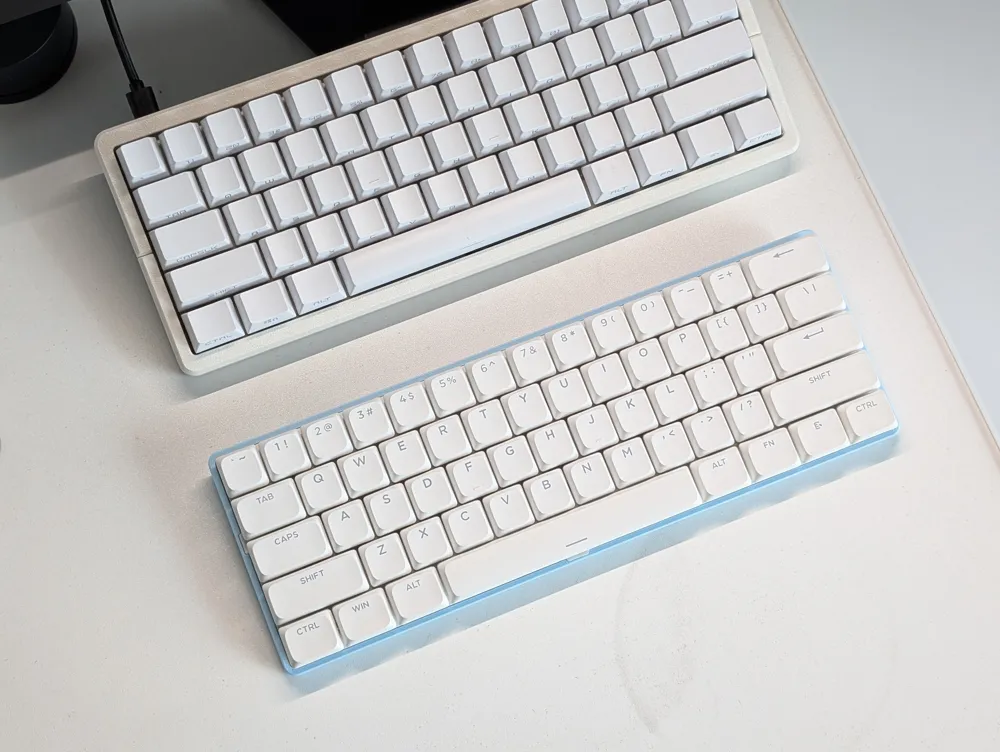

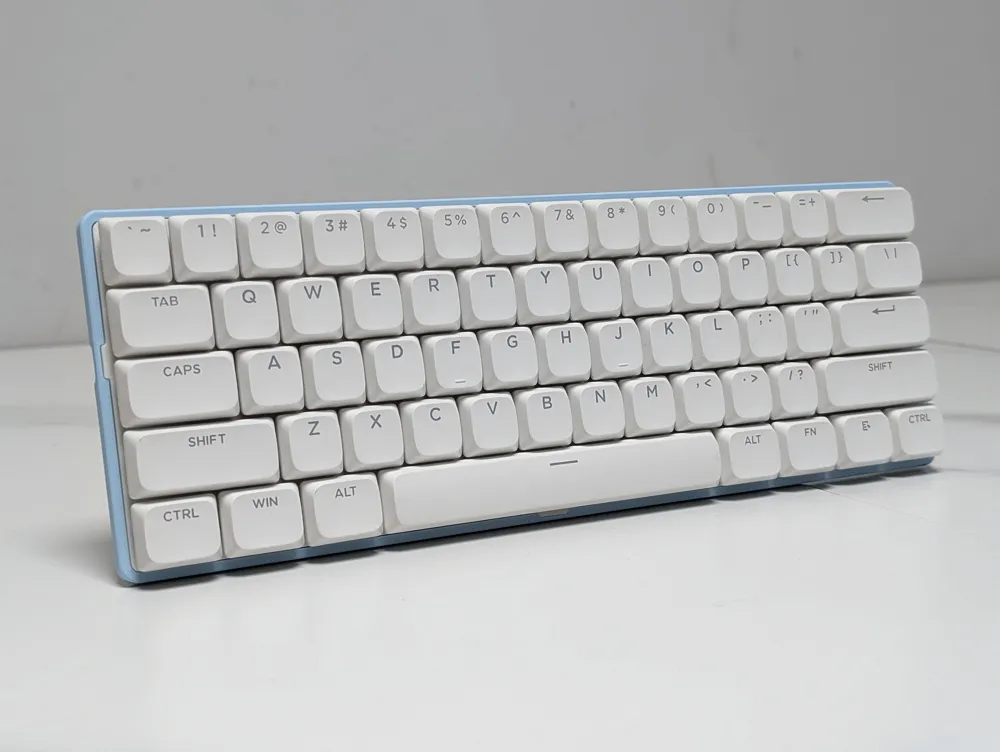

Slim-Choc is a 60% ANSI layout low-profile mechanical keyboard with 7mm front height and foldable foot stand.
Boost Me (for free)
If you like our project, please consider a boost for usđ
Join our Discordď˝Website | GitHub| YouTube | Bilibiliď˝Taobao
Features

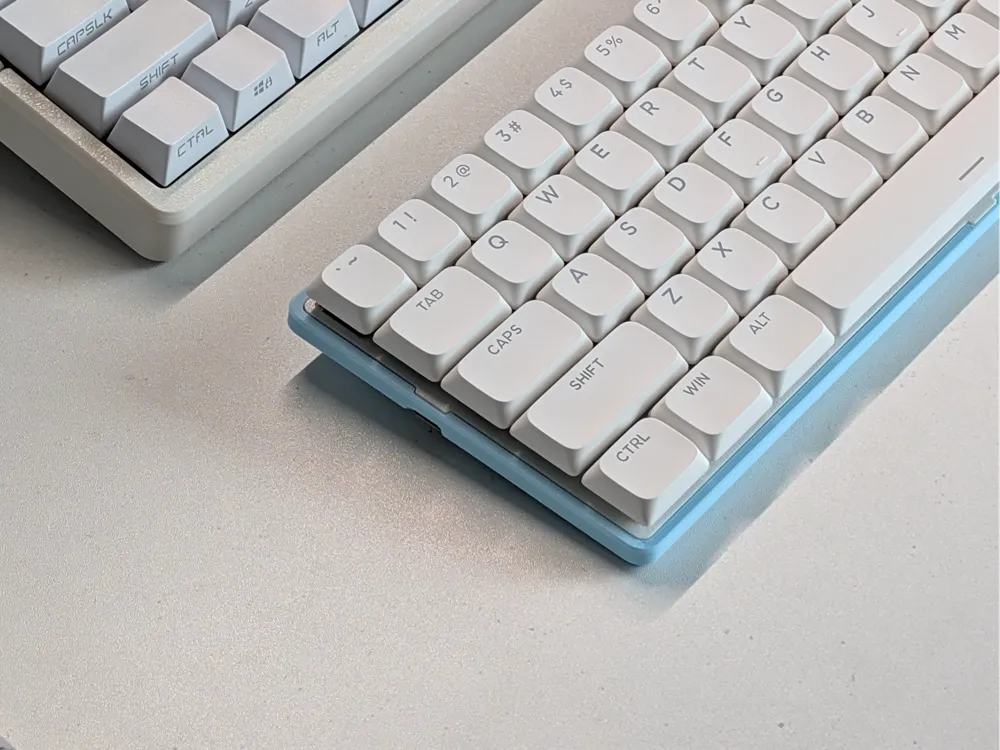

đ 7mm physical front height (4.5mm in visual)

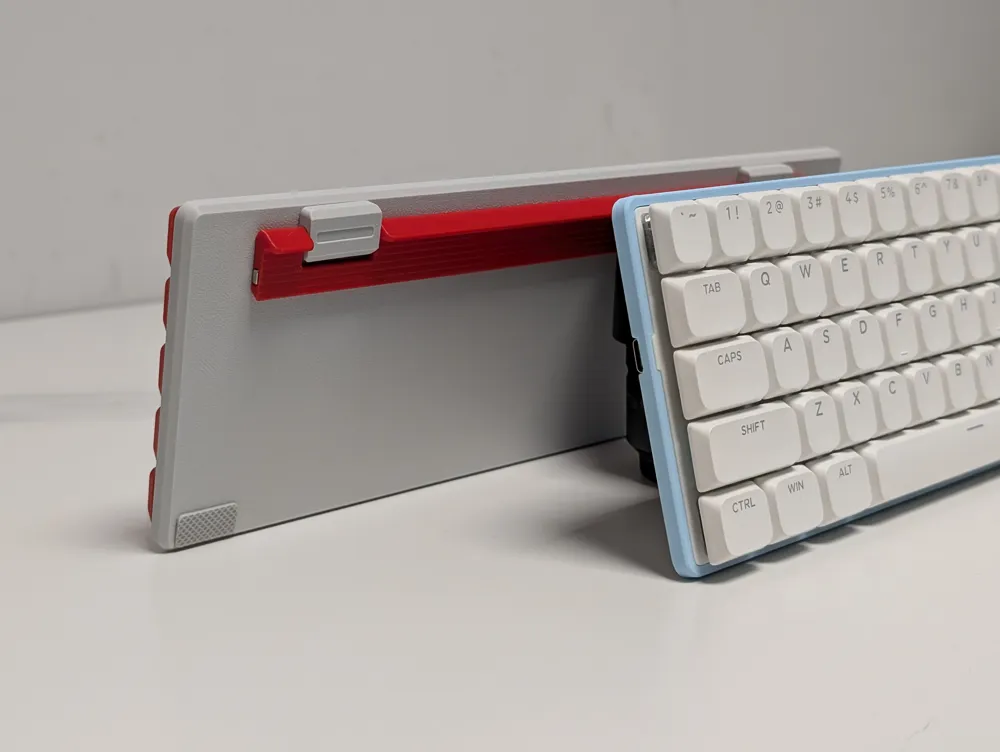

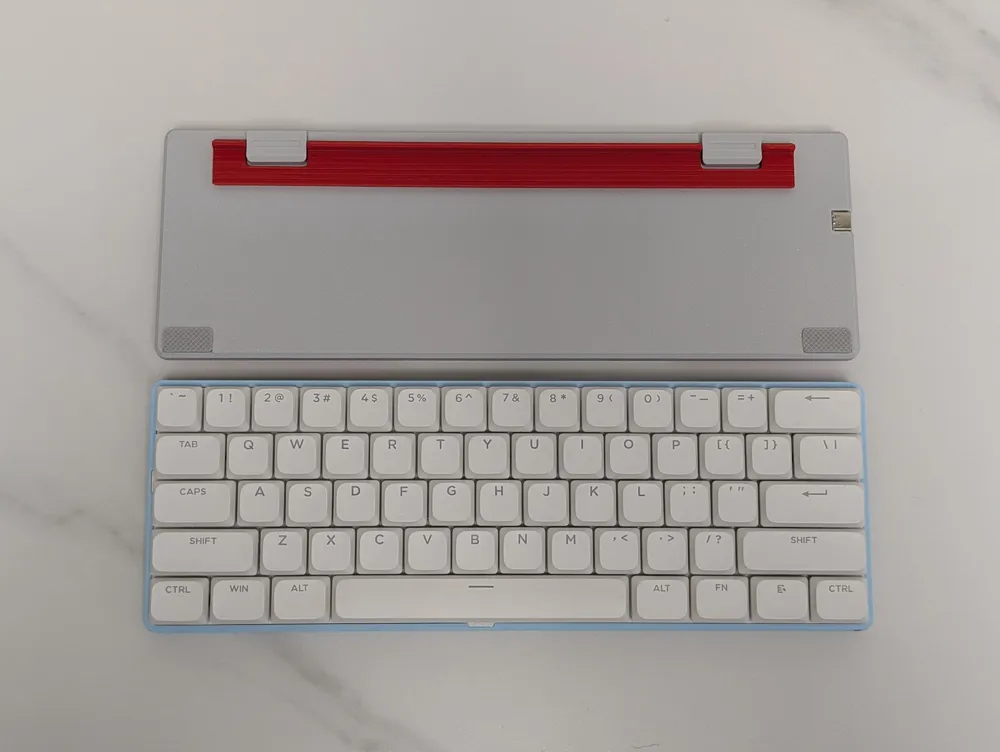

- 𧲠Magnetic 2-step foot stand provides 5° and 10° typing angle

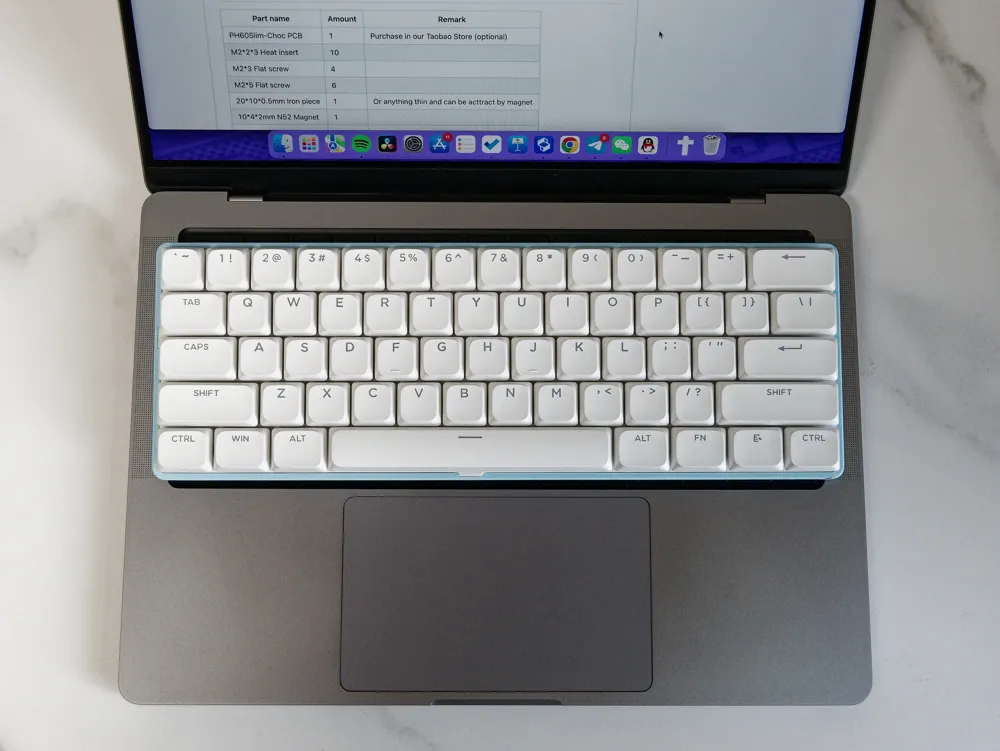

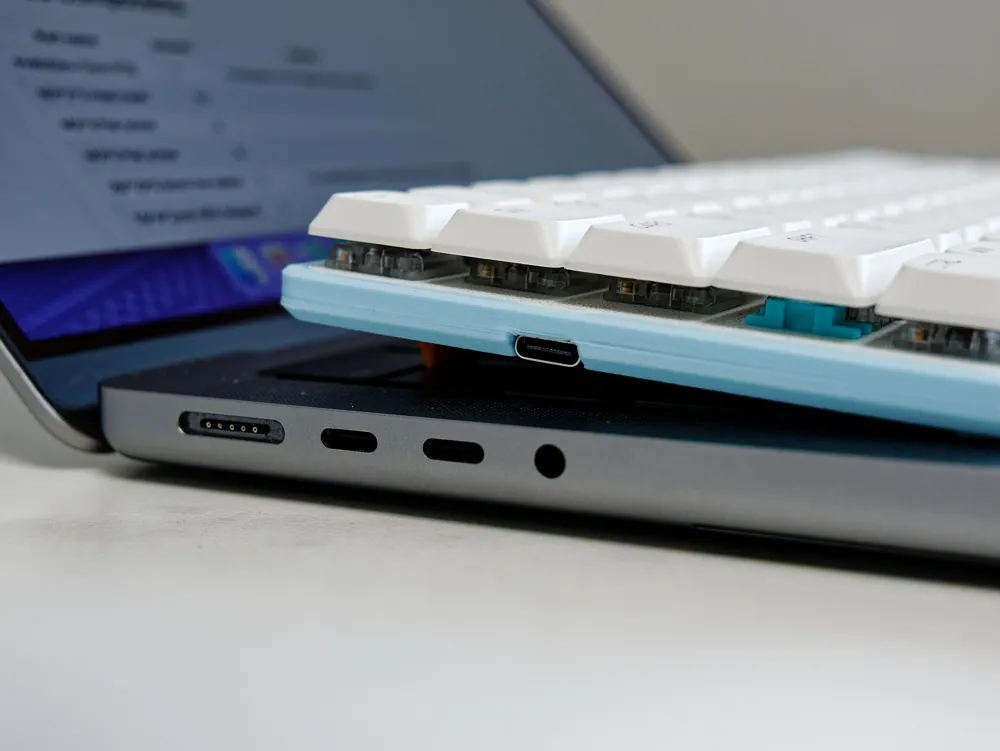

- đť Side-out USB-C connect designed for laptops
- đ Use Kailh low-profile hot swap switches
- đ¨ď¸ Designed for 3D printing and CNC
- ⥠Powered by QMK firmware and VIA support
- đ Companion with dedicate designed keycaps
âŚMore info WIP⌠Please check the GitHub repo for more information.
