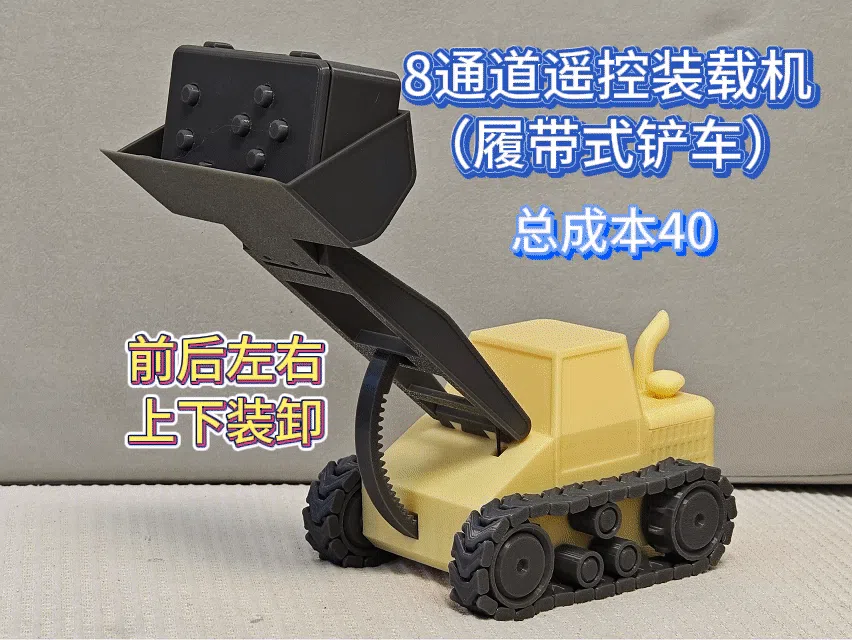

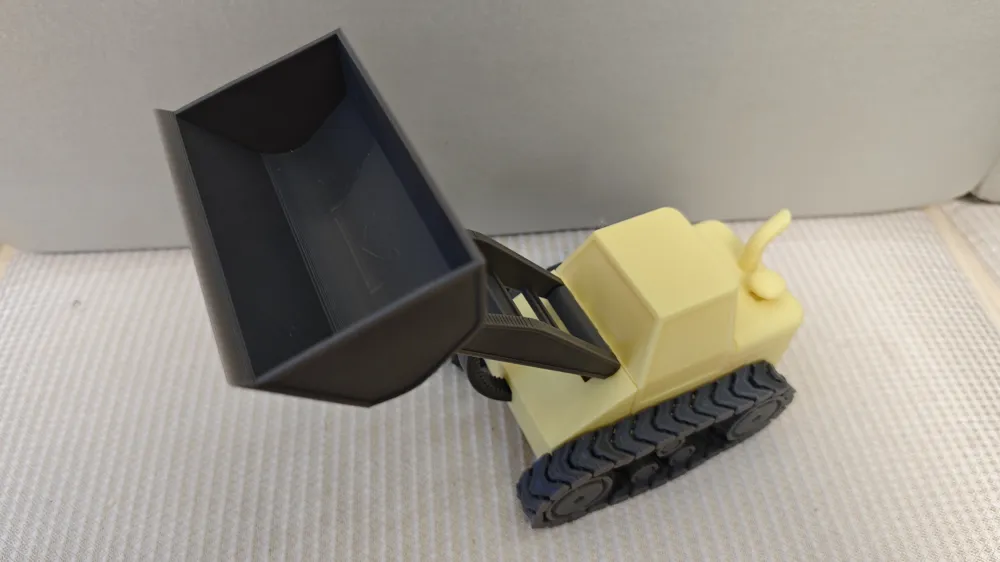

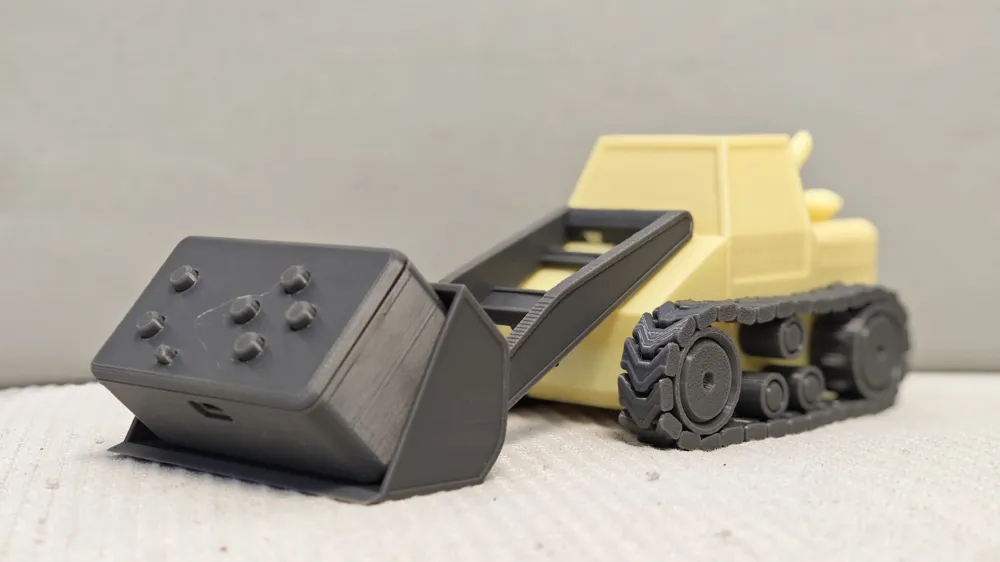

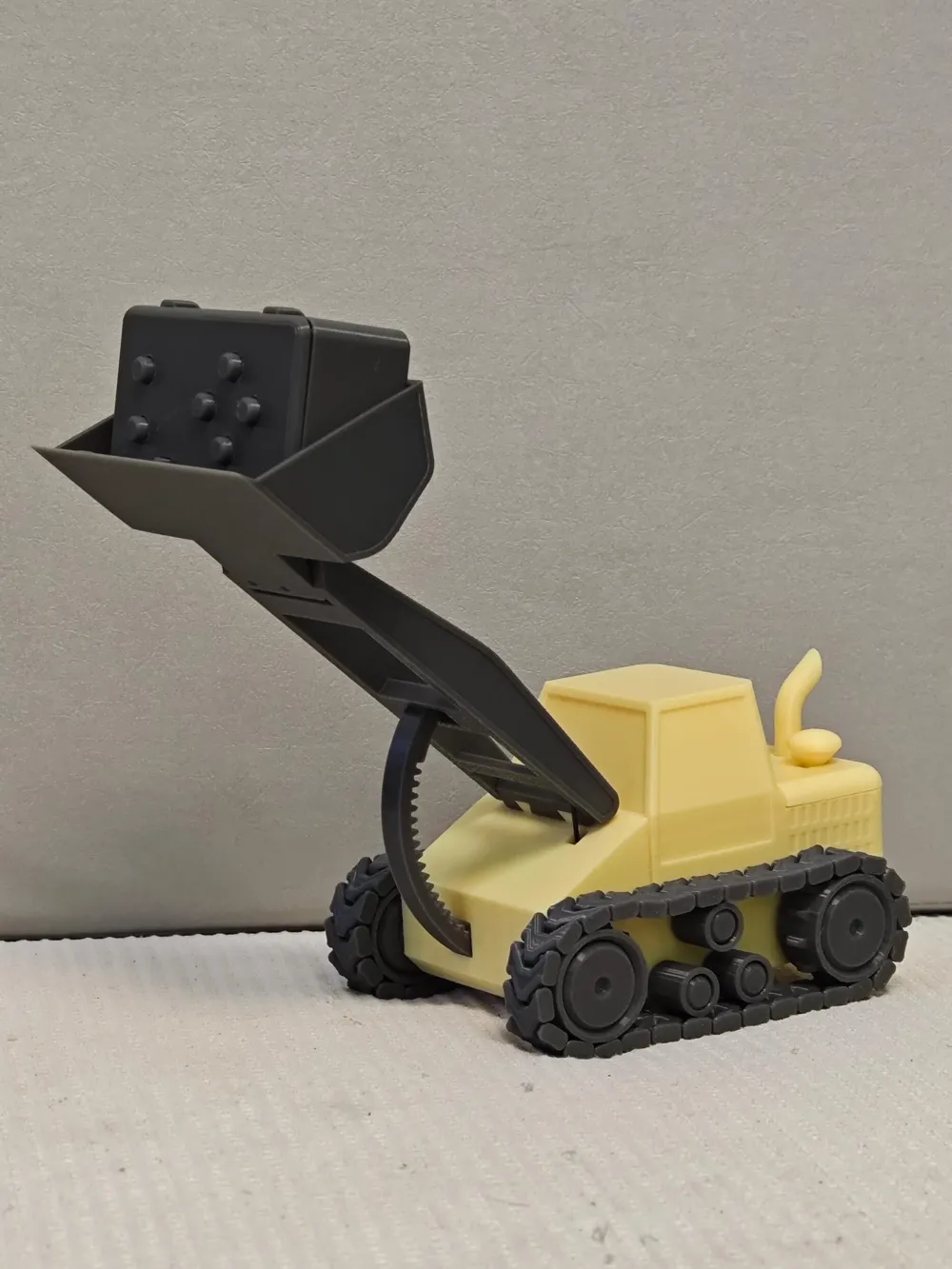

Classic 8-Channel RC Tracked Loader and Bulldozer (A1 mini Compatible)
Print Profile(7)
Description
Boost Me (for free)
thinks for your boost
I'm Chinese, and both the links for purchasing accessories and the BOM list are from websites based in Mainland China. If you can't access them, you'll need to figure out a solution by yourself. If you require paid electronic documents, you can obtain them by exchanging three boosts and leaving your email address.
The upgraded main model has been shared, go check it out...
https://makerworld.com.cn/zh/models/1393300-8tong-dao-yao-gan-diao-su-xian-wei-zhuang-zai-ji-y#profileId-1509621

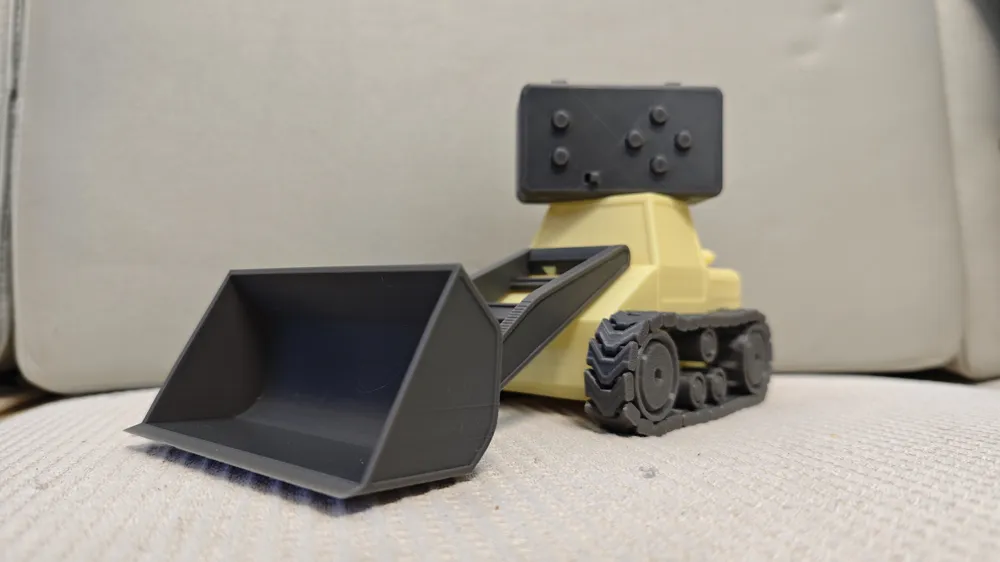

This time, the forklift's remote control has been redesigned for Print in Place, making installation very convenient; it also has a reserved Print in Place external switch and a reserved Type-C port. The motor was also sourced from a new supplier, and its speed is a little faster than before

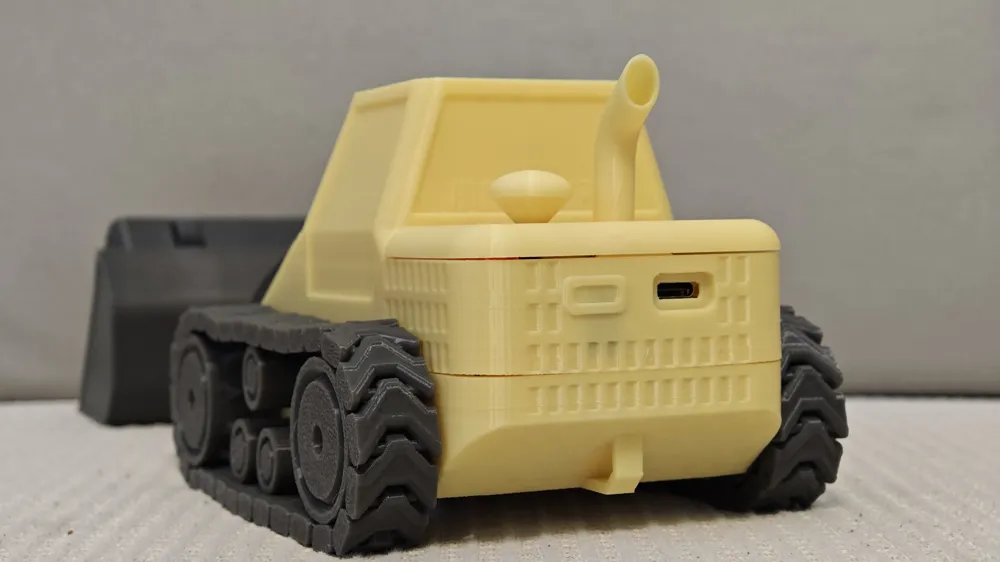

The entire vehicle print has a high degree of integration, no supports needed for printing, no screws or glue needed for assembly, assembled purely from printed parts. Recommended to use PTEG filament. (I use JAYO's filament, so the modeling was also done according to their filament's characteristics)
Below is the detailed accessory list: If you find it troublesome, you can also click this link to directly purchase the complete set of electronic accessorieshttps://m.tb.cn/h.hbH3Gpt?tk=foeuVICfCFx
Accessory Type | Quantity | Parameter Requirements | Reference Image |

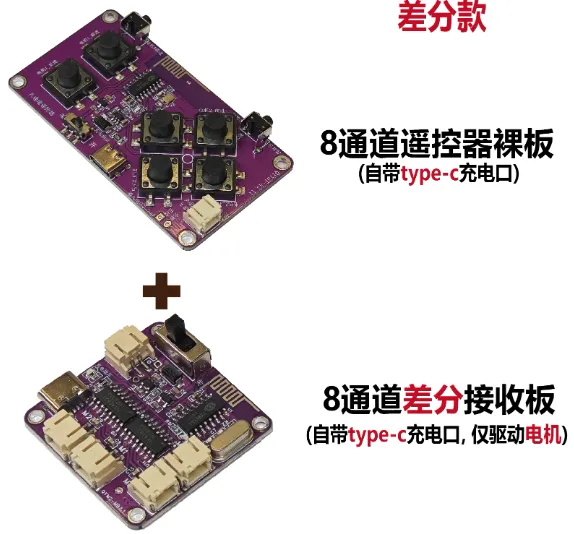

8-channel remote control board | One set | https://e.tb.cn/h.73saJX4E1EdwcTP?tk=34JefwQZY5R CZ193 |  |

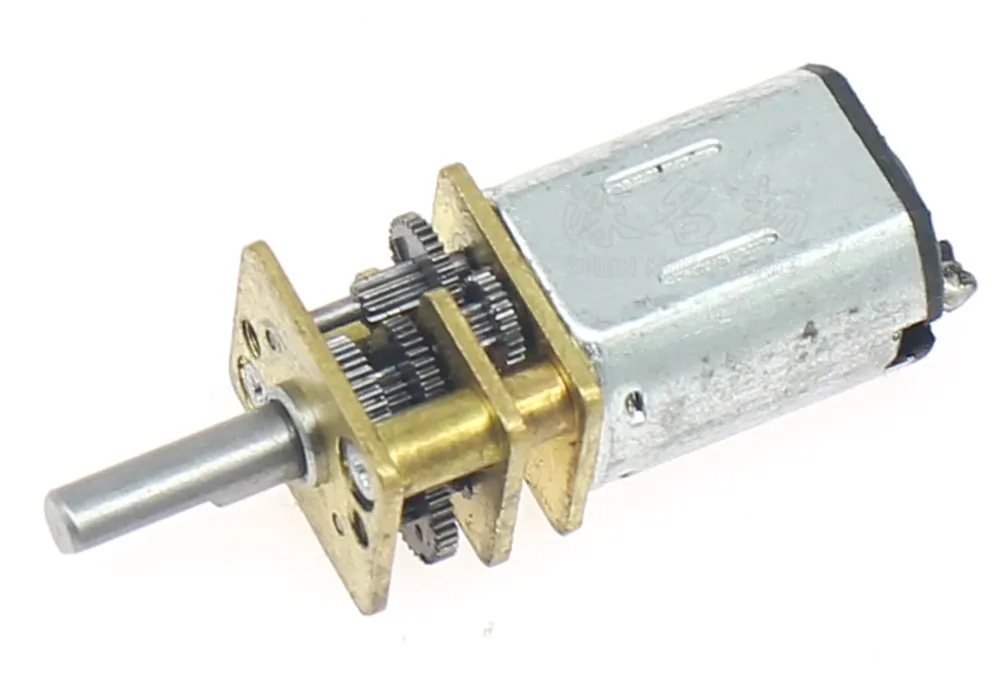

N20 geared motor | 2 | Voltage 3~6V, PH2.0 interface Speed around 40 RPM at 3V |  |
2 | Voltage 3~6V, PH2.0 interface Speed around 100 RPM at 3V, high speed is suitable for track motors | ||

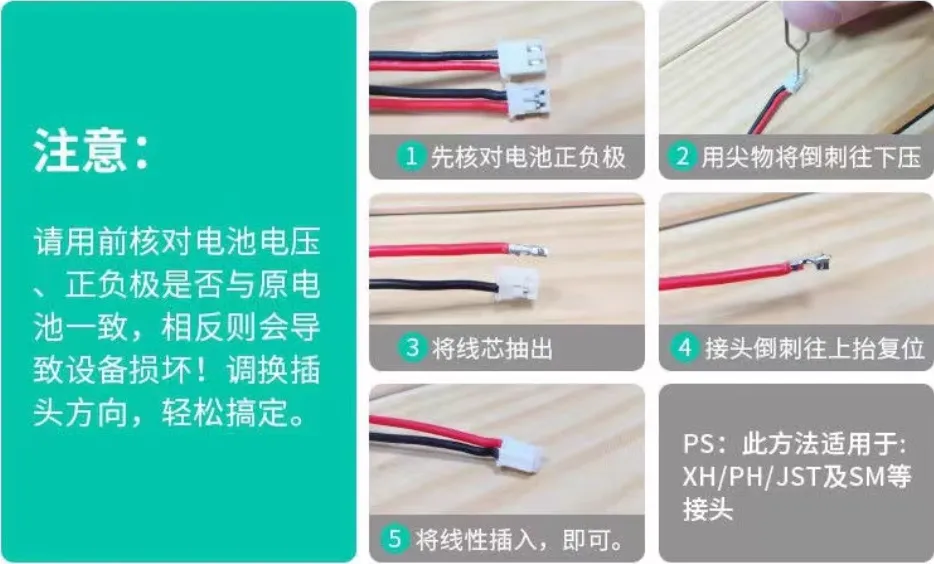

18650 battery | 2 | 3.7V, PH2.0 interface, black and red reversed wire sequence (if not consistent, wire sequence can be manually changed) |  |
