Rotating Footstop FreerideVersion
Print Profile(1)
Bill of Materials
- 1.75"CountersunkBolt x 1:
- NylocNut x 1:
- Washer x 1: OD15mm;ID5.3mm
Description
Boost Me (for free)
If you like this model maybe consider giving me a boost. This helps me to provide more free downhill skate gear in the future. Thanks!
Meant for personal/private use only. Distributing without active membership plan is prohibited.

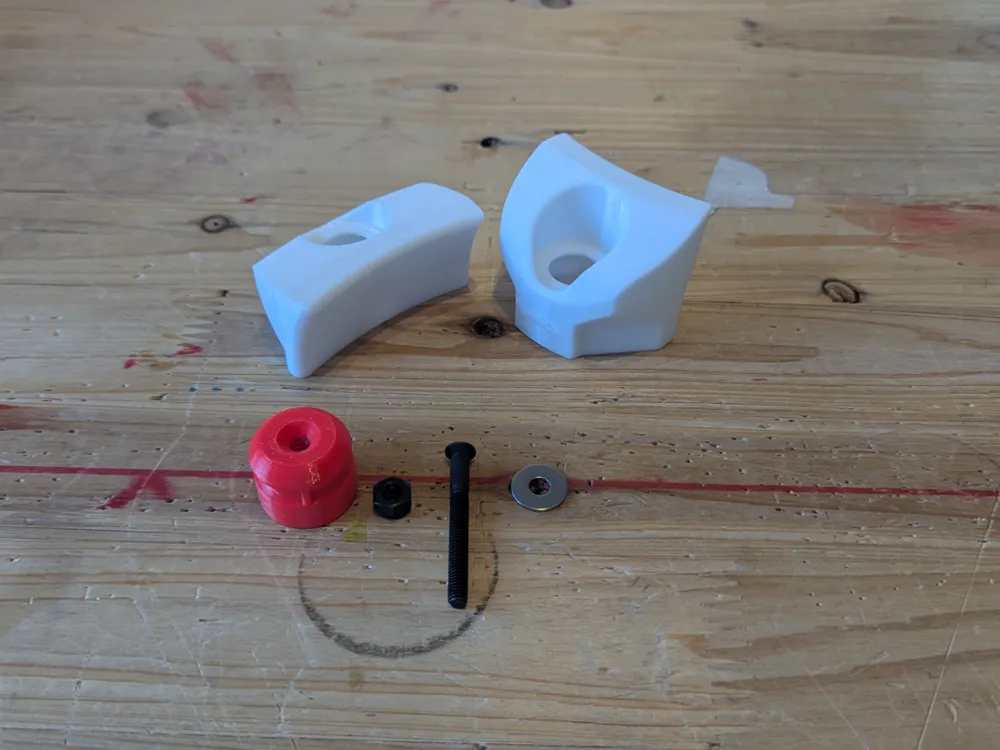

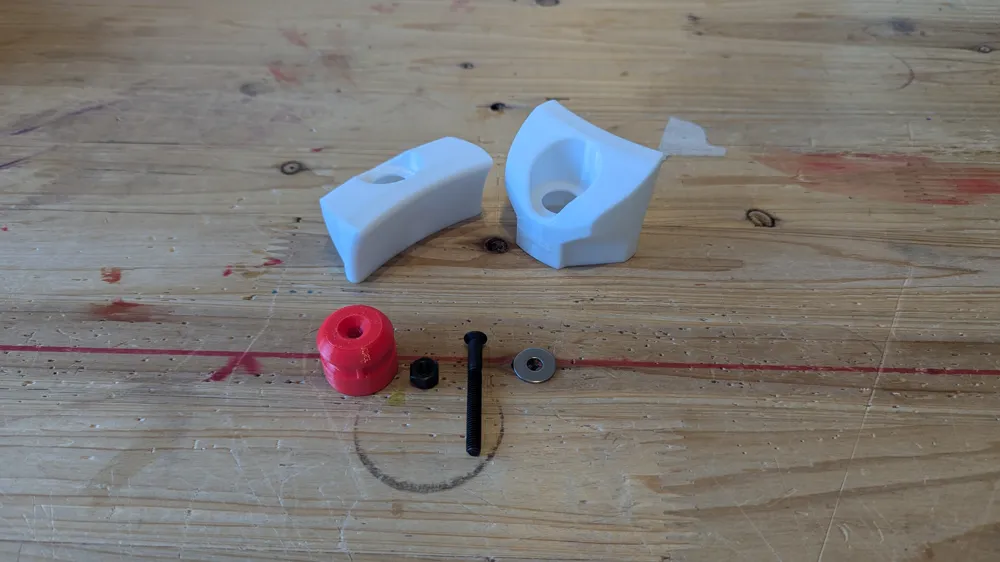

This rotating modular footstop is designed to adapt to your skating situation. If you go for a freeride or downhill session use the complete footstop for maximum support. If you want to make full use of your kicktail and go for some street skating, just take the main body off so only a bushing sized support footstop is left.
This internal stop/support bushing needs to get printed solid with perimeters out of 65D TPU or harder. Do NOT USE PETG since it will soften too much in your car on a hot summer day and maybe will fail. TPU can withstand higher temperatures.
You also will need one washer [OD 15mm, ID 5.3mm], a 1.75" long countersunk bolt and a suitable nyloc nut for the bolt.
Use at your own risk.
Membership
If you want to distribute this footstop on your own, or want to use the internal stop design for your own footstop design feel free to subscribe to my membership plan. This will help me to provide more tested downhill gear to print for you
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
