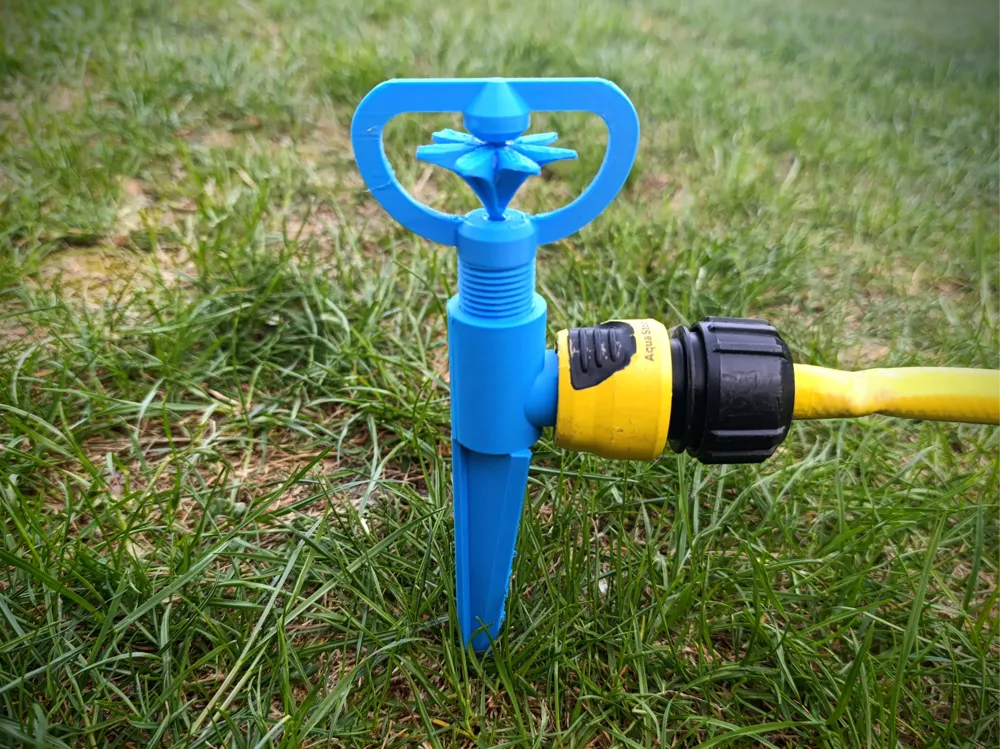

Rotating sprinkler with 1/2" thread

Designer

56 min

1 plate

4.5(142)

Sprinkler spike/peg with 1/2" thread and quick connect

Designer

1.2 h

1 plate

4.8(97)

strength profile, all in one plate, easy to remove supports

2.6 h

1 plate

4.6(45)

Open in Bambu Studio

Boost

2339

5772

558

5.5 k

3.6 k

Released

Description

Print included sprinkler spike or use sprinkler with existing spike or stand (standard ½" thread)!!!

Remove supports to let rotating part spin freely!!!

Comment & Rating (558)

@user_791203571

Print Profile

Rotating sprinkler with 1/2" thread

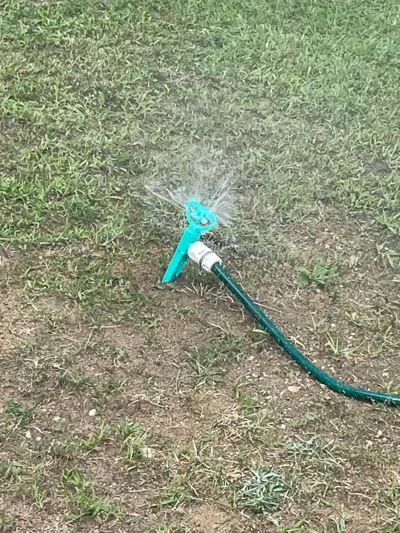

This works great. Just be aware you need an O-Ring to make it seal up really well.

The profile uploader has replied

@PamArt

@user_791203571 Thank you for your rating :)

@PamArt

@user_791203571 By the way, how do you change the color in the middle of the peg? different orientation?

@user_791203571

Replying to @PamArt :

It was an accident. I ran out of filament and switched in black and kept going.

(Edited)

@Peilerman90

Boosted

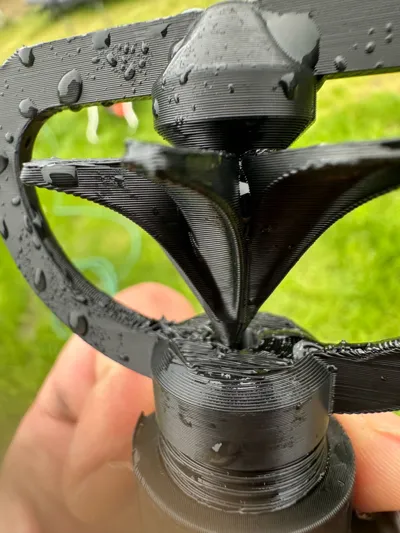

The design is ingenious, HOWEVER, unfortunately, after five minutes the tip practically pops out of the hole, preventing further rotation and resulting in only spraying. Perhaps the tip should be slightly longer 🤔

The designer has replied

Show original

@PamArt

Thank you for your comment. I didn't experienced this issue yet, with several sprinklers spinning for weeks now, but I will consider this in an model update. In all cases when rotation was stopping it was due to small support residues (picture below) - easily solved with small knife.

@Peilerman90

Boosted

Thank you for your response I have already checked but there are no remnants unfortunately it does not rotate However without water it rotates wonderfully smoothly with water unfortunately no rotation

Show original

@Peilerman90

Boosted

Replying to @PamArt :

I also tried printing it with PETG, but unfortunately, the result was the same

Show original

@mihaita

Print Profile

Rotating sprinkler with 1/2" thread

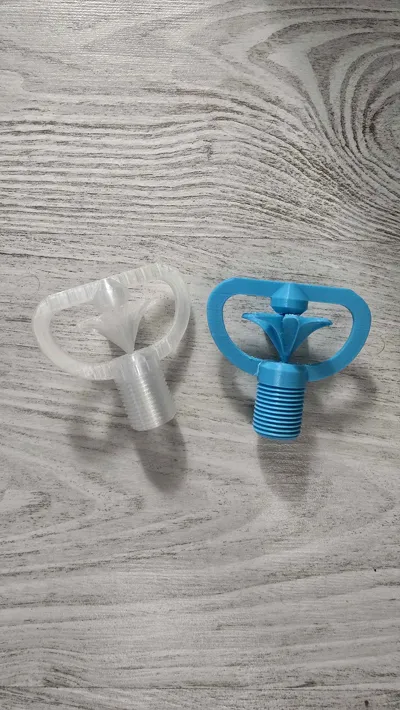

nice.needs some cleaning after printing.

The profile uploader has replied

@PamArt

Thank you! Nice looking transparent print :)

@user_3536772945

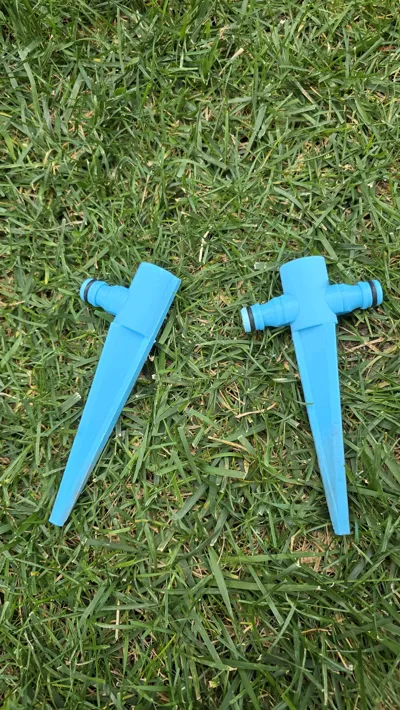

where is this with connections on both sides

Show original

@mihaita

Replying to @user_3536772945 :

the one with 2 connections I created myself from the original model

@user_3381410304

This is really cool. I needed a small soaker sprinkler. Thanks

The designer has replied

@PamArt

@user_3381410304 Thank you!

@Grandpa314

Boosted

Print Profile

Sprinkler spike/peg with 1/2" thread and quick connect

works perfectly. I had an O-ring for the connector. Print-in-place magic!

The profile uploader has replied

@PamArt

@Grandpa314 Thank you for your positive review!

@Fubars

Boosted

prints ok but once used keeps stopping spinning could be low water pressure.

The designer has replied

@PamArt

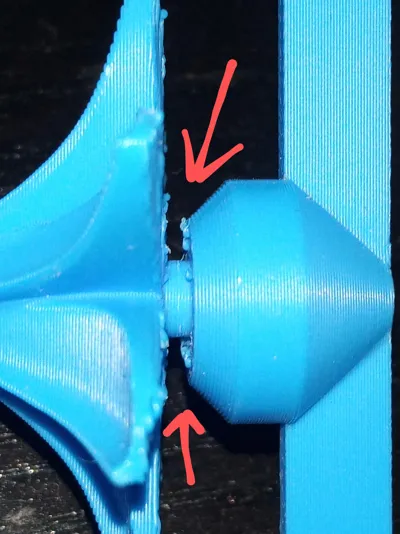

@Fubars Could be small support residues in this area (shown in picture below), you can remove them with a small knife. I would appreciate your feedback.

@Fubars

Boosted

Replying to @PamArt :

Thanks I will have a look at it

@Fubars

Boosted

Replying to @PamArt :

works great now thank you, have a another boost 😉

@Weston.S

Print Profile

Rotating sprinkler with 1/2" thread

Very nice!!! Thank you!!!

The profile uploader has replied

@PamArt

Thank you!

@dogiee

Print Profile

Rotating sprinkler with 1/2" thread

I love it, finally a sprinkler that doesn’t clog up from fine sand in well water

The profile uploader has replied

@PamArt

@dogiee Thank you for your review !

(Edited)

@dogiee

Replying to @PamArt :

thank you for the model!

@Peilerman90

Boosted

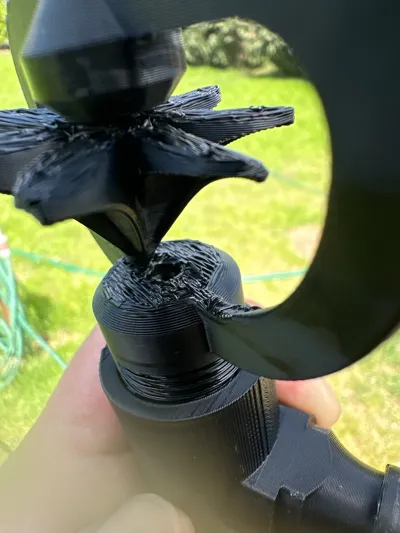

I have now printed it again in PETG, it worked for 15 minutes then the part came out of the nozzle again, therefore I still think it might help if the nozzle is longer so it cannot slip out Hopefully something can be done, I absolutely love this part

The designer has replied

Show original

@PamArt

@Peilerman90 Strange... maybe your water pressure is extremely high... As I understand PETG is inferior to PLA in most strength parameters (except impact; picture added) as well as PLA matte inferior to PLA. In any case, I'll probably make it longer/stronger as I thought about that during design, but left it like this because it worked well for me (just need to find some spare time :) ).

@Peilerman90

Boosted

Replying to @PamArt :

I would be delighted if you could find the time, as mentioned I find your work exceptionally good and would be thrilled to be able to use it

Show original

@Metal

Replying to @PamArt :

You're forgetting heat and UV resistance as well as better around water, PETG is 100x better for outdoor applications than PLA. But looking at his print quality especially the support settings, he most likely just has a VERY bad print profile and your design might just be too intricate for his settings.

(Edited)

@user_2638861719

Print Profile

Rotating sprinkler with 1/2" thread

Great watering can, printing for the second time

The profile uploader has replied

Show original

@PamArt

@user_2638861719 Thank you :)
