5 mm V-hook clamping collar

Print Profile(1)

All
A1
P1P
X1 Carbon
X1E
H2D
P1S
A1 mini
X1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.16mm layer, 5 walls, 25% infill
0.16mm layer, 5 walls, 25% infill
Designer
34 min
1 plate

Open in Bambu Studio
Boost
9
19
0
0
10
2
Released

Description

Content has been automatically translated.
Show original

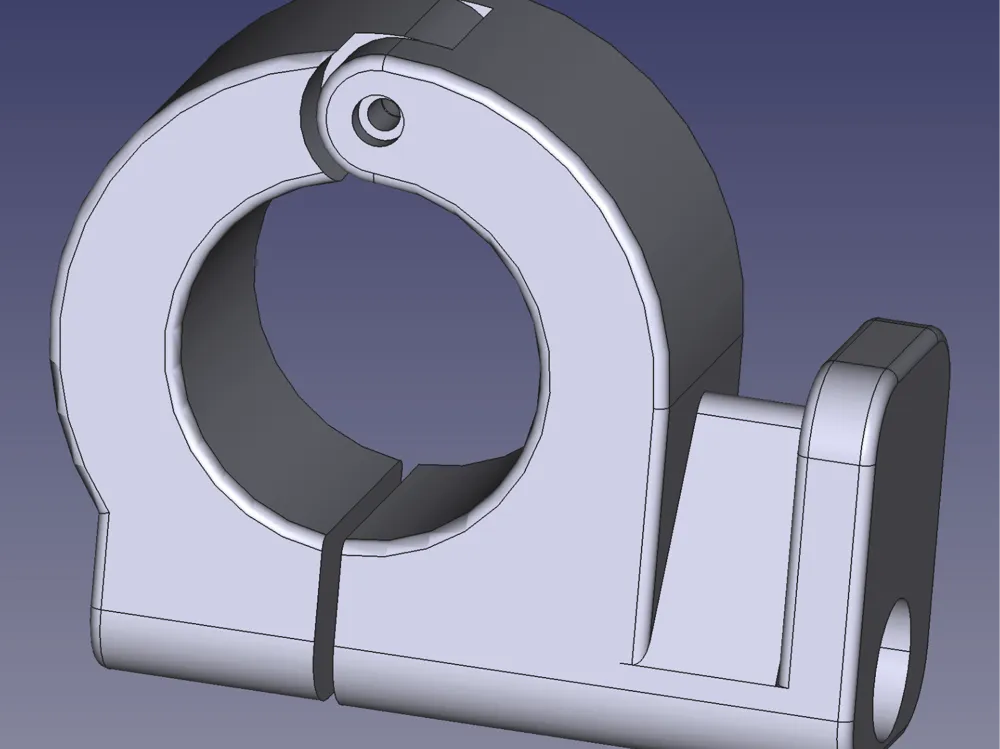

This is a 14 mm tube clamp with a reverse V-shaped 5 mm hook.

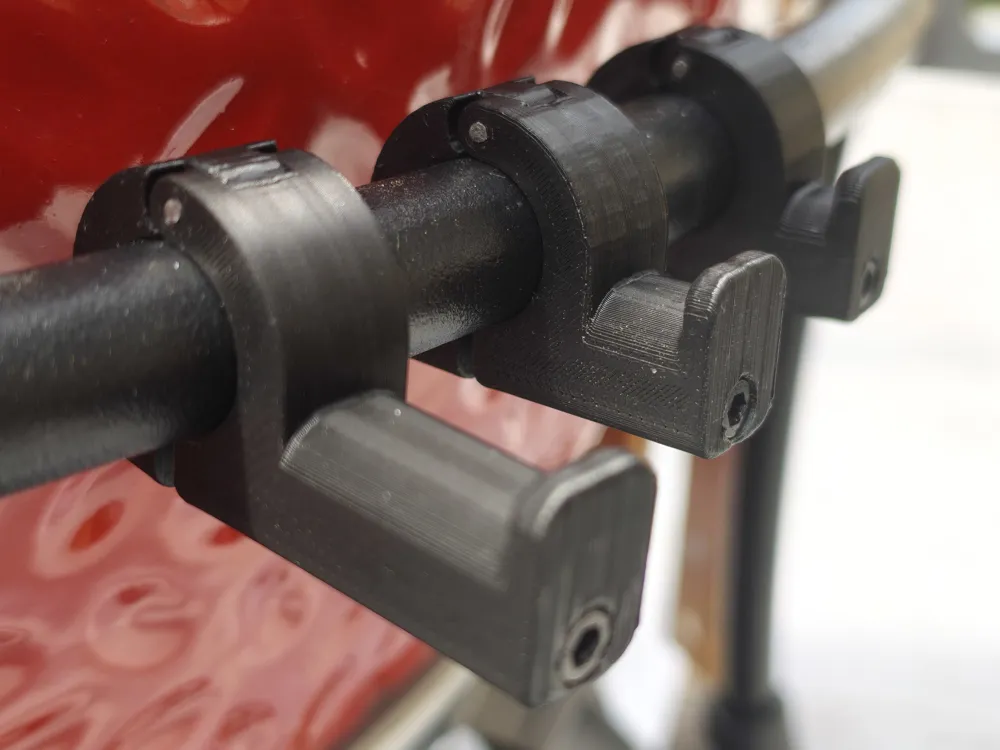

It allows for suspending objects with a triangular handle to this tube.
I have created this hook in 5 mm, 8.5 mm, and 20 mm versions, as well as a 5 mm reverse V-shaped version, depending on the objects to be suspended.

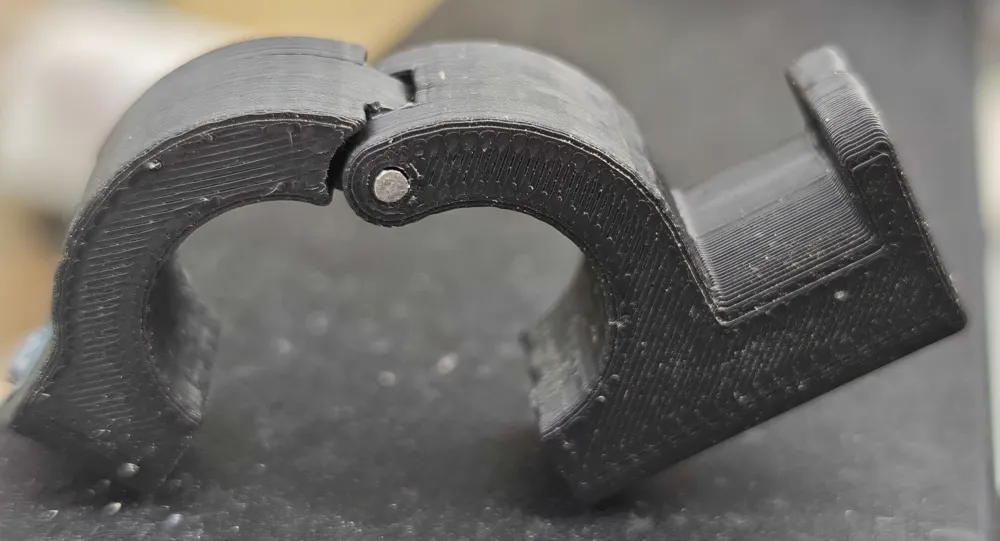

Printing is support-free. Once finished, the two parts of the clamp must be separated by slightly forcing them apart (like opening it).



The articulation is achieved using a small 1 mm diameter, 12 mm long nail.

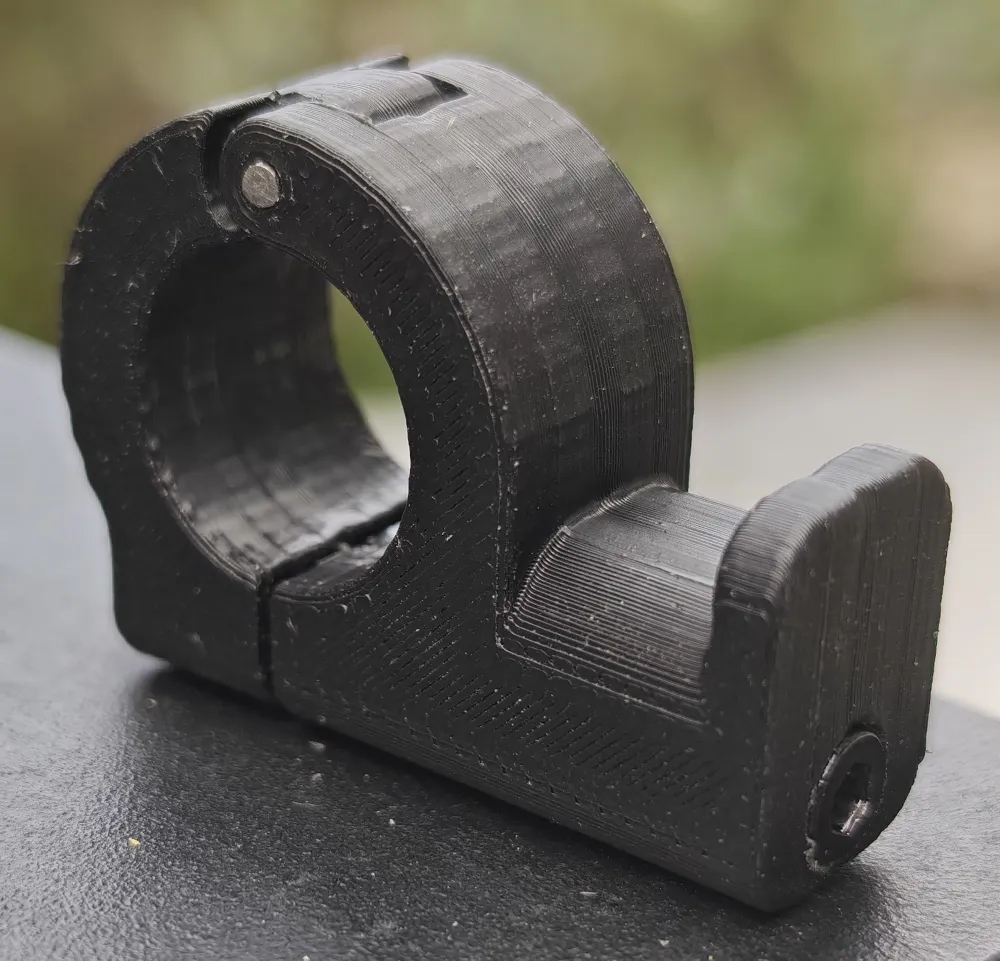

Clamping is done with a 30 mm hex socket head M3 screw, such as these: https://amzn.to/42DYF7m.
The nail head, the screw head, and the nut integrate into the clamp.
