Kar98 Style Mechanical Ladder Sight for NERF
Print Profile(2)
Bill of Materials
Description

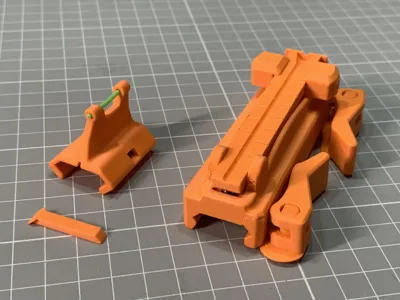

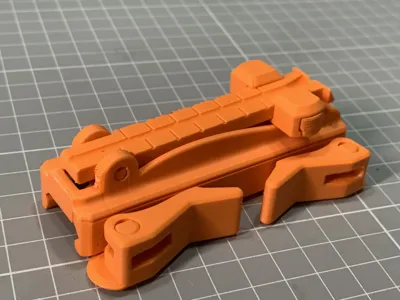

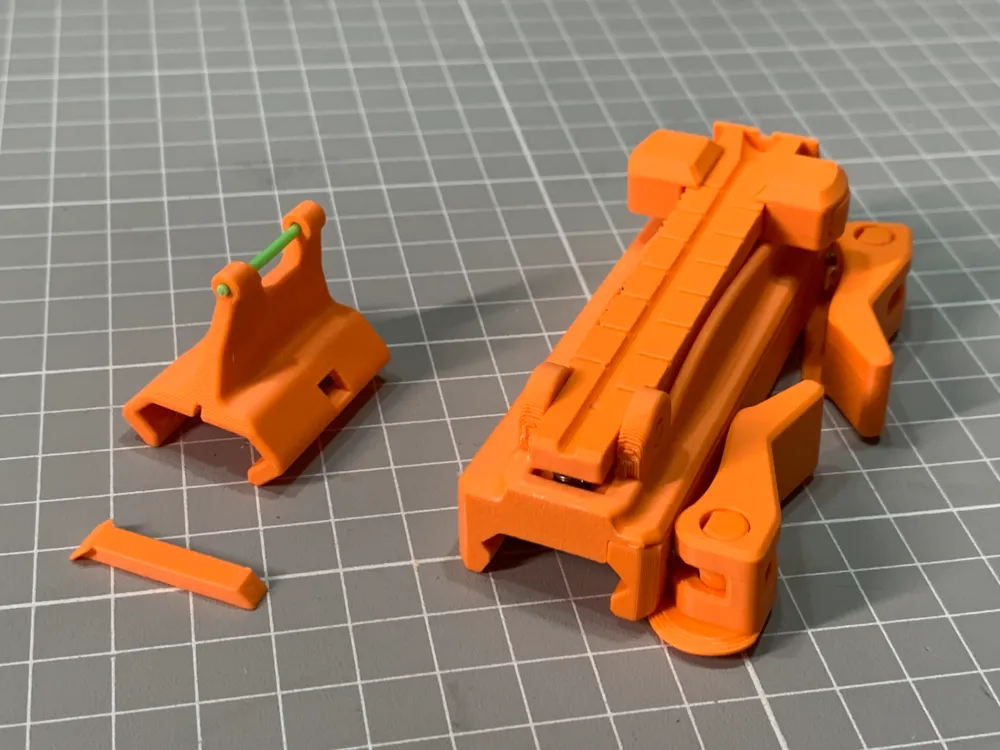

Kar98-style mechanical ladder rear sight, adjustable scale, Picatinny rail mounted. Tool-less quick detach system available.
[Hardware Requirement]
5x0.5x10mm compression springs x2 (can be cut from a longer spring)
M3x35mm socket head bolts x2 (for quick-detach version)
or M3x30mm socket head bolts x2 + M3 hex nuts x2 (for non-quick-detach installation)
2mm fluorescent tube (can be replaced with filament stab as alternative)
[Assembly]
I believe you can figure it out yourself!
[Sponsor Version]
If you like my design, you can support me by purchasing the sponsor version on Cult3D @Adicrafts. The sponsor version is functionally identical to the MW free version, with the following additional features:
- Scaled ruler (supports AMS dual-color printing)

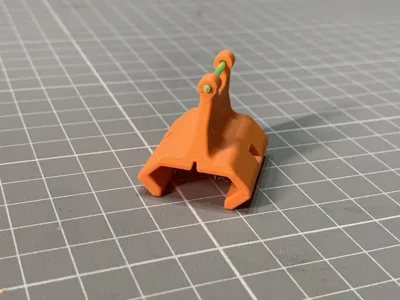

Additional front sight design
