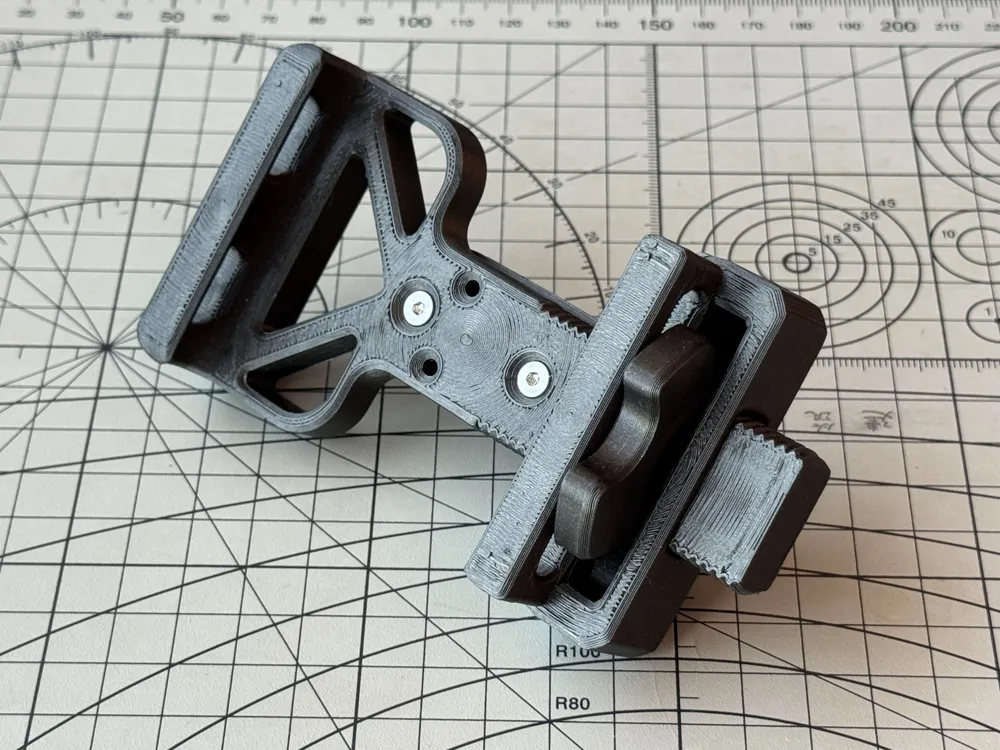

Bicycle Phone Mount - GoPro Hot Melt Nut Adapter Mount

June 25, 2025 Update:

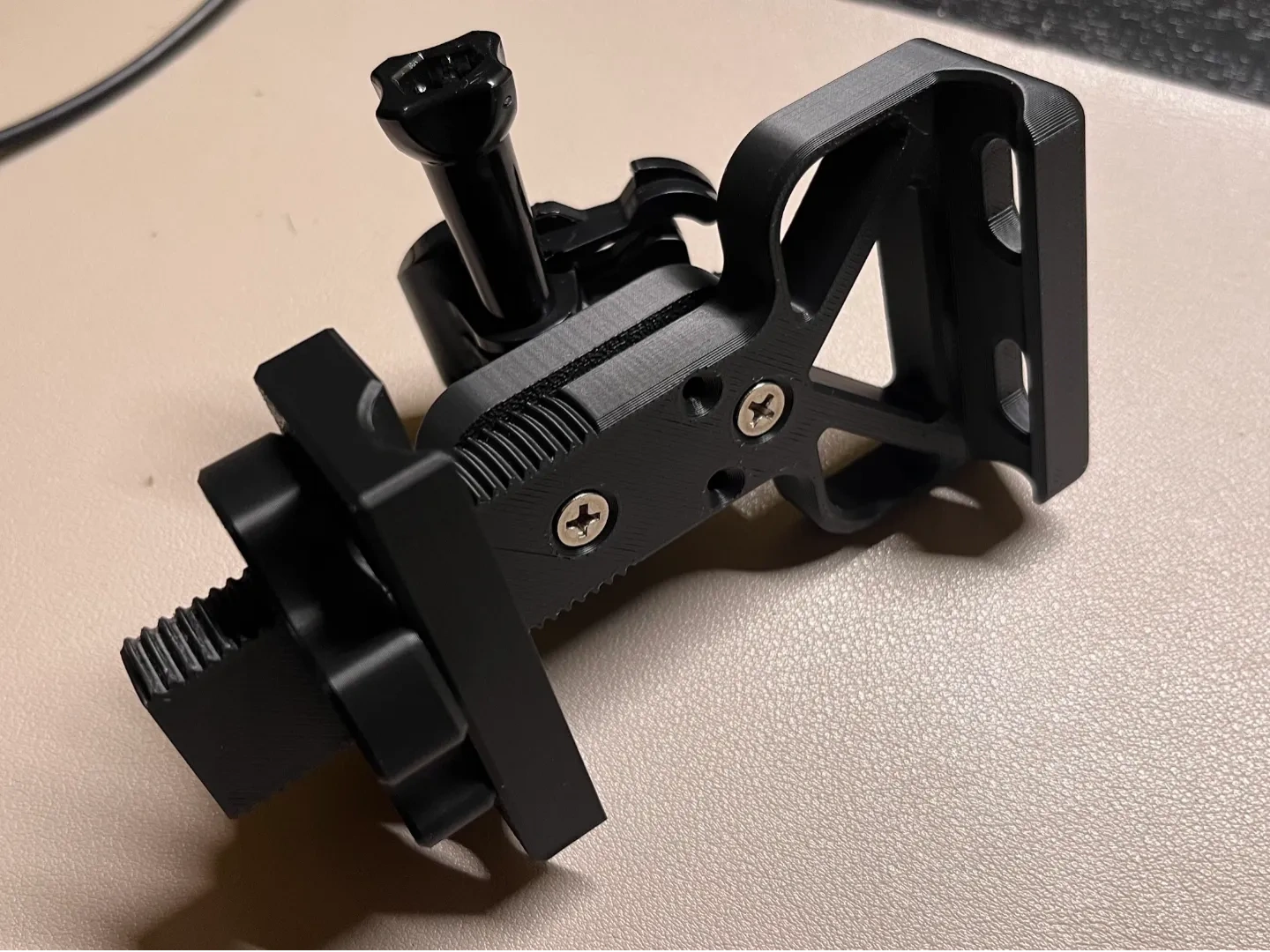

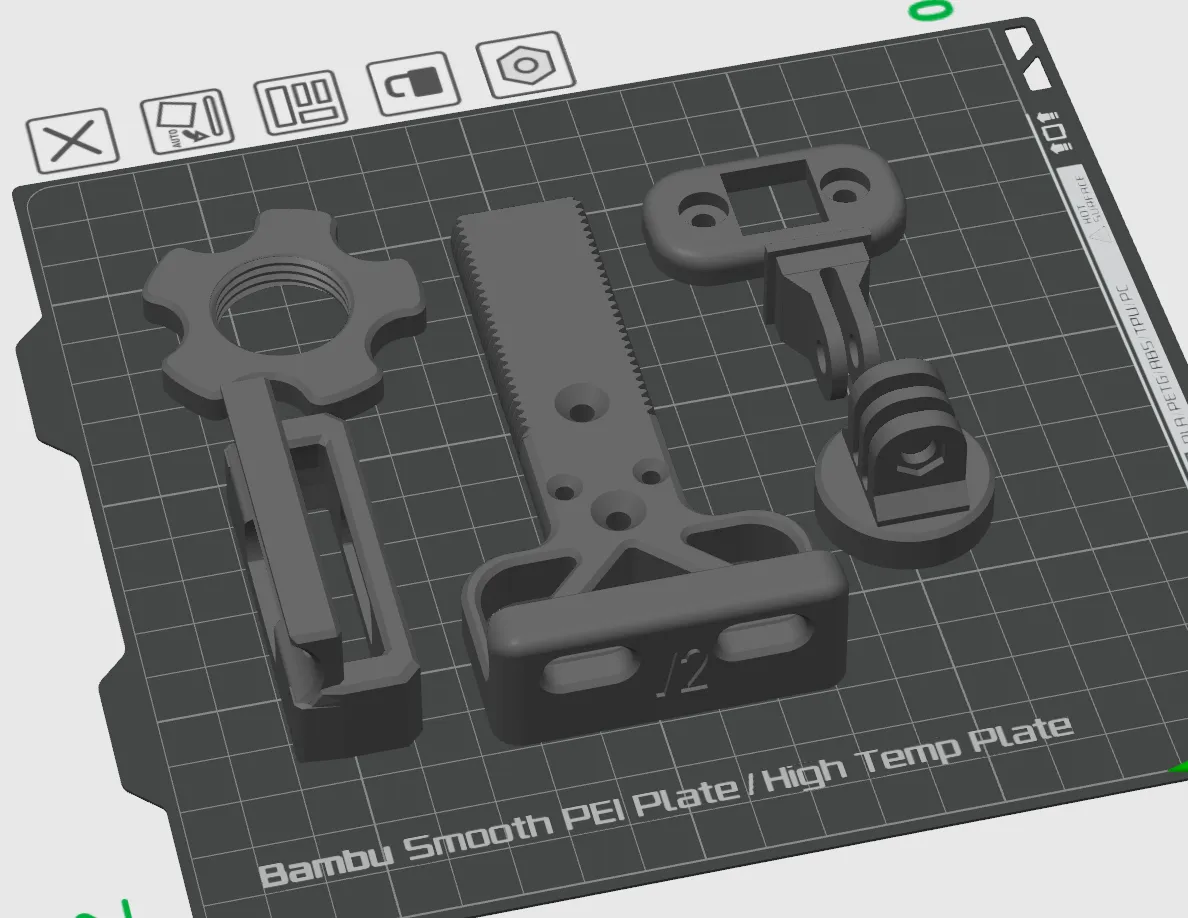

A large nut easily tightened with one hand and a GoPro adapter split into two parts for enhanced strength, improving this version's printability

-----------------------------------------------------------------------------------------------

This is a revision of:

 @domi_schmidt95

https://makerworld.com/en/models/484283#profileId-396618

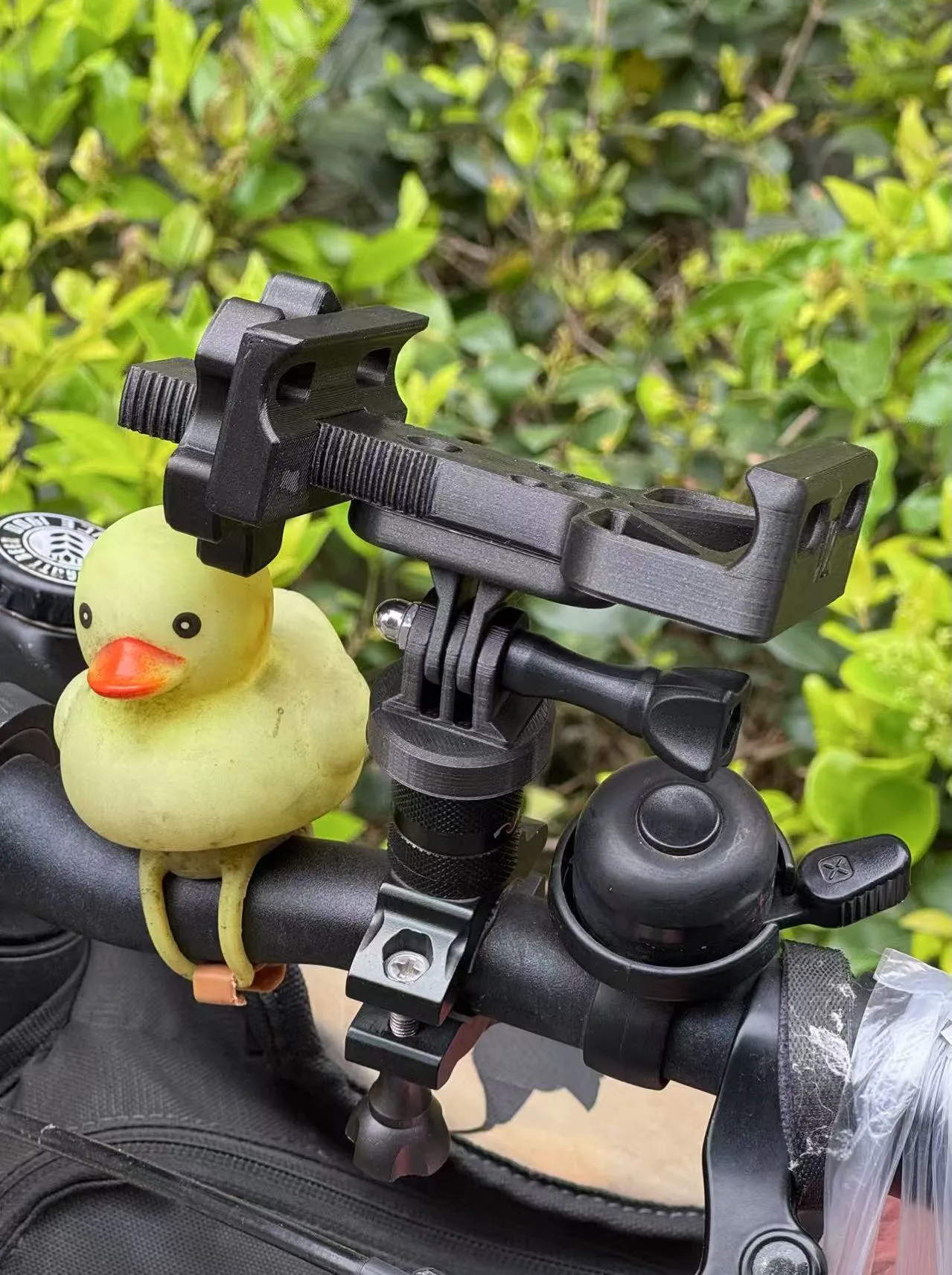

Bicycle phone mount design

@GLB_azizbahri90

https://makerworld.com.cn/zh/models/790107-zi-xing-che-shou-ji-zhi-jia-gopro-zhi-jia#profileId-762718

This project also inspired this project, optimizing the base model

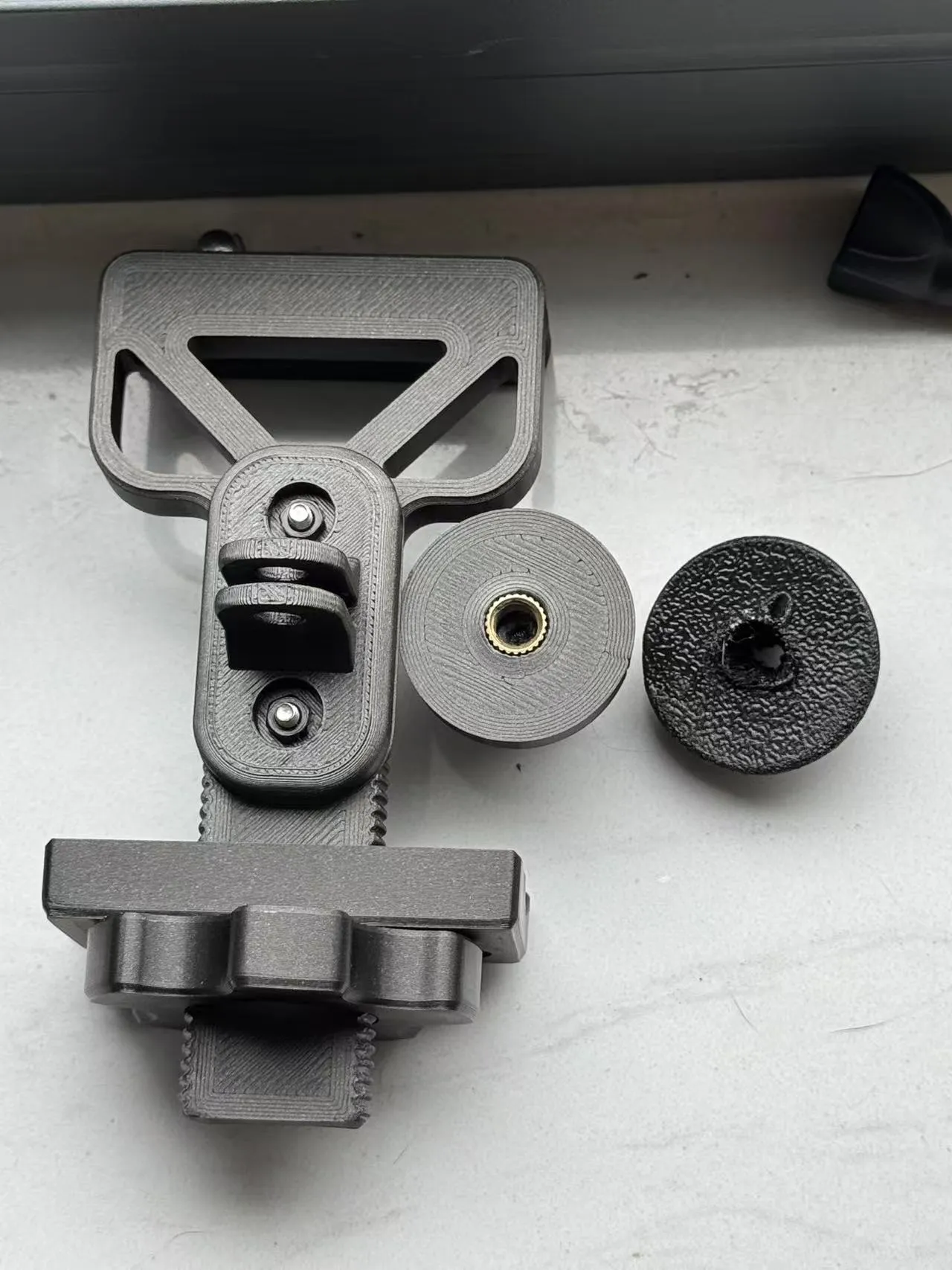

The adapter base has a 7.3mm diameter and 6.5mm deep recess for a heat-set cylindrical insert, largely compatible with M6*6*8 heat-set nuts; a lighter or soldering iron can assist installation, but exercise caution to avoid burns

I used heat-set nuts salvaged from an old, broken base

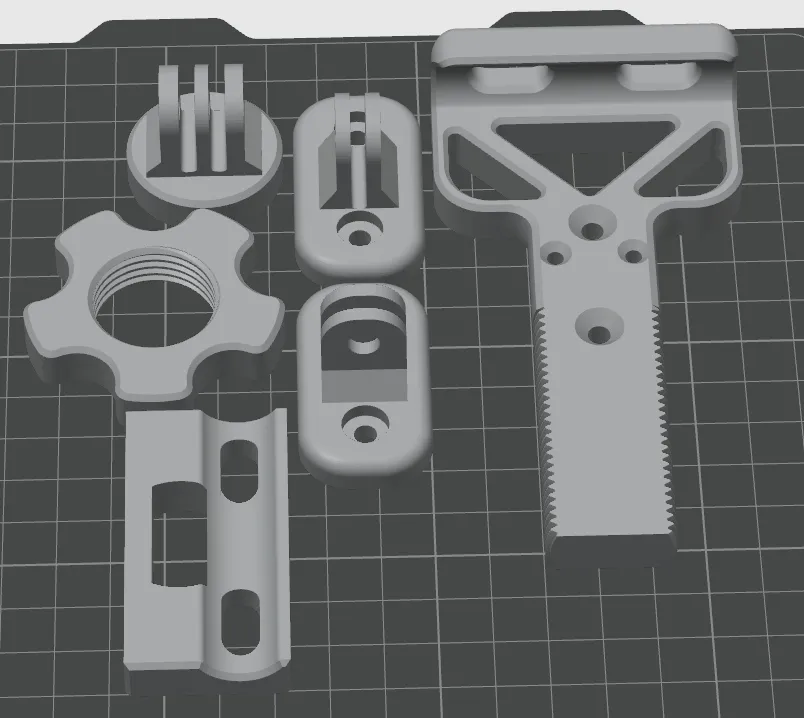

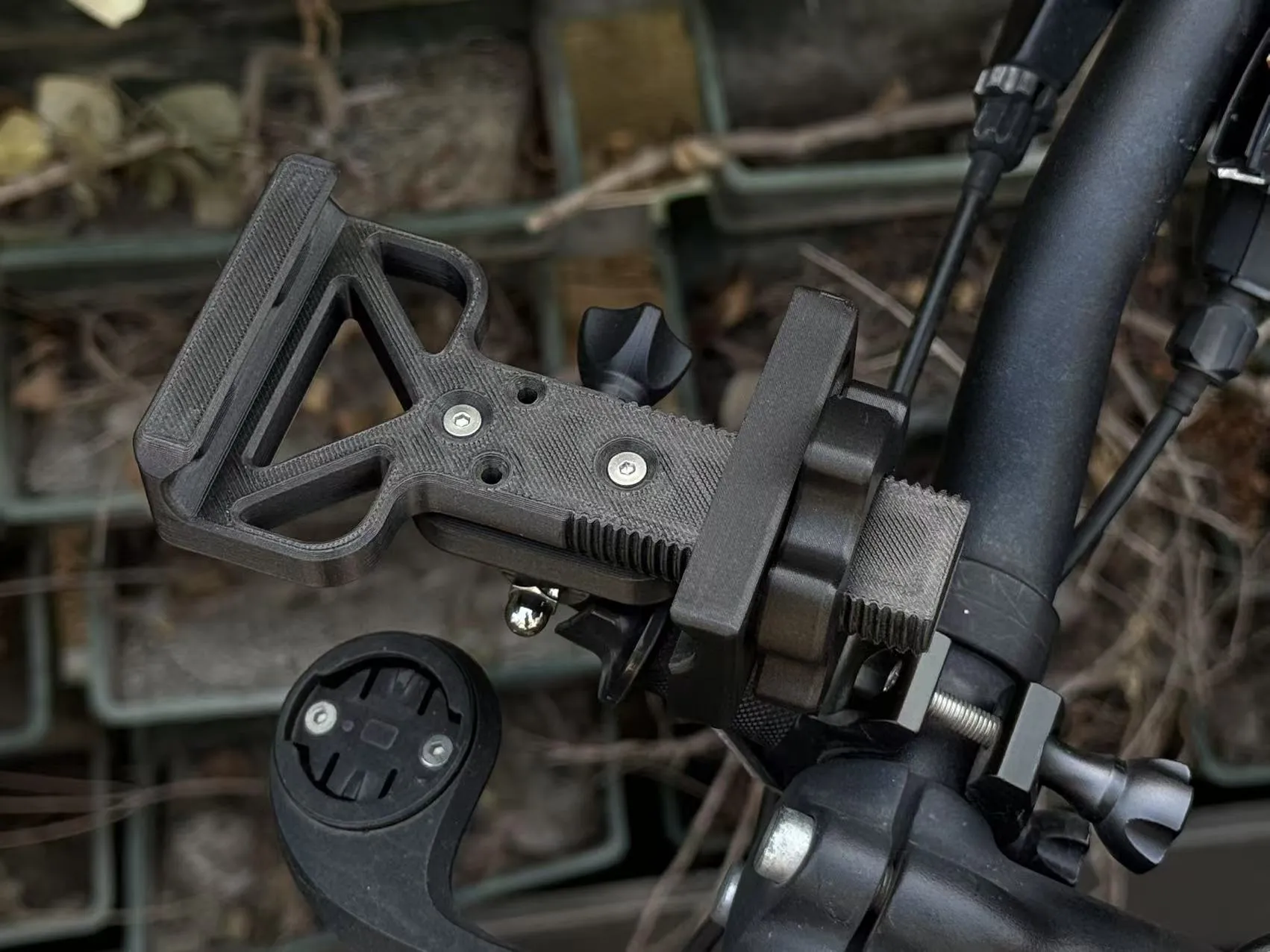

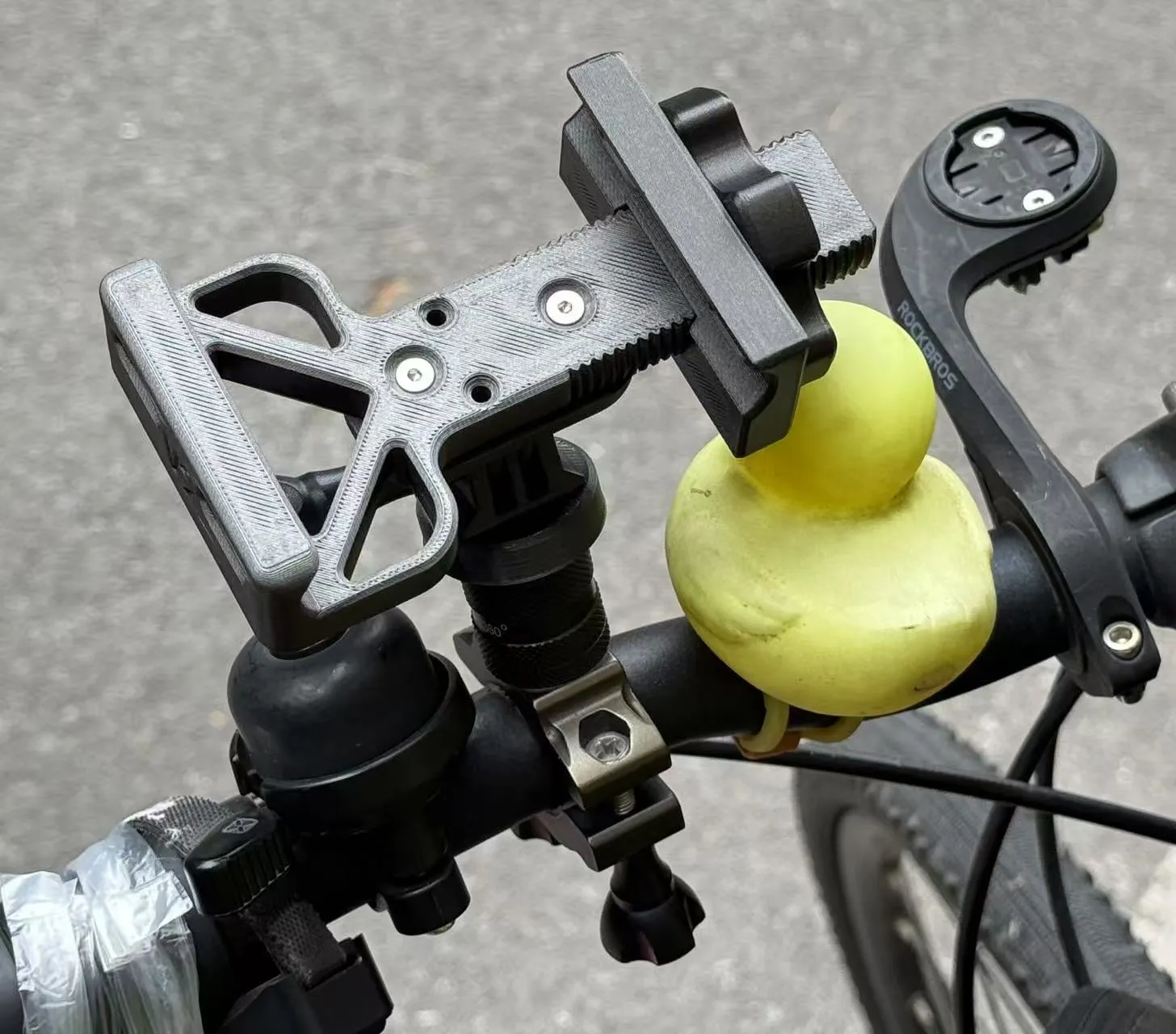

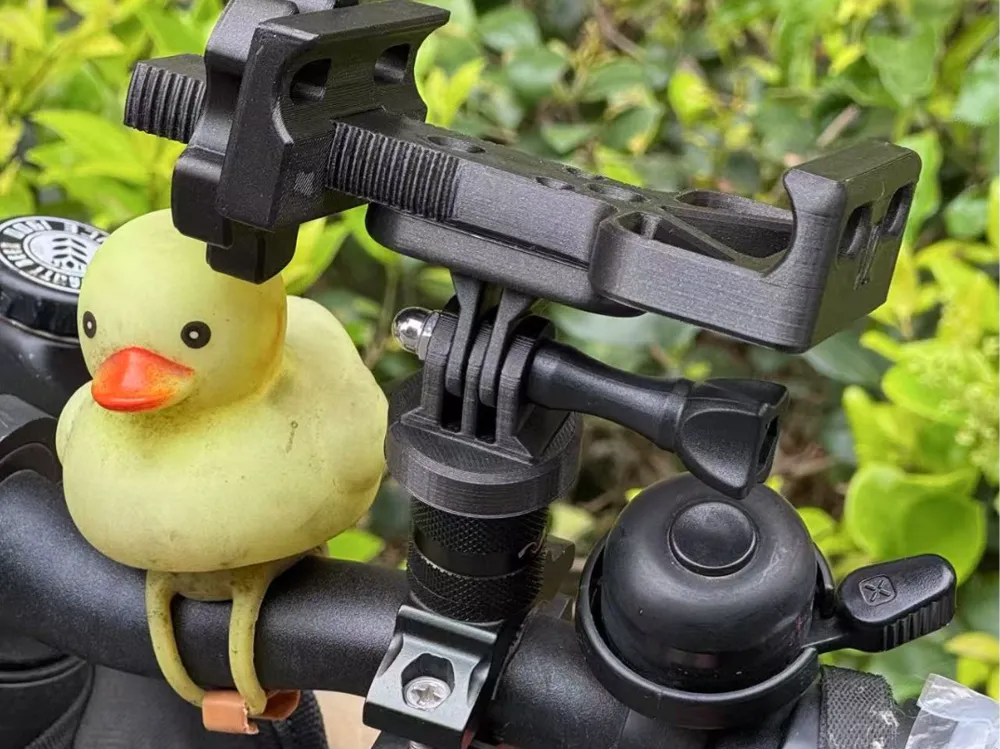

Includes adapters in two orientations for both horizontal and vertical mounting:

Required:

• Bicycle handlebar mounting component with an M6 threaded base (If you don't have one, consider printing the base directly from this project's original project)
• 2x M3x20 screws and corresponding M3 nuts

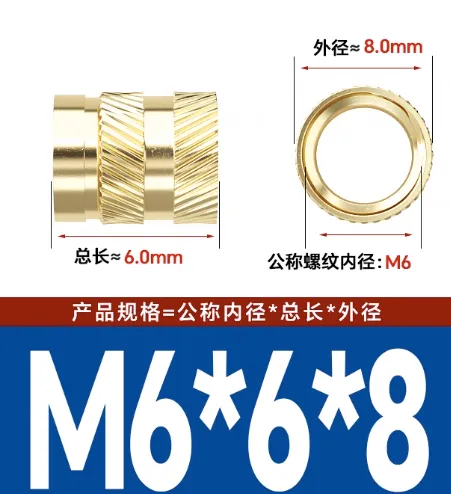

• 1x M6*6*8 heat-set threaded insert
• Common GoPro mount threaded rod and nut
