Precision Vernier Caliper V3

📏 3D Printing Project: Precision Vernier Caliper

This 3D-printed vernier caliper combines functionality, accuracy, and easy manufacturing. Perfect for quick use in everyday maker tasks or as a backup measuring tool, it impresses with its robust design and high precision—without the need for any metal parts.

Recommended Material: PETG or ABS for Maximum Accuracy

Since this caliper relies on very tight tolerances, it is strongly recommended to use:

• PETG – More flexible than PLA, smooth gliding, warp-resistant.
• ABS – Higher temperature resistance and excellent dimensional stability for fine applications.
• PLA – Only partially suitable; can deform or wear quickly under friction.

Design Features

🧩 No Glue Required – But Optional:
The caliper is designed for tool-free assembly. However, a small amount of adhesive can be used at certain joints for extra durability.

⚙️ Smooth Motion:
The sliding unit runs along precisely guided rails. For best performance:

• Lightly lubricate moving parts with silicone grease or thread lubricant.
• This reduces friction and greatly improves longevity.

🔍 Fine Graduations:

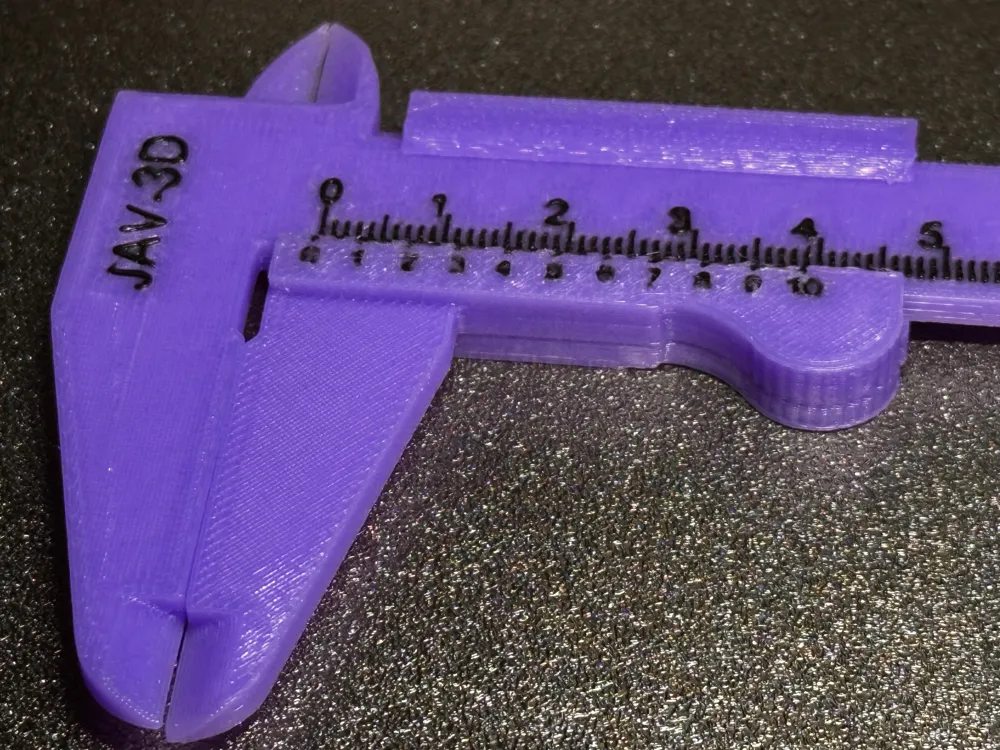

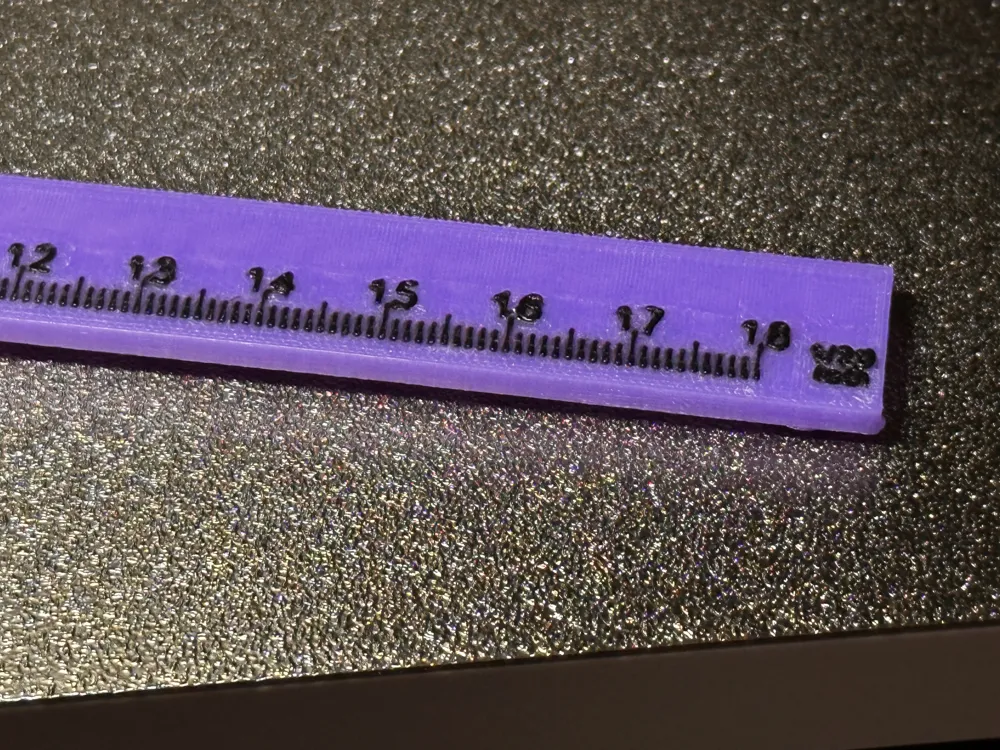

The embossed or engraved vernier scale allows accurate readings—ideal for measuring smaller parts or 3D-printed components.

Recommended Print Settings

• Layer Height: 0.1–0.15 mm for excellent detail and dimensional accuracy.
• Infill: 80–100 % for maximum rigidity and reliable measurements.
• Material: PETG or ABS (as noted above).

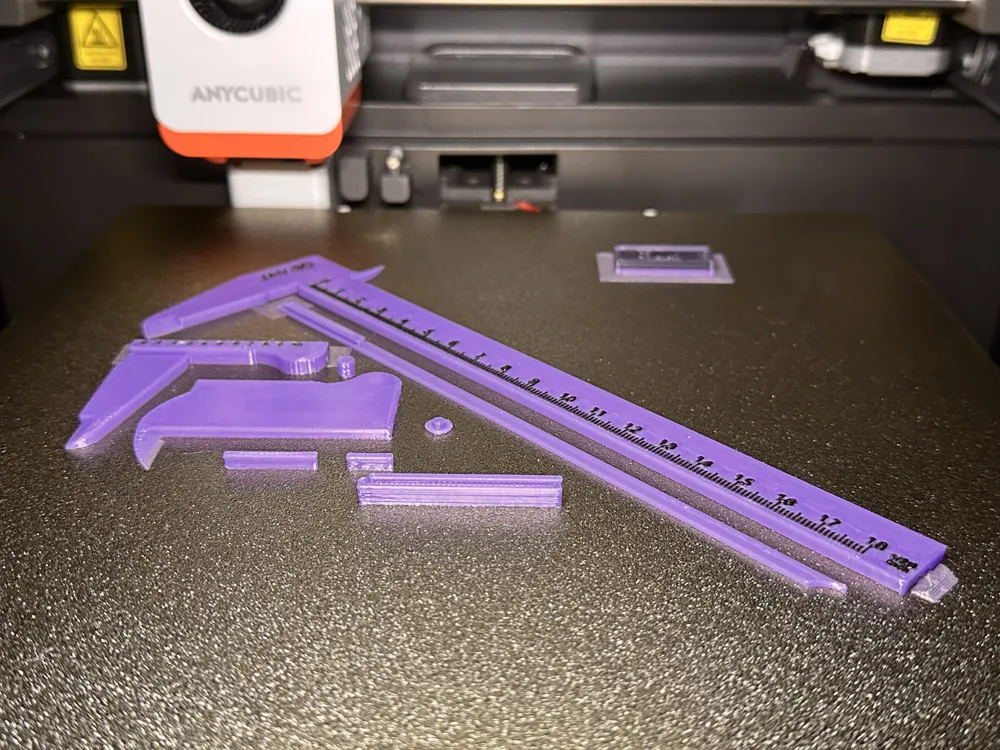

• Print Orientation: Print body and slider flat for best accuracy.
• Supports: Only if necessary for scale details – depends on model design.

Why This Project Rocks

• 📐 High Precision thanks to tight tolerances and smart design.
• 🧠 Educational – great for demonstrating mechanical principles and measuring systems.
• 🔧 Ready to Use after simple assembly and light lubrication.
• 🧰 Compact & Practical – perfect for quick measurements in the workshop or on the go.

Conclusion

A 3D-printed vernier caliper is not just a useful tool but a brilliant example of functional design in FDM printing. The combination of precision, good material choice, and clever engineering makes this project ideal for makers who value accurate tools built right on their printer.
