Description

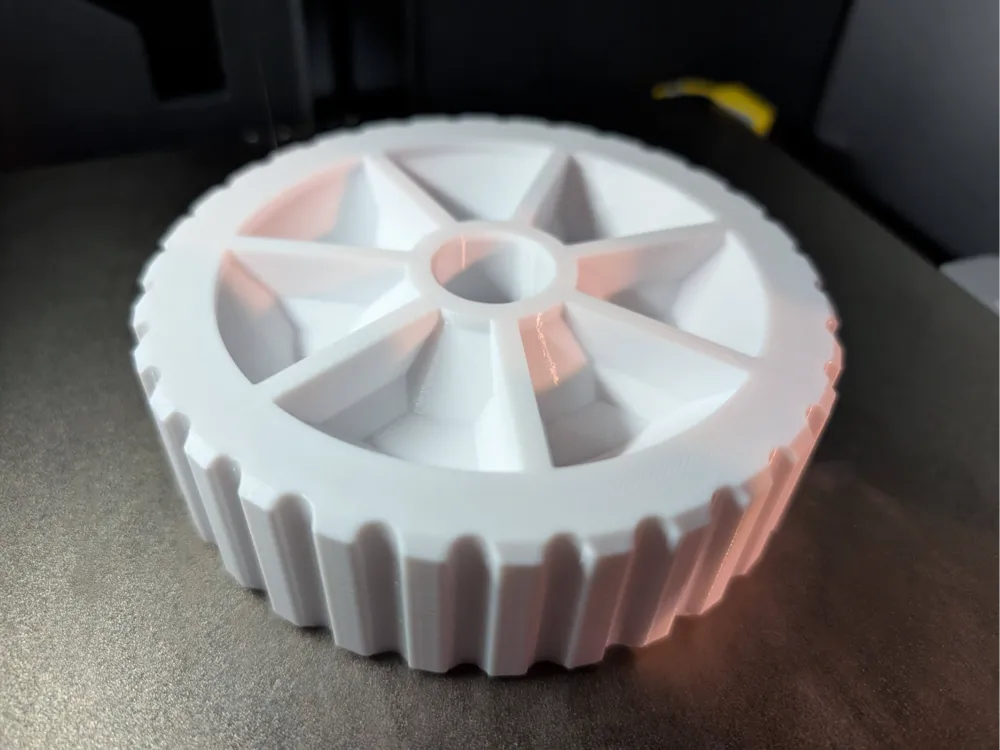

This heavy-duty wheel is designed for durability and performance. This 3D model offers a strong structural design while being optimized for straightforward printing without the need for supports.

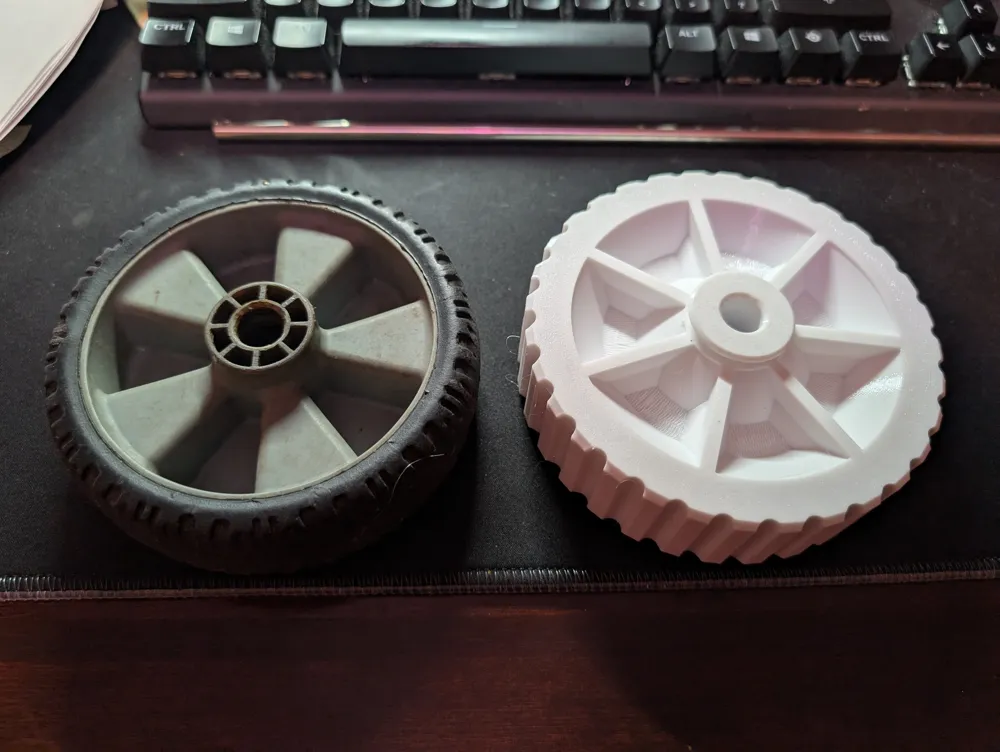

Originally designed as direct front wheel replacement for Fiskars StaySharp Mowers.
Key Features:
- Heavy-Duty Design: Features a strong, structured build for increased durability.
- Enhanced Traction: Includes tread on the outer edges for improved grip and performance.
- Anti-Rub Shims: Comes with two insert shims to prevent the wheel from rubbing against the mower's frame.
- Optimized for Printing: Engineered for easy, support-free 3D printing.
Specifications:
- Outer Diameter (OD): 120 mm
- Inner Diameter (ID) for Bushing: 12 mm
- Model Parts: Wheel (1), Insert Shims (2)
--- IMPORTANT ASSEMBLY NOTE ---
This design requires you to reuse the metal center cylinder (bushing) from your original Fiskars wheel. Carefully remove the bushing from the old wheel and insert it firmly into the center of this newly printed wheel before installation.
