Voltage converter for Starlink Mini
Print Profile(1)
Bill of Materials
- DC/DC-converter x 1:
- XT60-socket x 1:
- 5.5 x 2.1mm DC-hollow plugs x 1:
- M3-nuts x 6:
- M3-bolts x 6:
- WAGO-clamps x 4:
Description

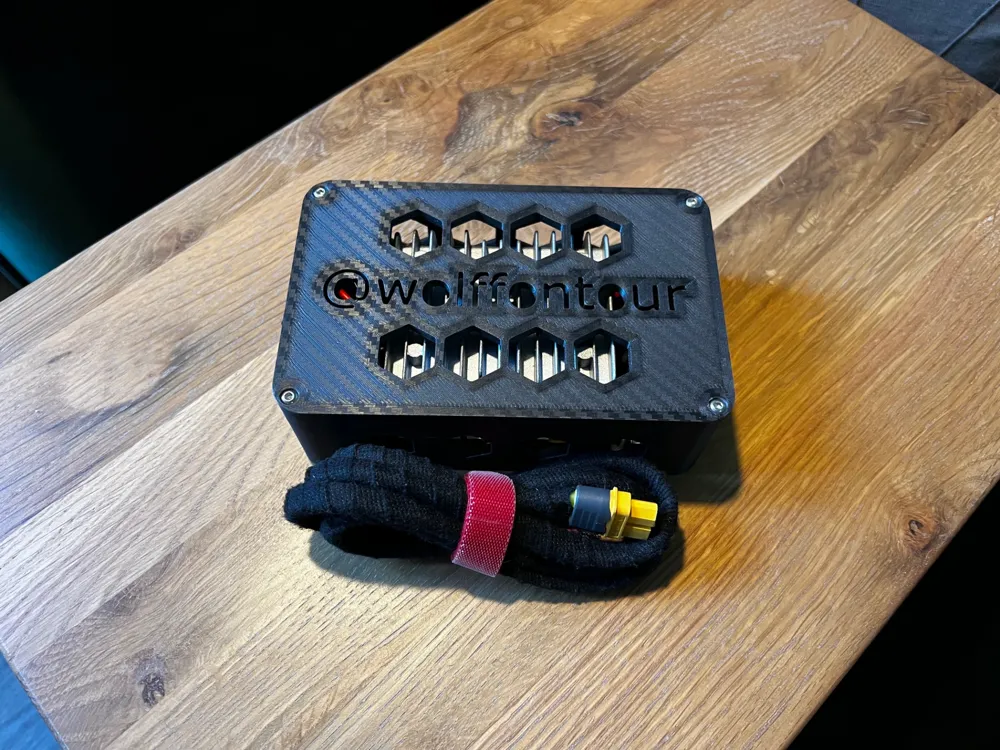

This is a voltage converter for the Starlink Mini.

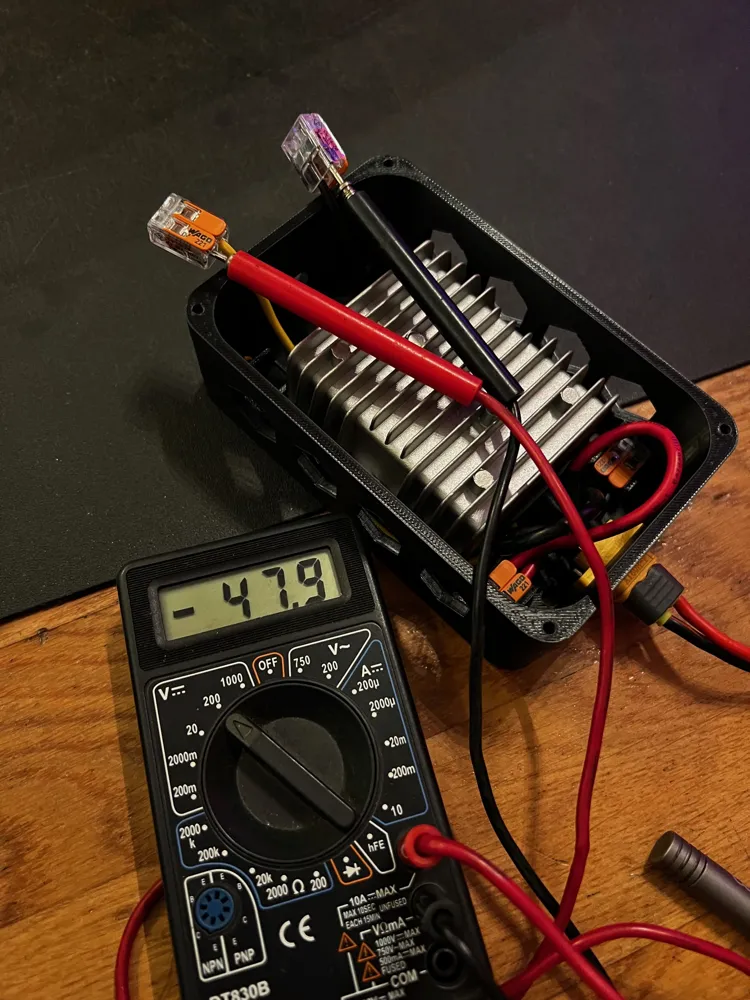

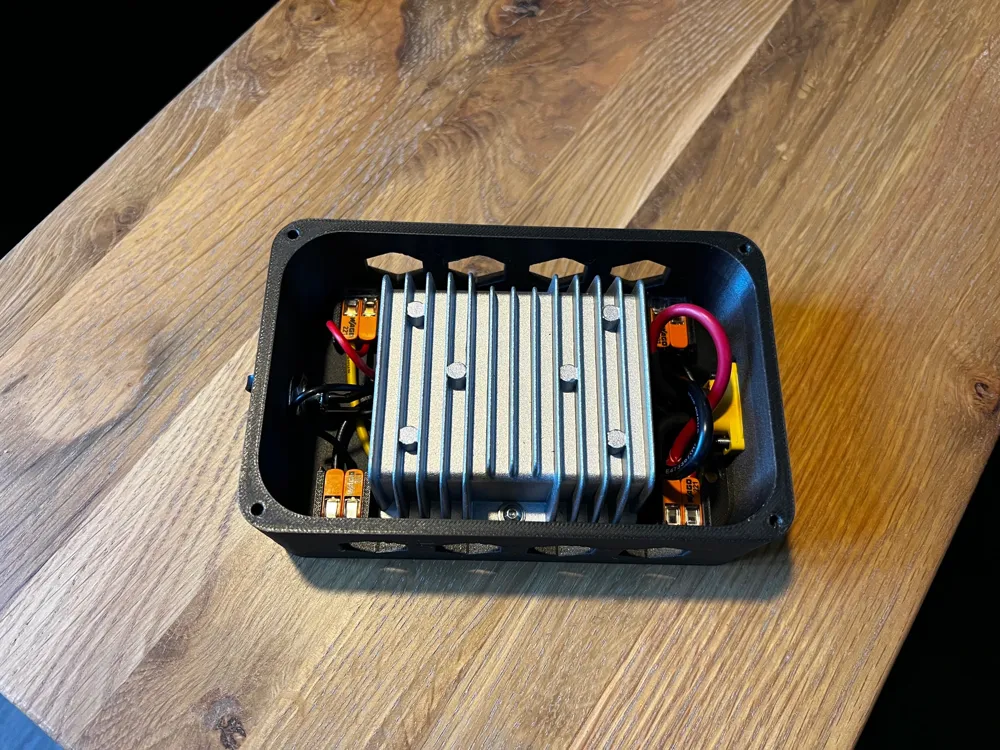

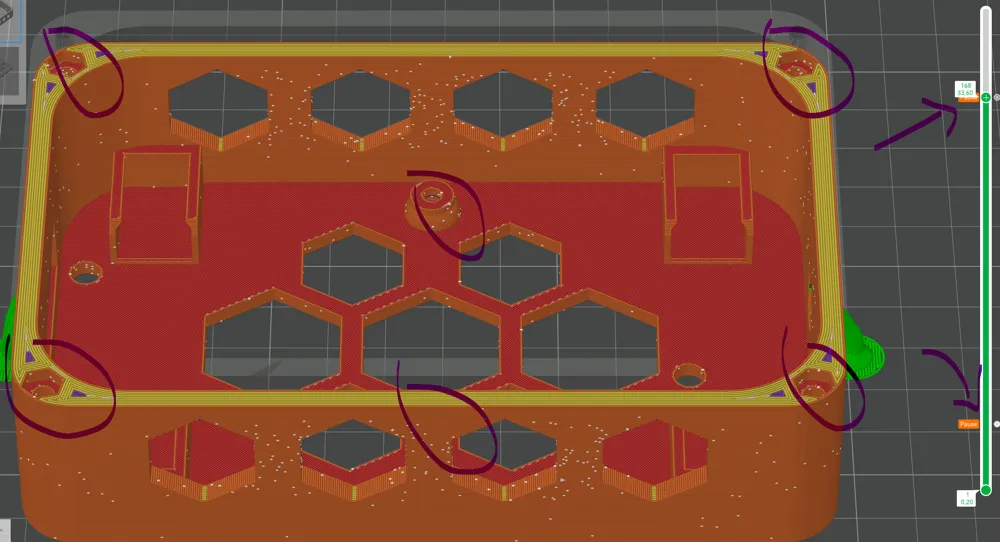

Due to the voltage losses of the long original cable, there may be problems with the 12 volt operation. Therefore, a 48 volt voltage converter is used here. This is firmly screwed into the case. In addition, 5.5 x 2.1mm DC hollow plugs and XT60 sockets are used. M3 nuts are embedded in the case, which must be inserted during the pauses in pressure. WAGO clamps are used to connect the cables.
All components used:
DC/DC Converter: https://amzn.to/42wDPqD
XT60 Sockets: https://amzn.to/4lsTG1N
5.5 x 2.1mm DC hollow plugs: https://amzn.to/43N8KkH
M3 nuts and bolts: https://amzn.to/42w7eRI
WAGO clamps: https://amzn.to/4cGjL9W
As a material, I tried PLA, which had no problems with operating temperatures. If the voltage converter is to be used under direct sunlight, definitely use a more heat-resistant material such as PETG.

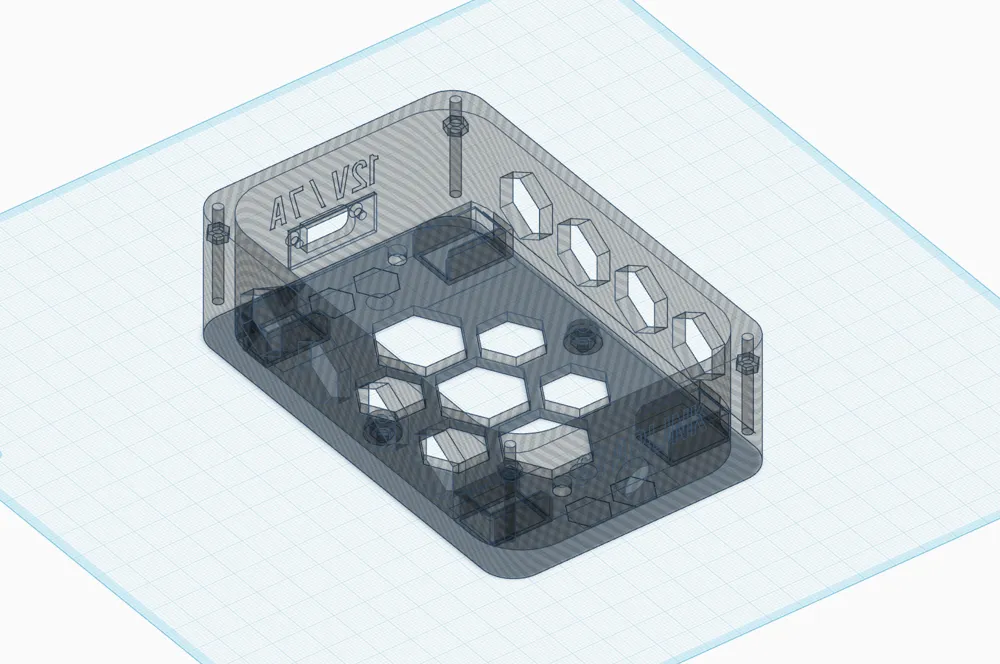

This model is based on the original idea of @MrTogi on Printables. It's been completely redesigned, the only thing that's identical are the external dimensions.
This remix is based on
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
