Intel Nuc VESA and wall mount with screws
Print Profile(2)
Description

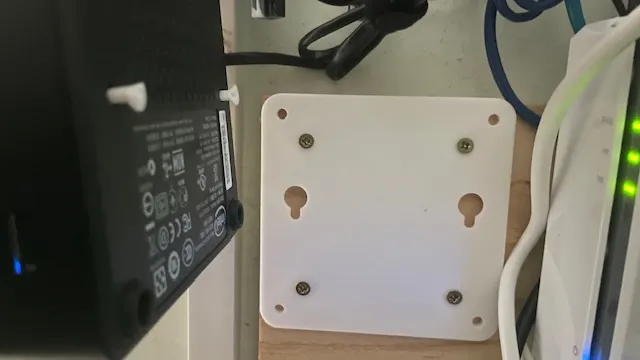

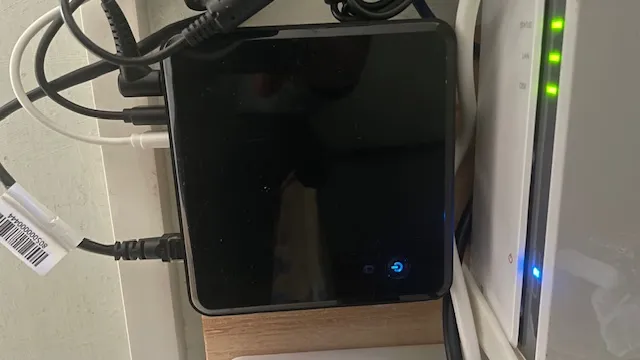

This is a VESA mount inspired by the original design. I used it to wall-mount my Intel NUC, but it can, of course, also be used to mount it behind a monitor. It features VESA mounting holes spaced at 75mm and 100mm centres. The distance between the Intel NUC’s two mounting screws is 85mm — please check that it matches your model before printing. If it doesn’t, feel free to drop me a message and I’ll upload a modified version.
Be sure not to remove the brim around the screws, or they’re likely not to adhere properly to the plate.
The screws are designed to be printed on their side for increased strength.
I tried printing them vertically, but they broke immediately.
I've included 2 profiles: the only difference is how the screws are printed. In one they are printed fully (support and brim needed), in the other one a section of the screw is cut away (but still delivers its function).
I suggest you try the full screws first and only print the cut screws if you have issues with the full screws. I haven't had a problem with either full or cut screws on my BambuLab P1S.
Boost Me (for free)
This one’s for a very specific crowd, so if you’re here, you’re clearly one of them!
If it solved your problem, a boost would be a great way to support niche designs like this.
