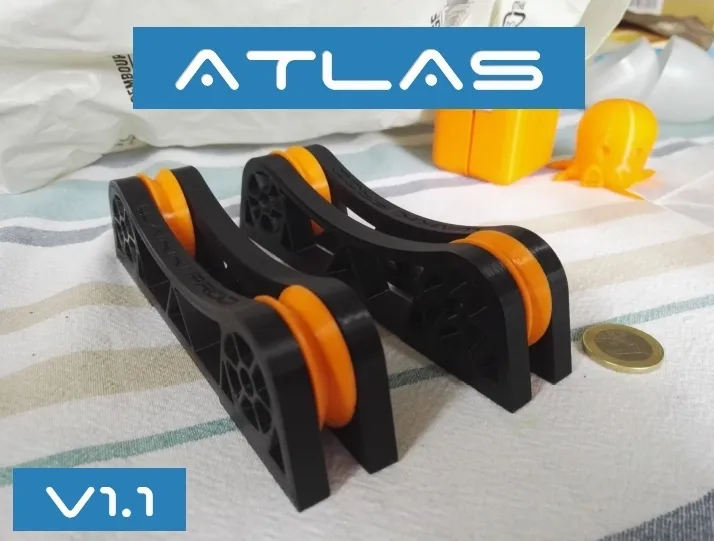

ATLAS - The universal strong spool holder
Print Profile(1)
Description
Boost Me (for free)
Thank you so much for your boost! Your downloads and boosts allow me to keep offering my models for free. Your support means a lot to me and helps me create even more. 🙏
Membership
Commercial use available for just $3 per month
Timeline:
June 6, 2021: Remixed Atlas wheel for 6001 bearing
April 11, 2021: V1.1 publication
To support my work, you can follow me on this page and on Facebook: https://www.facebook.com/waikikiprod and/or make a donation to cover my expenses (materials, equipment, software, etc…) -> https://www.paypal.com/donate/?business=DSX774LQQJA8E&no_recurring=0¤cy_code=EUR
French (English description below)

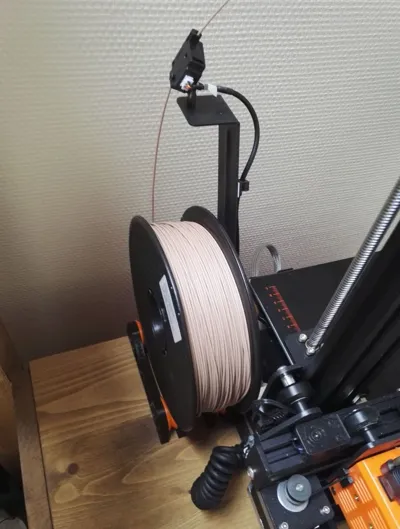

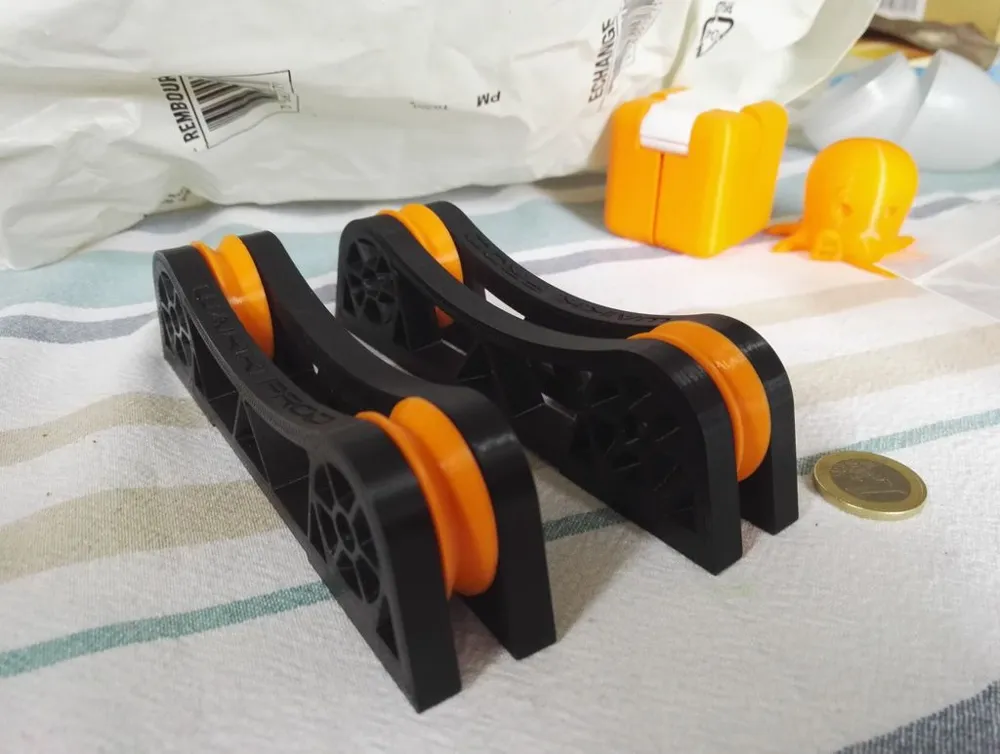

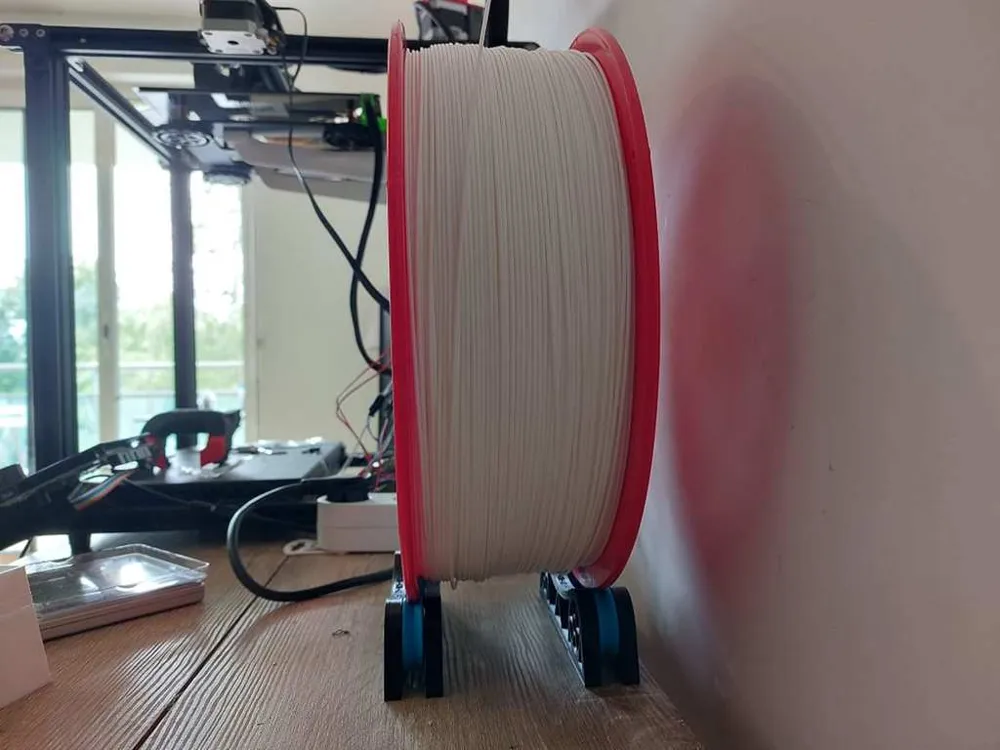

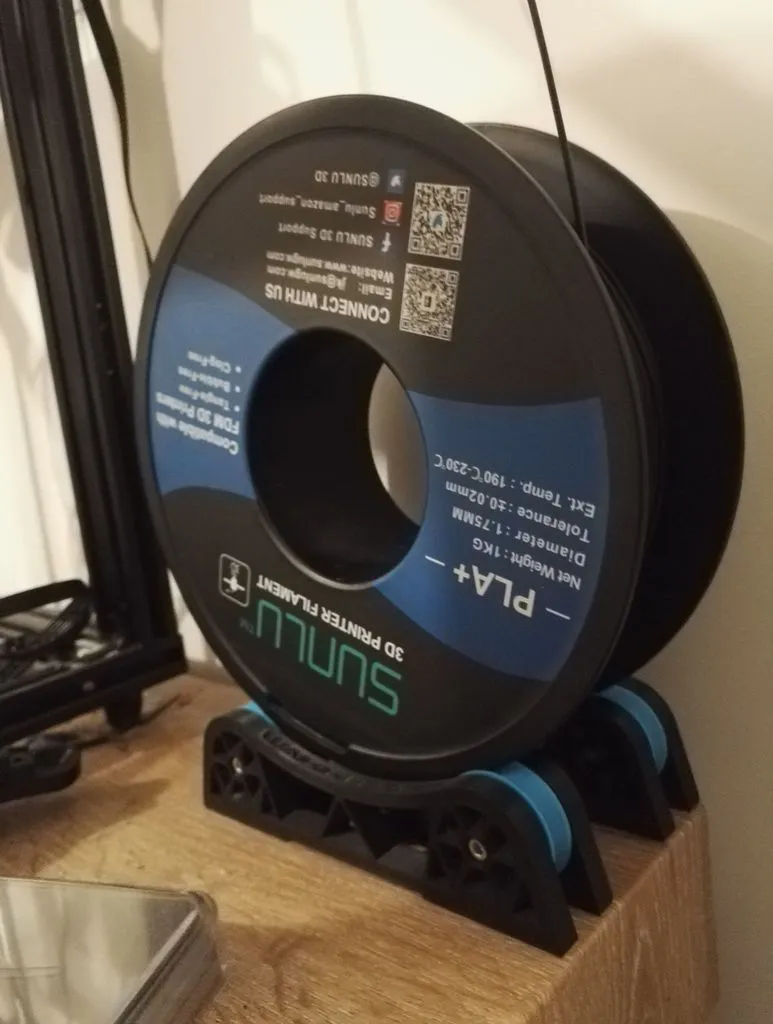

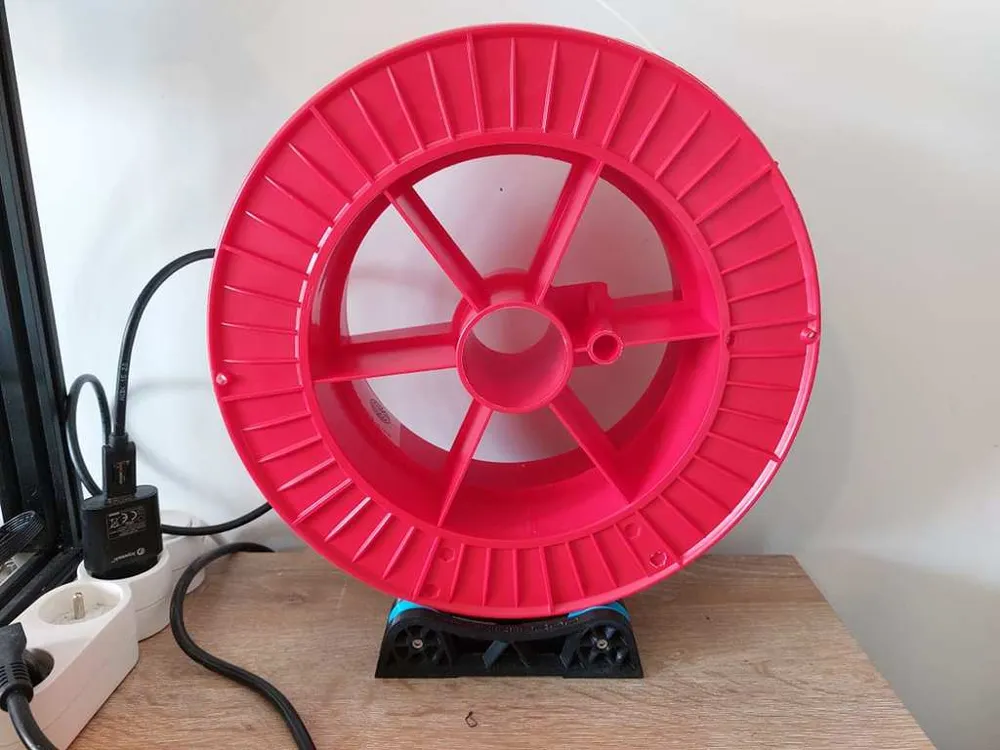

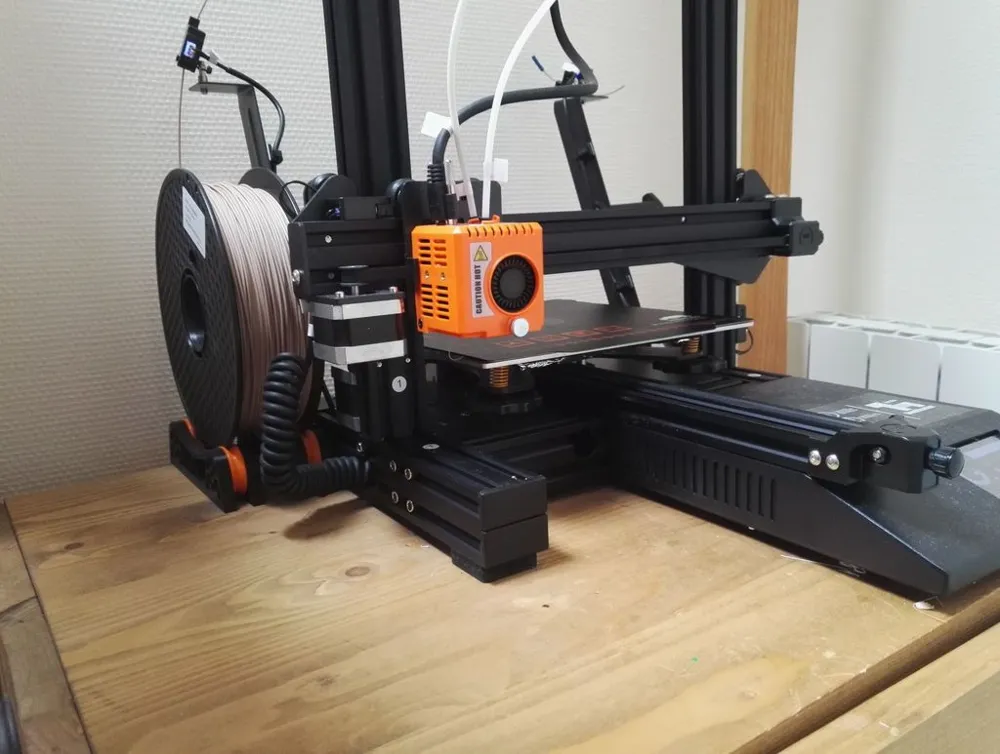

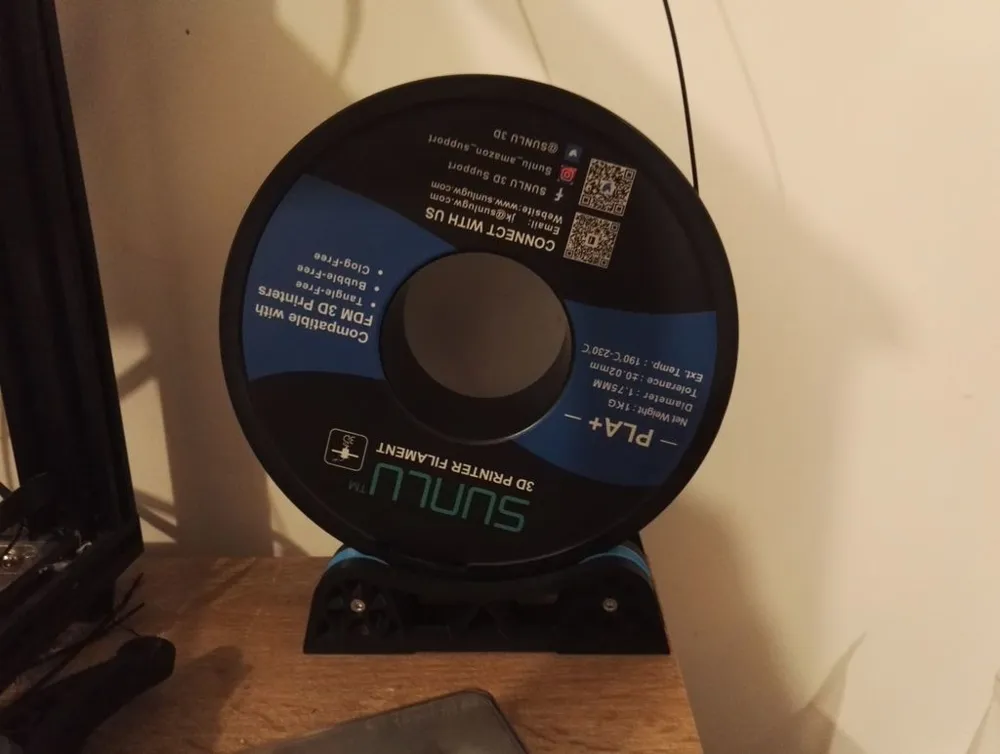

Universal filament spool unwinder with ball bearings, quieter operation with smooth, inertia-free unwinding (no accidental unwinding).
Tested and validated for spools of 3.5kg or less

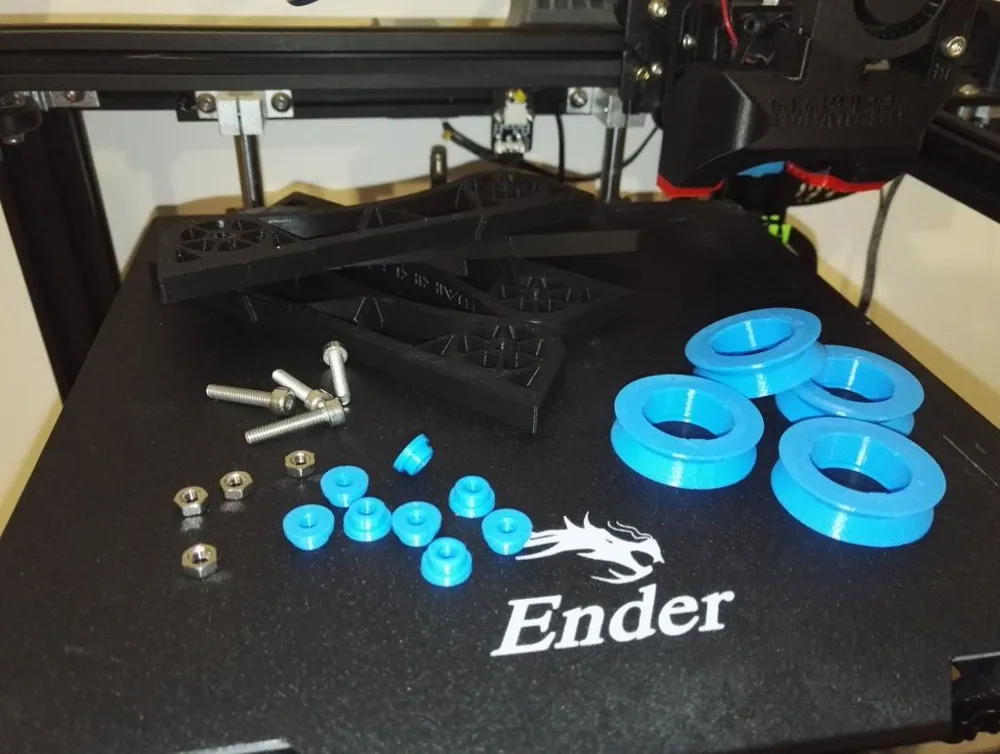

Print flat:

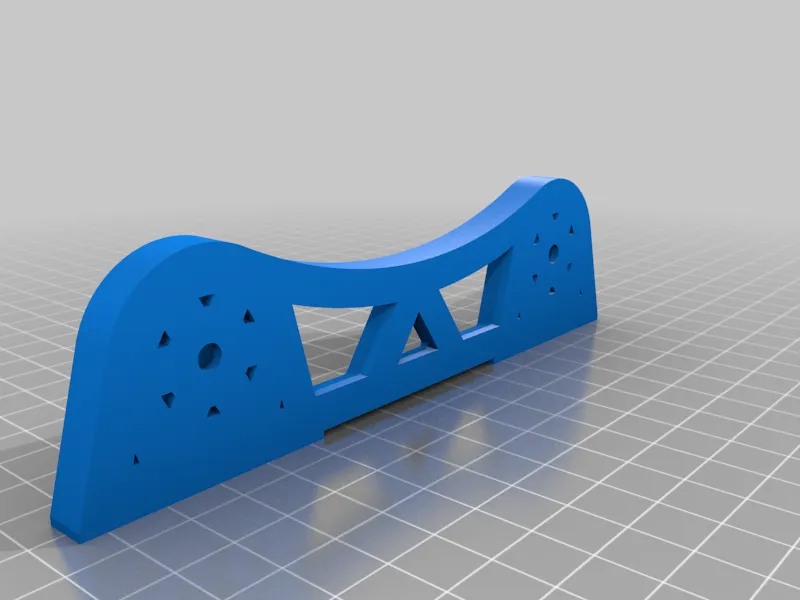

-2x ChassisINT

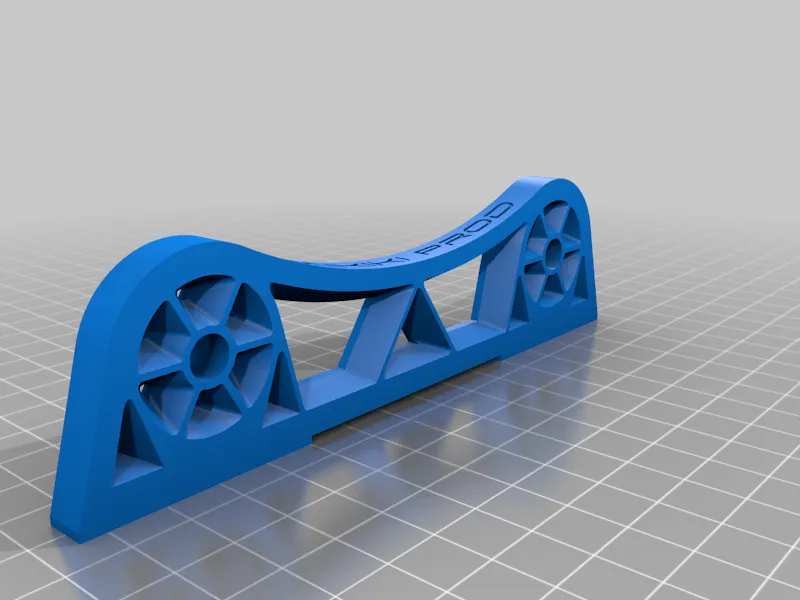

-2x ChassisEXT

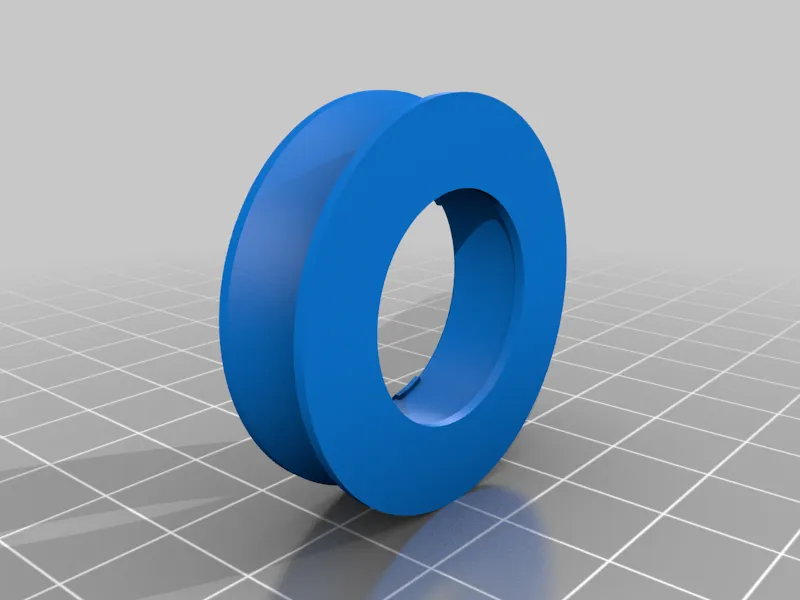

-4x Wheel
-8x Ball bearing spacer
4 8 mm x 22 mm x 7 mm (608ZZ) ball bearings
(A remixed version is available for 6001 bearings 12mm x 28mm x 8mm -> https://www.thingiverse.com/thing:4879302 )
Use a fine quality setting for the wheels
Select a sufficiently high infill for the spacers, wheels, and chassis to ensure the system can support heavy loads.
For assembly, you only need 4 M4 L20 screws and their corresponding nuts.
You can support my endeavors by subscribing to my Patreon or by utilizing my Bambu Lab affiliate link for your purchases
Explore My Featured 3D Models
 |  |  |
 |  |  |
English
A universal filament spool unwinder incorporating ball bearings, providing quieter operation and smooth, inertia-free unwinding (eliminating unintended spool movement).
Validated testing for spools up to 3.5kg
Print flat:
-2x ChassisINT
-2x ChassisEXT
-4x Wheel
-8x ball bearing spacer
4 8 mm x 22 mm x 7 mm (608ZZ) Skateboard Ball Bearings https://www.amazon.co.uk/dp/B07FDYTJS5/
(A remix is available for 6001 bearings, 12mm x 28mm x 8mm -> https://www.thingiverse.com/thing:4879302 )
Employ a high-resolution setting for the wheels
Utilize substantial infill for the spacers, wheels, and chassis to ensure the system's capacity to manage heavier loads.
Assembly requires only 4 M4 L20 screws and nuts.
You can follow me on my Thingiverse page or Facebook -> https://m.facebook.com/waikikiprod/
Print Settings
Printer Brand:
Creality
Printer:
Ender 5
Rafts:
No
Supports:
No
Resolution:
200
Infill:
20% or higher (for enhanced strength)
Filament: SUNLU PLA+ & Arianeplast PLA PLA+ and PLA
BLACK & Light Blue Post-Printing =============

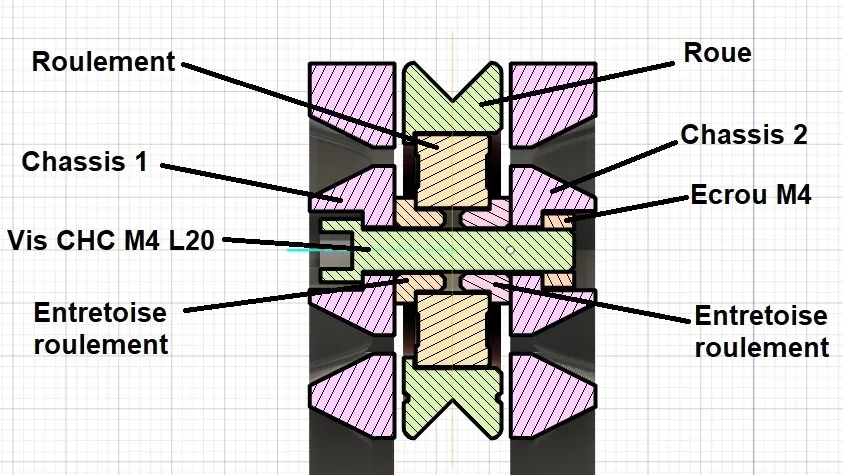

ASSEMBLY
Firmly press the ball bearings into the wheels:
Place the bearing on a protected surface and firmly press the wheel (oriented correctly) onto it until securely mounted.
Design Process
Fusion 360
Category: 3D Printer Parts
Connect with me on Instagram / TikTok / Facebook / Beacons
Explore My Featured 3D Models
| | |
| | |
Discover my other models
