Extra Wide Vacuum Nozzle (32mm, 35mm, 36mm, 45mm) - Free 3D Print Model

Search models, users, collections, and posts

martin.korinek

Tools>Other Tools

IP Report

Print Profile(16)

All

A1 mini

H2D

X2D

P1S

A2L

P2S

H2C

X1 Carbon

H2D Pro

X1E

H2S

P1P

32mm SHORT

Designer

27.3 h

8 plates

4.9(54)

32mm LONG

Designer

28.2 h

5 plates

5.0(21)

35mm SHORT

Designer

28.5 h

8 plates

4.9(53)

35mm LONG

Designer

28.8 h

5 plates

5.0(37)

Click to see more

Open in Bambu Studio

Boost

4428

12041

484

305

6.9 k

3.7 k

Released

Bill of Materials

Bambu Filaments

Select all

Lime Green (33501) / Filament with spool / 1 kg

Description

Boost Me (for free)

If you like my design, please support my work with a boost. Thank you!

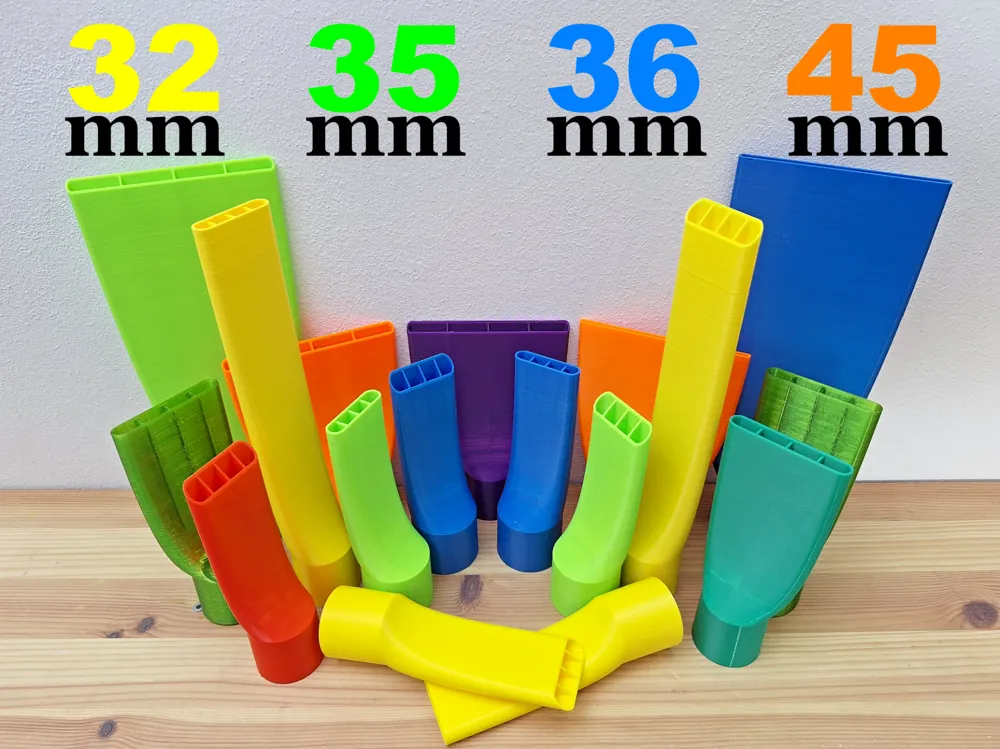

I am excited to present my latest version of extra-wide vacuum nozzles, perfect for tackling those extra-narrow spaces. Whether they fit your machine or not, please leave a comment. I will either extend my compatibility list or with your help create a version that fits your machine. Do not forget to check out my Vacuum collection.

Printing

Each print profile contains multiple build plates, with one nozzle per build plate and a final build plate with all of them, so you can print only one nozzle if you wish, or you can print all of them at once.
The smallest nozzles are only about 30 grams of filament.
You can print them with PLA, PETG, ASA, etc. Bambu Studio's Generic filament profiles work without any problems.
Make sure that Support is enabled (as it is in all of my print profiles).
0.6mm print nozzle can speed up prints. Dedicated print profiles are available.
Using a 0.8mm print nozzle is not recommended. It will cost you more time and filament compared to a 0.6mm nozzle since my models have a 1.2mm wall thickness.

Dimensions

32mm, 35mm, 36mm, 45mm refers to the inner diameter of the nozzle barrel connector.
35mm is the most common size.

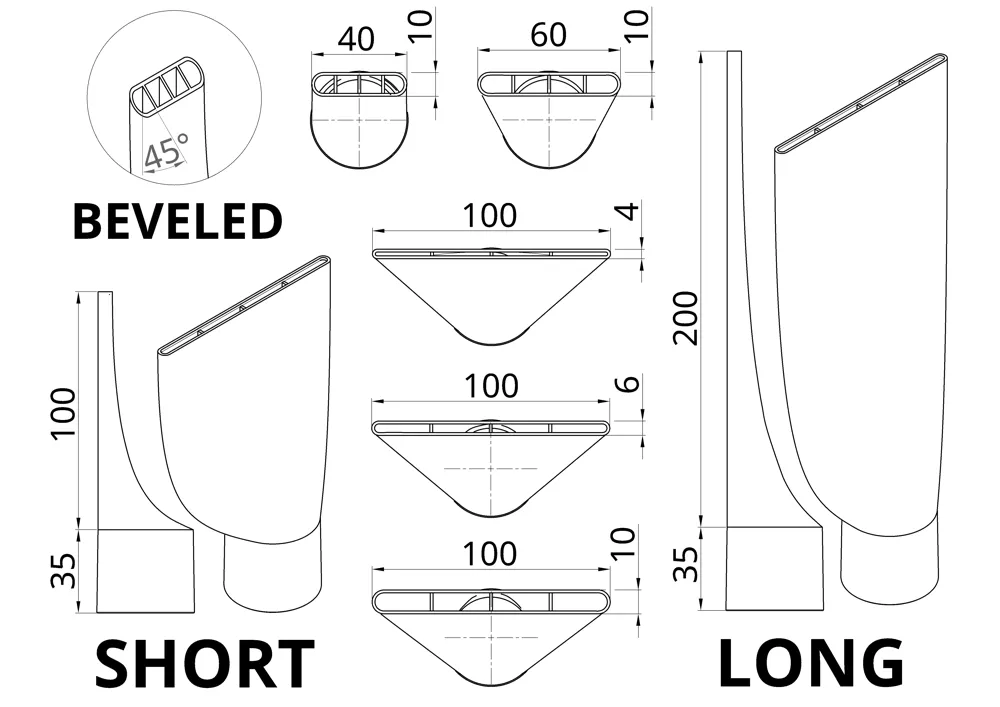

SHORT nozzles are 135 mm in length (approximately 5.3 inches).
LONG nozzles are 235 mm in length (approximately 9.3 inches).
BEVELED nozzles have a 45-degree beveled tip.
Available nozzle tip dimensions:

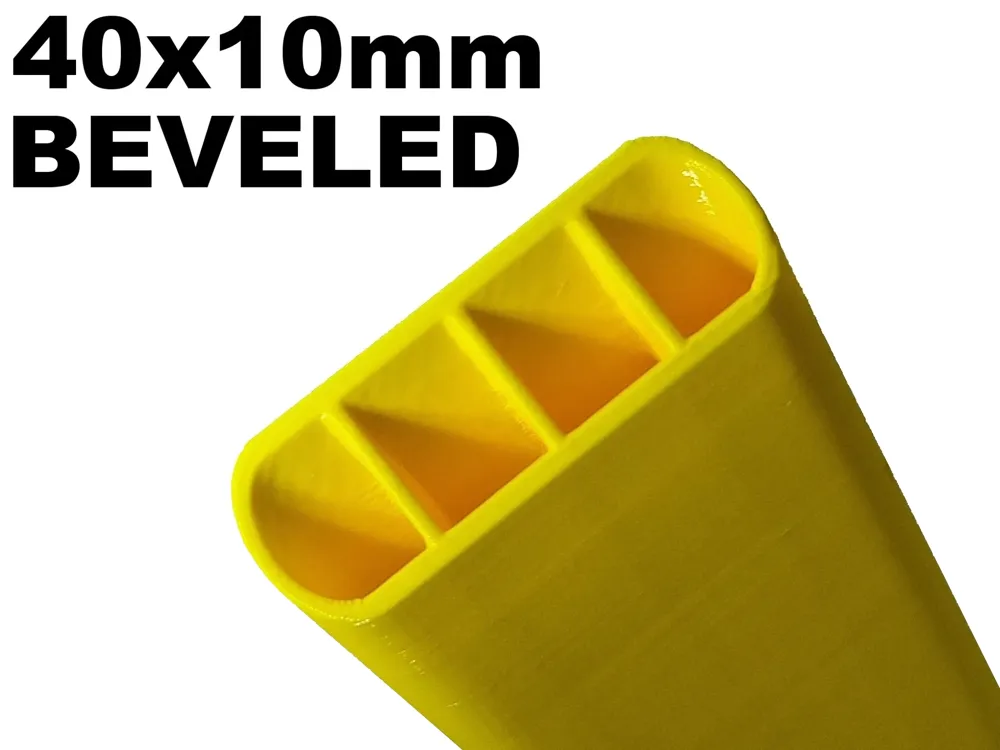

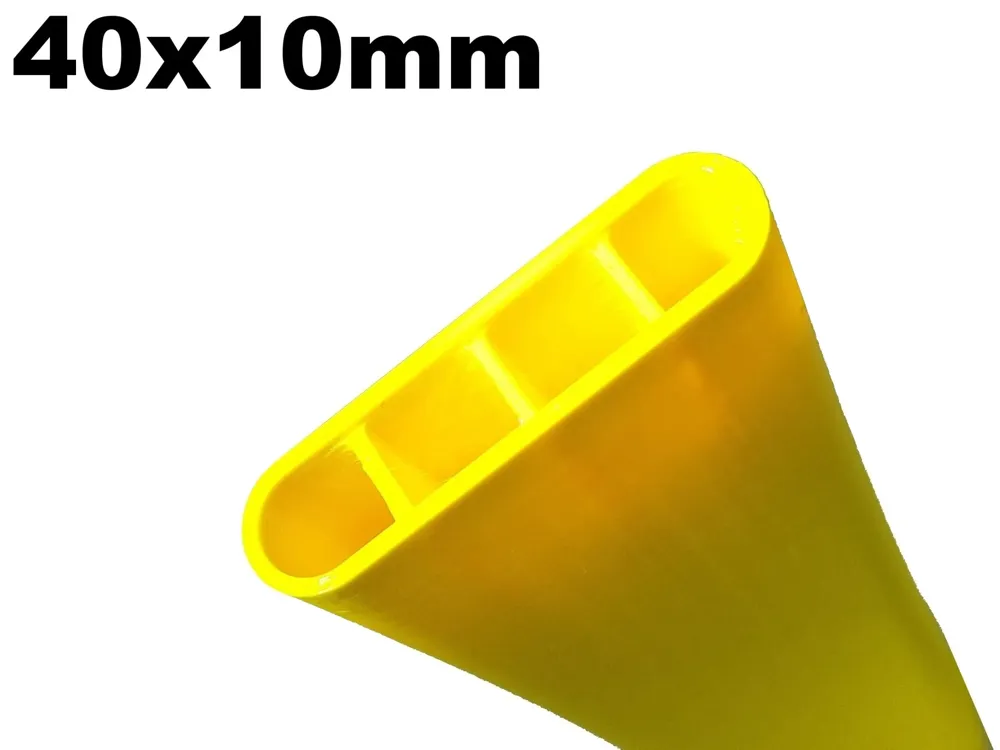

- 40x10 mm (approximately 1.6 x 0.39 inches)
- 60x10 mm (approximately 2.4 x 0.39 inches)

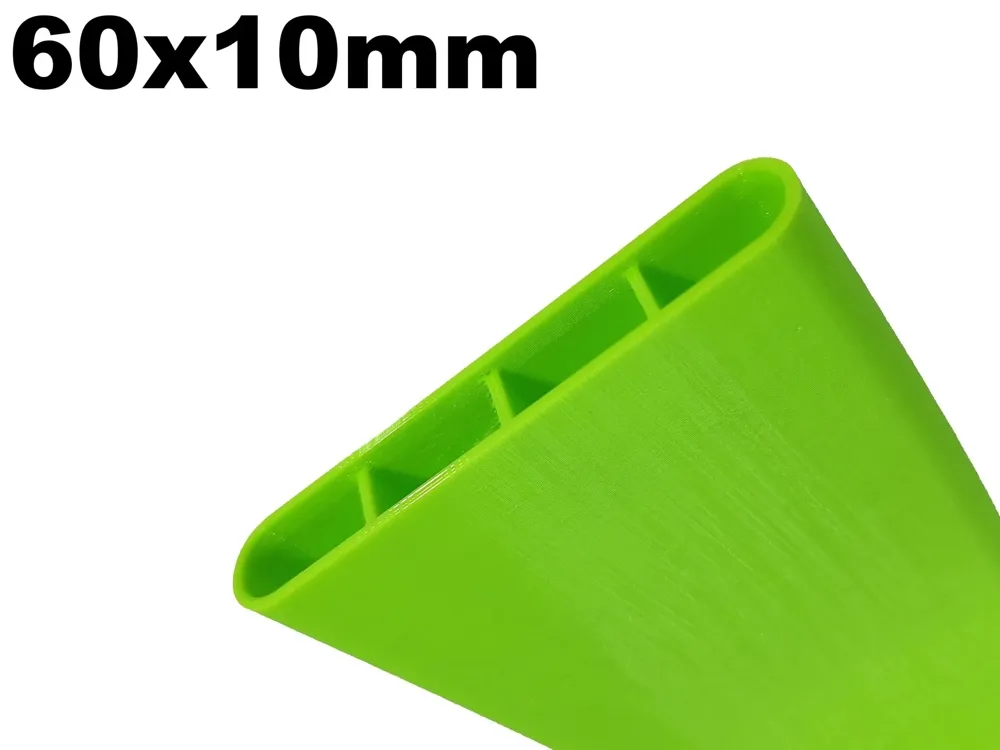

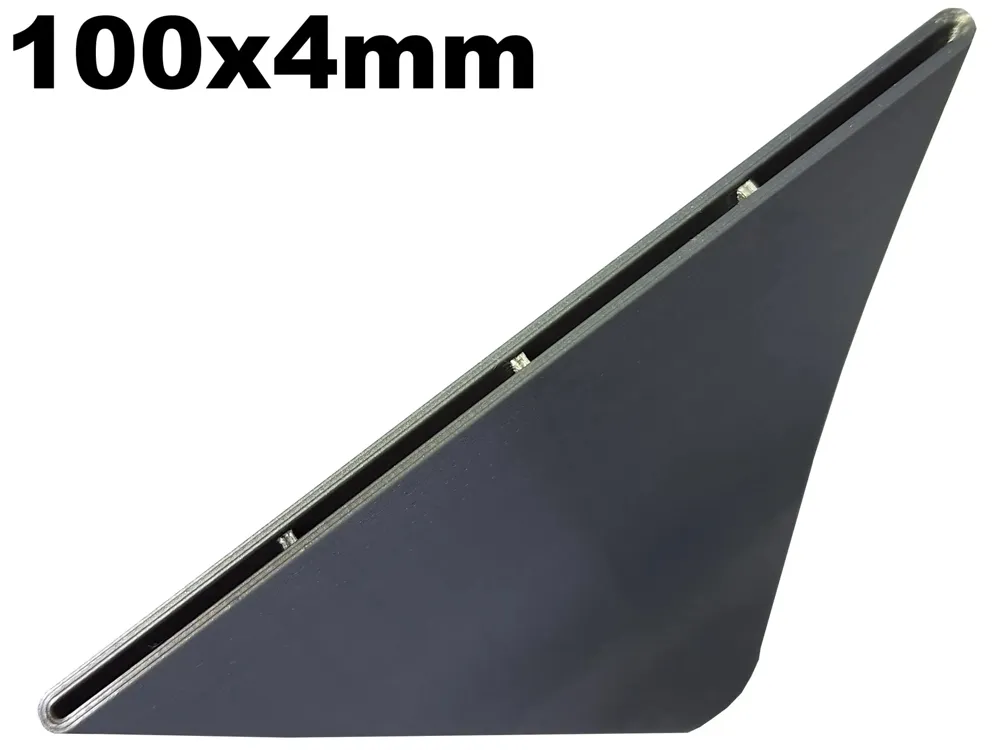

- 100x4 mm (approximately 3.9 x 0.16 inches)

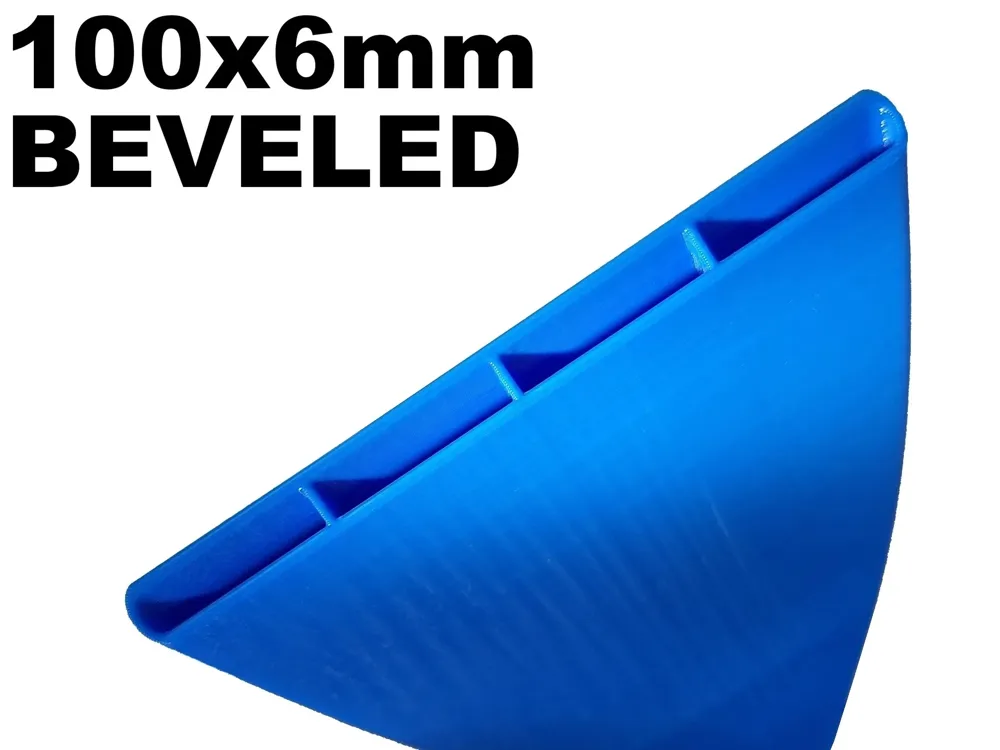

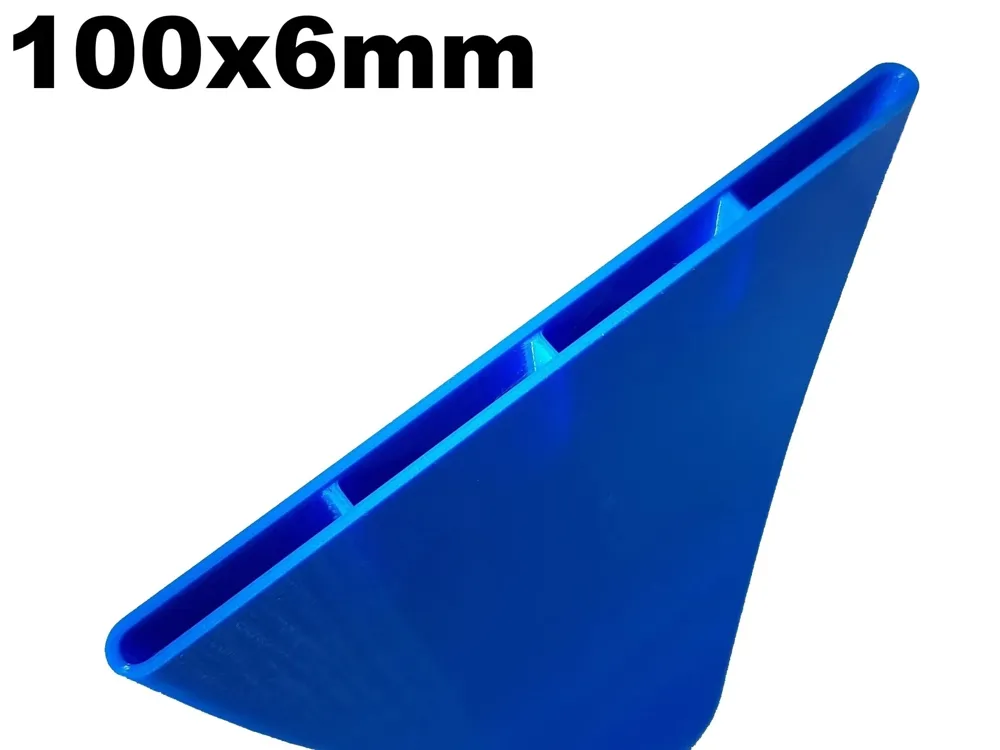

- 100x6 mm (approximately 3.9 x 0.24 inches)

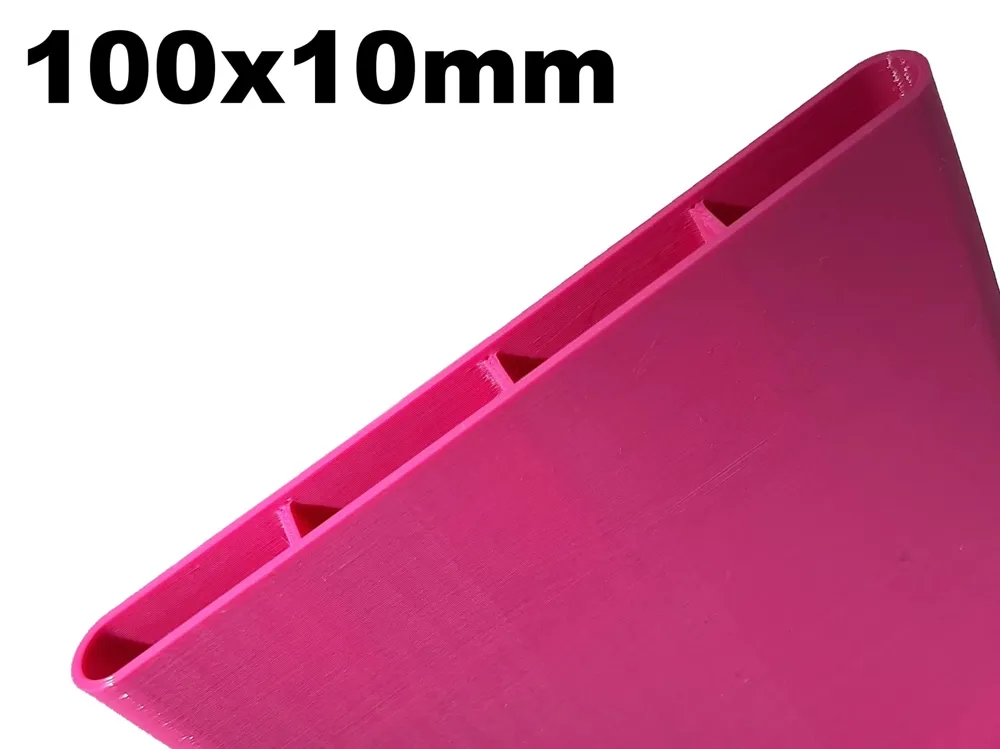

- 100x10 mm (approximately 3.9 x 0.39 inches)

Compatibility

32mm: Ryobi RHV18, Craftsman CMCV002
35mm: AEG, ALASKA, AMICA, AQUA VAC, BAVARIA, BOSCH, CLEANFIX, CONCEPT, DAEWOO, DIRT DEVIL, DOMO, EIBENSTOCK, EINHELL, ETA, FLEX, GALLET, GORENJE, HILTI, HYUNDAI, KARCHER, LG ELECTRONICS, MAKITA, MIELE, METABO, MILWAUKEE, PARKSIDE, PHILIPS, SAMSUNG, SCHEPPACH, SENCOR, STARMIX, STIHL, STORCH, ZANUSSI and others.
36mm: Starmix uClean ARDL-1432 EHP
45mm: DeWalt DXV08SA, RIDGID WD06701, Craftsman

Comment & Rating (484)

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
