Vase Mode Mini Jars

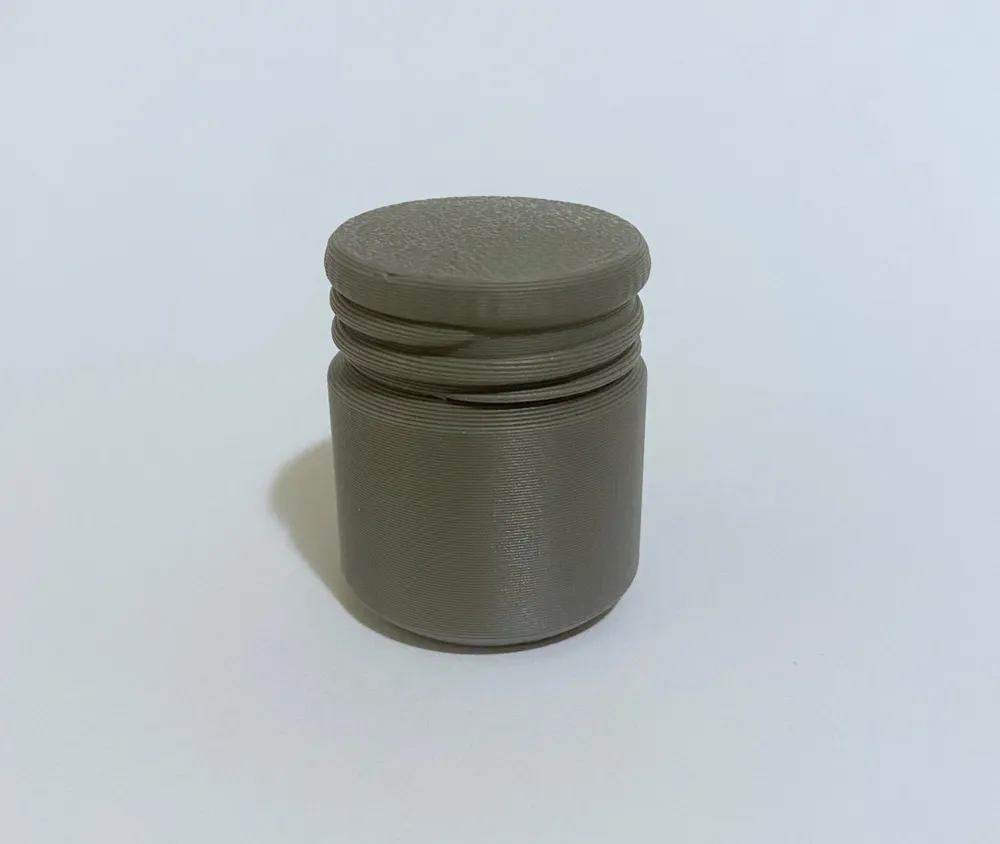

Fast and efficient Vase Mode Print for a functional jar / bottle with a threaded cap.

These jars can hold liquids, although are not perfectly water tight without a rubber seal under the lid.   However they work great for holding thicker liquids like paint or glue.

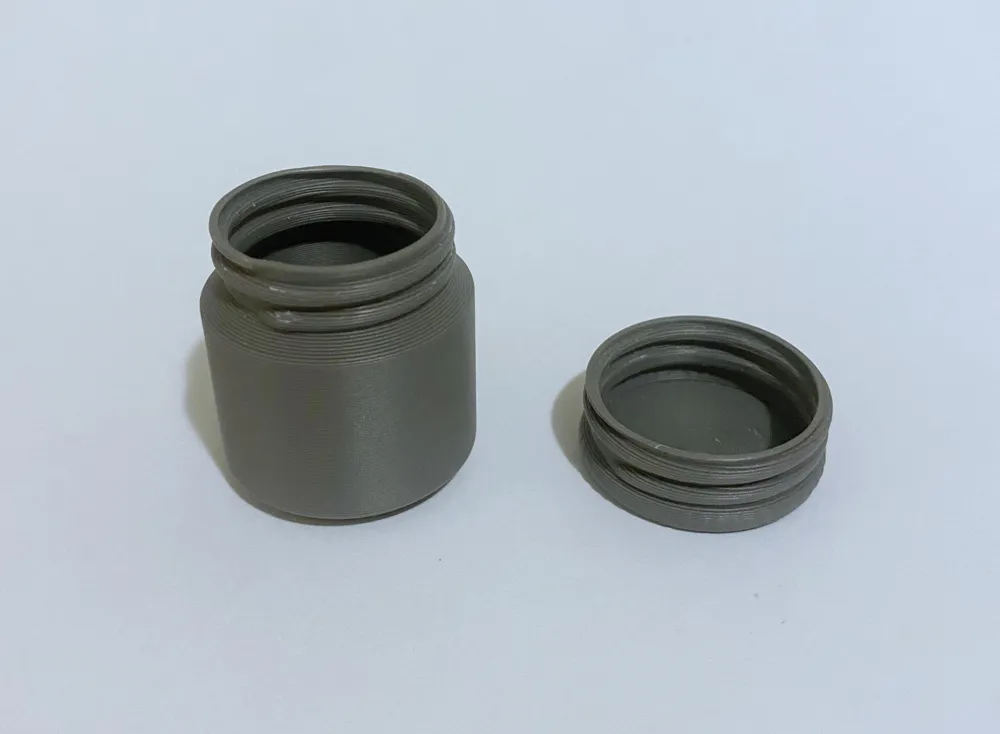

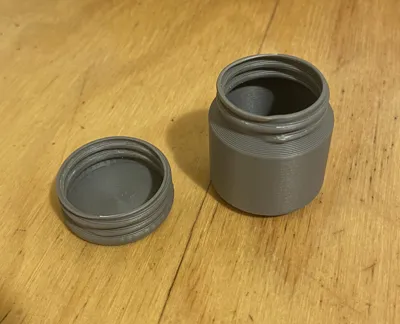

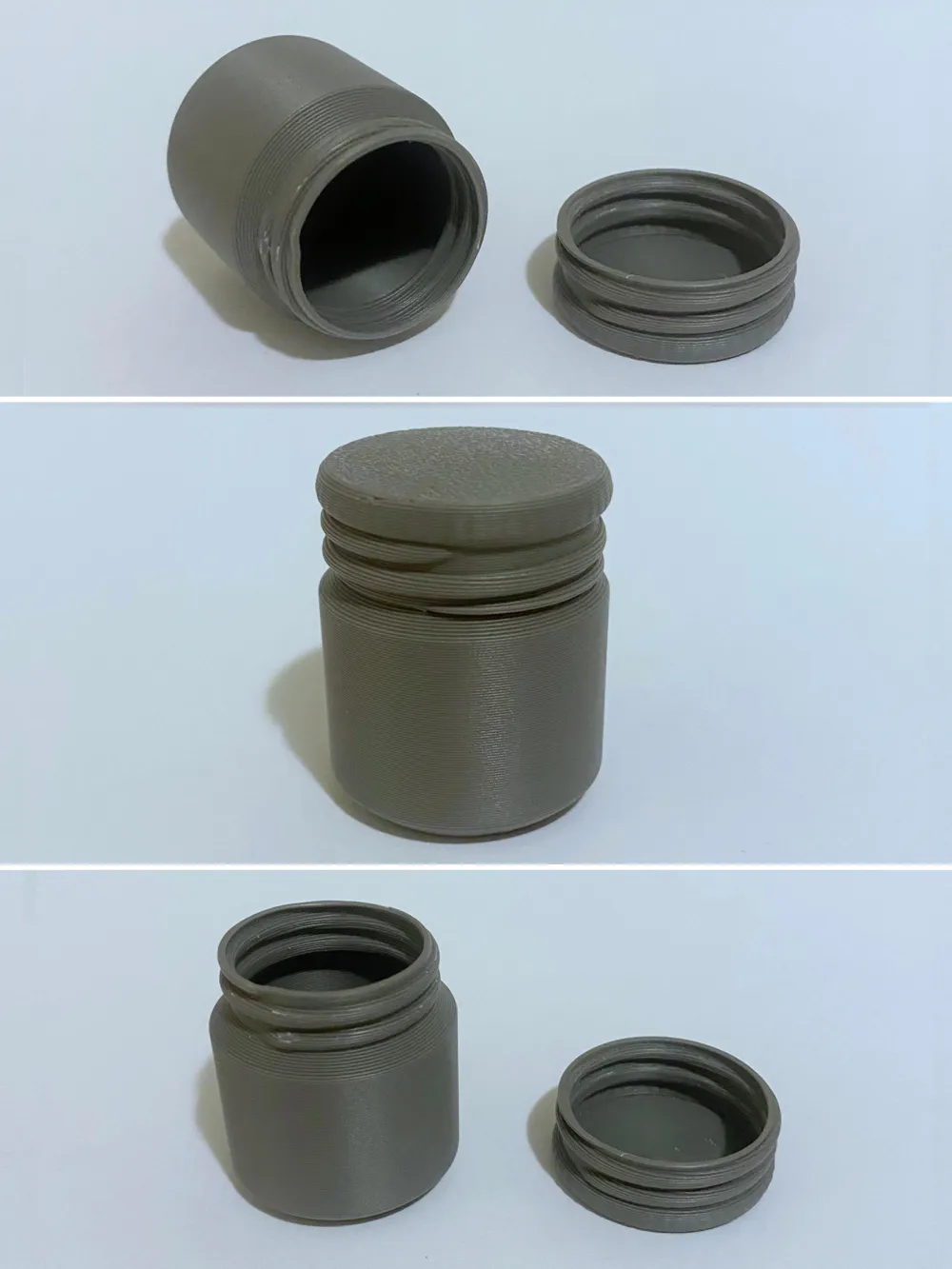

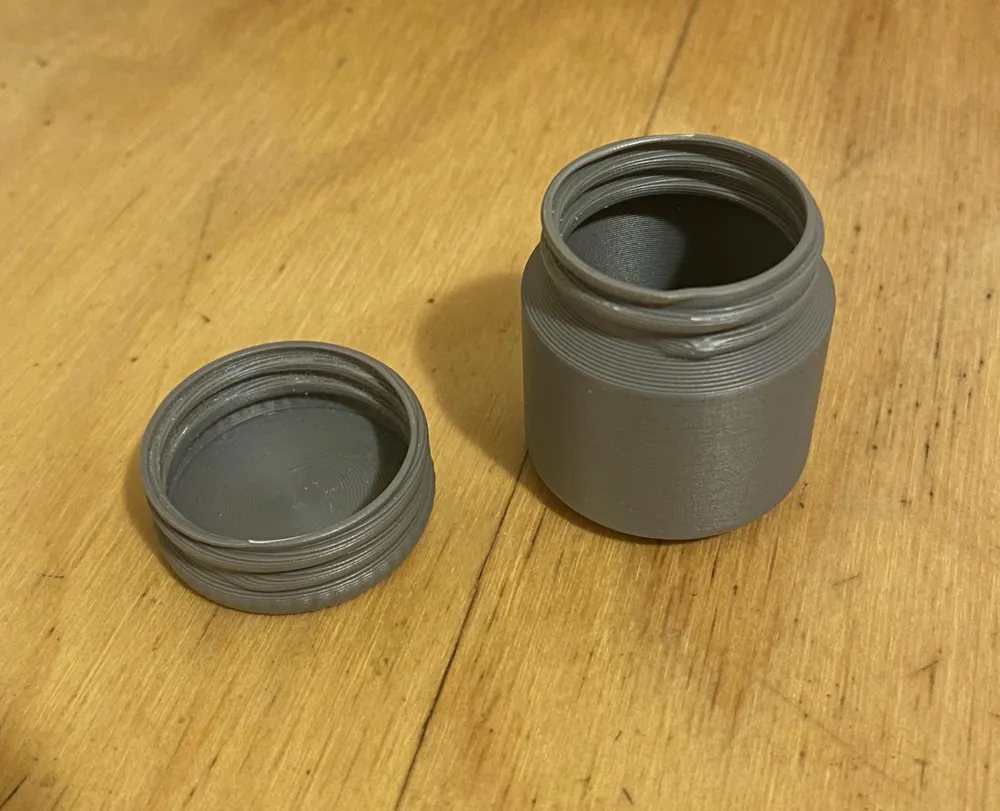

Prints in two separate pieces.

Recommend to print at 1.0mm wall thickness for added strength (printing with PLA on 0.4mm nozzle).

Recommend setting the bottom layer count to 3 to prevent any infill holes and match the strength of side walls.

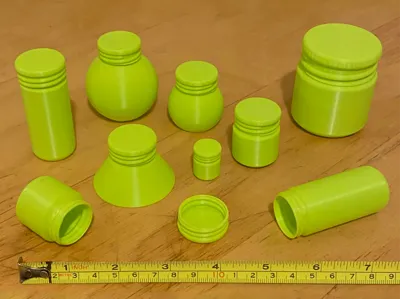

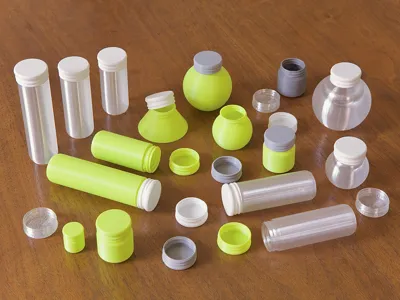

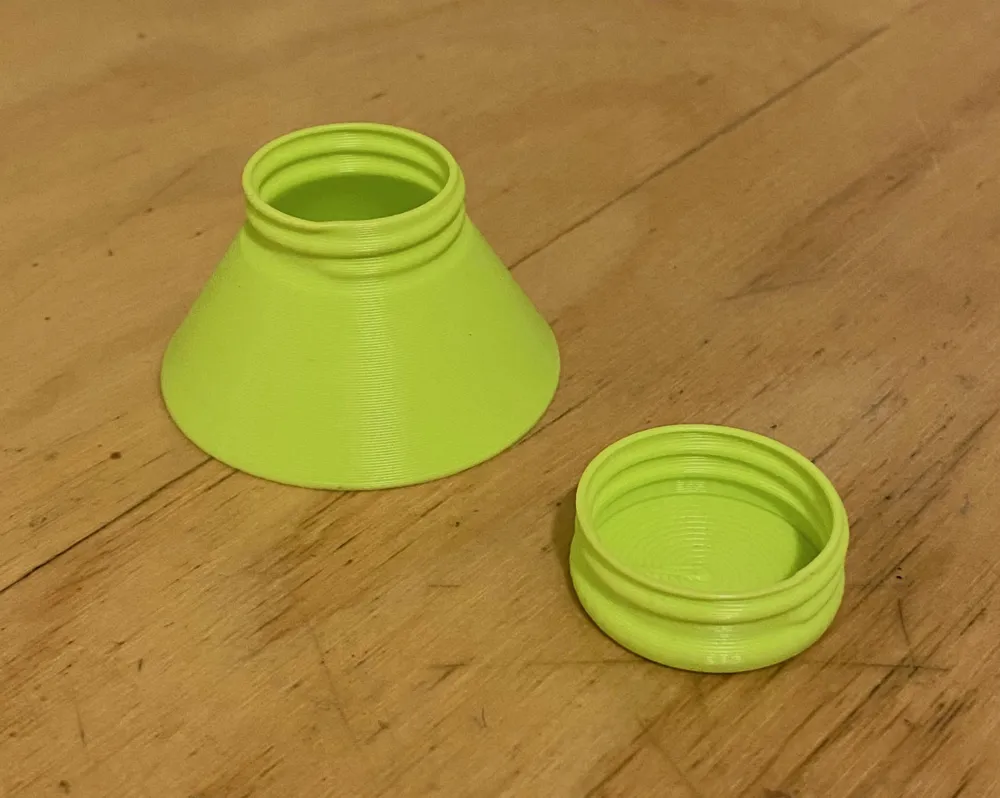

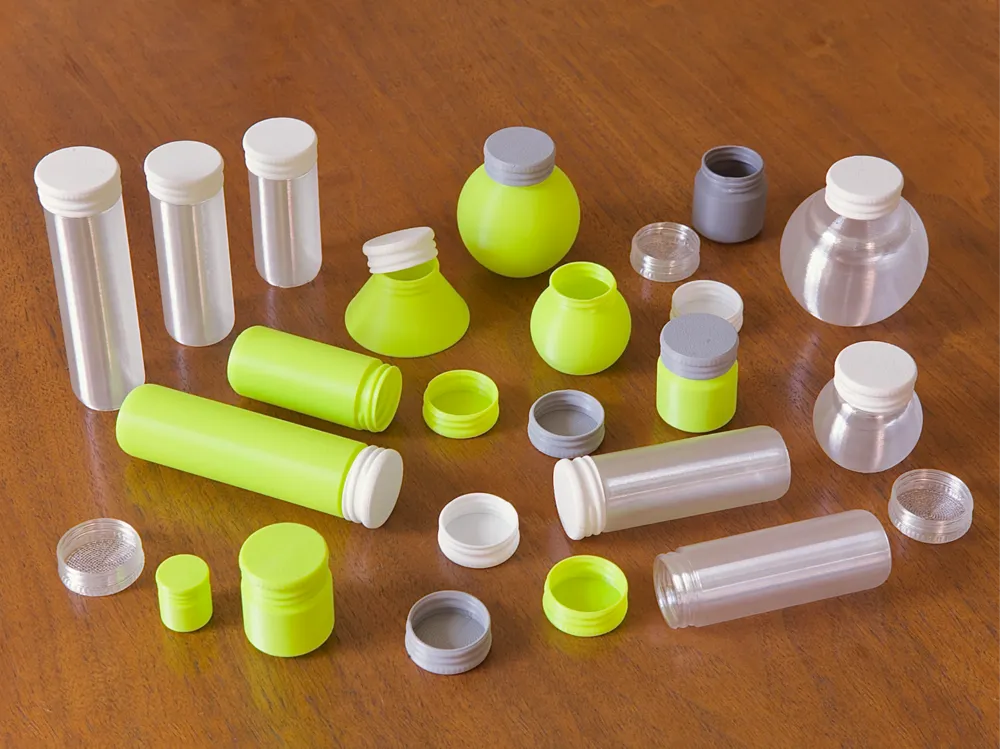

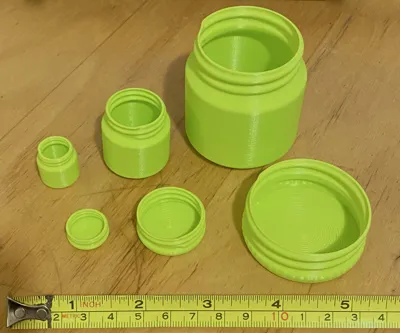

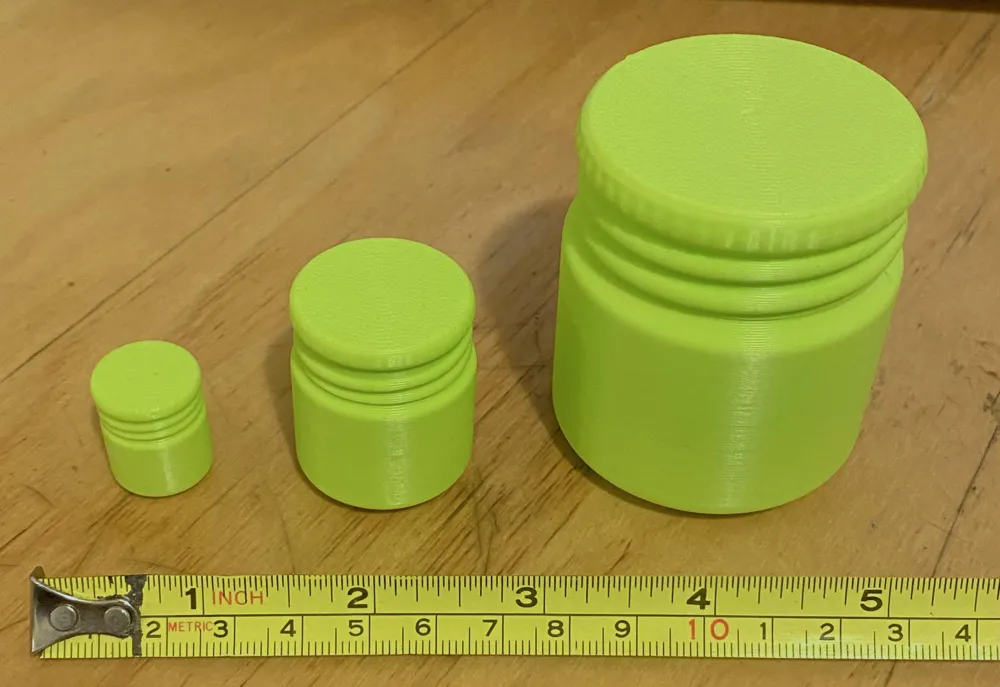

The model can be printed at various sizes, for extremely large and extremely small versions you might need to scale the lid slightly up or down for the best fit.  Small and Jumbo size models are available for download as well.

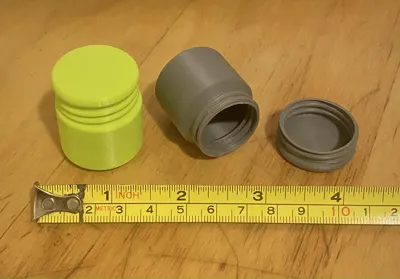

The default size of the standard jar model is 36mm tall and 30mm wide, it requires 5.4g of filament and takes 17 minutes to print (on the Bambu A1 mini)
