Update 09/22/2025 :

Hello Everyone if you like this design I assure you you will love my new design. I updated the calipers to slide with more resistance and reliabbly, and included finding angles (30°, 45°, and 90°). I have also added screws on the measuring surfaces to make it more robust to mesuring rough objects.

Link : https://makerworld.com/en/models/1813373-edc-calipers-metric-magnetic#profileId-1934823

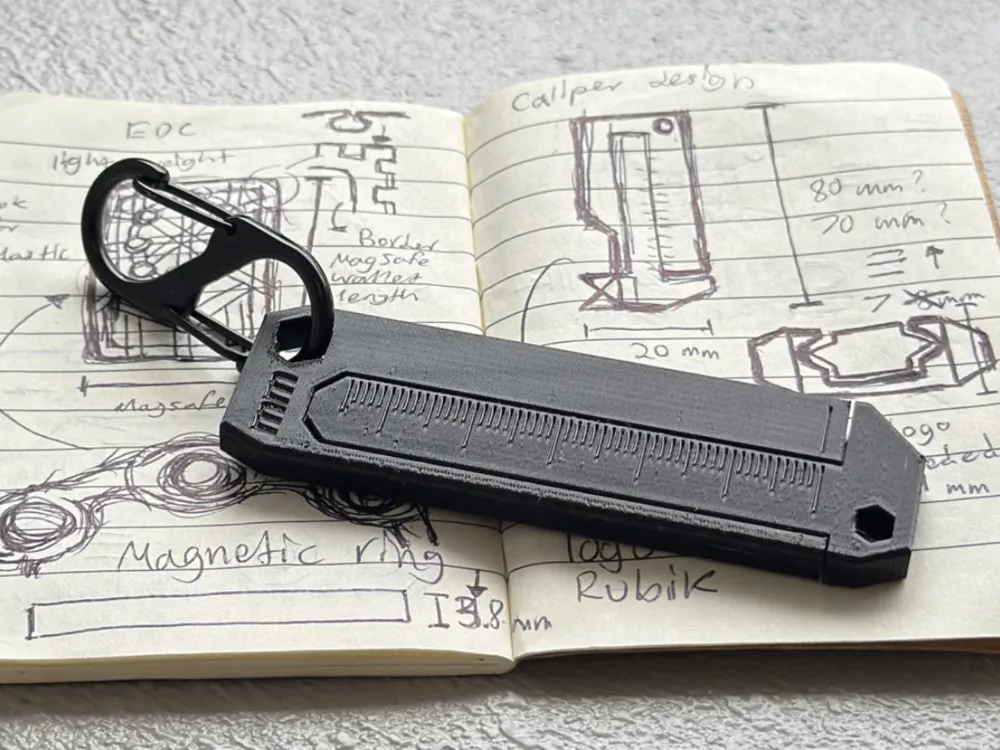

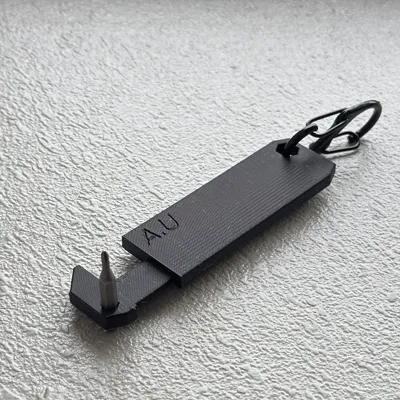

Hello this is a simple edc metric calipers that doubles as an emergency ¼ bit or ifixit (4 mm) bit wrench. It was designed to be printed with PETG. The tlerances is just right for easy sliding out and enough friction to not fall out.

If you like this model and the explantion behind it please leave a comment and like to boost the algorithm, Thanks :)
