Mount for Winwing PAP3N with Honeycomb Bravo

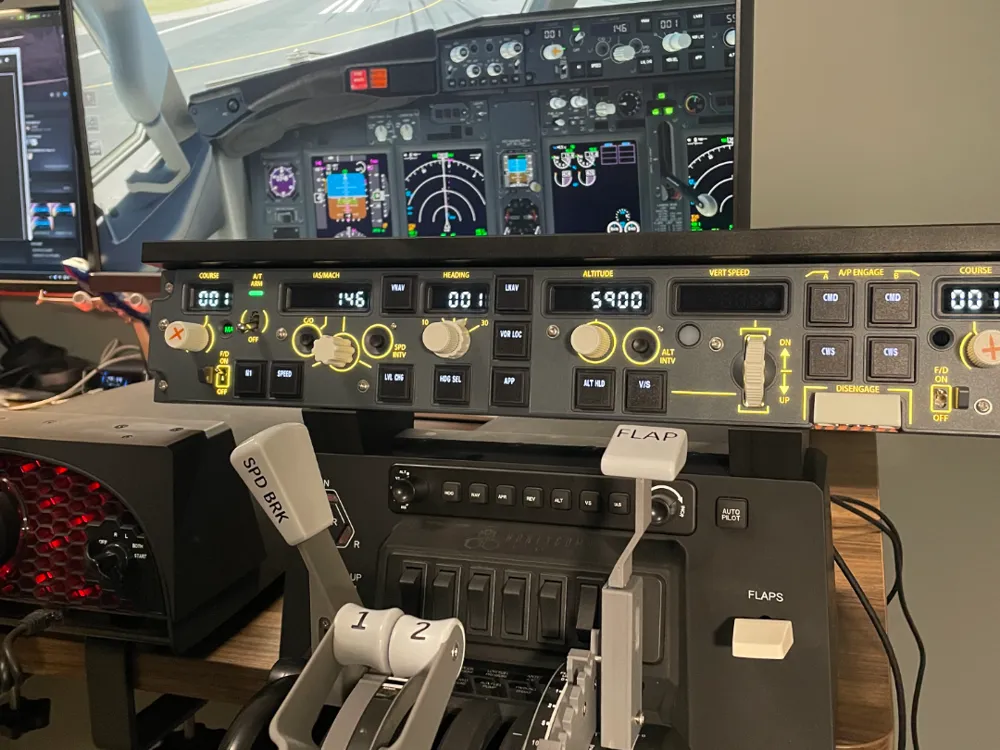

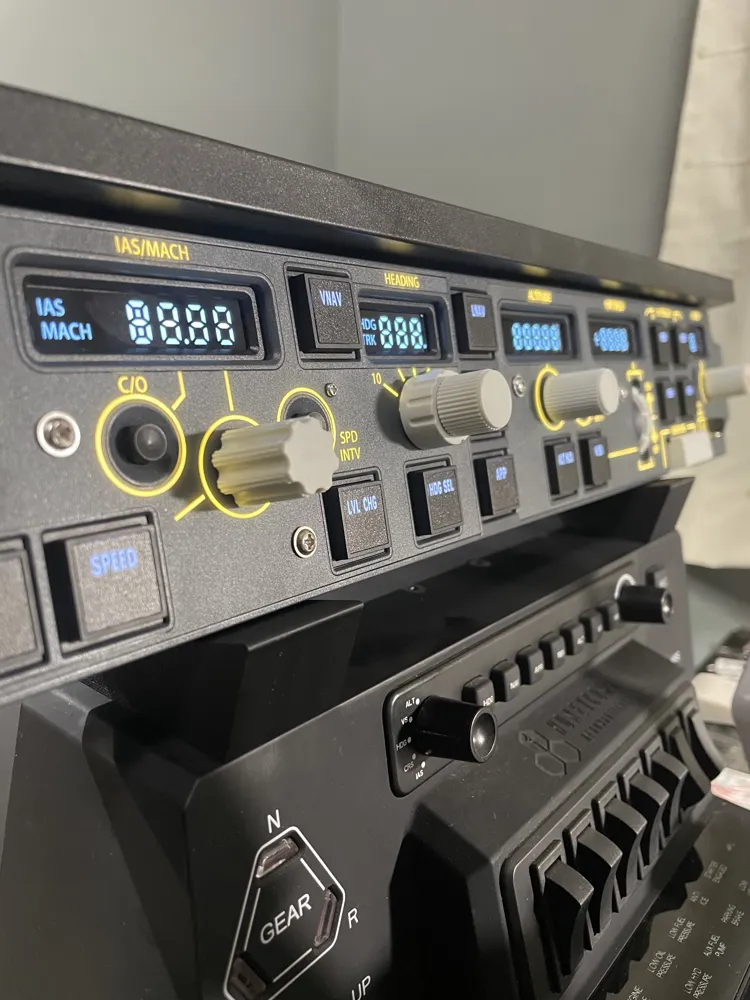

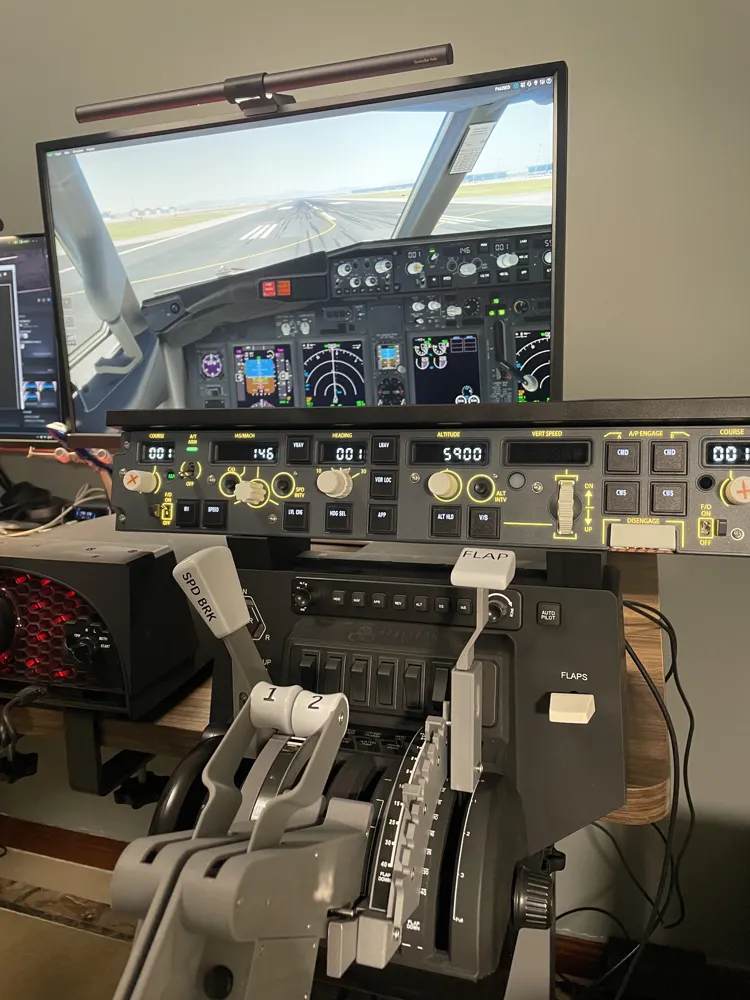

This model is designed to securely mount the Winwing PAP3N onto the Honeycomb Bravo Throttle Quadrant. The MCP is angled at 15 degrees.

This is my very first 3D model, so there may be plenty of areas for improvement. I’d really appreciate any feedback or suggestions for future revisions!

Print Settings:

• Layer height: 0.2mm
• Infill: 20%
• Wall count: 3
• Supports: On by default (I haven't tested printing without supports yet—feel free to share your experience in the comments, thank you!)
• Orientation: Print sideways

These settings were only tested and confirmed successful on a Bambu Lab P1S. Compatibility with other printers is currently unknown.

Installation Instructions:

1. a.Remove the two outermost screws on the top surface of the Bravo throttle.

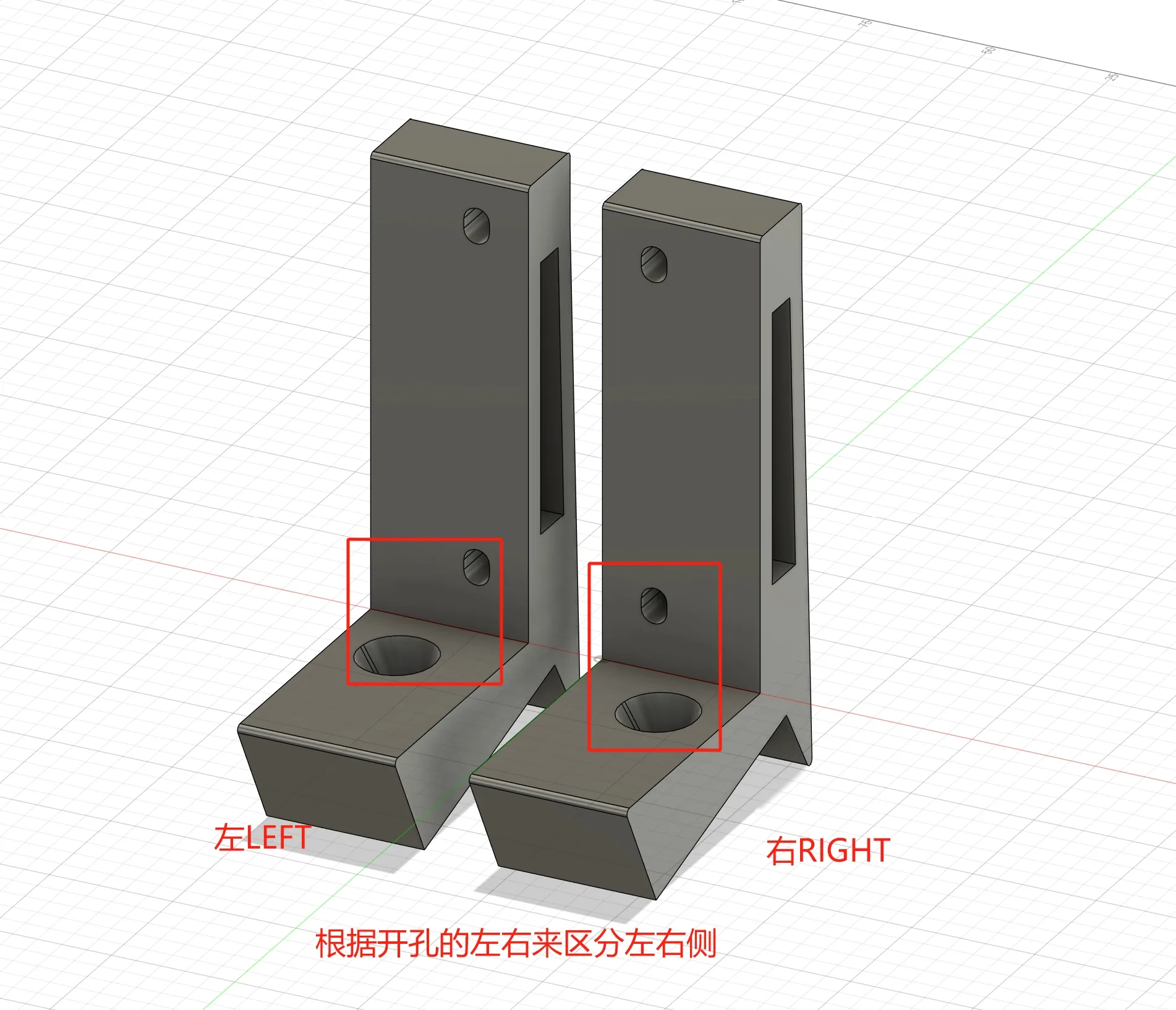

   b.Place the brackets (make sure to distinguish between left and right) onto the top surface.

   c.Reinstall the original screws to secure the brackets in place.

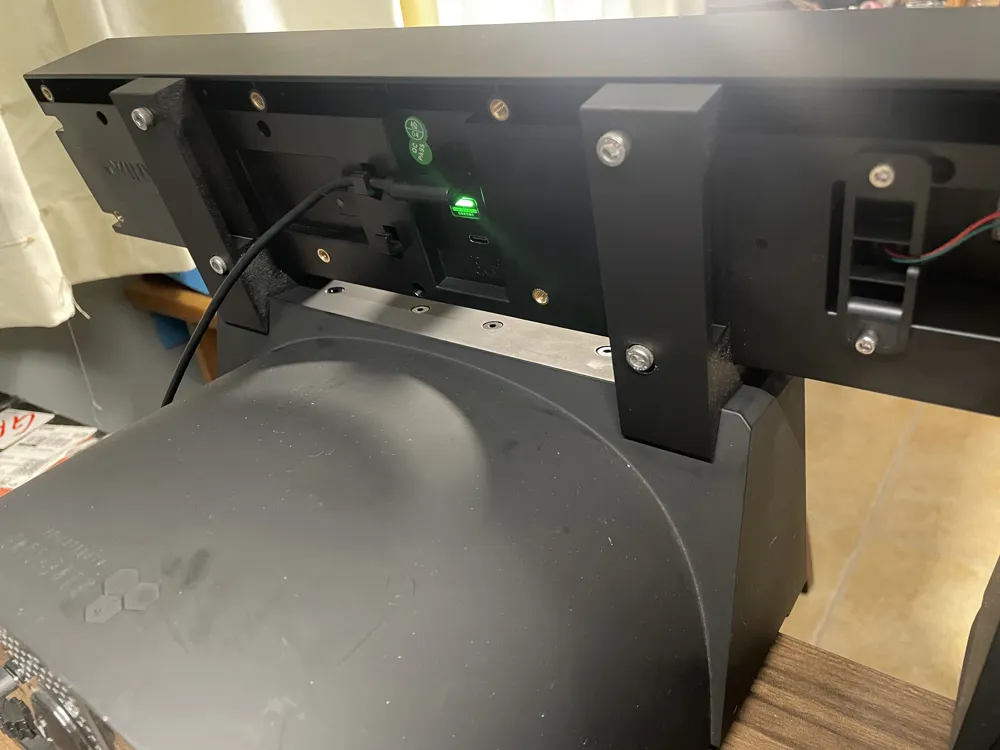

2. Use the four M5 screws (silver-gray, approx. 27mm long) that come with the Winwing package. Install them through the rear screw holes—no washers are needed.

This design was primarily inspired by the Project Open Throttle Winwing FCU mount:
https://makerworld.com/zh/models/852933-winwing-fcu-to-honeycomb-bravo-mounting-brackets?from=search#profileId-801470
Huge thanks to the creator for their contribution to the community.

I truly welcome anyone with the same passion to help improve this design further!
