Dewalt Tstak and Craftsman Versastack Worktop clip
Print Profile(1)
Description

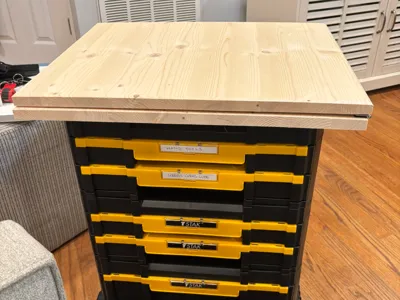

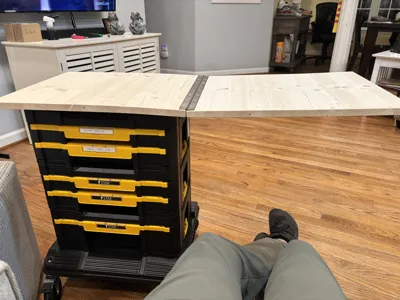

I needed a set of clips to make a worktop for my Dewalt Tstak rolling toolbox. None of the ones I found let you cut the size of the worktable to your preferences. These clips let you cut whatever size top you like and whatever overhang you like. As you can see I added a hinge for an extra long sofa table that rolls away when not in use. This should also fit the Craftsman Versastack since that is the same product.
This is designed for the 2 drawer box, it will also fit the deep 1 drawer box. not sure about any others since I don't own them. I printed the clip in ABS on my X1C, but you could use PETG as well. PLA should work but I have not tried it.
The shims (plate 2) should be printed in TPU to make up for slight manufacturing differences in the boxes. The boxes are made of HDPE and flex a little. Putting one or two shims down may help your clip fasten more tightly. I used one on each side with my print.
Let me know your thoughts, like and boost if you feel this was useful.
