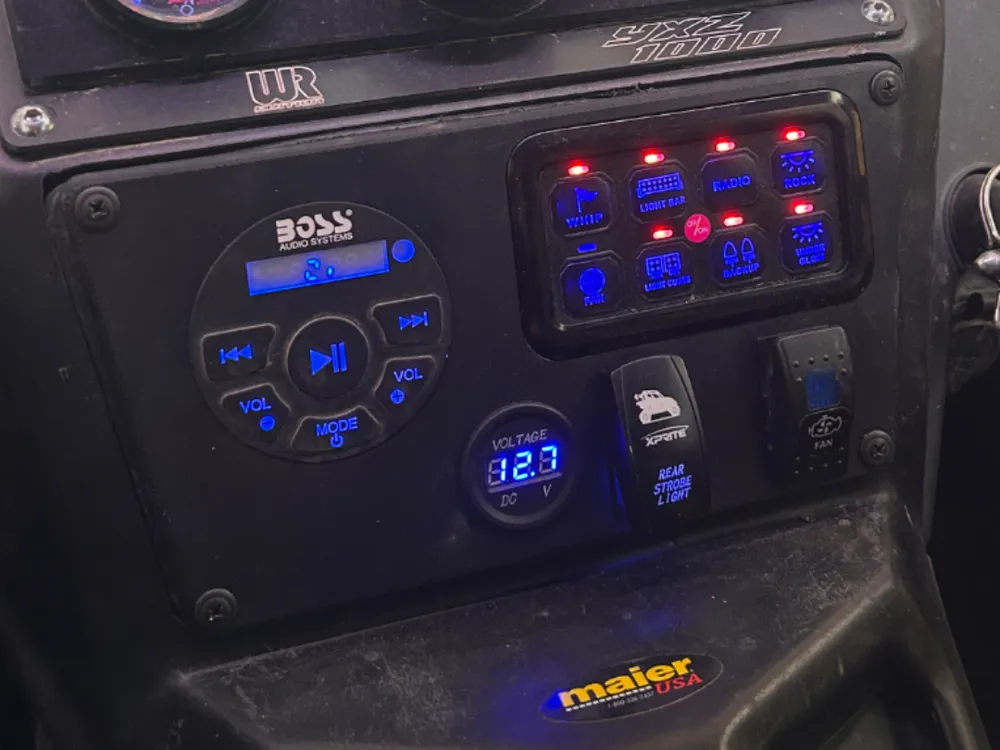

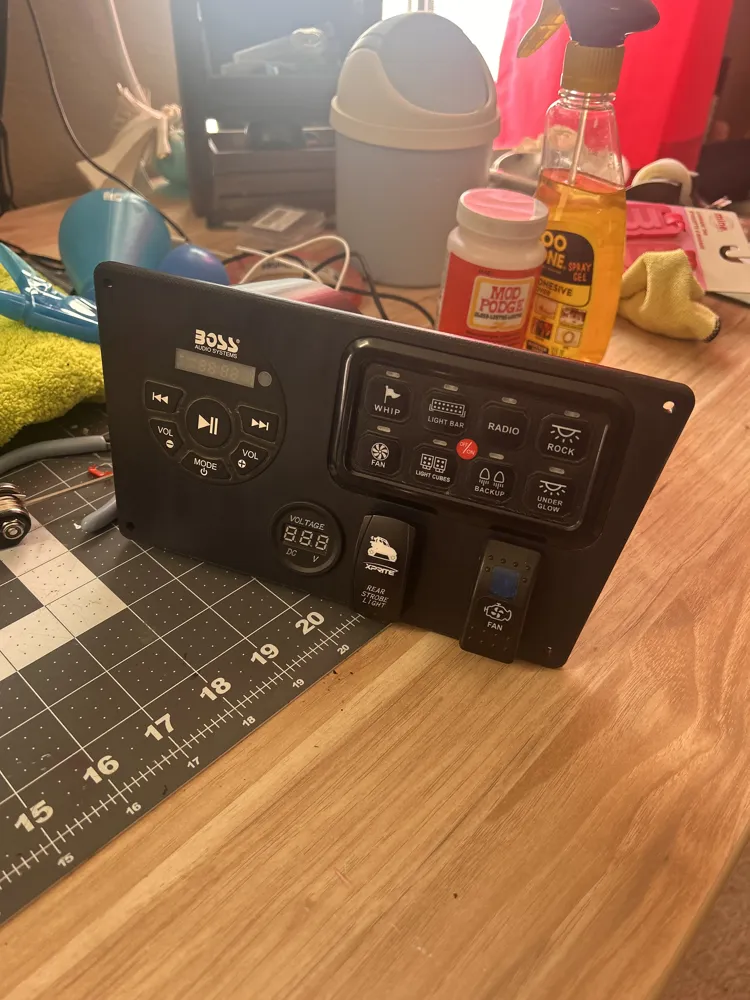

YXZ100R Dash Switch Plate (8-Gang Switch Panel)

Yamaha YXZ1000R Dash storage box gauge replacement plate.

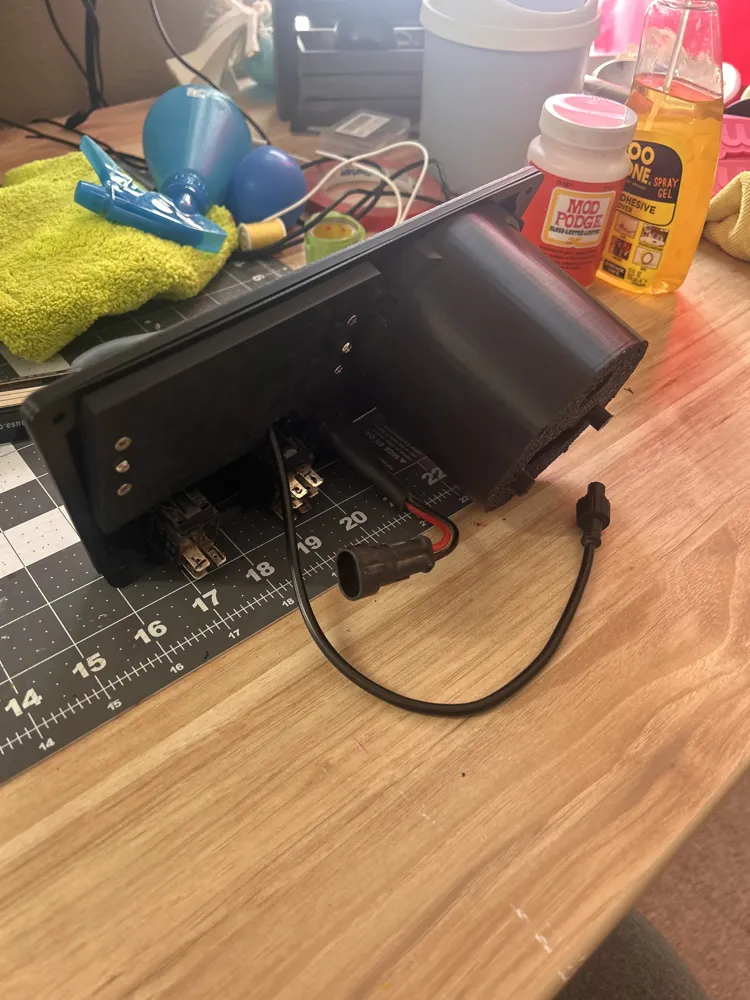

(I did cut out the plastic storage box, and I used self tapping screws to secure it to the existing plastic dash)

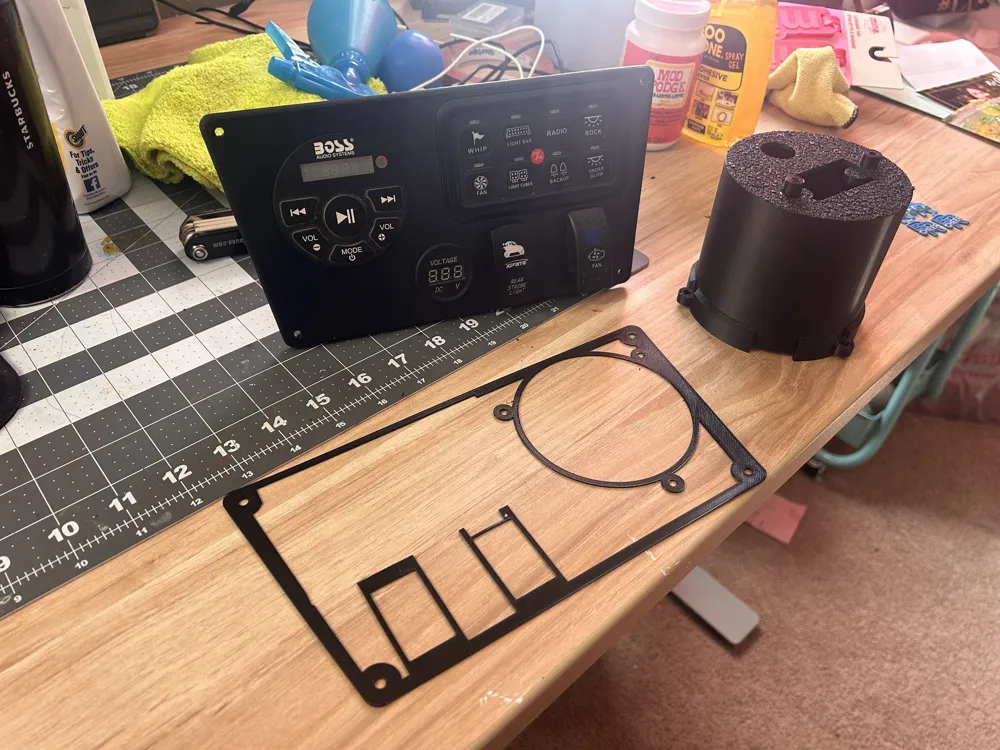

I printed the two central bodies with PA6-CF and the gasket with TPU. Please experiment with the supports you think are best. The supported faces on my print were still a little rough.

I made this to modify the BRT26A sound bar that I already owned. I removed the controller from the sound bar and then cut it into two pieces to create two separate speakers. Most of the parts I used are below. I used black high-heat silicone to weatherproof the heat sink to the cup. If you take apart your BRT26A, be careful because the connectors are glued, and I did have to re-solder a connector back to the board.

I am open to all questions. This is not a how-to—just the essential info. I am not an expert, and I learn every day.

Most Parts List

I used the Amazon 8 gang switch panel kit.

8 Gang Switch Panel Kit, Universal Circuit Control System Relay Box Automatic Dimmable Panel Switch Box LED On-Off Switch Pod Compatible with Car ATV UTV Boat Truck

The stereo is from the Boss BRT26A UTV sound bar. I used a large chop saw to cut out the middle and turn it into two separate speakers.

https://bossaudio.com/products/791489125741?tw_source=google&tw_adid=&tw_campaign=21507971978&gad_source=1&gbraid=0AAAAACZqOS2Sf3s5ltd9iZUxqhy_h9E6m&gclid=CjwKCAjwzMi_BhACEiwAX4YZUPRm8rpP7SHhT1FEg0h_qIhl1A6swNTS2EcDb7MUWnD2u0Pmm4fwXBoCXX8QAvD_BwE

These are the screw I used. (I did add epxy glue to the screws to make sure they stayed secure)

uxcell M5 Hex Socket Head Cap Self-Tapping Screw, 50Pcs M5x12mm 304 Stainless Steel, Hexagon Socket Head Tapping Screws, Hex Drive, Self Tapping Point - Black

Waterproof Cable Gland

TICONN 20 Pcs IP68 Waterproof Cable Gland Kit Nylon NPT Adjustable Cable Connectors Assortment 1/4” 3/8” 1/2” 3/4” 1“ for Waterproof Junction Box Wire Pannel (Black, 20 Pcs)

Heat Sink

Easycargo 4pcs 25mm Heatsink, Cooler Heat Sink for Cooling LED IC Chips CPU GPU VGA (4pcs 50mmx25mmx10mm)
