RT-AC86U 风扇背挂架| RT-AC86U 12cm Fan Mounting Bracket

Playing with 3D printing is all about printing whatever you need, right? Adhering to the basic principle of "no demand, no creation; no creation, no demand," we embrace the open-source spirit of "free sharing and open collaboration." Our goal is to prevent printers from idling around, gathering dust, or becoming mere decorations... 🤣

>> 模型介绍 | Model Introduction >>>>>>>>

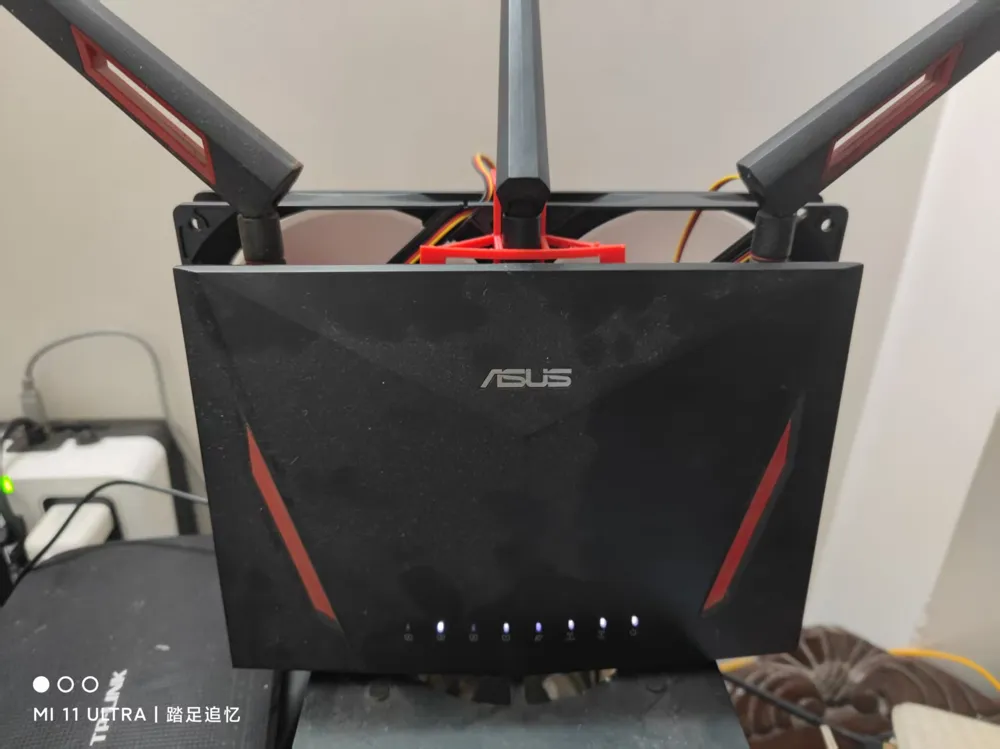

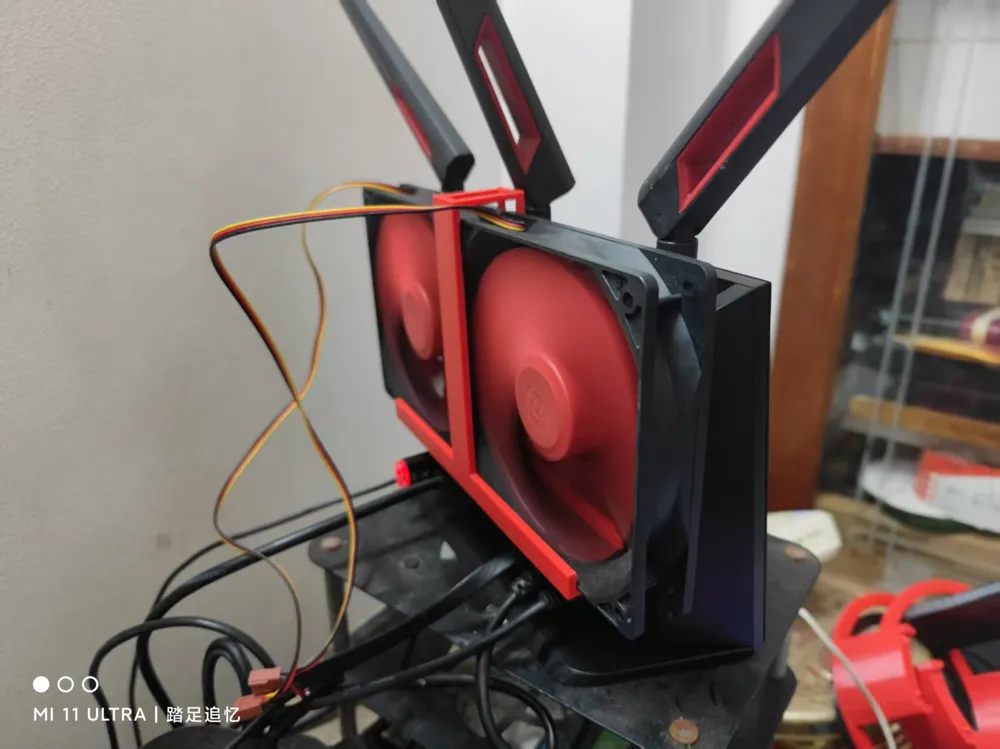

最近发现在外手机数据竟然无法同步到NAS，WEB端还频繁无法连接服务器，正纳闷是不是海南电信把免费公网给撤了的时候，发现路由器的温度竟然高达90°，原来是（外置的风扇）坏了。好吧，趁着这个时机，让快吃土的打印机再次有机可乘。。。🤣 由于没有调节器，而且还是用5V 2A的USB线外接的电脑12CM风扇，转速有点慢，为了让路由器能凉快，所以，给它套上两个吧。
仅支持12CM的电脑风扇，不支持RT-AX86U。

Lately, I realized my phone couldn’t sync data to the NAS when I’m out, and the web interface kept failing to connect to the server. I was scratching my head thinking, Did Hainan Telecom cancel the free public network? — when I discovered the router was running crazy hot at 90°C. Turns out the external fan had kicked the bucket. Well, guess this is my chance to revive my dust-collecting printer... 🤣 Ended up rigging a 12cm PC fan with a 5V/2A USB cable (no voltage regulator), but it’s spinning slower than I’d like. To really cool this router down, I’m just gonna stick two fans on it and call it a day!
Just a heads up—this setup only takes 12cm PC fans, and it won’t work with the RT-AX86U.

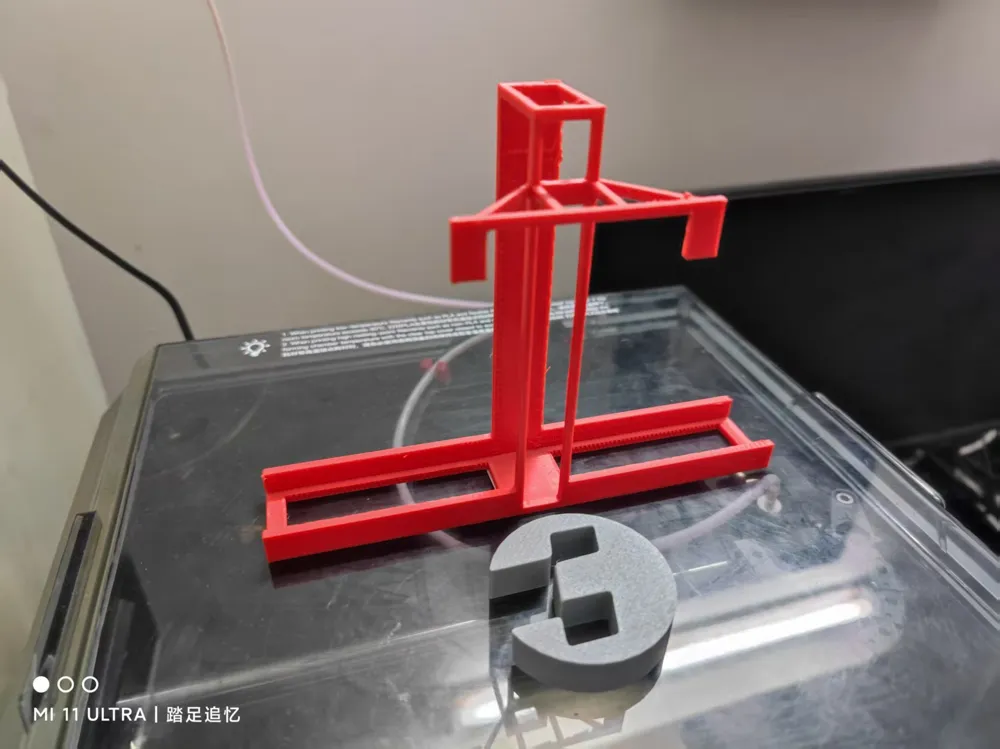

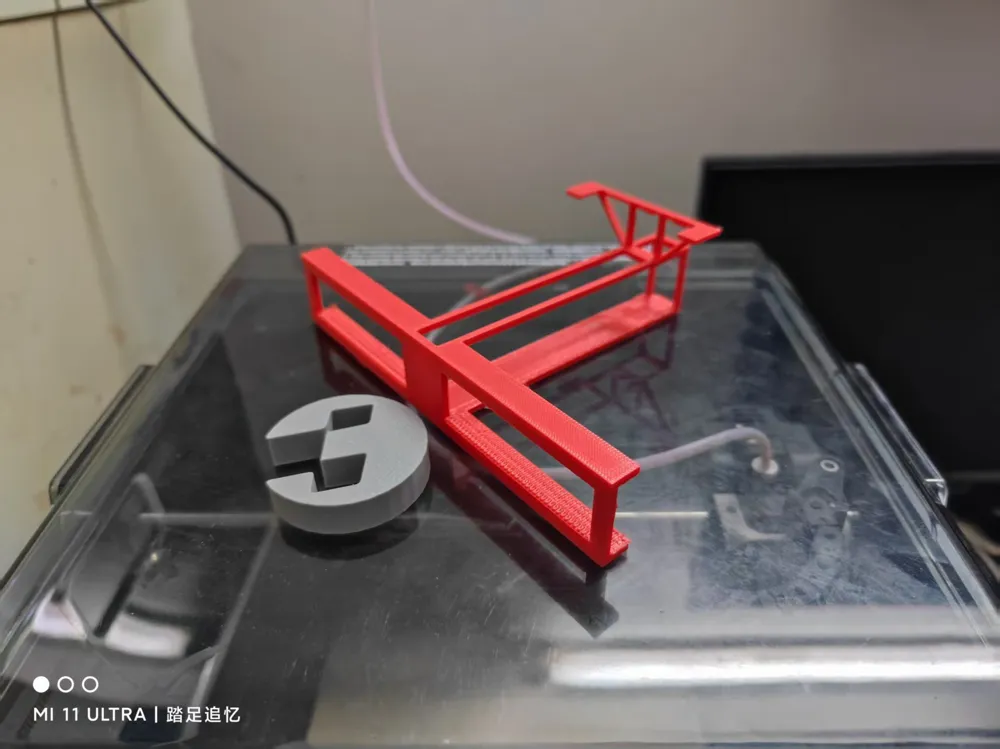

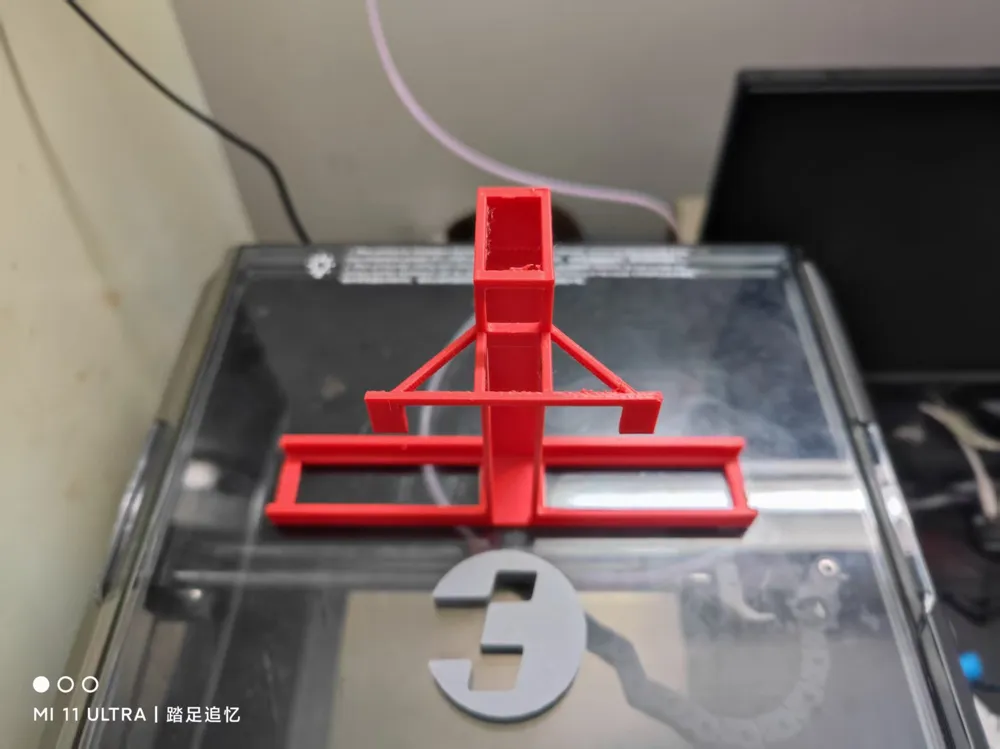

>> 打印配置 | Print Settings >>>>>>>>

（仅参考，可自定义）

(Referential, Customizable as Needed)

耗材 Filament：PETG

填充 Infill：15%

填充图案 Infill Pattern：网格 Grid

支撑 Support：需要 Required

Brim/Raft: 仅外侧 Outer side only

>> 组装说明 | Assembly Instructions >>>>>>>>

即打即用，无需组装。

Print and Use Immediately; No Assembly Required.

>> 其他说明 | Additional Notes >>>>>>>>

1. 模型使用 Blender 4.2.5LTS制作。

2. 可根据协议 CC BY-NC-SA 4.0 自行修改为所需样式使用。

3. 无论如何，遇见是缘分，能用是巧合，留个言点个赞，关注收藏一起浪。

1. The model was created using Blender 4.2.5 LTS.

2. You are free to modify it as needed to suit your desired style under the terms of the CC BY-NC-SA 4.0 license.

3. Anyway, meeting is fate, being able to use it is coincidence. Leave a comment, give a like, follow and save, and let's ride this wave together.
