Re:Squire - A Modular 3D-Printed Guitar Body

Re:Squire - A Modular 3D-Printed Body for the Fender Squire Bullet Strat

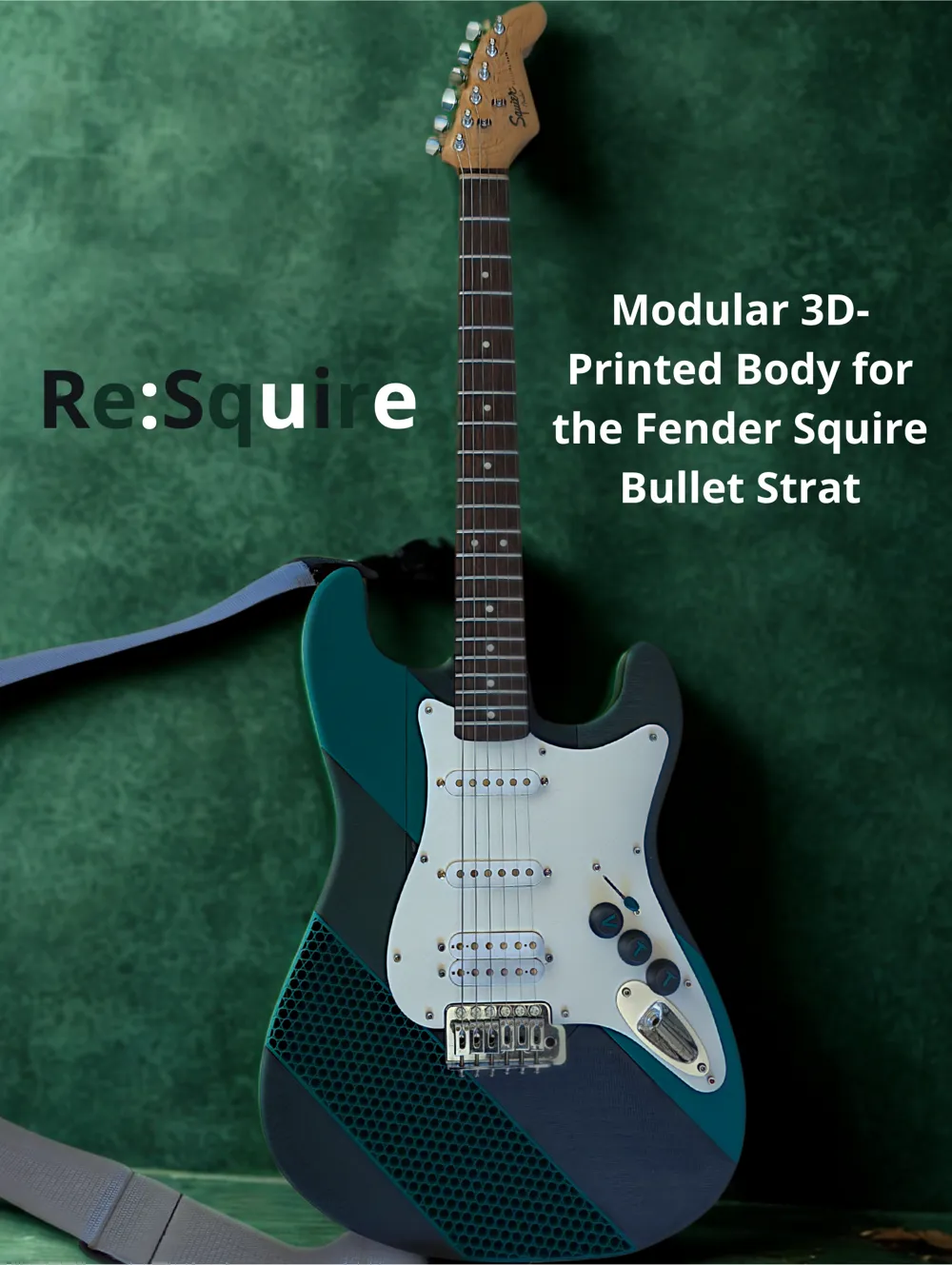

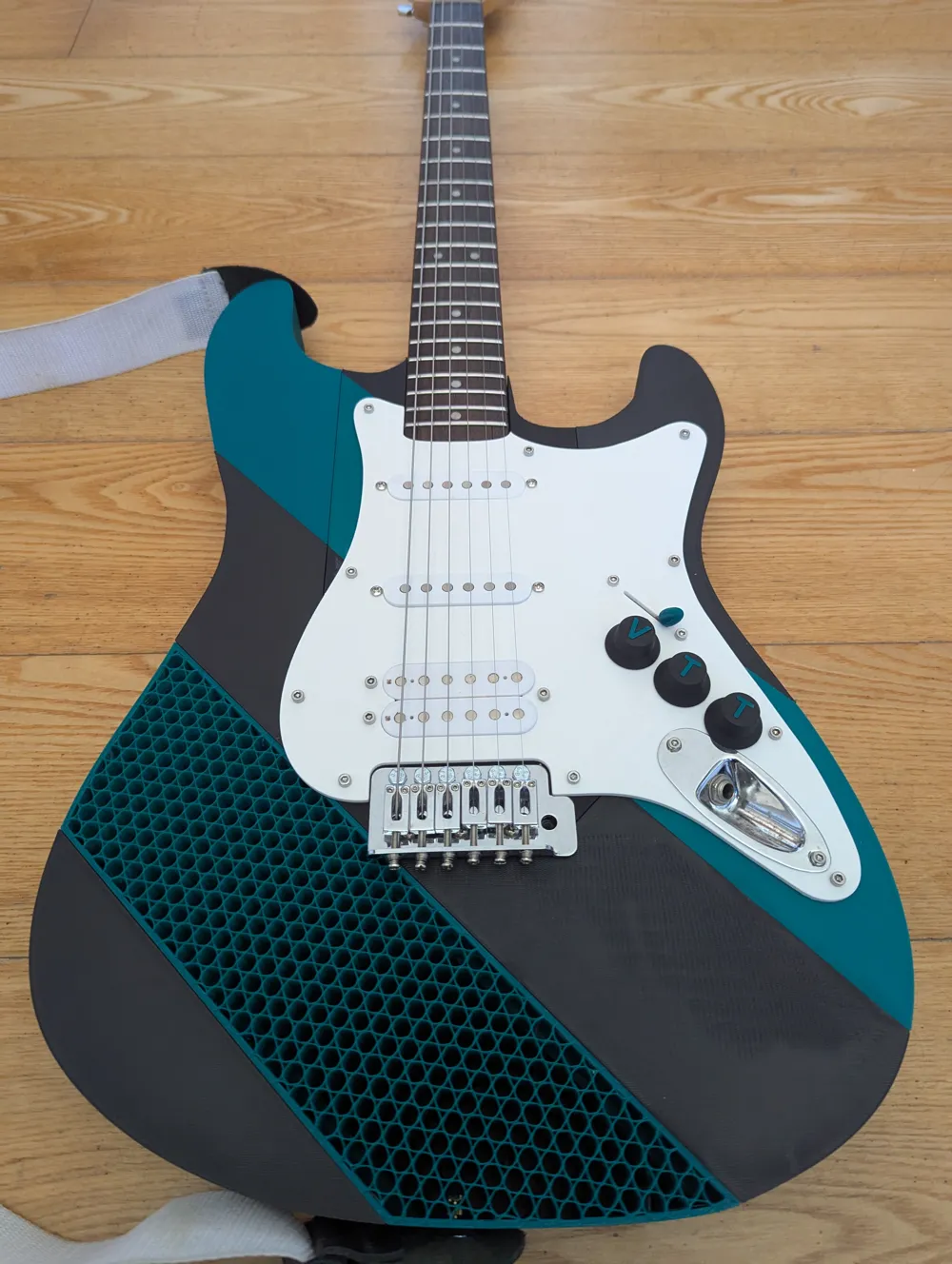

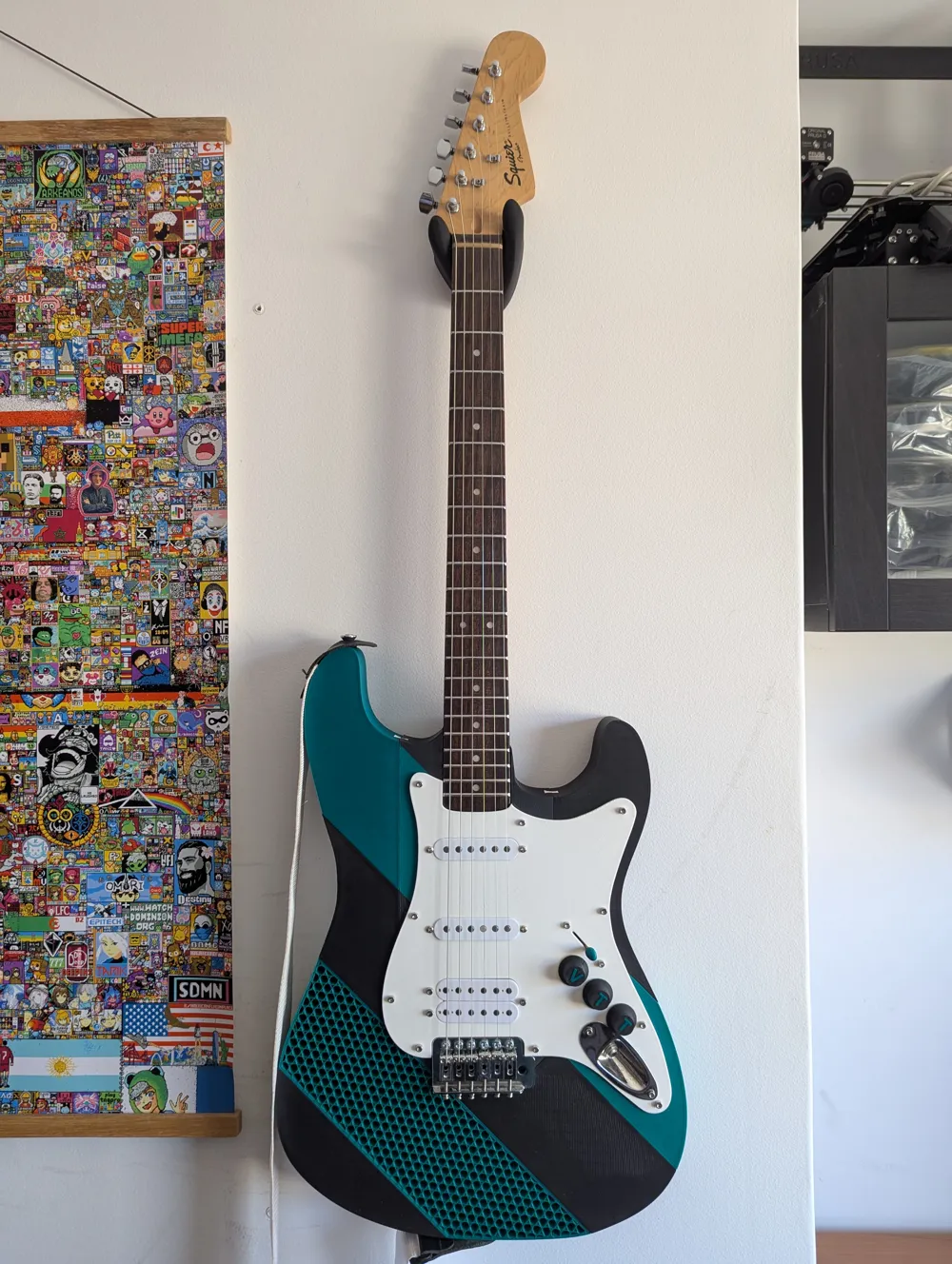

This project provides a 3D-printable, modular replacement body designed specifically for the Fender Squire Bullet Strat. The design emphasizes customization and potential future modifications.

Key Features:

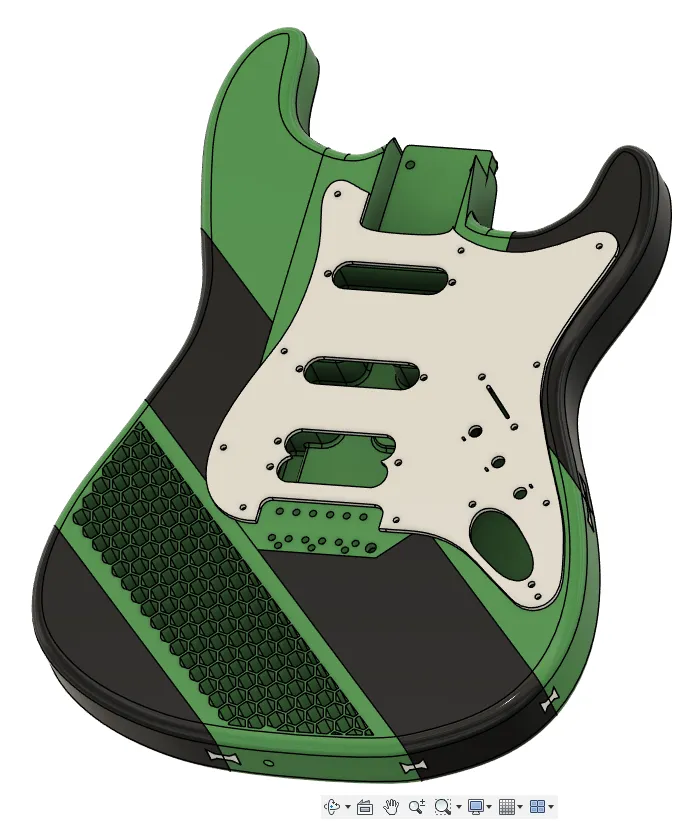

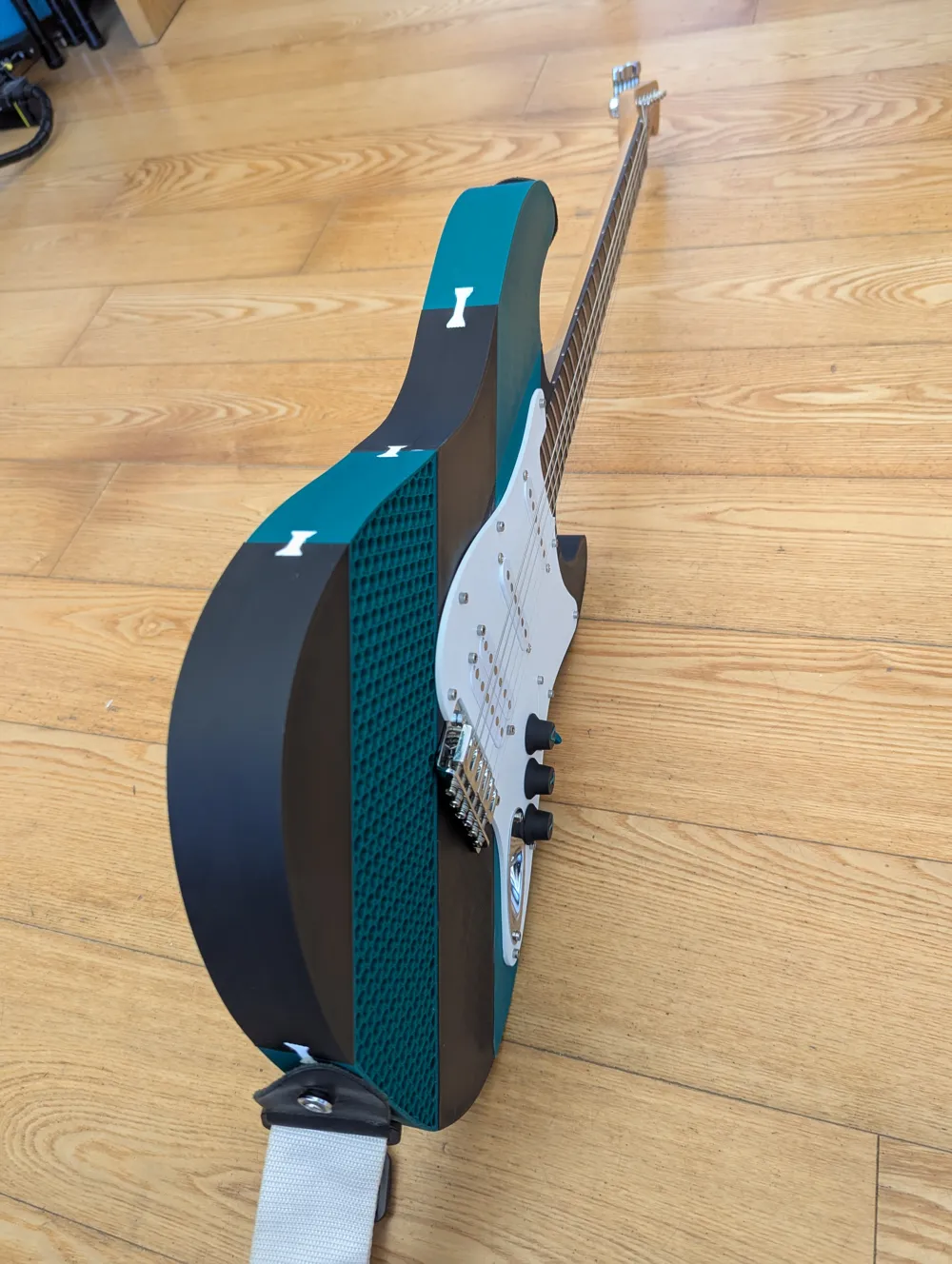

• Modular Construction: The body is divided into printable modules that connect using sliding connectors, allowing for component interchangeability.

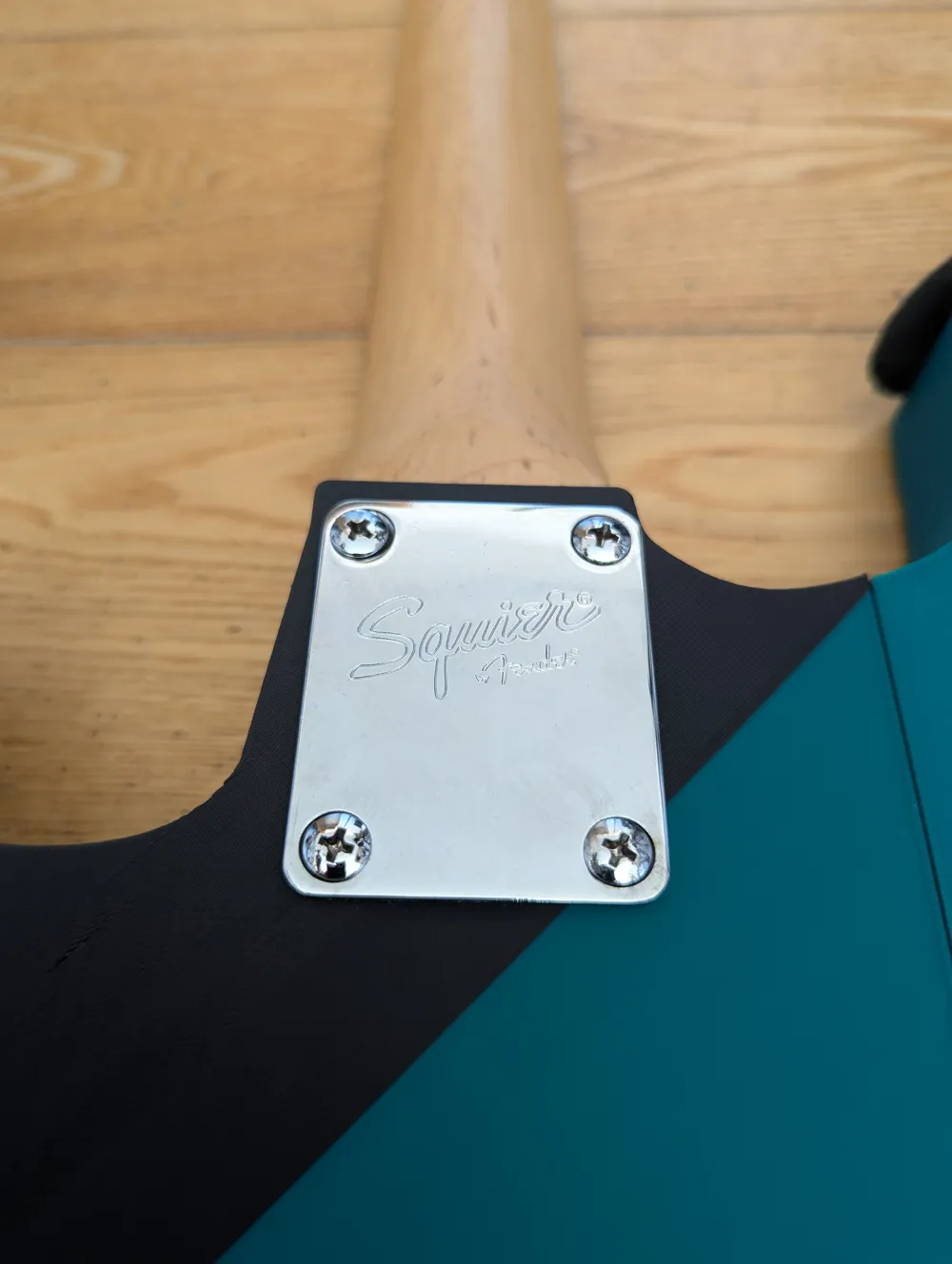

• Direct Compatibility: Engineered to fit the electronics and neck of the Fender Squire Bullet Strat.
• Reinforced Main Body: The central body section needs to be reinforced, compared to the other modules, to sustain the tension from the cords.

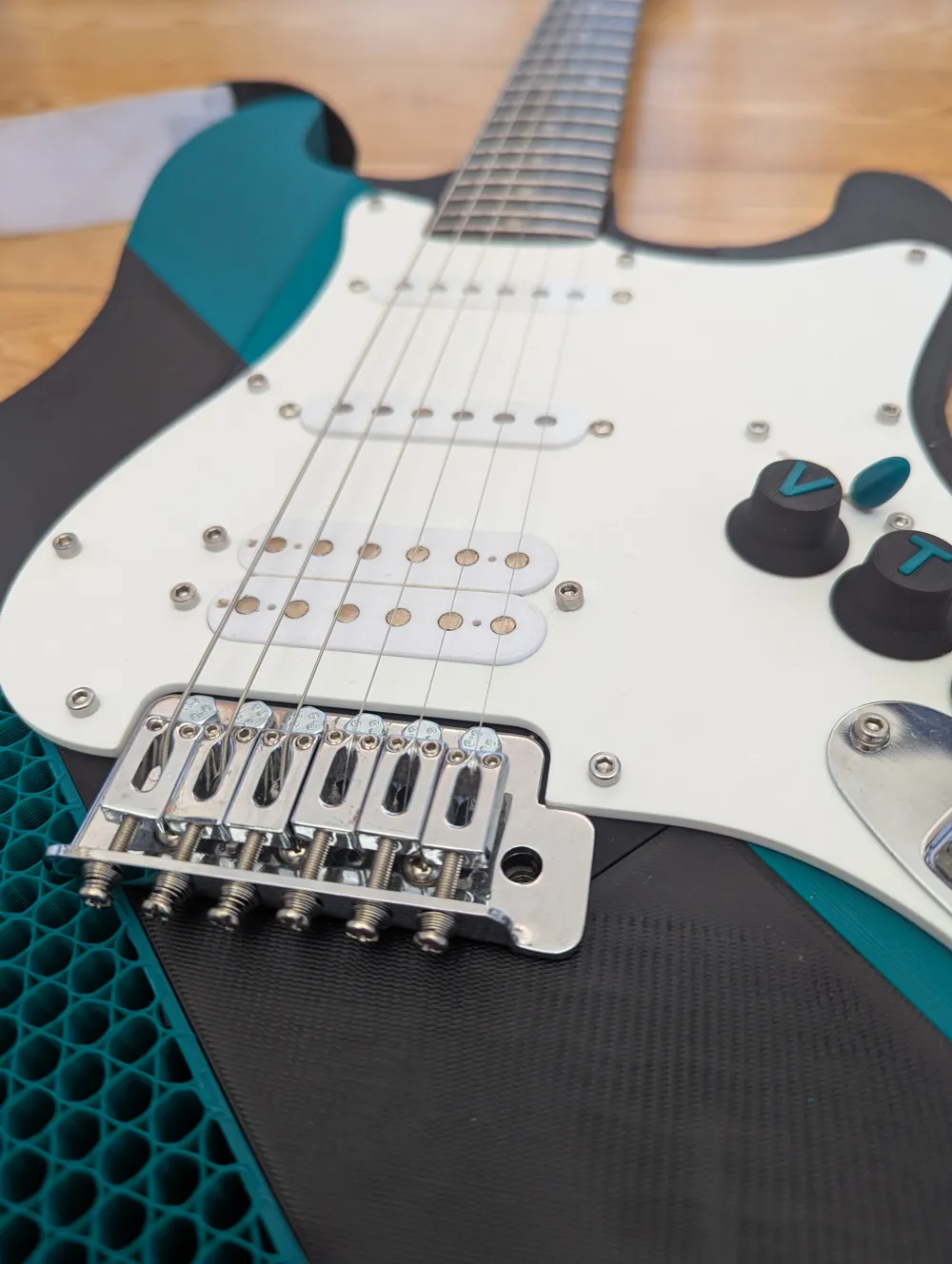

• Electronics Installation: The electronic components are mounted on a front decal, secured with M3x16 screws.

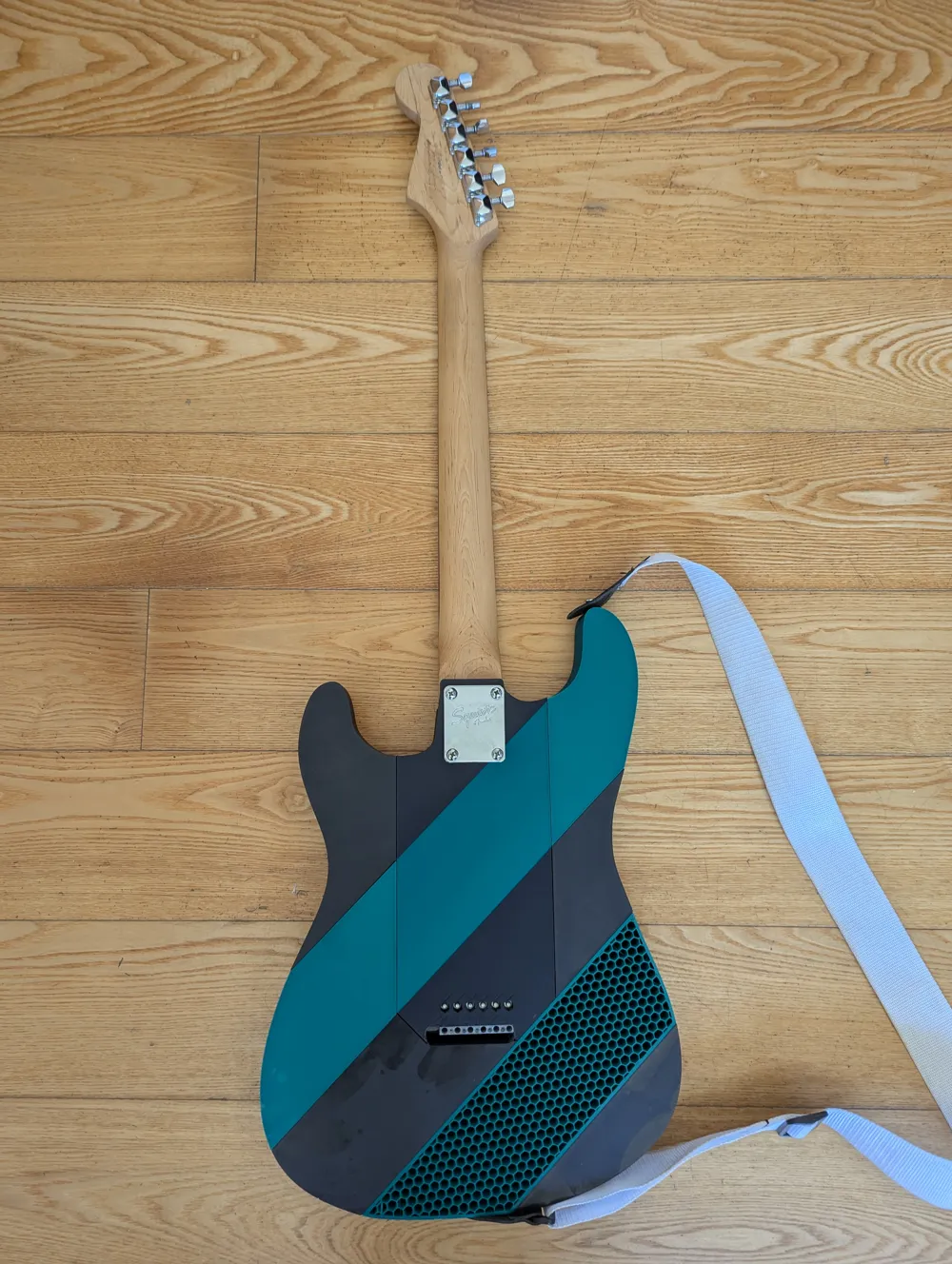

• Strap Attachment: M4x10xD6 inserts are used for secure strap attachment.
• Simplified Support Requirements: Supports are primarily required in the module connection zones for easy removal.

Technical Specifications:

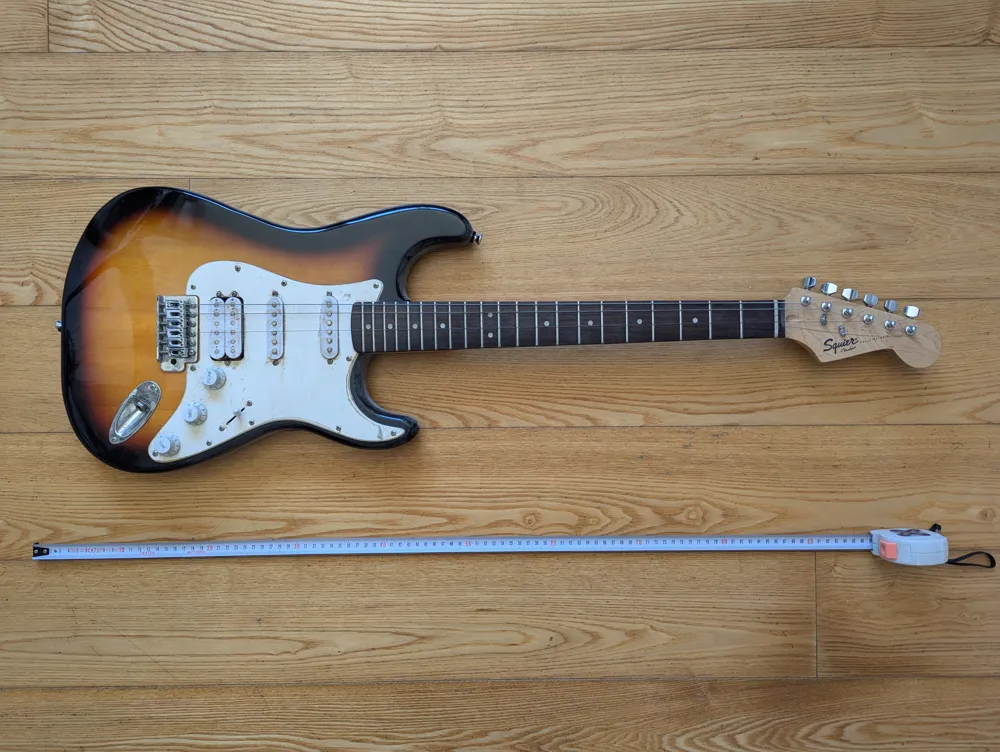

• Designed for the Fender Squire Bullet Strat.
• Requires 10x M3x10xD5 to be placed on the modules - to fix the decal.
• Requires 2x M4x10xD6 inserts for strap attachment.
• Recommended print orientation for the main body: Diagonal.
• Printed in PLA
• Filament changes on the main body to match the colors of the modules - No need for an AMS

Project Overview:

This project offers a 3D-printable alternative for those seeking to modify or replace their Fender Squire Bullet Strat body. The modular design allows for potential future modifications. The provided files and instructions are intended to facilitate the construction of this design. It is recommended to print the main body diagonally, and to use supports on the connection zones of the modules. Feel free to ask any questions or suggest any recommendations that you feel would improve the project.
