Dashboard Holder for Mobile Device(s)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.6 h
1 plate
Open in Bambu Studio
Boost
80
258
10
4
129
54
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- HeatInsert x 1: M3
Description

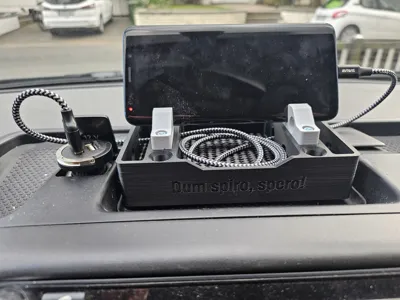

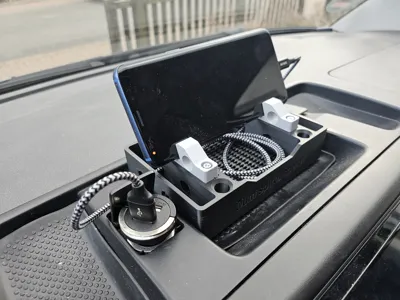

This model is a holder/organizer for your phone and fits into the dashboard of a VW T5 / T5.2 / T6. The thickness of your device should be less than 10mm (including case) to fit into the holder.

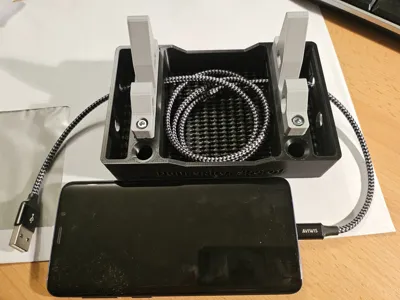

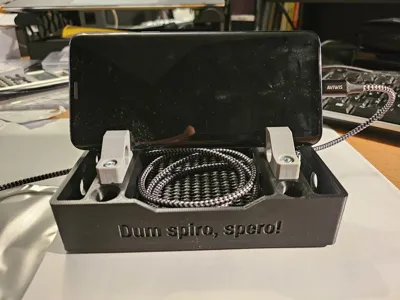

There are variuos holes in the model where you can run your USB-C cable through (for charging). It organizes the spare cable-length in the middle, so you reduce the mess a bit.

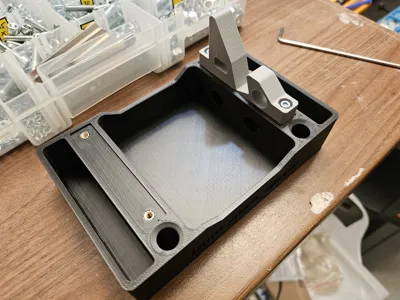

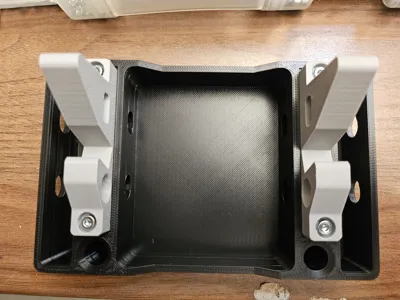

Just print the parts (no support needed) and assemble everything. Some M3 Heat-Inserts and 4 M3x10 screws are needed for assembly. Better print the model in PETG or ABS, because in summer it gets very hot under your windscreen. So PLA might not be the best choice.

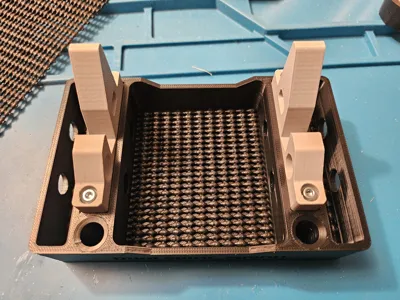

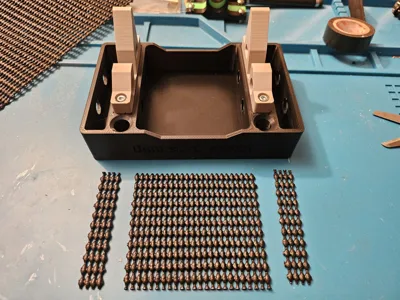

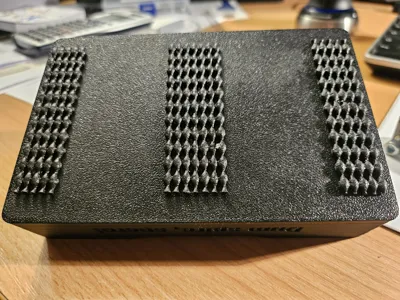

For better adhesion I addes some pieces of a rubber-mat.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
