Arduino Uno Prototyping Case
Print Profile(1)
Description

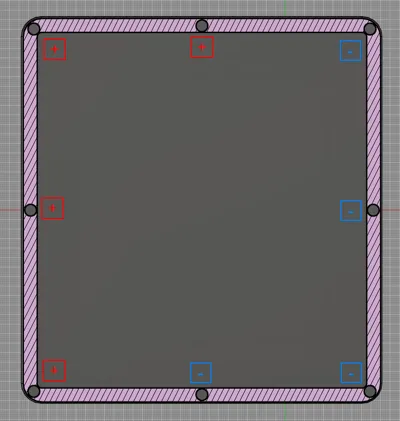

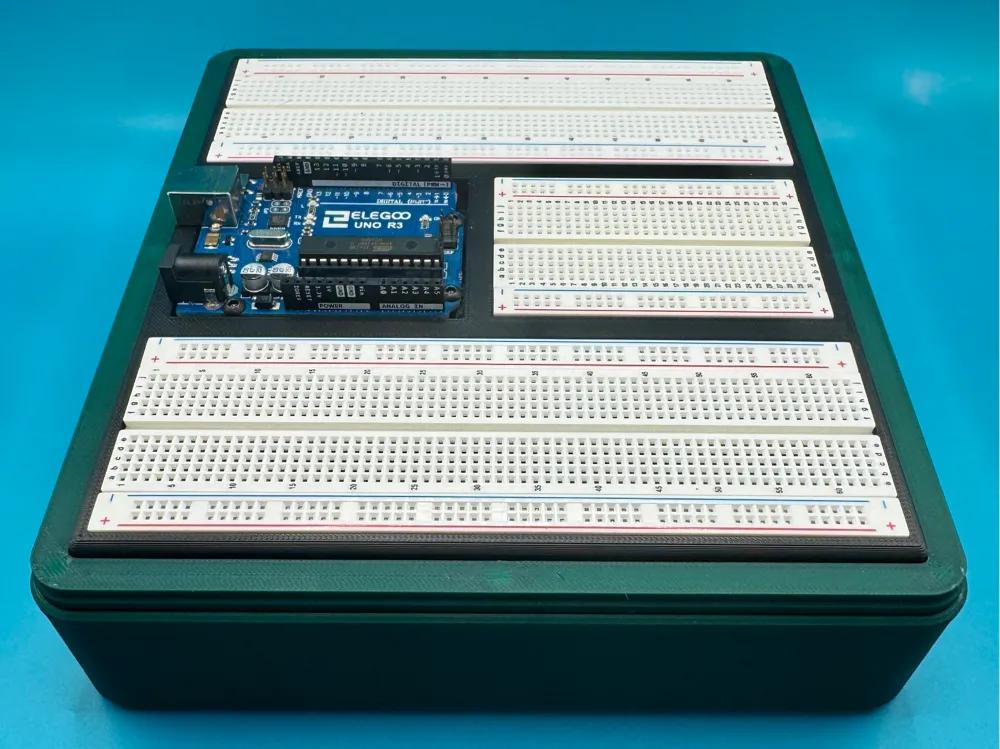

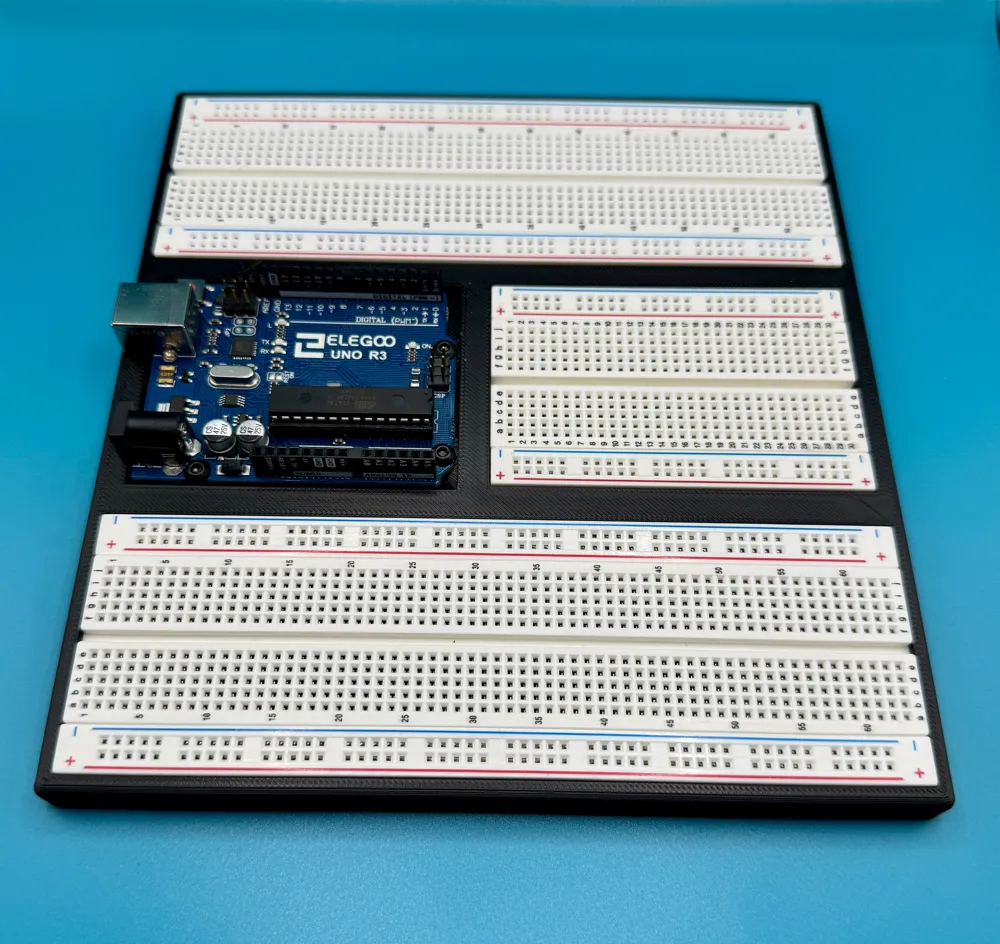

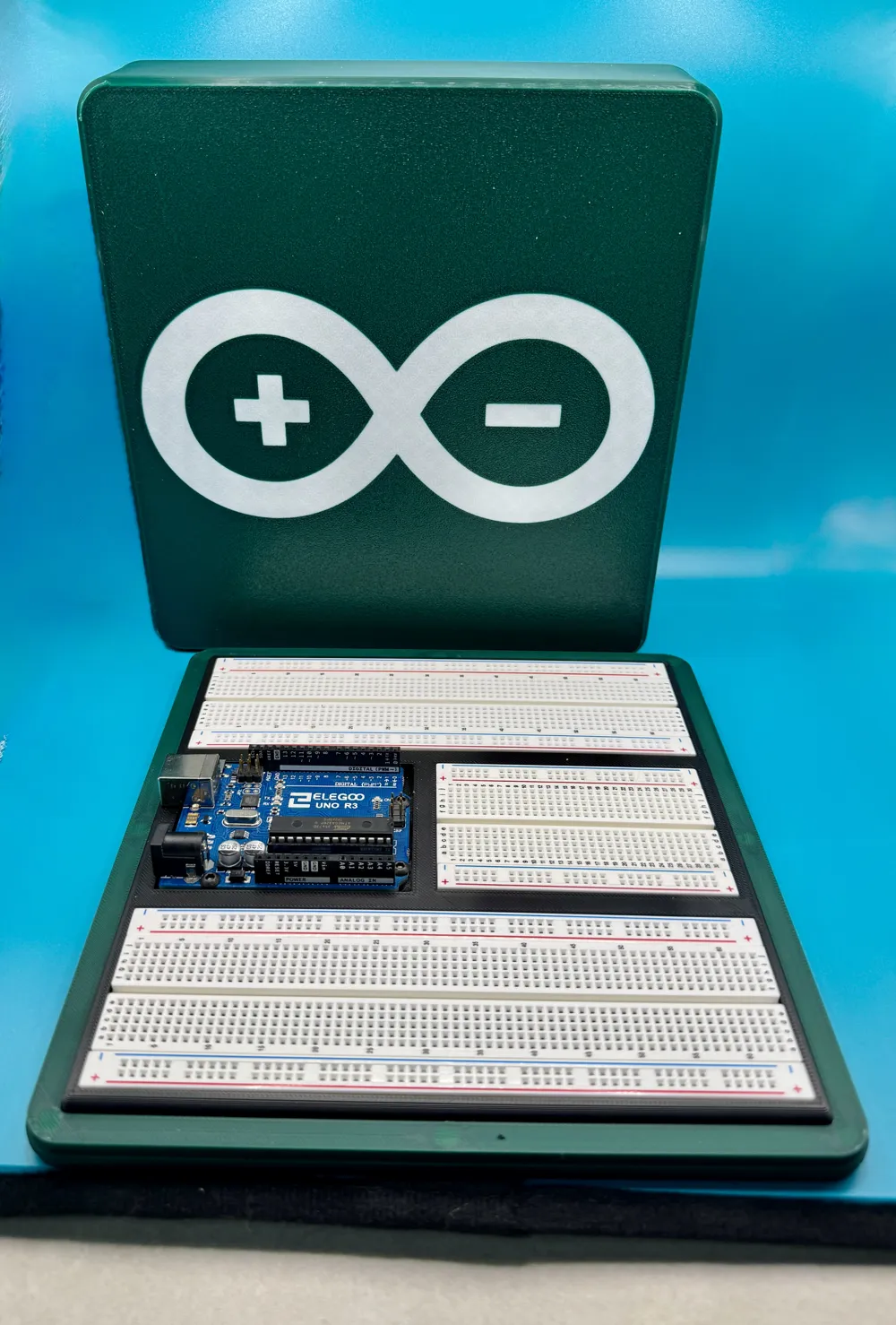

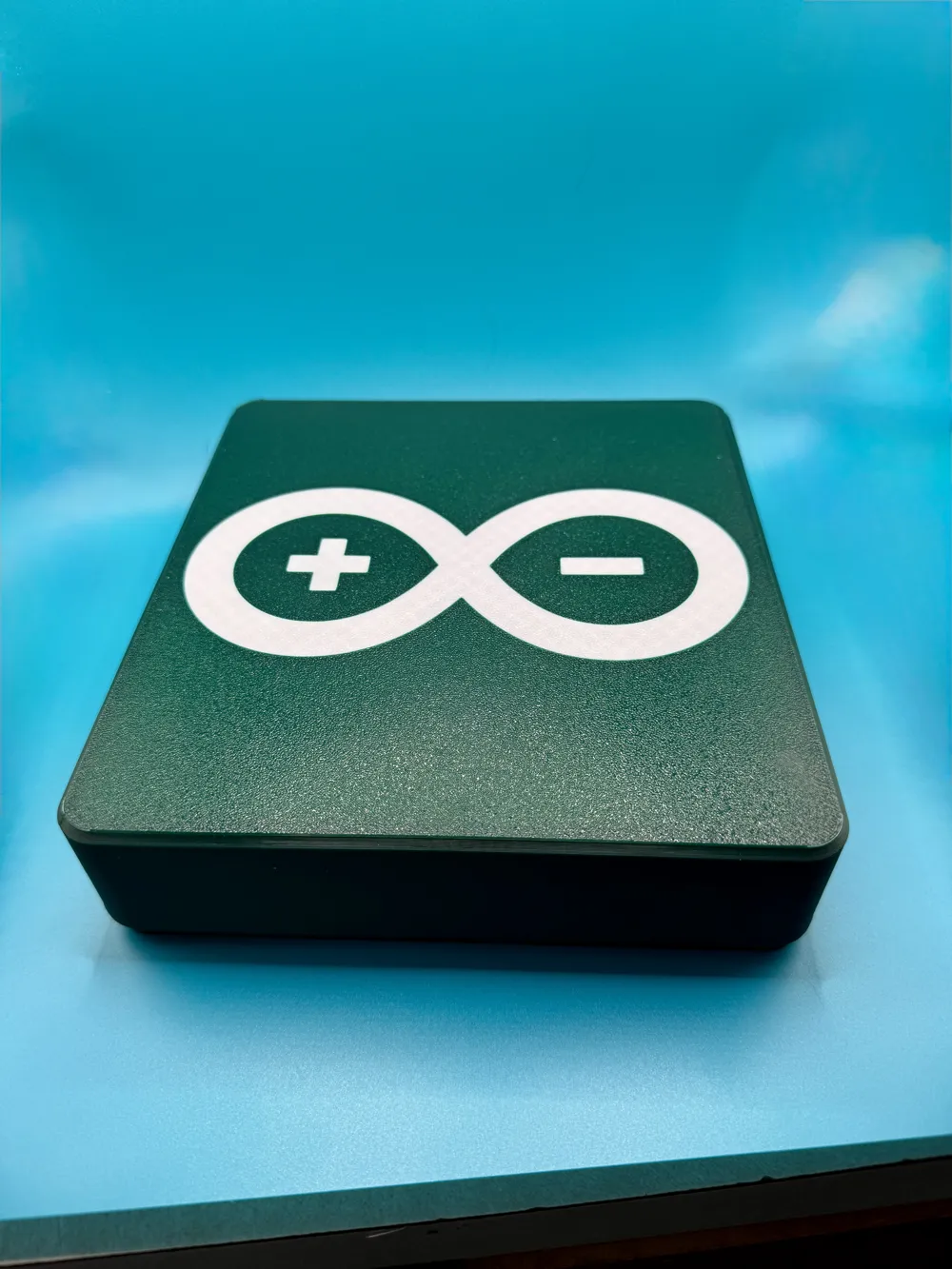

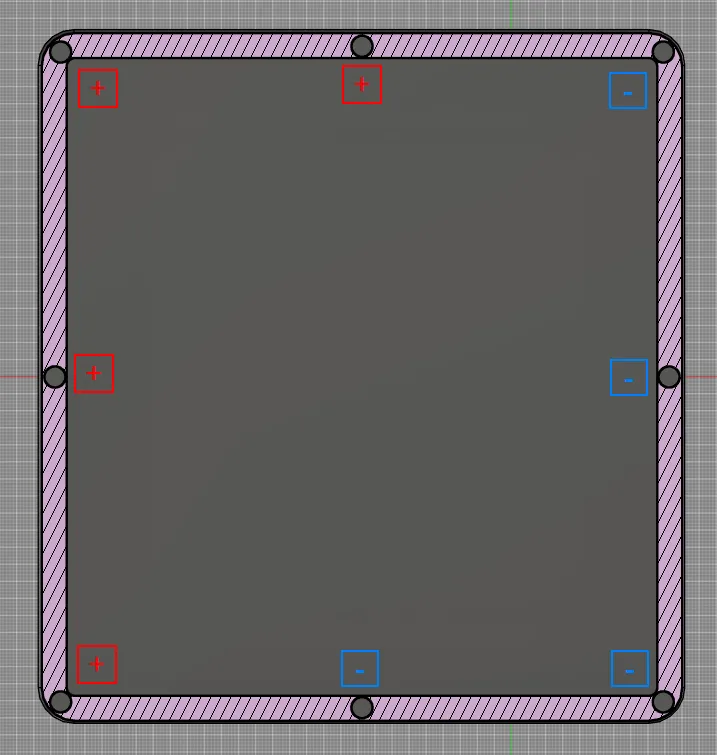

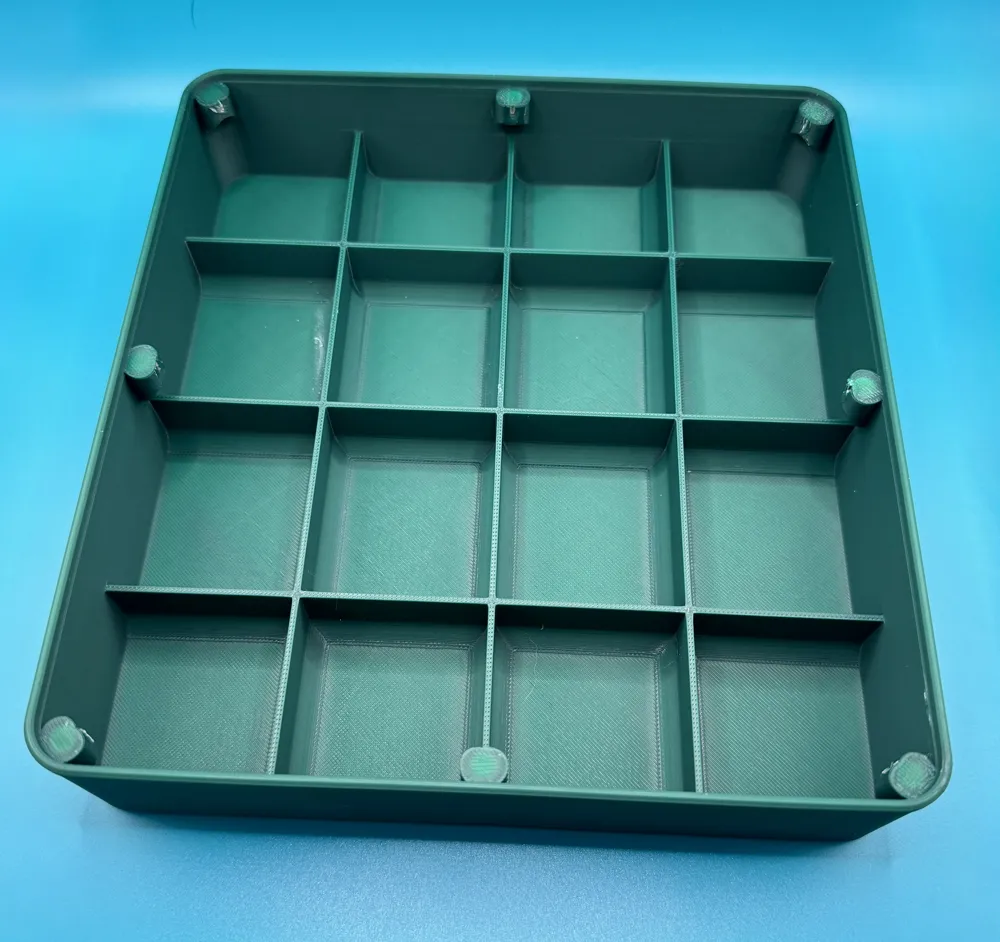

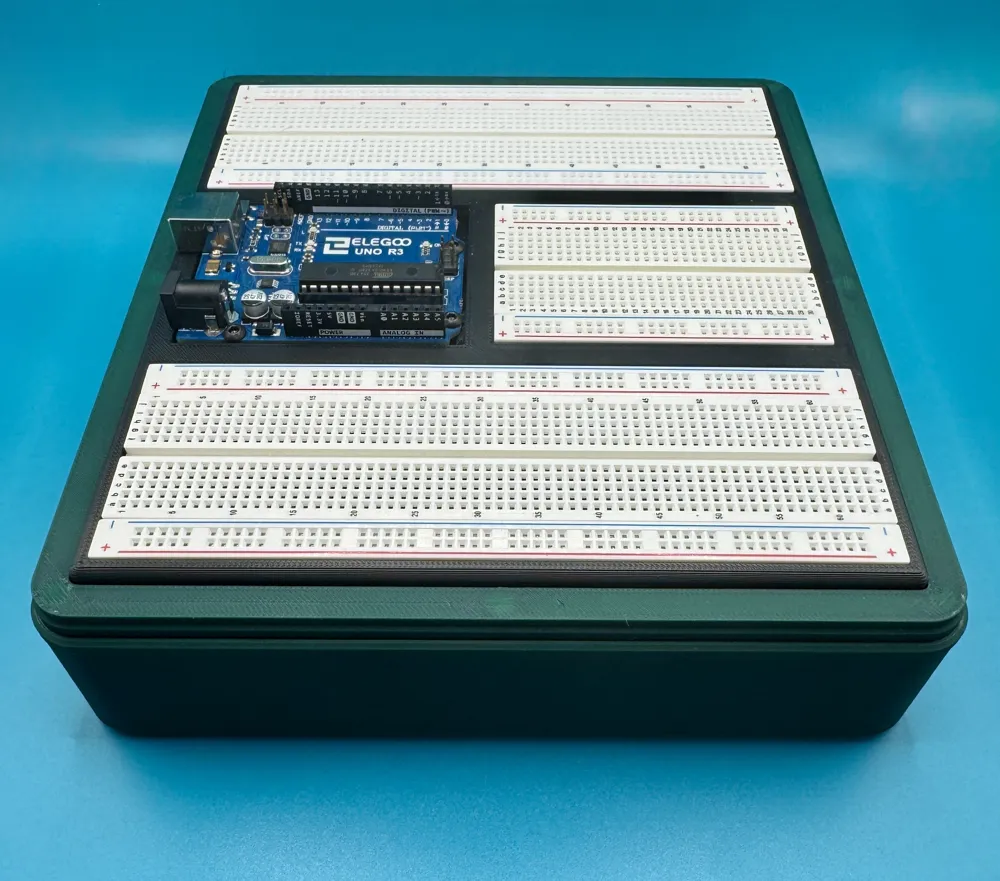

This is a case used for project prototyping using an Arduino Uno. I went with 3 breadboards to accommodate small or large projects. The lid has some compartments to keep small parts organized while working on a project. The case has magnets to keep the lid secure to the top or the bottom. Look at the last picture for the recommended magnet orientation. I oriented the magnets this way so the lid can attach to the top and the bottom. I recommend using a small amount of Super Glue when inserting the magnets so they don't come out when the print head goes over them.
The Arduino is attached using M3 heat set inserts (M3x6x5).
Below are Amazon affiliate links to the products I used in this.
Magnets:
Breadboards:
Heat Set Inserts:
