ESP32 Dev Kit C V4 NodeMCU Case
Print Profile(8)
Description

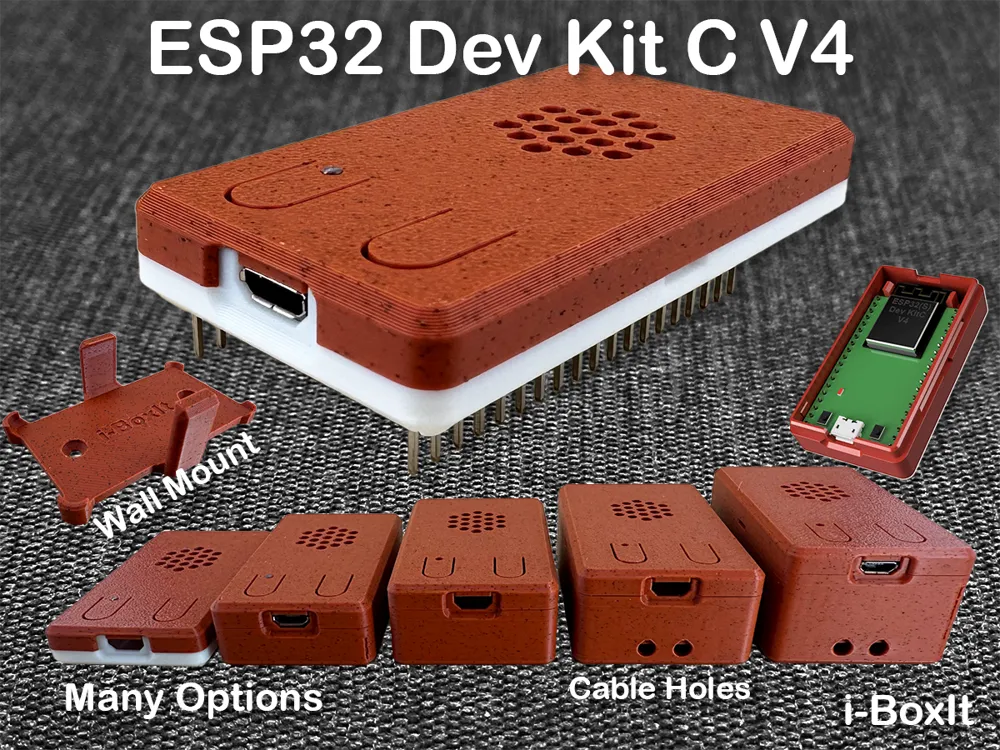

ESP32(S) Dev Kit C V4 NodeMCU Case
- Size of ESP32 Dev Kit C V4 NodeMCU board expected: and Micro-USB
- Snapfit
- Wall Mount
- Reset button
- Led hole tubes
- Use transparent PLA as a light emitter
- Stick from outside to inside and cut it with a side cutter - Connection cable holes and cable mount
For cable mount use screw 2x6mm or 2x8mm - Cooling grille
- Opener

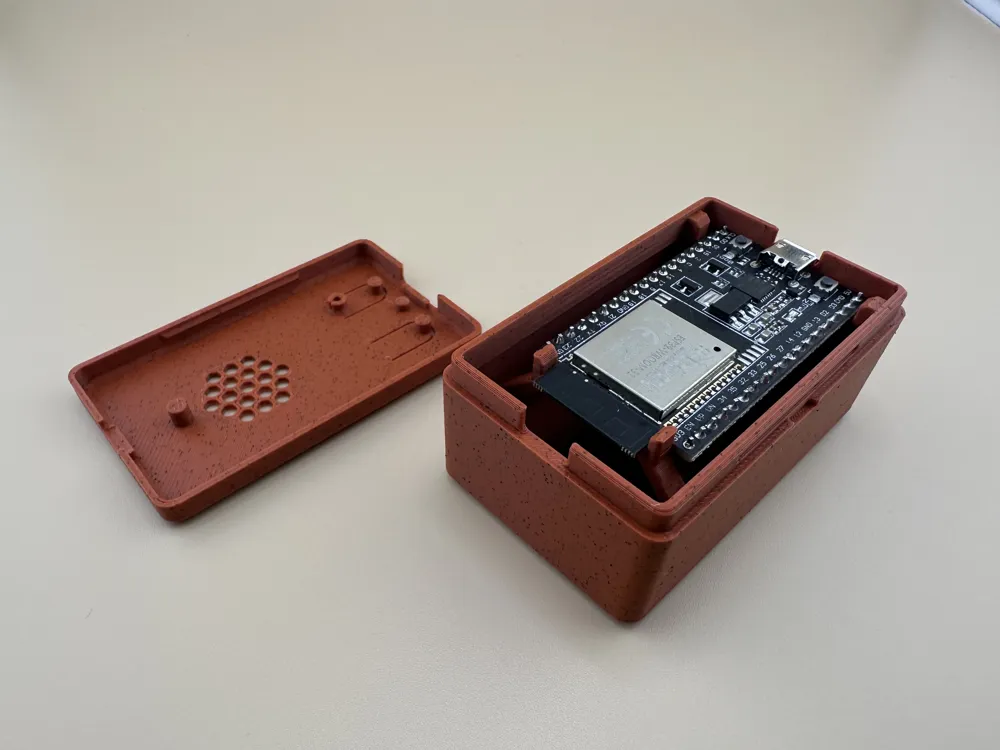

- Different Configurations
- Small Version with Header Holes
- Small Header Inside with Header Holes
- 10 mm
- 12 mm

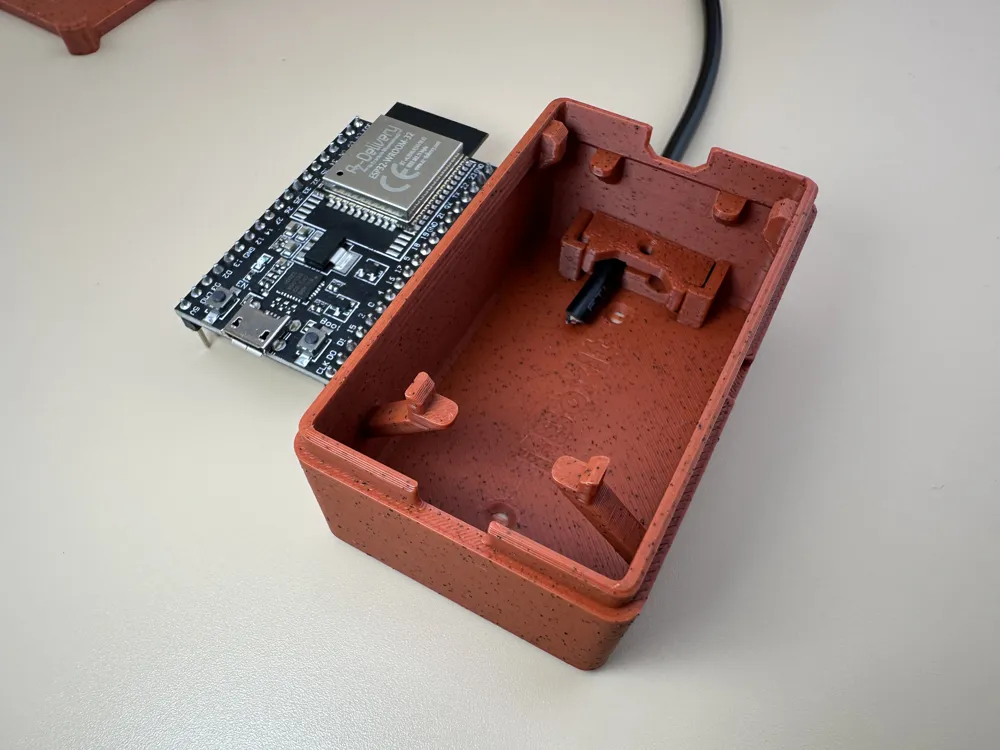

- 15 mm / inner cable mount
- 15 mm wide / inner cable mount
- 20 mm / inner cable mount
- 20 mm wide / inner cable mount

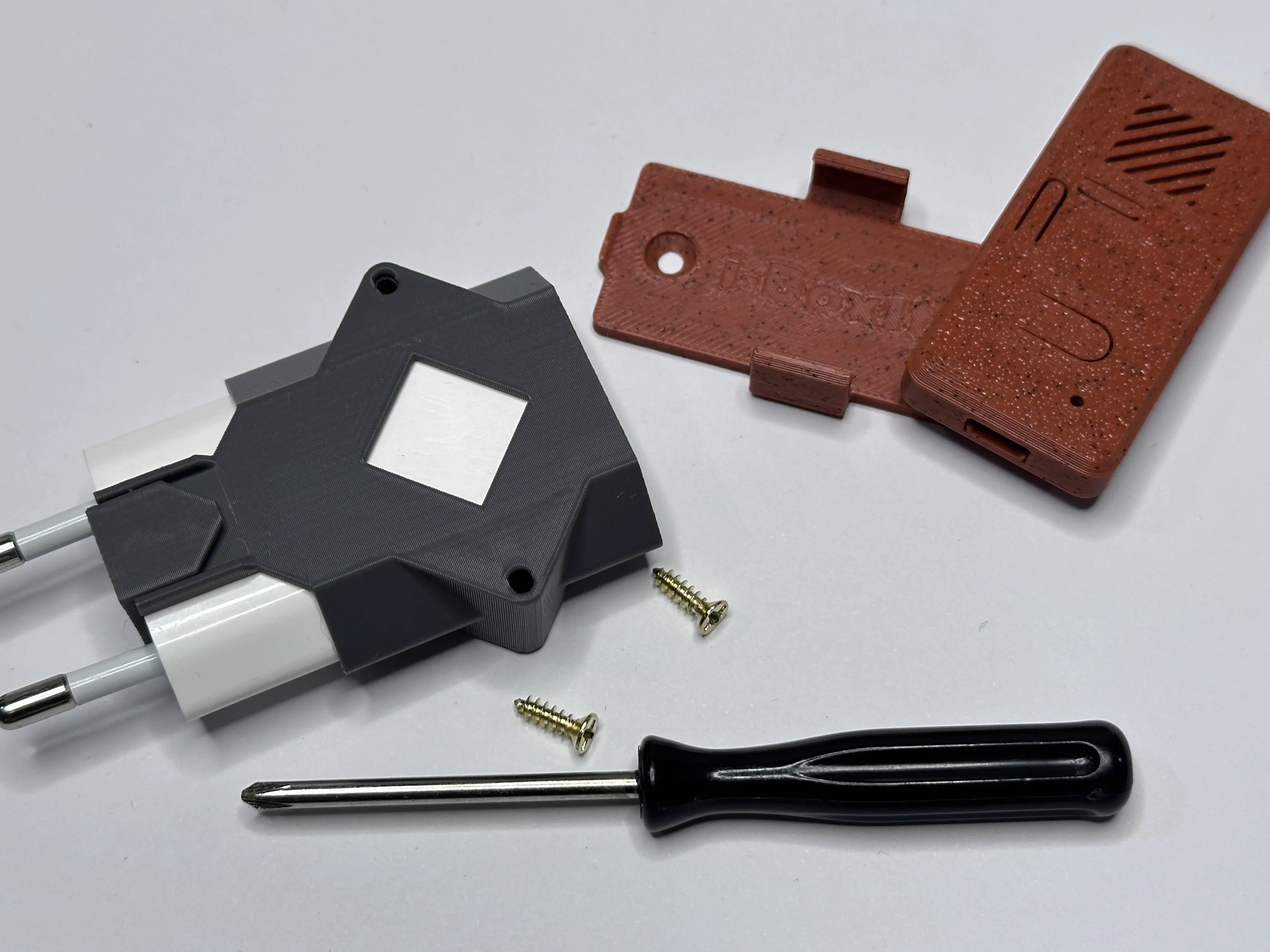

If you want to mount the case to a power adapter, see also:
If you want to mount the box to a DIN Rail, see also:
Print settings:
- 0.16 Optimal
- No support needed
