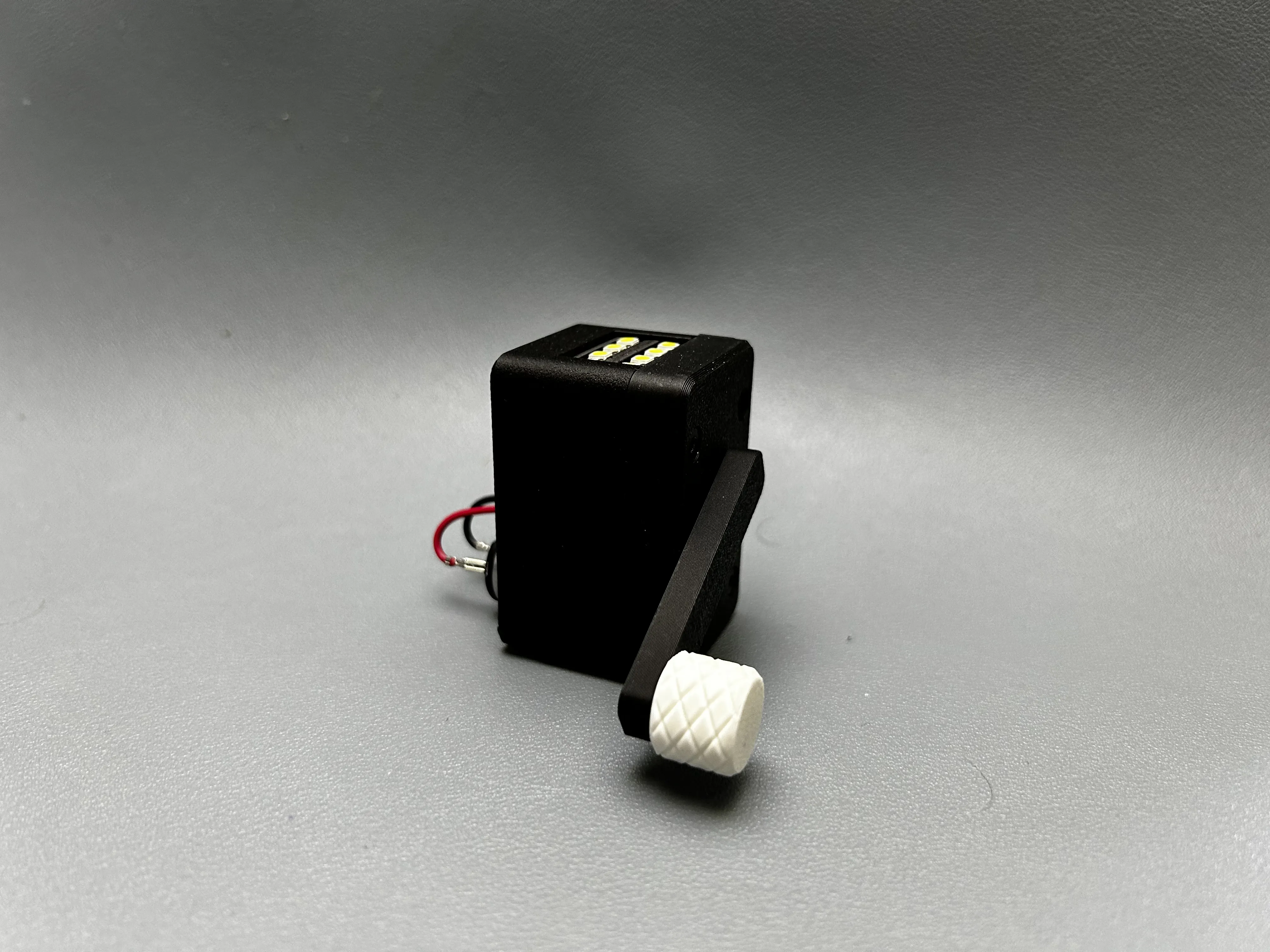

A simple dynamo torch made out of maker's beginner kit.
We will use the motor with its gears and pins, 7 screws, and 2 additional LEDs compared to the maker's kit.

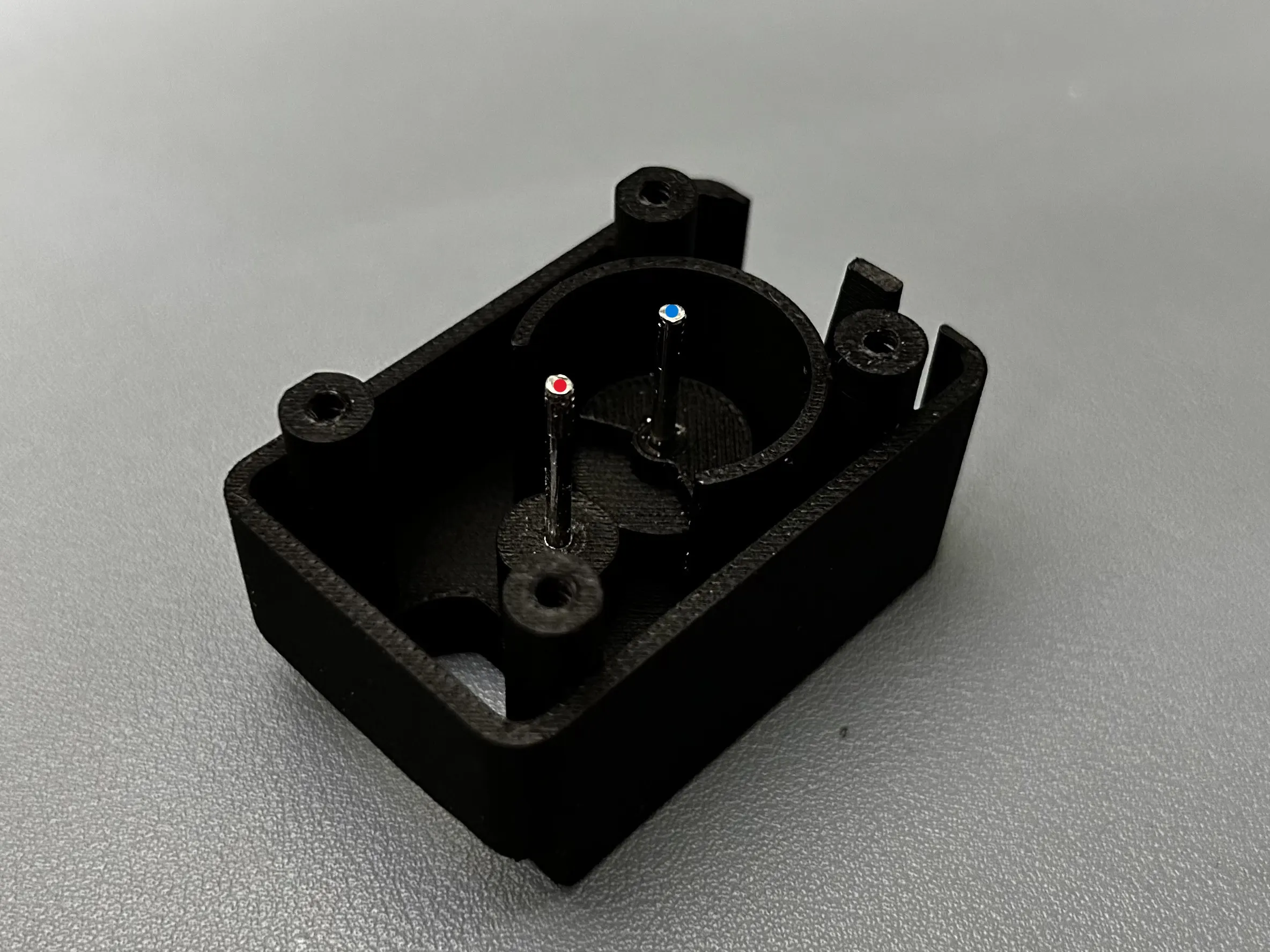

1. Insert the pins into the appropriate spaces. The one with the blue dot is the smooth pin, while the one with the red dot is the knurled one.

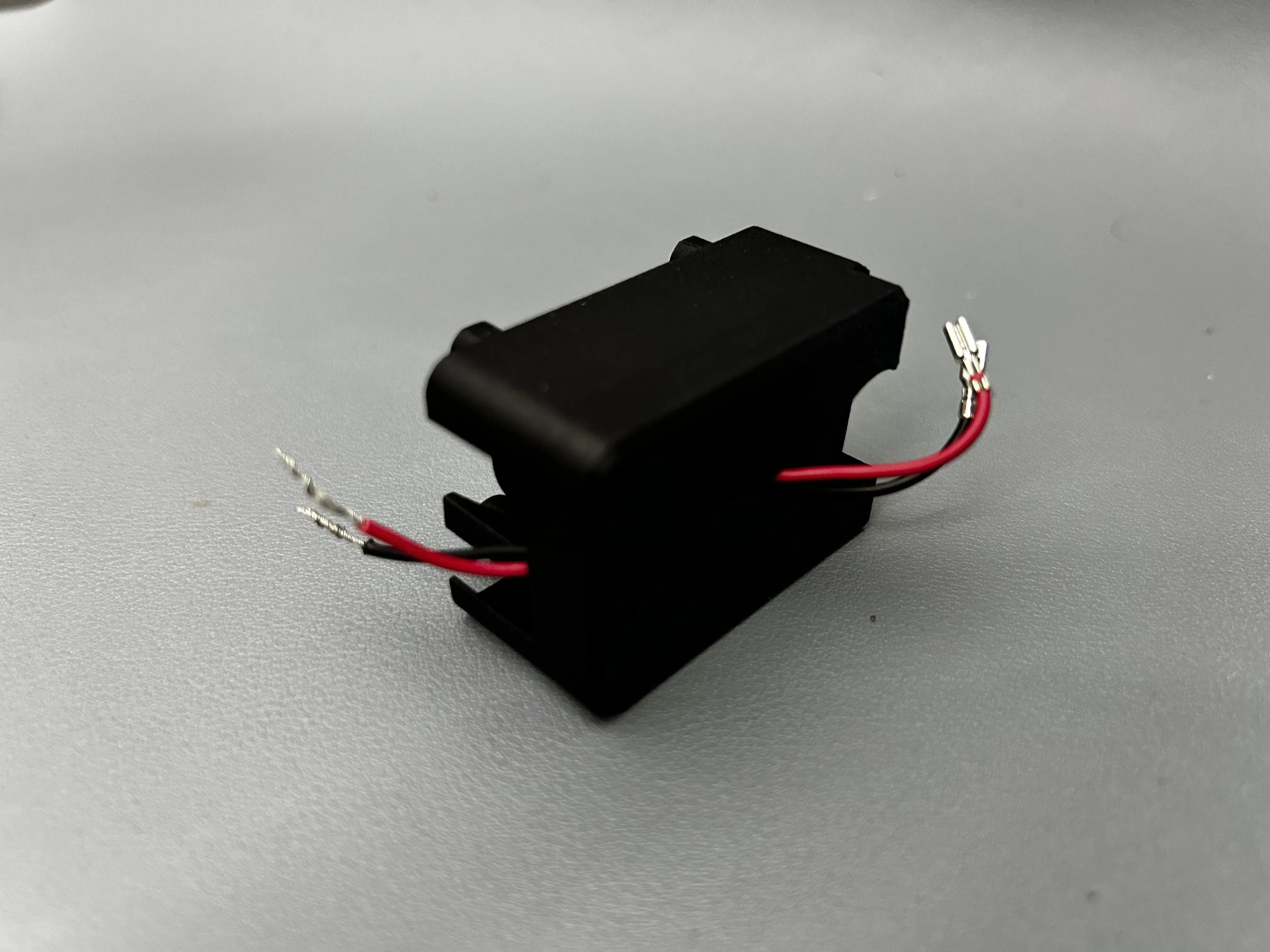

2. Cut one of the two cables in half, or take half of each, and pass them through the hole provided.

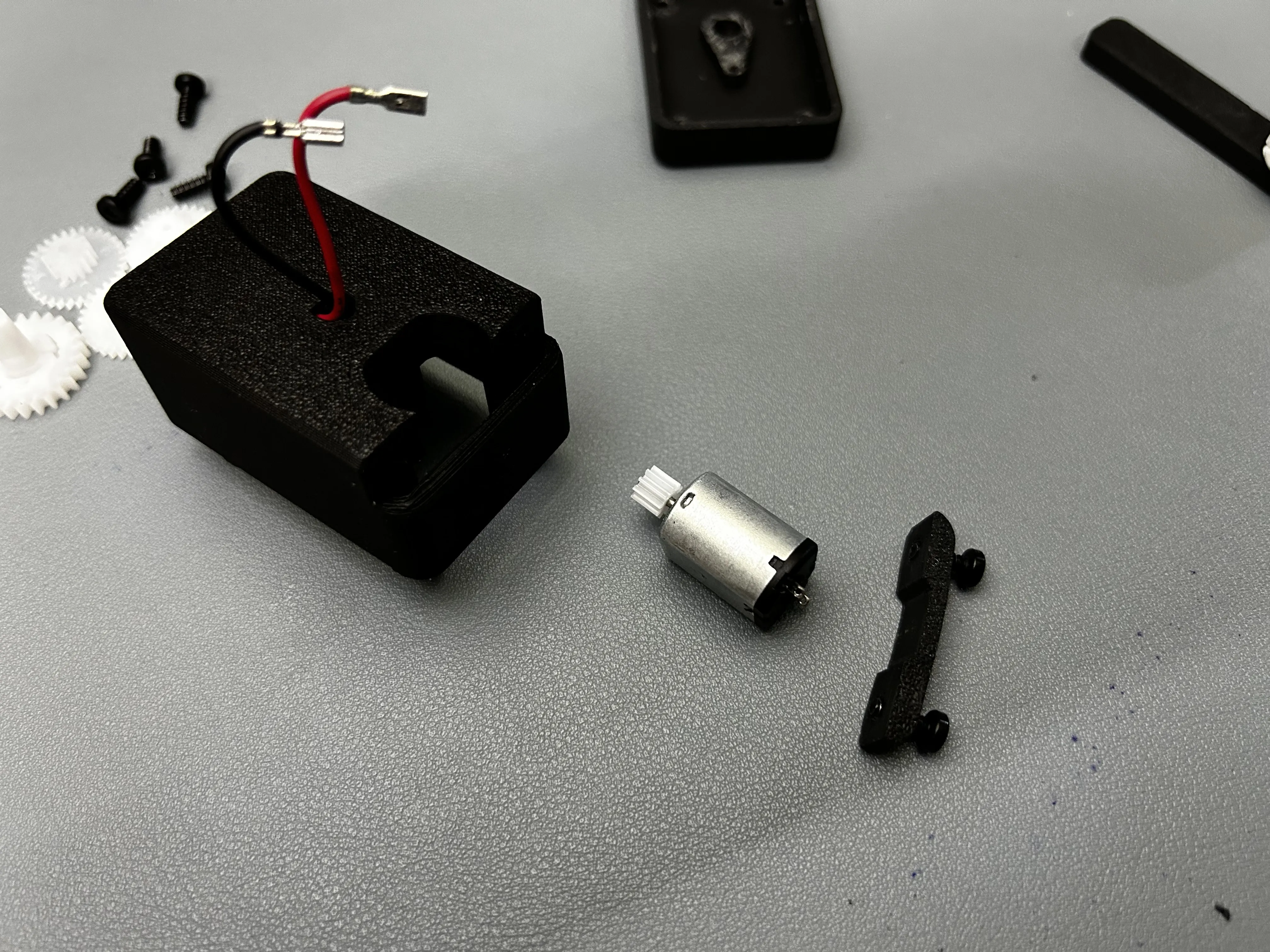

3. Fix the motor with the appropriate piece, and two screws. Do not tighten the screws too much, so as to adjust the height of the motor when we insert the gears.

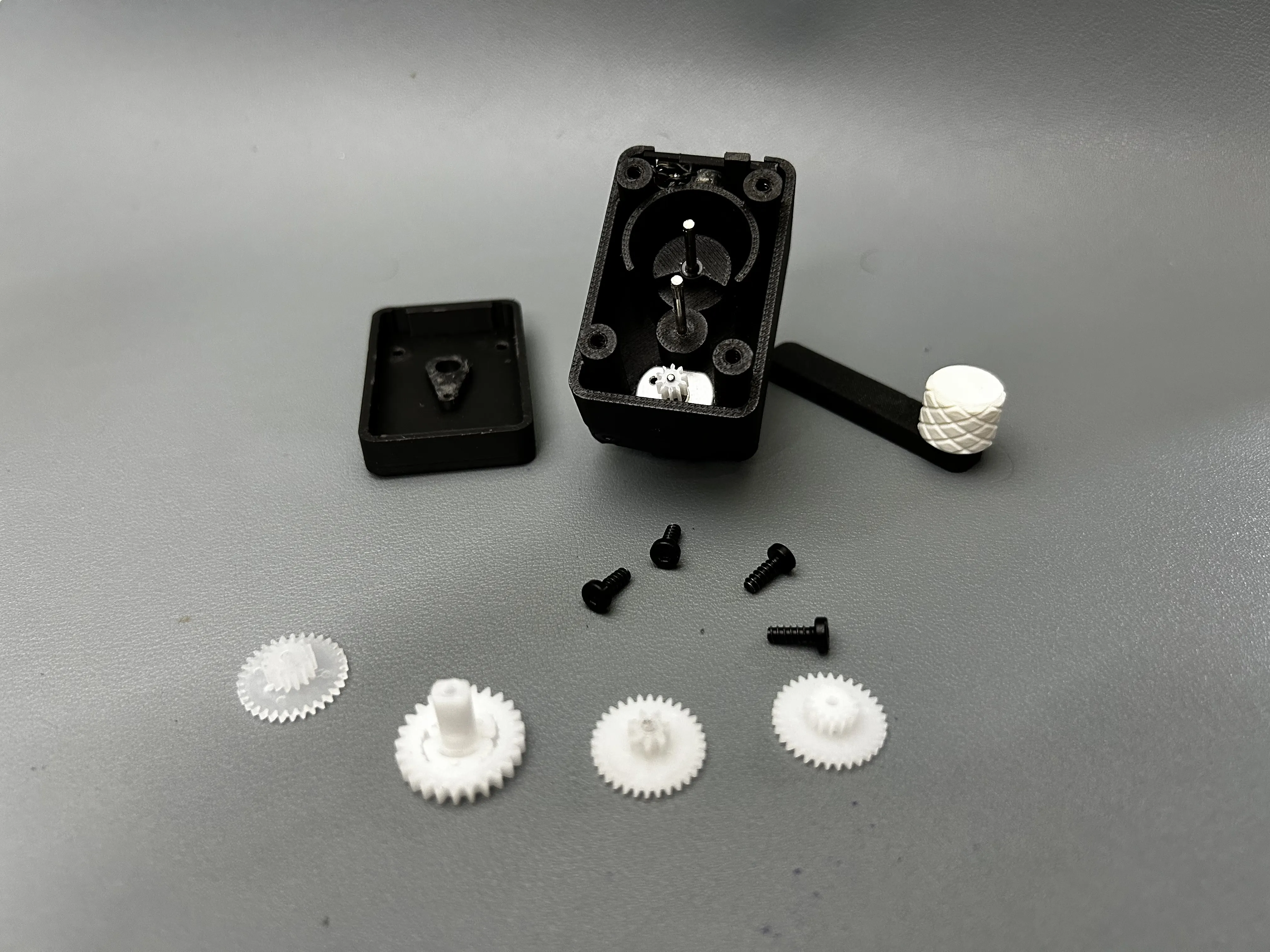

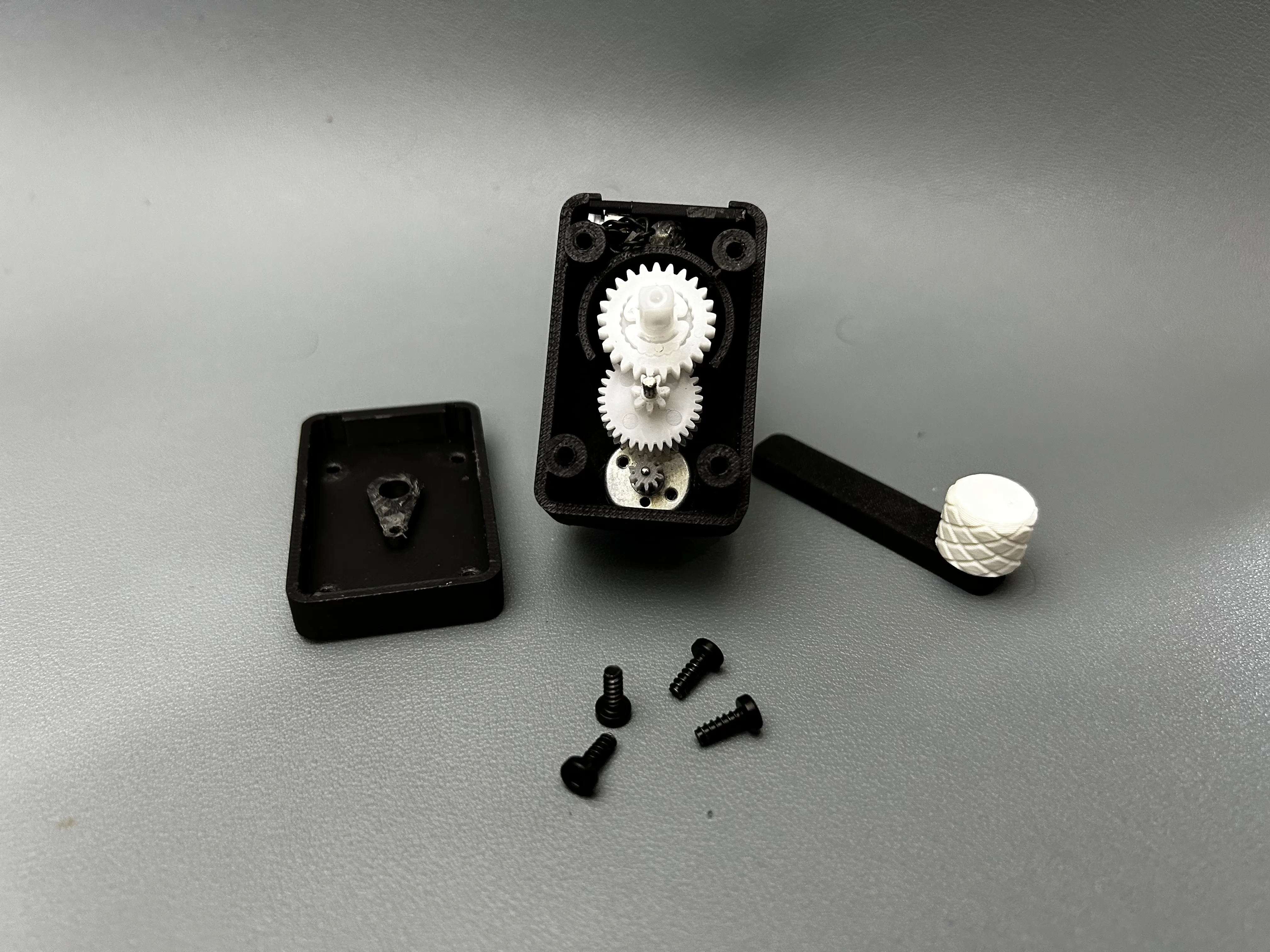

4. Now insert the gears into the pins

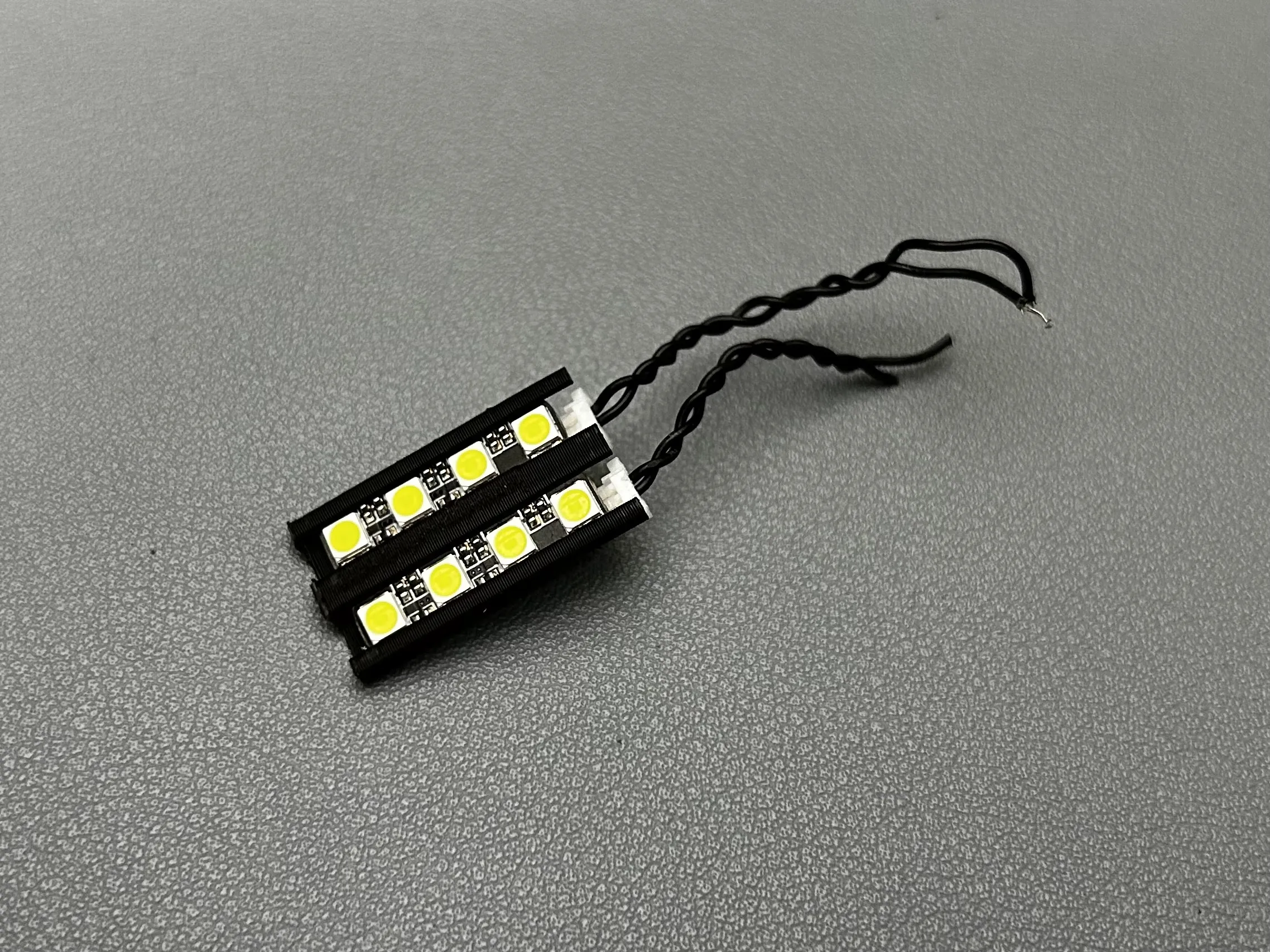

5. Now take the LEDs, with the cables provided you will have to make a connection.
With the cables passed previously, we will connect our LEDs in parallel.

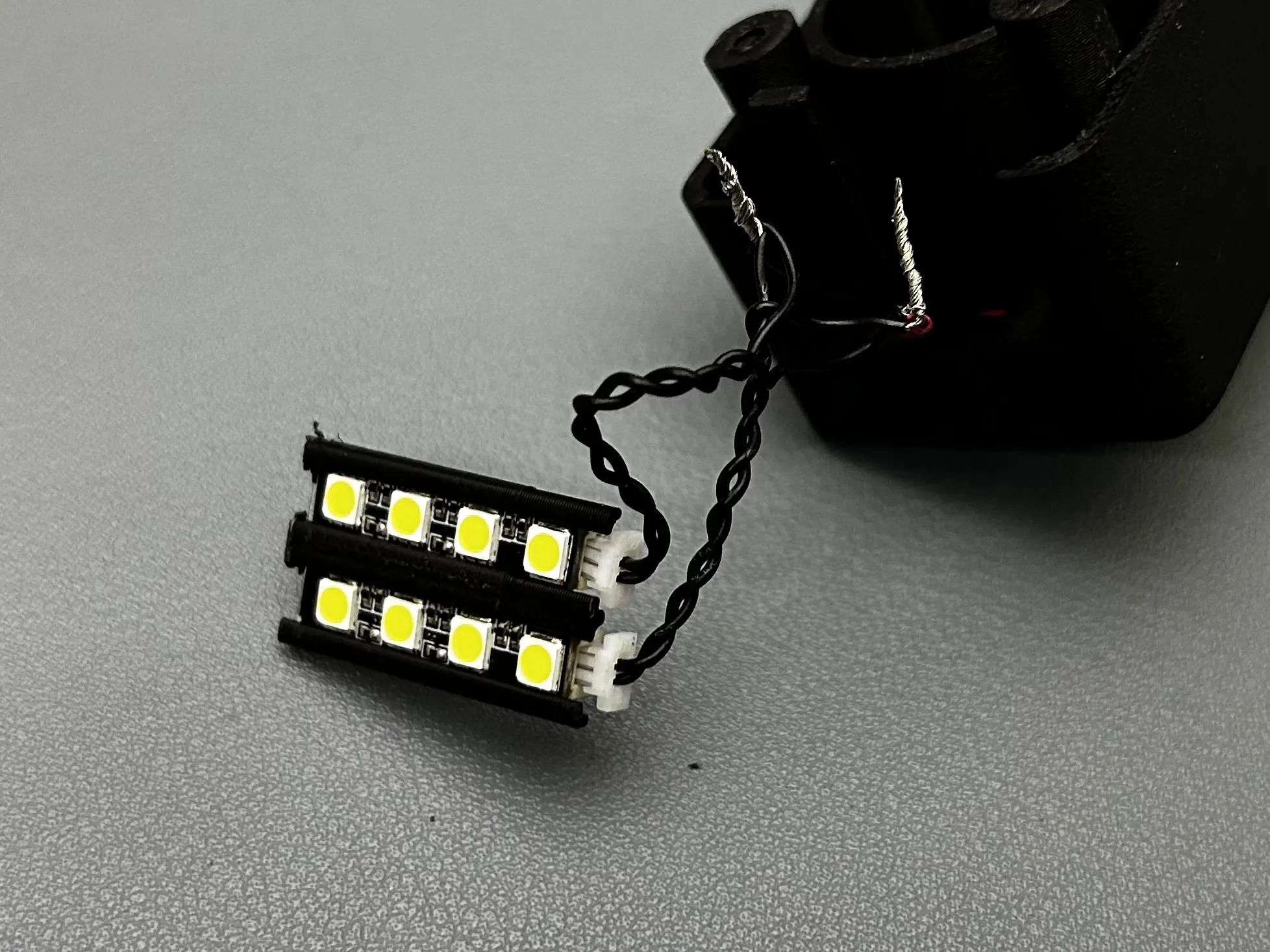

Connect the two LEDs in parallel, and then connect the cables already present.
If doing a test while turning the engine, nothing turns on, do not worry, you will only need to invert the connection on the engine. If instead one of the two LEDs does not turn on, invert the polarities of the LED that does not turn on.

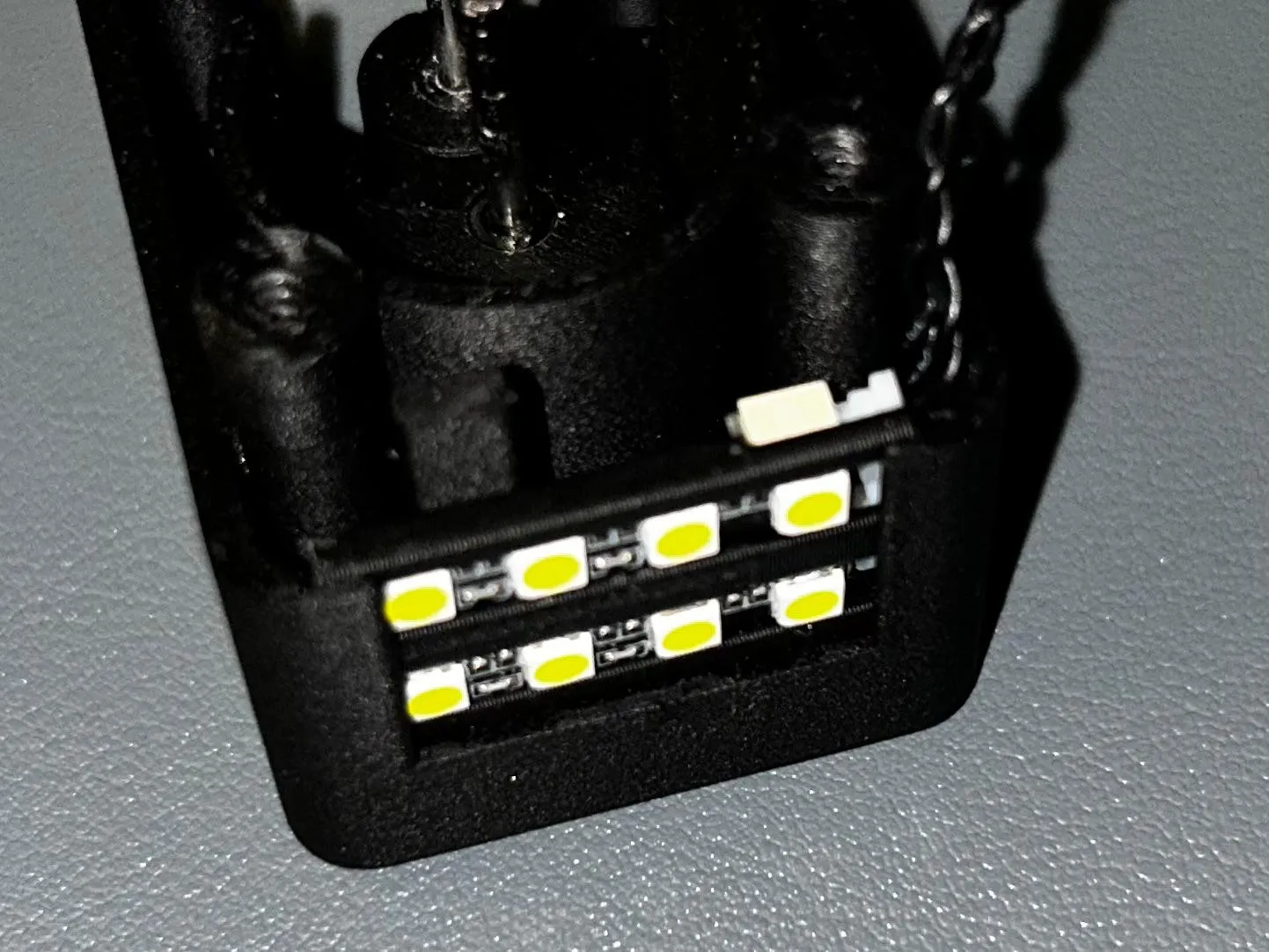

Once this is done, insert the two LEDs into their jar, then insert the tray with the LEDs inside the torch

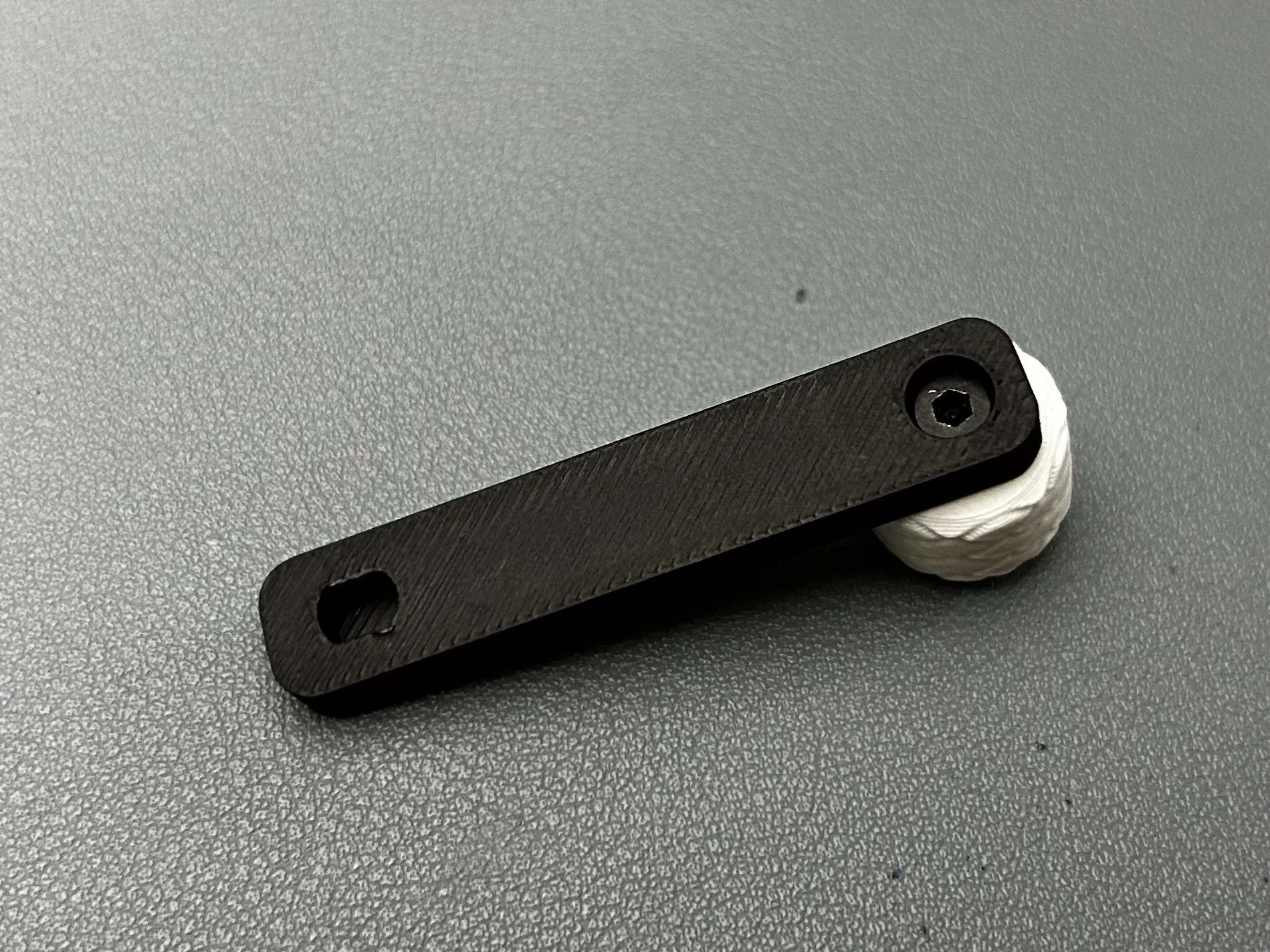

6. With a screw fix the knob to the crank
7. Now if the engine is at the correct height, tighten the screws. With 4 more screws close with the cover.

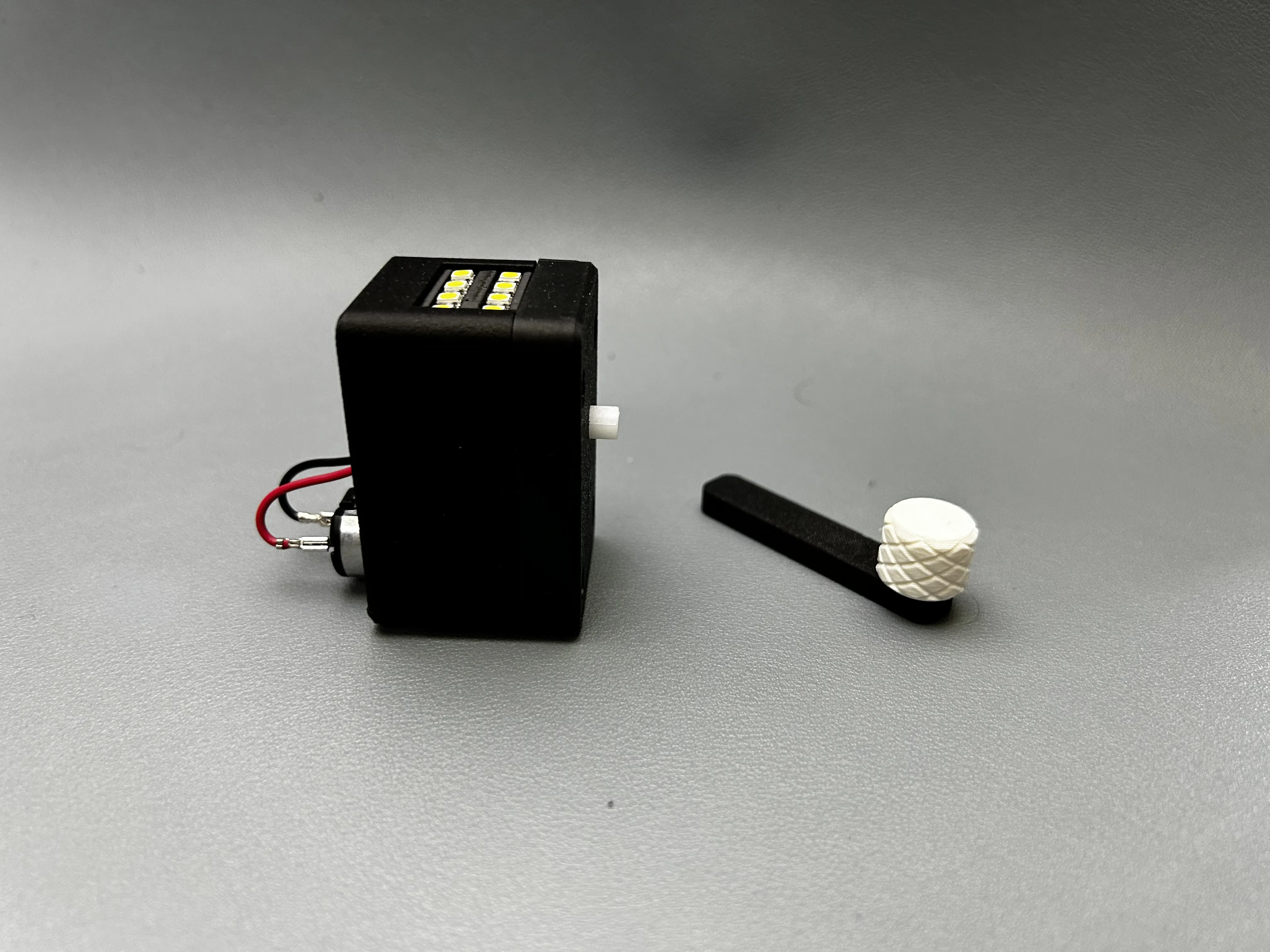

8. Put the handle on the gear, and your dynamo torch is ready!
---------------------------------------------------------------
